Ultraviolet Lamp Sterilization USB UV Light Ozone Air Purifier
Product Description
Basic Information
Model NO.
H-type uv lamp
Wavelength
UV-C
Specification
H Shape, Double end uv lamp
Material
Glass
Type
H-Type UV Lamp
Tube Material
Clear Quartz Glass
Color
Transparent
Lamp Base
G23/G32q/2g11
Lamp Length
85-501mm
Diameter
12/17mm
Power
5-55W
Feature
Sterilization
Lamp Voltage
220V
Lamp Lifetime
8000hours
Trademark
Neutral or OEM
HS Code
8539490000
Capacity
500000/Month
Product Description

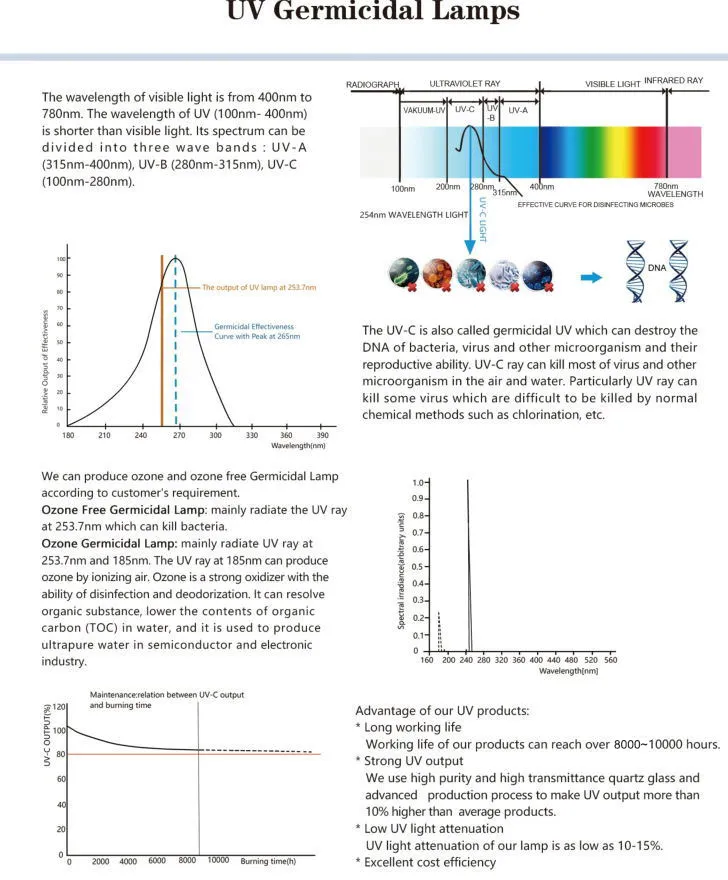

Ultraviolet sterilization is the irradiation of ultraviolet rays, which destroys and changes the DNA (deoxyribonucleic acid) structure of microorganisms, so that the bacteria immediately die or cannot reproduce the offspring and achieve the purpose of sterilization. The true bactericidal effect is UVC ultraviolet light, because the C-band ultraviolet ray is easily absorbed by the DNA of the living body, and the ultraviolet ray of about 253.7 nm is optimal.
UV germicidal lamps with different bases, diameters, and lengths are available, which offer excellent efficiency. We supply two types of UV lamps, emitting UV-C wavelength at 253.7nm, ozone-free; while emitting UV-C wavelength both at 253.7nm and 185nm, ozone-generating.
Technical Specifications
| Lamp Type | Tube Diameter | Lamp Length | Lamp Power | Lamp Current | Lamp Voltage | 254nm UV output@1M | Average Life |
|---|---|---|---|---|---|---|---|
| mm | mm | W | mA | V | μw/cm³ | Hours | |
| PLS 5W | 12 | 107/85 | 5 | 180 | 30-40 | 14 | 8000 |
| PLS 7W | 12 | 137/115 | 7 | 175 | 42-62 | 16 | 8000 |
| PLS 9W | 12 | 167/145 | 9 | 170 | 54-66 | 23 | 8000 |
| PLS 11W | 12 | 237/215 | 11 | 155 | 81-99 | 38 | 8000 |
| PLS 13W | 12 | 186/164 | 13 | 300 | 48-62 | 40 | 8000 |
| PLL 18W | 17 | 217/195 | 18 | 375 | 52-64 | 57 | 8000 |
| PLL 24W | 17 | 317/295 | 24 | 345 | 77-97 | 94 | 8000 |
| PLL 36W | 17 | 411/379 | 36 | 435 | 98-118 | 147 | 8000 |
| PLL 40W | 17 | 533/501 | 40 | 385 | 130-150 | 155 | 8000 |
| PLL 55W | 17 | 533/501 | 55 | 550 | 110-130 | 170 | 8000 |
Remark: Available in No-ozone, ozone, and high ozone options. Lampholders: G23, G32q, 2G11. Customization of power and length available upon request.
Applications
✨Air purifiers & Conditioners
✨Disinfection cabinets
✨Microwave ovens
✨Schools & Offices
✨Hotels & Restaurants
✨Home sterilization

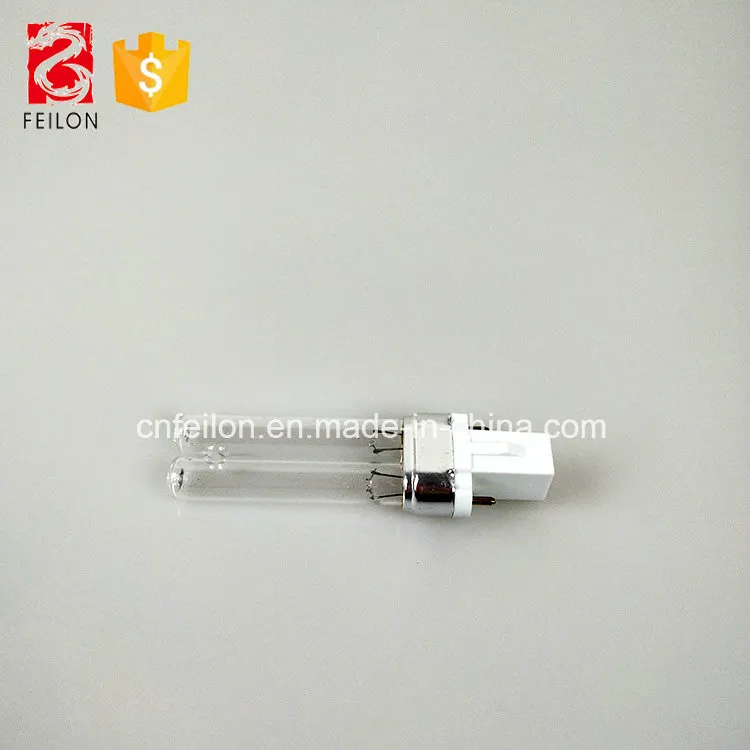

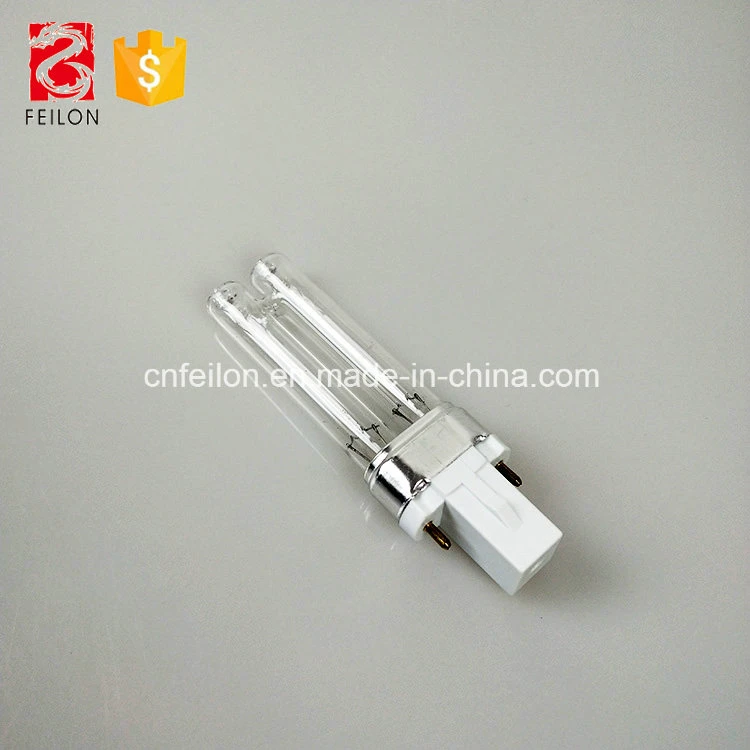

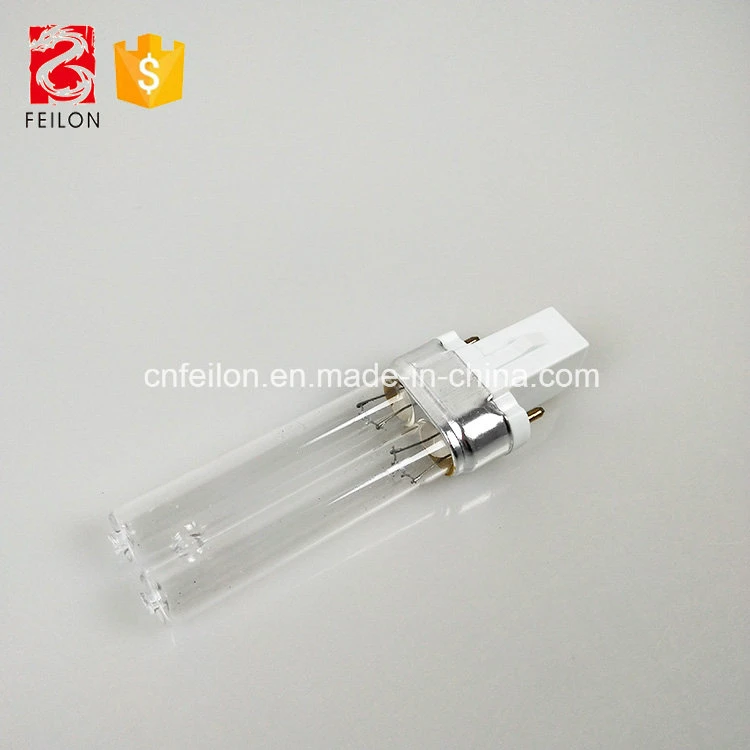

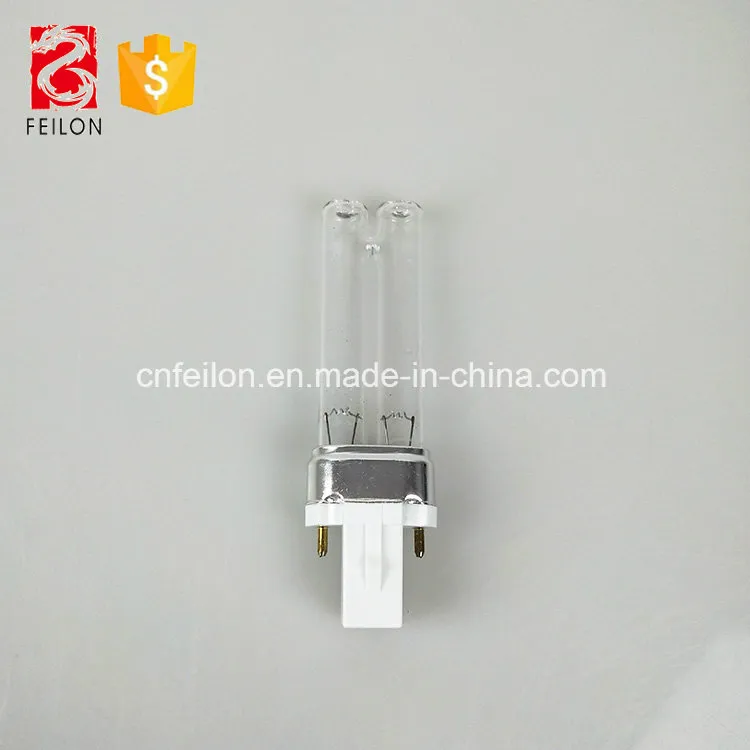

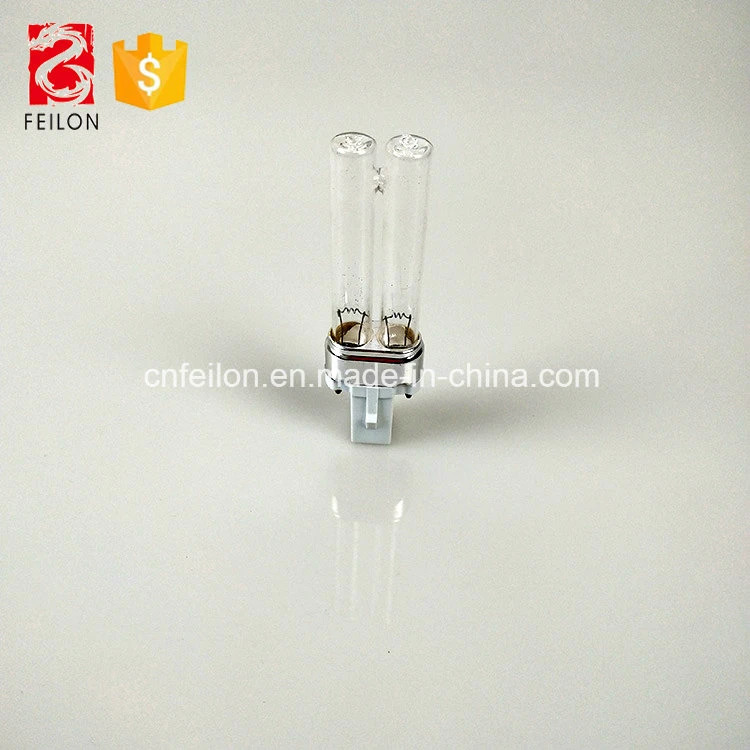

Product Photos
Related Products & Components

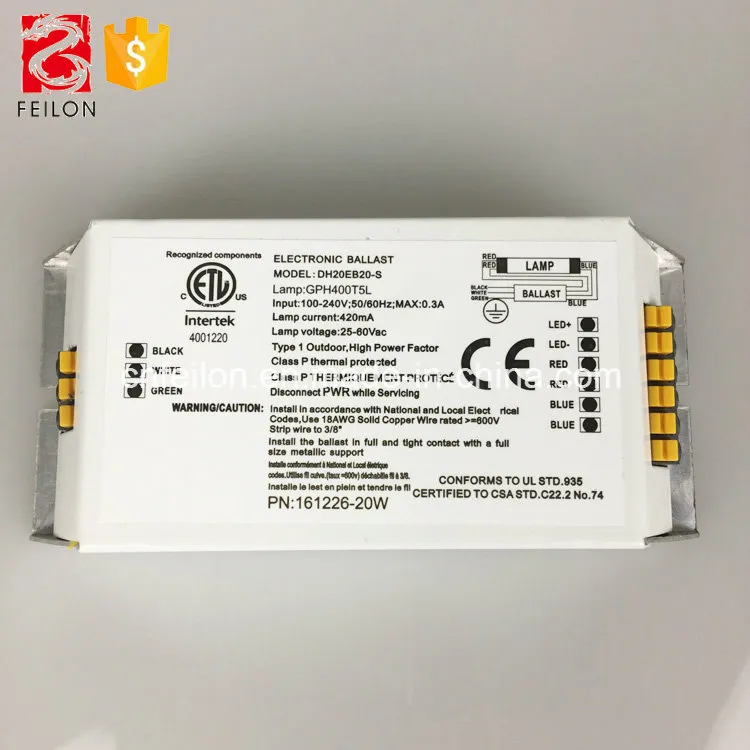

UV Ballast: Compatible with UV lamps, specifications: DC12V/24V, 110V/220VAC.
Frequently Asked Questions
What is the primary wavelength used for sterilization in these lamps?
The optimal bactericidal effect is achieved with UVC light at a wavelength of approximately 253.7 nm, which effectively destroys the DNA structure of microorganisms.
Are there different types of H-type UV lamps available regarding ozone production?
Yes, we provide two main types: ozone-free lamps emitting 253.7nm and ozone-generating lamps emitting both 253.7nm and 185nm.
What is the average lifetime of these UV germicidal lamps?
These lamps are designed for long-term performance with an average lifetime of approximately 8,000 hours.
Can I use these lamps for residential air purification?
Absolutely. These lamps are ideal for air purifiers, air conditioners, and general air sterilization in homes, schools, and offices.
What materials are used for the lamp construction?
The tubes are manufactured using high-quality clear quartz glass to ensure maximum UV transmission and durability.
Is it possible to customize the lamp power and length?
Yes, we can customize the wattage and length of the UV lamps based on specific customer requirements and applications.
