UV-C Lamp Gph150t5l for Effective Water Purification Long Life UPS to 10000-13000hrs.
Product Description

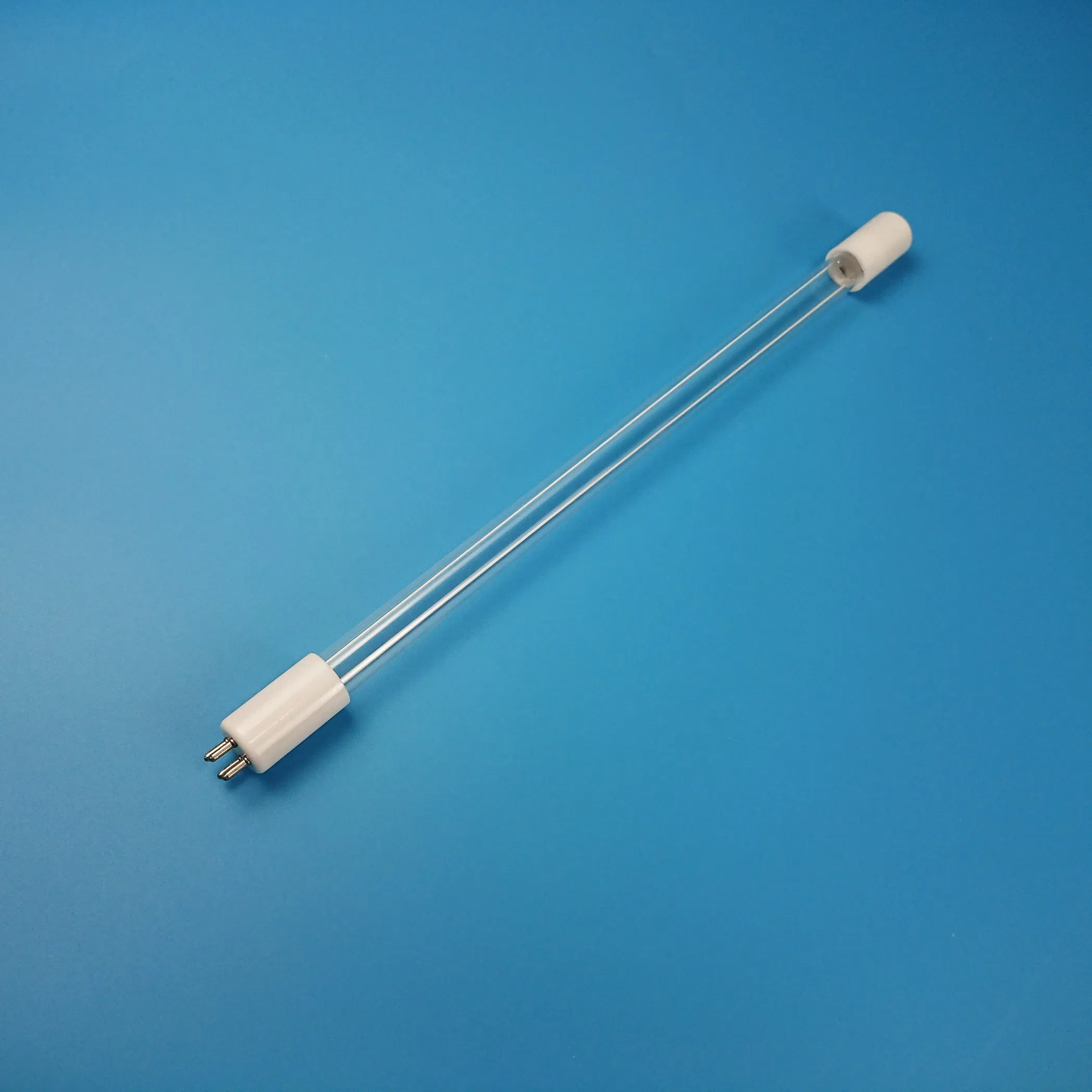

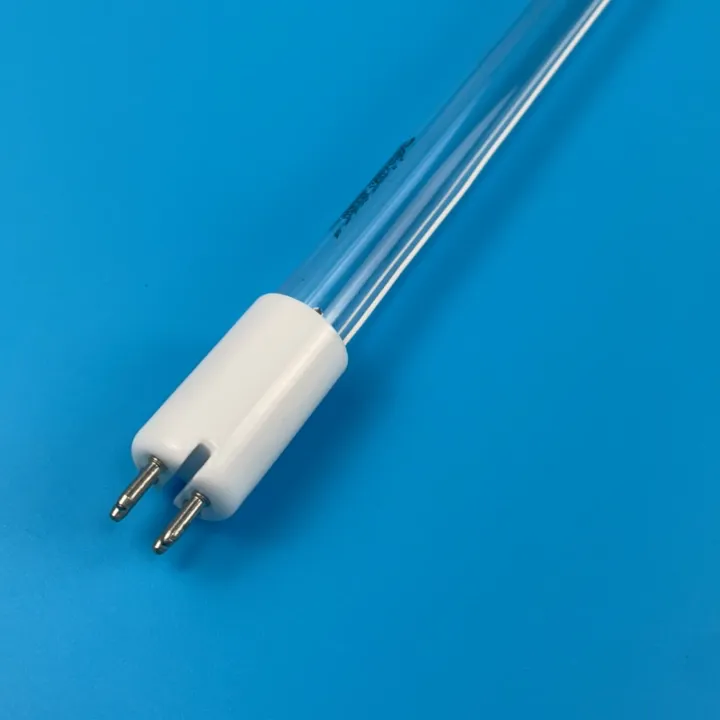

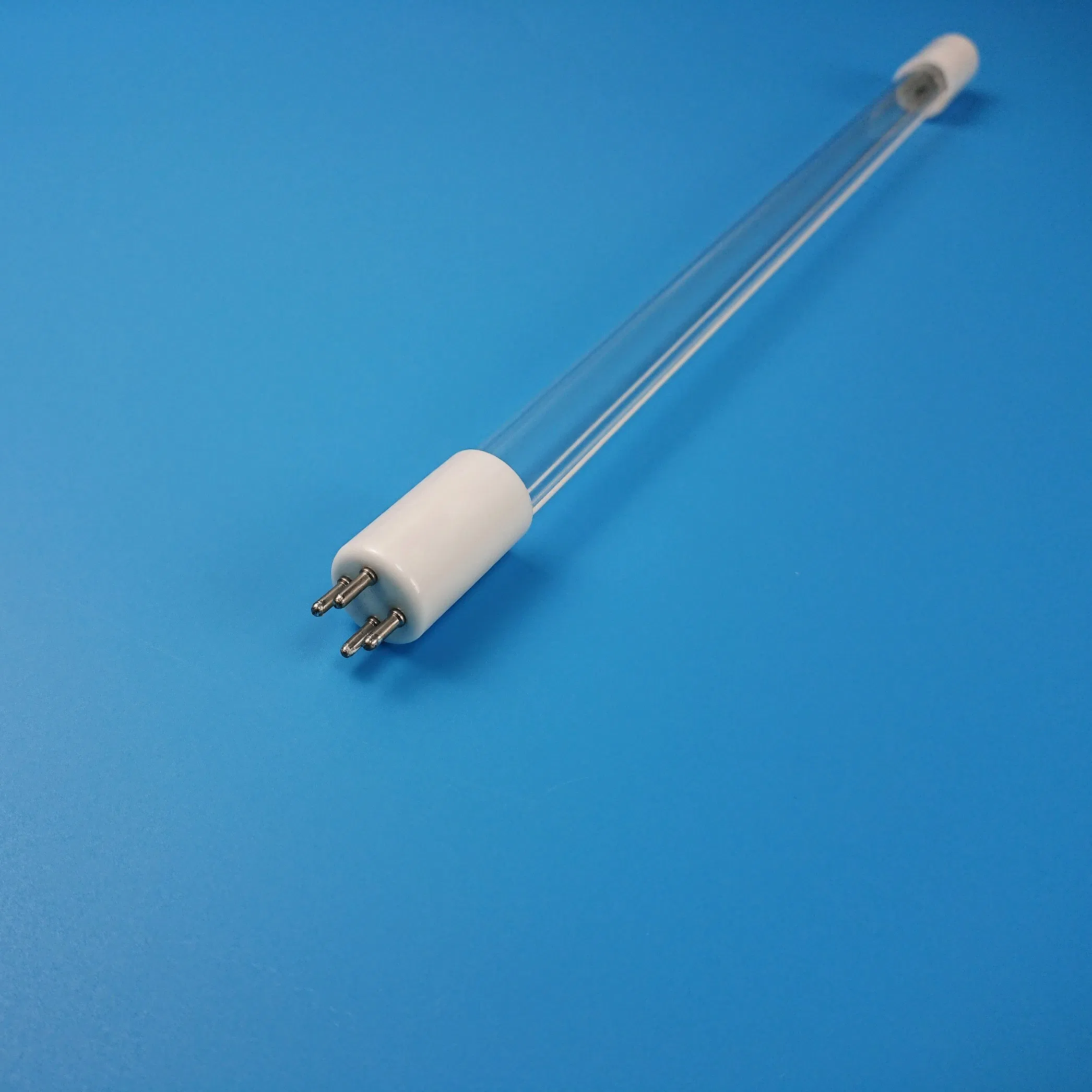

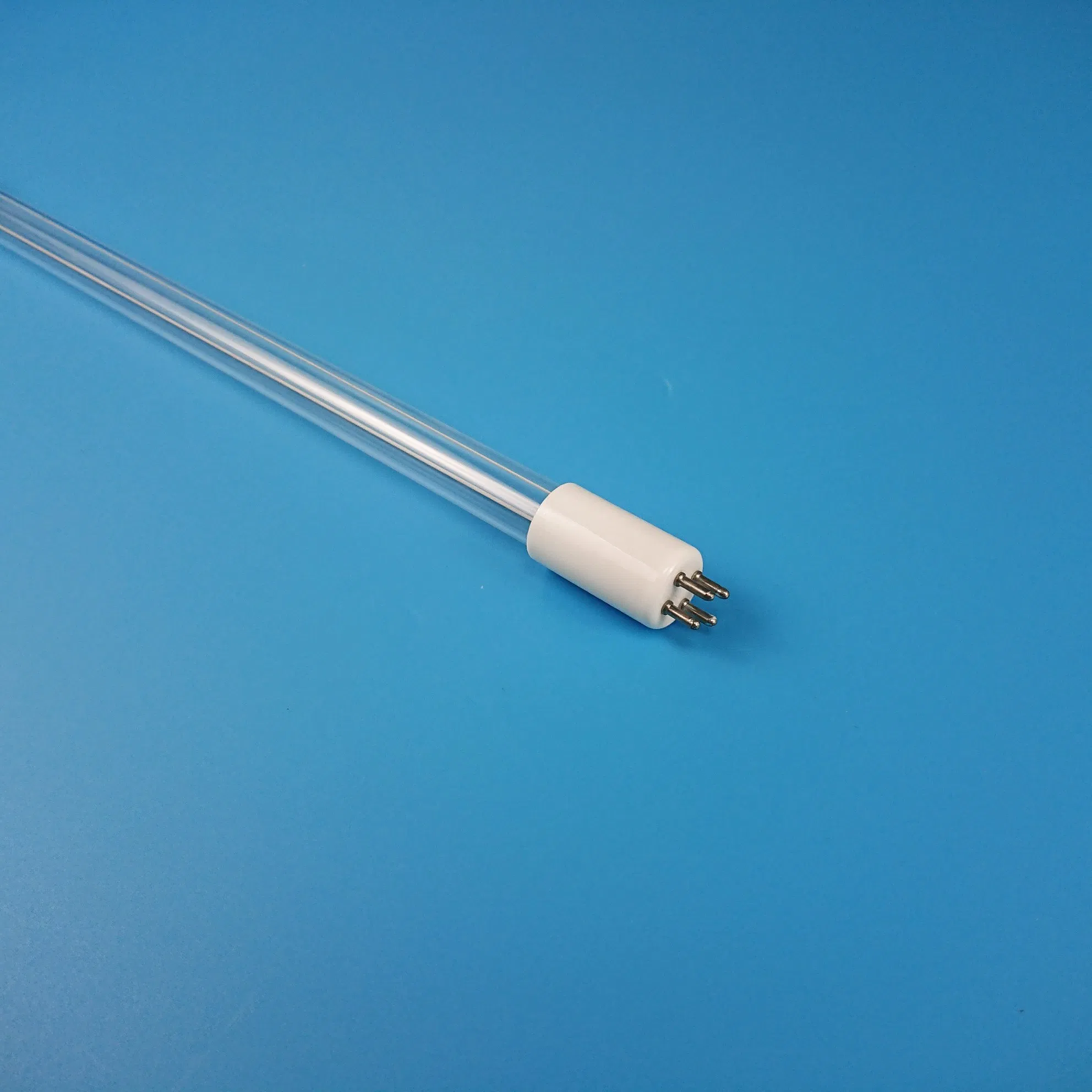

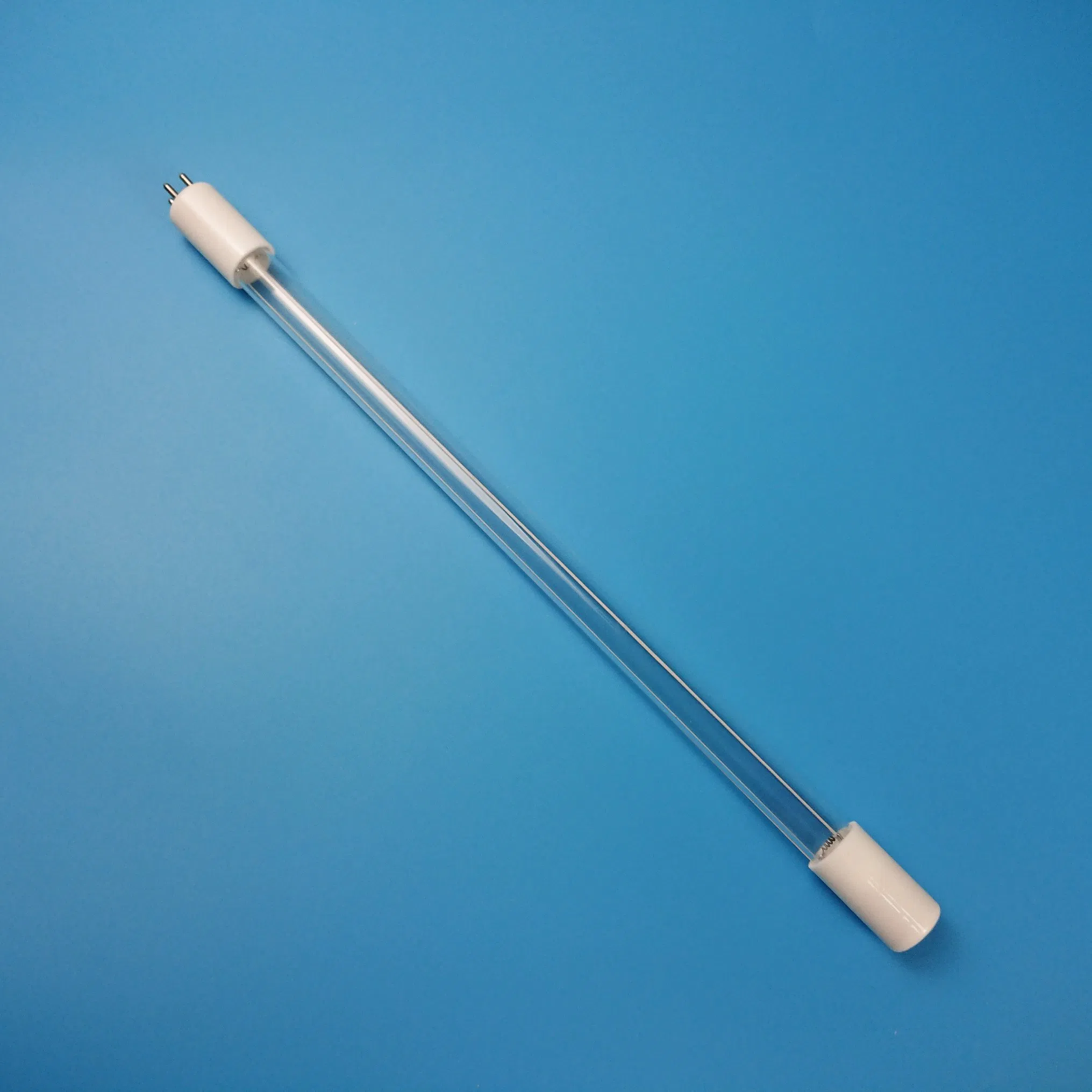

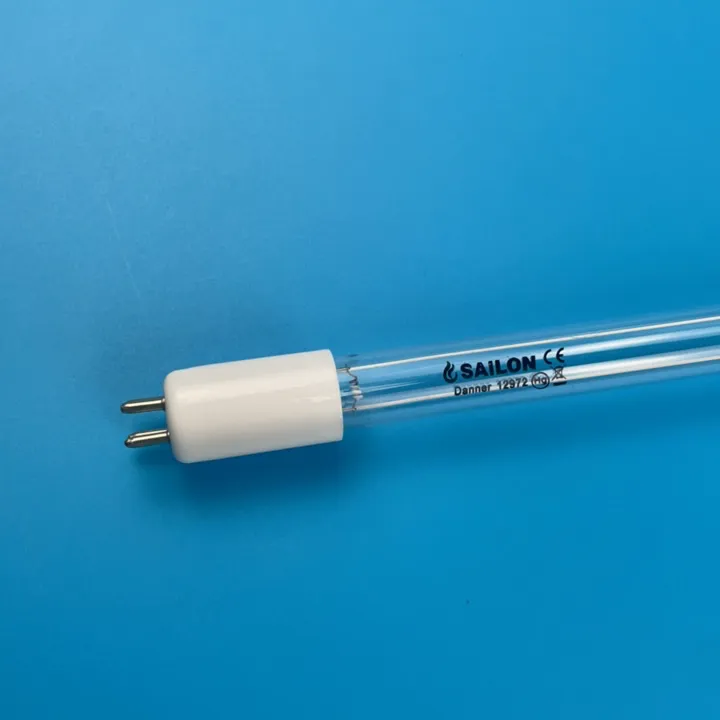

8W 425mA GPH150T5L UV Germicidal Lamp
High Efficiency Ultra-Violet Solution for Pond Water Treatment
- Inside coating protective layer ensures UV output attenuation < 15% during service life.
- Service life reaches up to 10,000 hours with reliable performance.
- Small pipe diameter design for easy installation and maintenance.
- Customizable sizes available based on specific technical requirements.
📊 Basic Information
Model NO.GPH150T5L
WavelengthUV-C
Power8W
Voltage27V
Current425mA
Length150mm
MaterialQuartz Glass
LampbaseG10q (Ceramic)
Working Life10,000 hrs
UV Output20uw/cm²
FunctionBacteria Killing / Sterilization
CertificationsCE, RoHS, ISO9001
💡 Main Applications
- Swimming pool water treatment
- Industry sewage treatment
- Pond water disinfection
- Air purification systems
- Drinking water treatment
- Air conditional pipeline disinfection

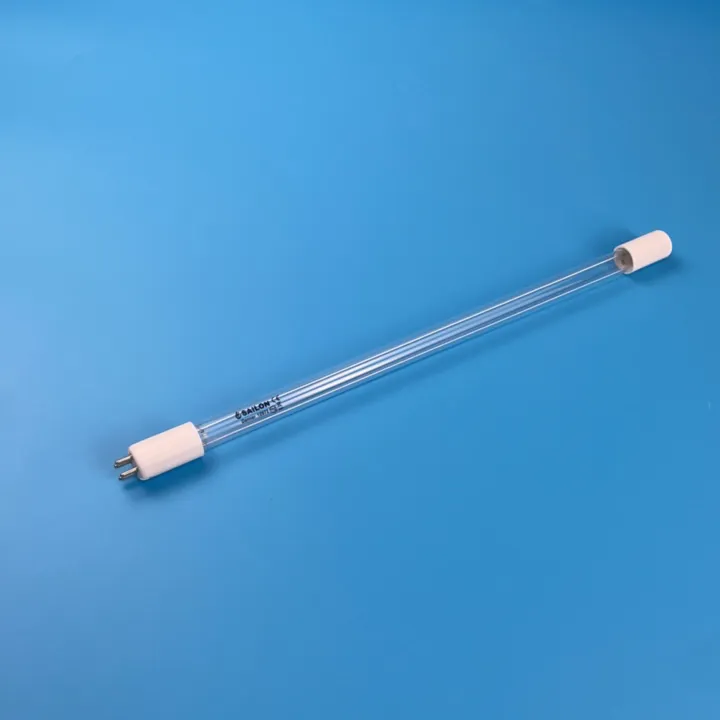

⭐ Product Advantages
- Low operation and maintenance costs.
- Quick and simple installation process.
- High efficacy: General microorganisms killed in seconds.
- Environmentally friendly and safe: Pure physical sterilization with no secondary pollution or side effects.
⚙️ Technical Data Parameters

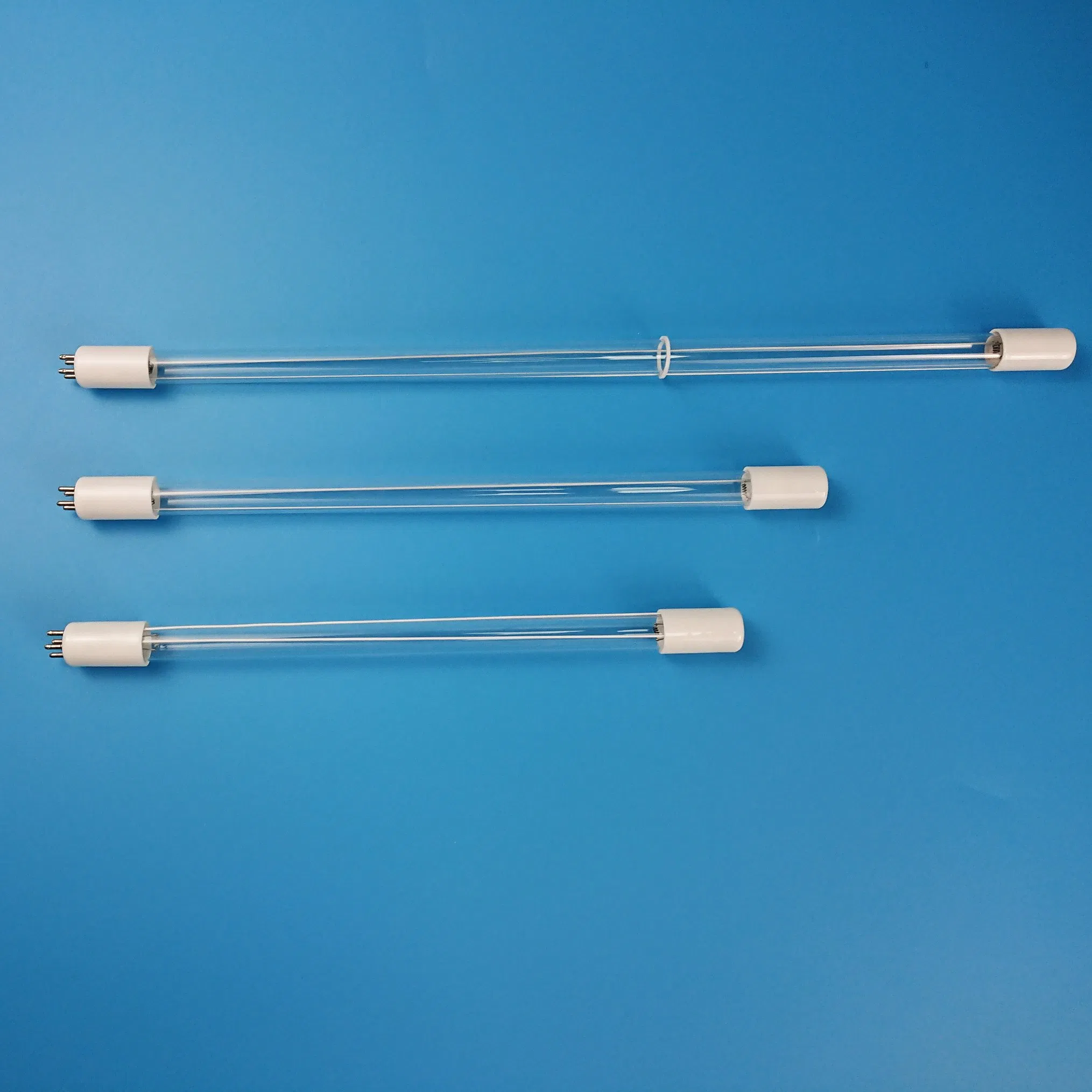

| Type | Tub Diameter (mm) | BF-EOL (mm) | Power (W) | Current (mA) | Voltage (V) | UV output (uW/cm2) | Standard Life (h) |
|---|---|---|---|---|---|---|---|
| GPH118T5L | 15 | 118 | 6 | 425 | 25 | 13 | 10000 |
| GPH150T5L | 15 | 150 | 8 | 425 | 27 | 20 | 10000 |
| GPH212T5L | 15 | 212 | 10 | 425 | 30 | 26 | 10000 |
| GPH287T5L | 15 | 287 | 14 | 425 | 41 | 40 | 10000 |
| GPH357T5L | 15 | 357 | 17 | 425 | 51 | 57 | 10000 |
| GPH436T5L | 15 | 436 | 21 | 425 | 62 | 72 | 10000 |
| GPH843T5L | 15 | 843 | 40 | 425 | 120 | 135 | 10000 |
| GPH1148T5L | 15 | 1148 | 55 | 425 | 165 | 170 | 10000 |

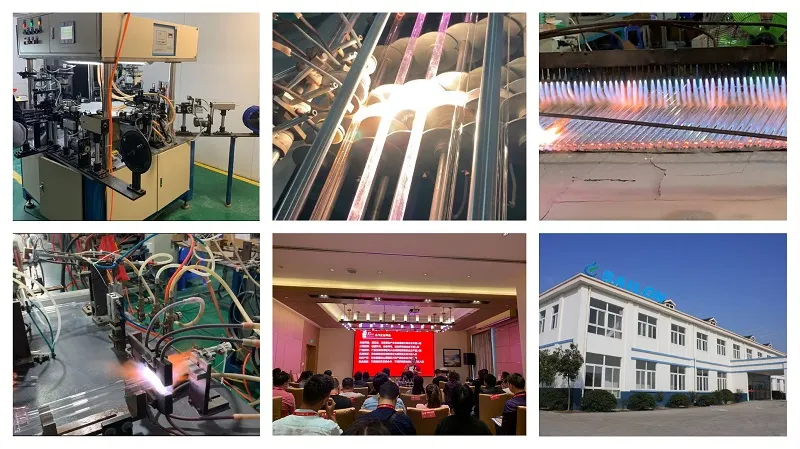

🏭 Production & Quality Control
📦 Packaging & Shipping
Package Size50.00cm * 45.00cm * 35.00cm
Gross Weight7.000kg
TransportPlywood/Carton
❓ Frequently Asked Questions
Q: What are the primary uses for these UV Lamps?
A: UV lamps are widely used for water treatment, aquariums, medical care, and air purification systems.
Q: What is the lead time for orders?
A: Typically 5-7 days for samples and 15-20 days for mass cargo orders.
Q: Do you offer a guarantee for the UV products?
A: Yes, we provide a 1-year warranty for the UV Lamp products.
Q: What technical advantages do your lamps have?
A: Our lamps use high-quality quartz glass to ensure higher UV output, competitive pricing, and advanced core filament electronic power processing technology.
Q: What is the difference between normal and amalgam lamps?
A: Compared to normal lamps, amalgam lamps increase UV output efficiency by 2-3 times at the same length and maintain high-intensity radiation stably in environments ranging from 4-60 degrees.
Q: Can I request customized packaging?
A: Yes, we can accommodate custom design packages and logo requirements on the products.
