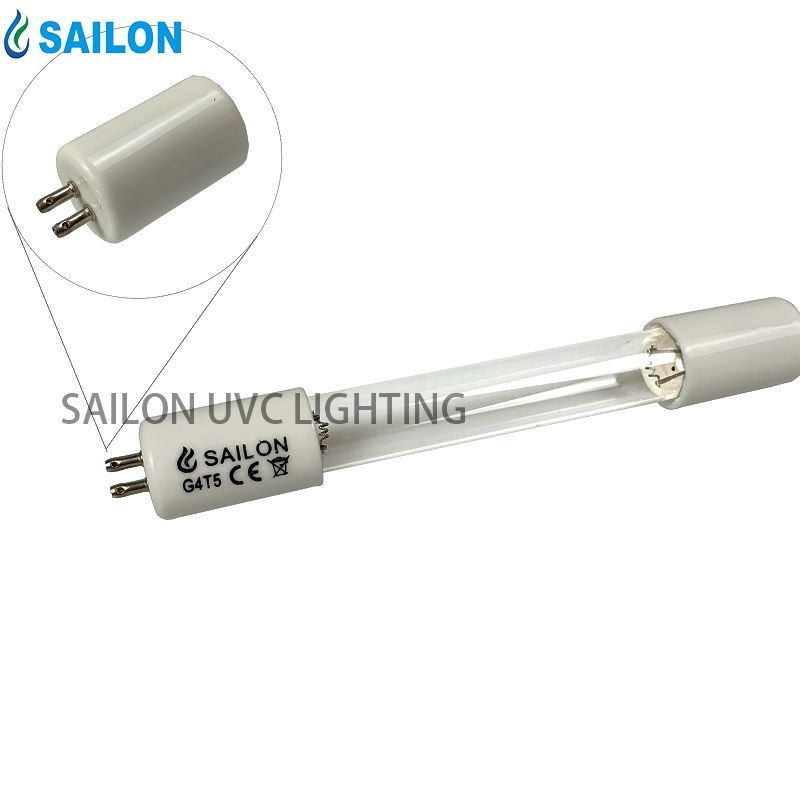

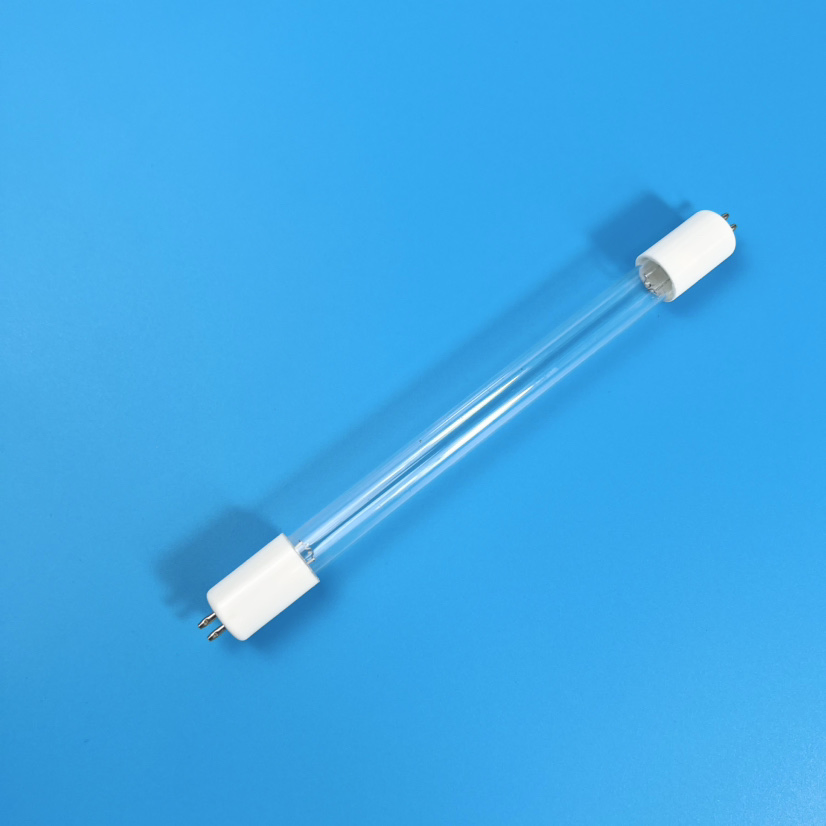

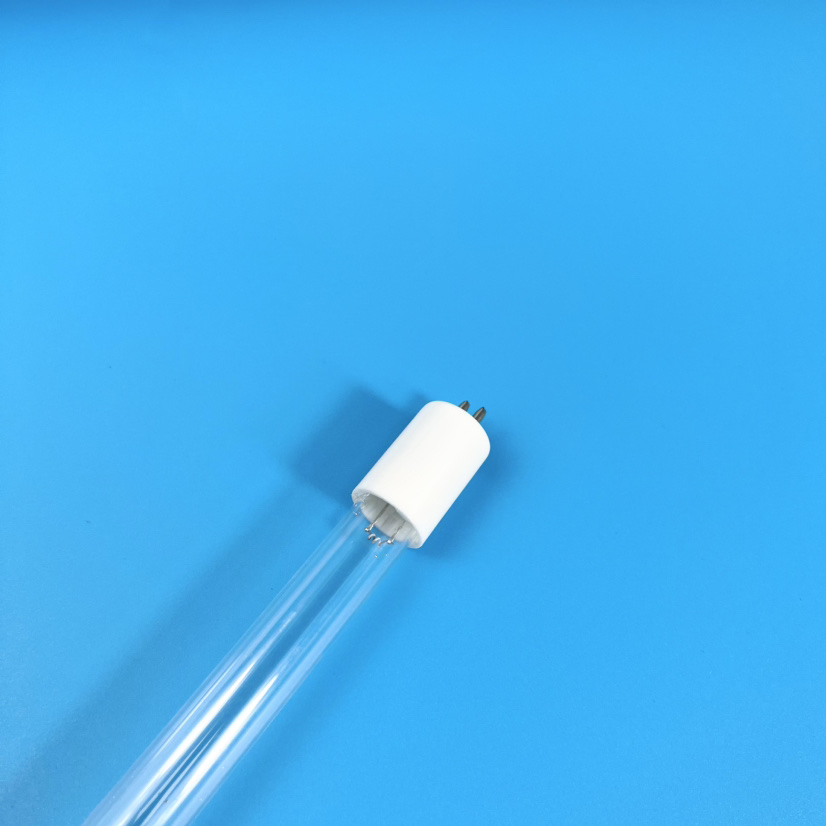

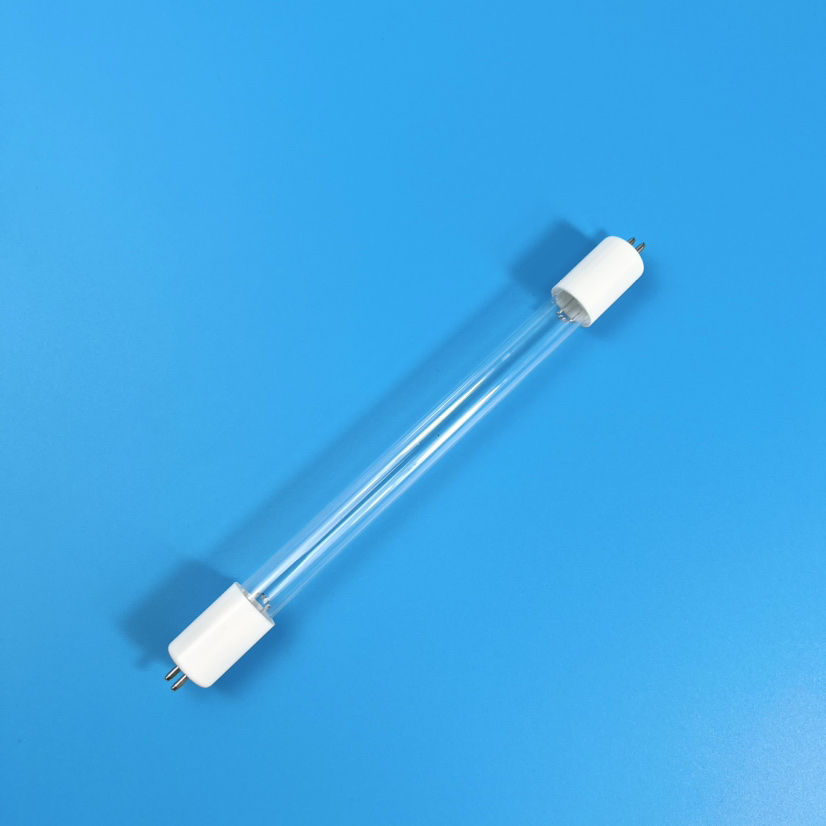

Sailon UV Water Purification Lamp G4t5 for Safe Drinking Water
Product Description
i
Basic Specifications
Model NO.
G4T5 UVC Lamp
Specification
212mm, 135mm (Excluding pins)
Material
Glass
Certification
CE
Lampbase
G5
Lampbase Material
Ceramic / Aluminum
Power (W)
4W
UV Output
9uw/Cm2
Life Time
8000h
HS Code
8539490000
Production Capacity
30,000 / Day
Transport Package
Plywood / Carton
📦
Packaging & Delivery
Package Size
8.63cm * 3.56cm * 2.46cm
Gross Weight
3.500kg
📋
Technical Parameters
| Type | Length (mm) | Power (W) | Current (mA) | Voltage (V) | UV Output (uW/cm²) | UV Output (W) | Lamp Base | Life (h) |
|---|---|---|---|---|---|---|---|---|
| G4T5 | 135 | 4 | 170 | 28 | 9 | 0.9 | G5 | 8000 |
| G6T5 | 212 | 6 | 160 | 42 | 16 | 1.6 | G5 | 9000 |
| G8T5 | 288 | 8 | 150 | 56 | 21 | 2.1 | G5 | 9000 |
| G11T5 | 212 | 11 | 330 | 49 | 22 | 2.2 | G5 | 10000 |
| G16T5 | 288 | 15 | 350 | 54 | 36 | 3.6 | G5 | 10000 |
| G10T8 | 331 | 10 | 230 | 46 | 23 | 2.3 | G13 | 10000 |
| G15T8 | 437 | 15 | 340 | 51 | 47 | 4.7 | G13 | 10000 |
| G20T8 | 589 | 20 | 360 | 60 | 65 | 6.2 | G13 | 10000 |
| G30T8 | 894 | 30 | 370 | 100 | 100 | 11.2 | G13 | 10000 |
| G36T8 | 1199 | 36 | 440 | 103 | 145 | 15.5 | G13 | 10000 |
| G55T8 | 894 | 55 | 780 | 87 | 160 | 17 | G13 | 10000 |
| G75T8 | 1199 | 75 | 850 | 110 | 220 | 26 | G13 | 10000 |
?
Frequently Asked Questions
Can I request a sample of the UV Lamp?
Yes, samples are available for quality testing and verification.
What is the standard lead time for orders?
Samples typically take 5-7 days, while mass production orders generally require 15-20 days.
What is the warranty period for these lamps?
We offer a 1-year warranty for our UV Lamp products to ensure reliable performance.
What are the primary applications for these UV Lamps?
These lamps are widely used for water treatment, aquariums, medical care, and air purification systems.
What is the difference between normal and amalgam lamps?
Amalgam lamps provide 2-3 times higher UV output efficiency at the same length and maintain stable high-intensity radiation in environments ranging from 4-60 degrees.
Are OEM or ODM services available?
Yes, we support OEM services including custom packaging and logo placement on the products.
