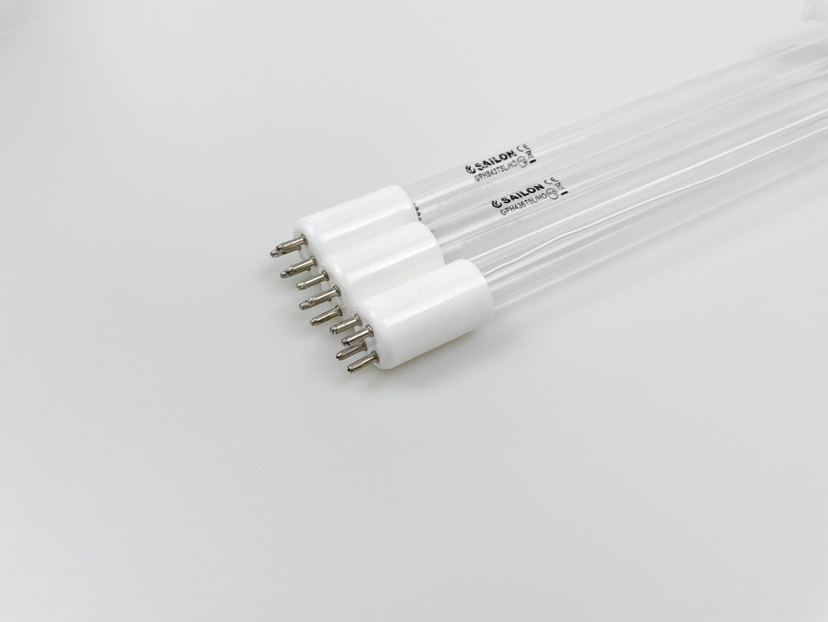

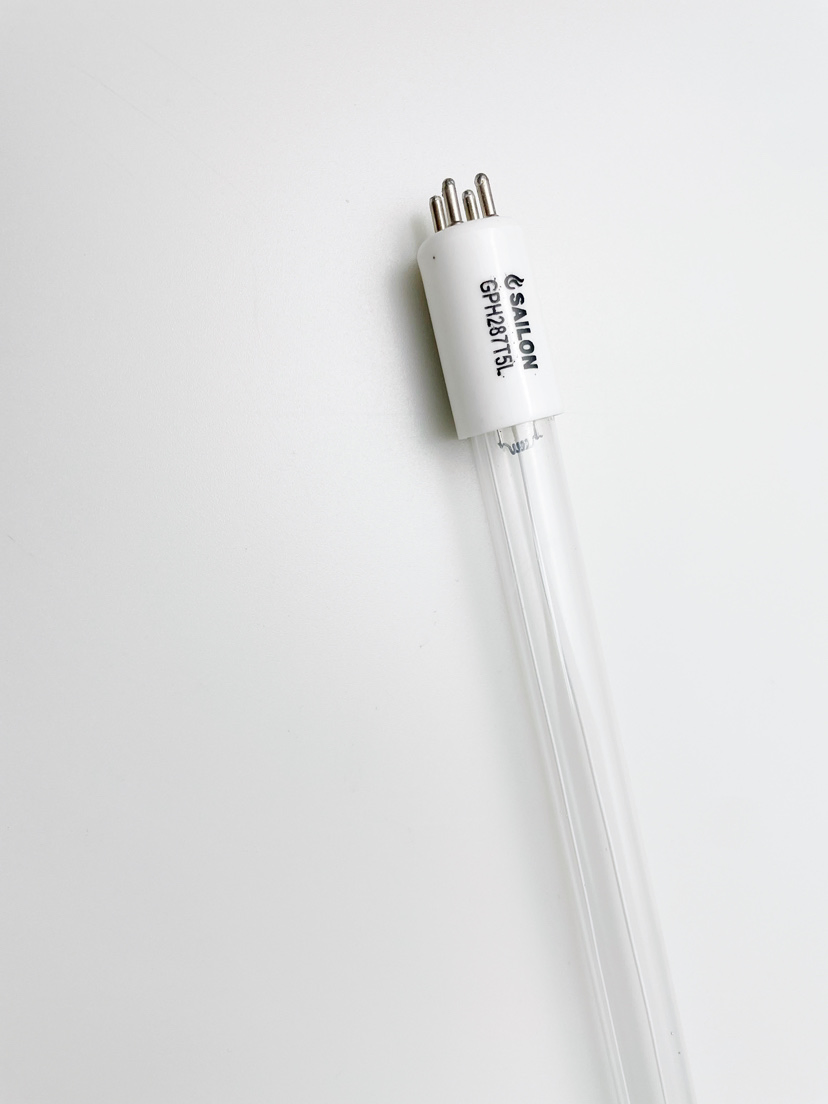

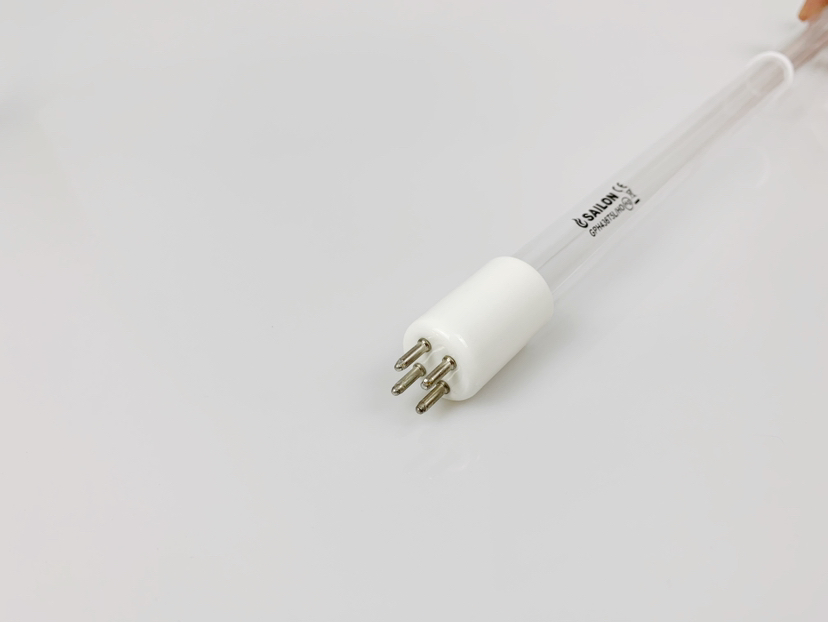

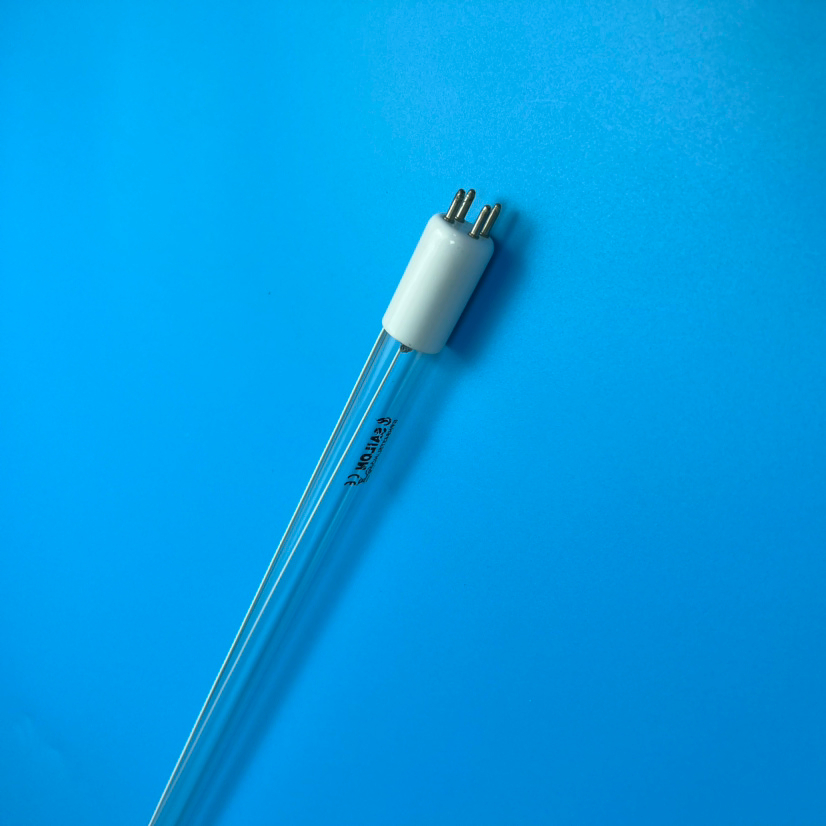

Sailon Gph150t5l Standard Single End 4 Pins 8W Water Treatment 254nm Long Life UV Sterilizing Germicidal UVC Lamp for Water and Air Purification
Product Description
Basic Specifications
Model NO.8W GPH150T5L
WavelengthUV-C
MaterialGlass
CertificationCE, RoHS, ISO9001
Standard Life10,000h
Wattage8W
Tube Diameter15mm
Start ModePre-Heat
Product Description
Standard 8W GPH150T5L UV Germicidal Lamp for Water and Air Treatment
⭐
High Efficiency: High output UV lamp is an ideal choice for reducing system size while maintaining consistent UV performance.
⏳
Long Lifespan: With a usage time of up to 10,000 hours, maintenance requirements are significantly reduced.
⚡
Low Energy Consumption: Advanced technology ensures high initial UV radiation and low decay over time.
🛠️

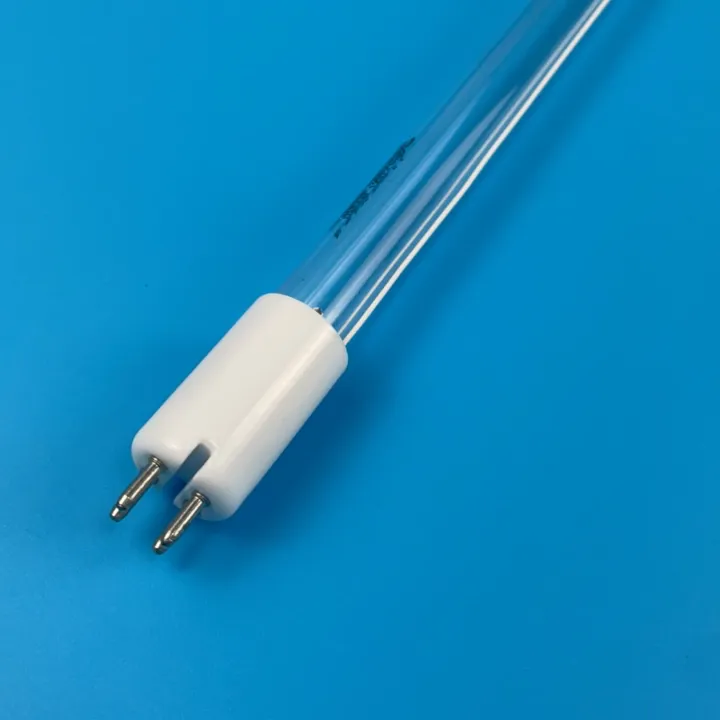

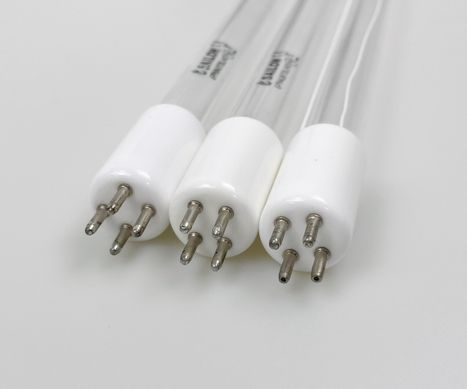

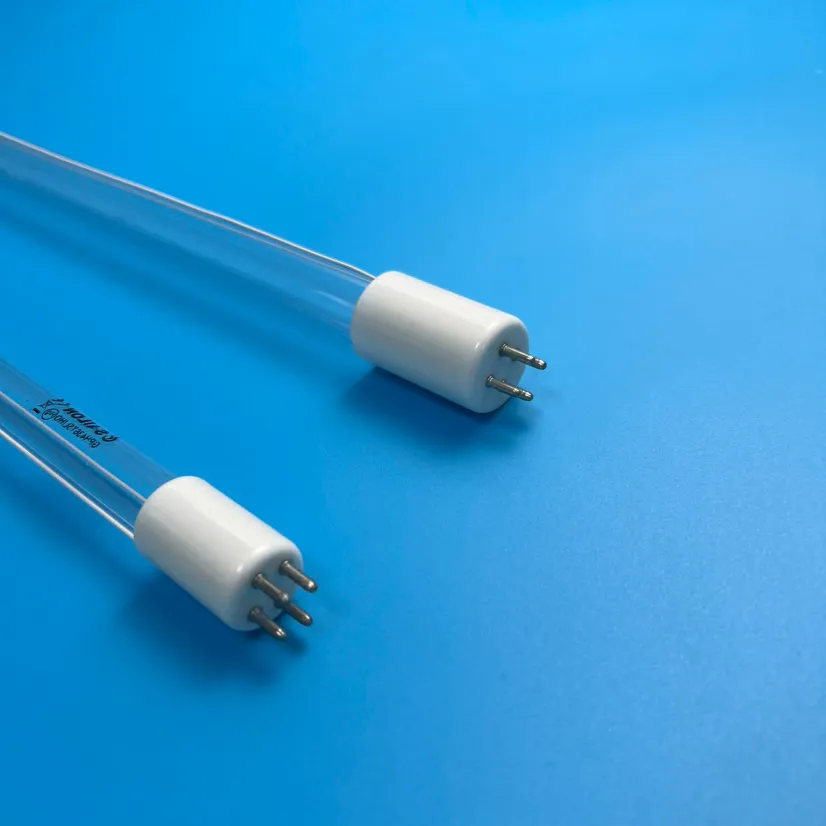

Easy Installation: Standard single-end 4-pin design with corresponding quartz sleeves and ballasts available.
Technical Data
| Type | Tube Dia (mm) | Length (mm) | Power (W) | Current (mA) | Voltage (V) | UV Output (W) | Life (h) |
|---|---|---|---|---|---|---|---|
| GPH118T5L | 15 | 118 | 6 | 425 | 25 | 1.4 | 10000 |
| GPH150T5L | 15 | 150 | 8 | 425 | 27 | 1.7 | 10000 |
| GPH212T5L | 15 | 212 | 10 | 425 | 30 | 2.7 | 10000 |
| GPH287T5L | 15 | 287 | 14 | 425 | 41 | 4.0 | 10000 |
| GPH357T5L | 15 | 357 | 17 | 425 | 51 | 5.7 | 10000 |
| GPH436T5L | 15 | 436 | 21 | 425 | 62 | 7.3 | 10000 |
| GPH843T5L | 15 | 843 | 40 | 425 | 120 | 15.0 | 10000 |
Application Areas
- ✅ Swimming pool and pond water treatment
- ✅ Industrial sewage and drinking water disinfection
- ✅ Air purification and conditioning pipeline disinfection
- ✅ Microorganism destruction in air and water

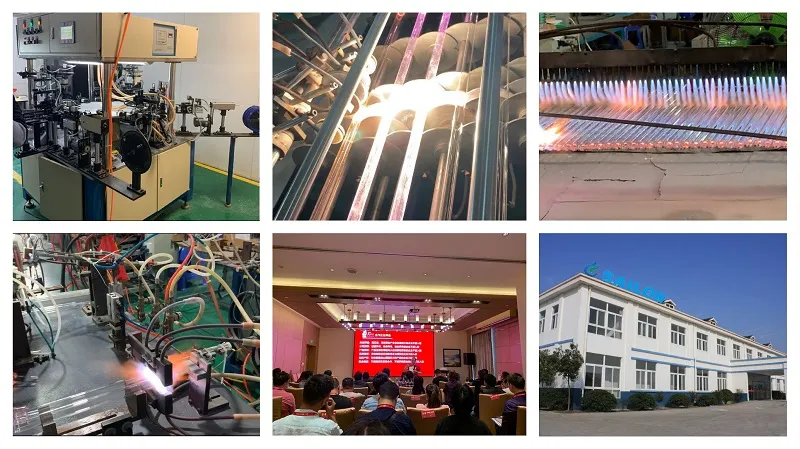

Production & Certification
Frequently Asked Questions
What are the primary uses for these UV lamps?
These UV-C lamps are widely used for water treatment (aquariums, pools, drinking water), medical care sterilization, and air purification systems.
How long is the service life of the germicidal lamp?
The standard lifespan for these lamps is approximately 10,000 hours, ensuring reliable performance for nearly a year of continuous use.
What is the lead time for orders?
Typically, samples take 5-7 days, while mass production cargoes require 15-20 days depending on the order volume.
Do you offer a warranty on these products?
Yes, we provide a 1-year warranty for the UV lamps to ensure customer satisfaction and product reliability.
What is the difference between normal and amalgam lamps?
Amalgam lamps increase UV output efficiency by 2-3 times compared to normal lamps of the same length and maintain stable high-intensity radiation in varied temperature environments.

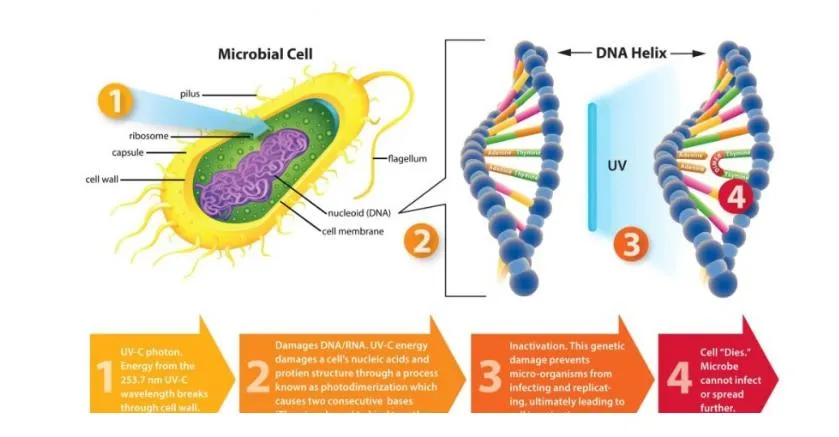

How does UV-C disinfection work?
UV-C light destroys the DNA of bacteria and viruses, neutralizing their ability to reproduce and effectively killing most microorganisms in air and water without chemicals.
