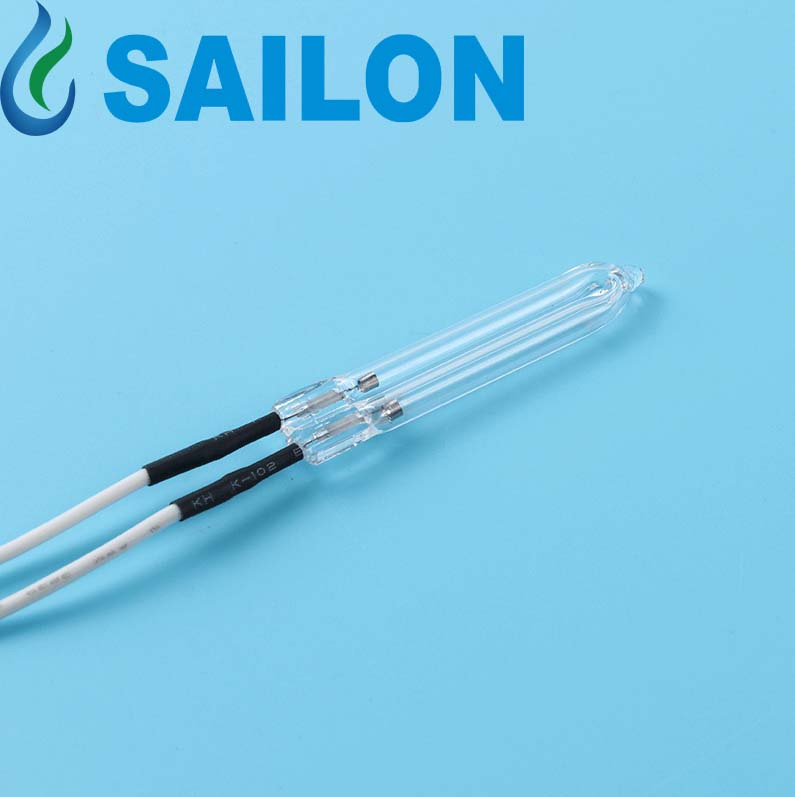

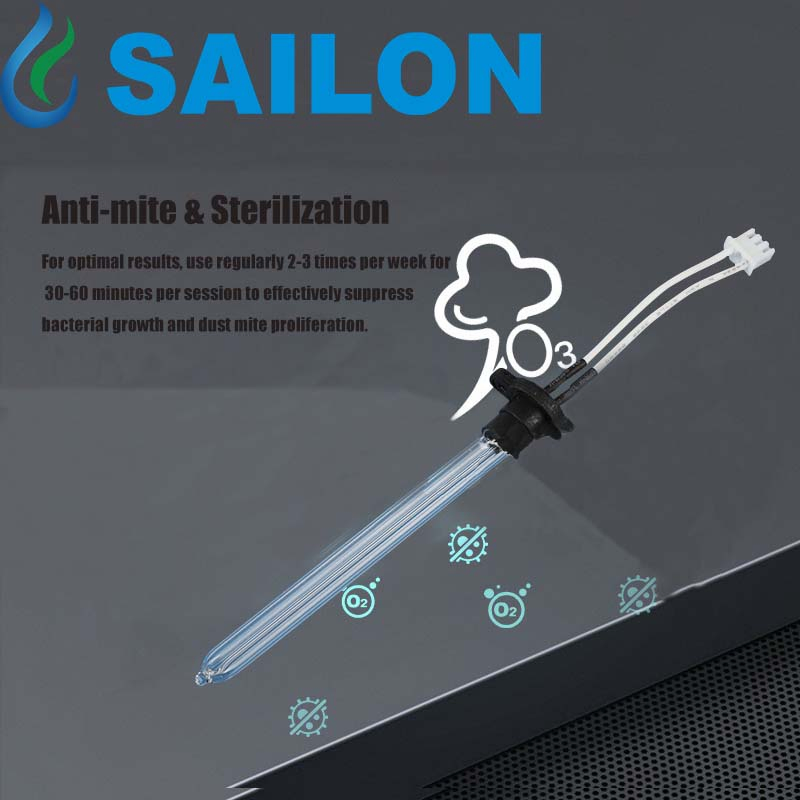

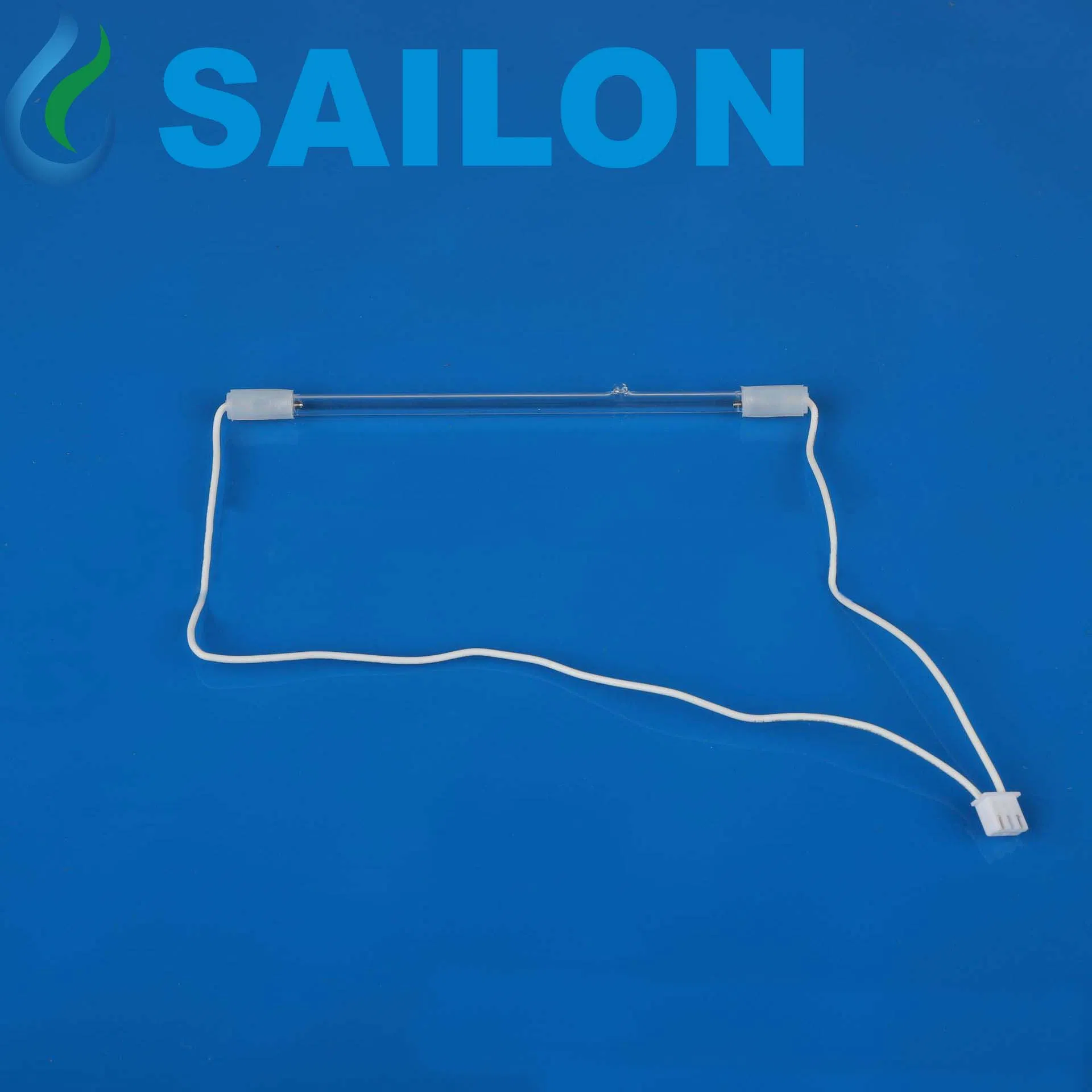

Premium HVAC UV Sterilization Lamp for Clean Air Solutions
Product Description
Basic Information
Model NO.
5-100(Straight)
Wavelength
UV-C (254NM)
Material
Pure Quartz Glass
Certification
CE, RoHS, ISO9001
Tube Diameter
5mm
Length
100mm
Power
1.1W
Lamp Current
5mA
Working Life
15000 hrs
Voltage
220V
Product Description
Our line of replacement germicidal ultraviolet lamps are manufactured with pure quartz tubing designed to meet or exceed industry standards. We maintain strict quality control inspection with each ultraviolet lamp to ensure only the best products reach our customers.
Key Features:
- High-efficiency purified quartz tube raw material.
- Long service life up to 15,000 hours.
- Low energy consumption design.
- Easy installation and replacement.
- Environmentally friendly solution.
Applications:
- Pond water disinfection
- Air purification systems
- Drinking water treatment
- Aquarium sterilization

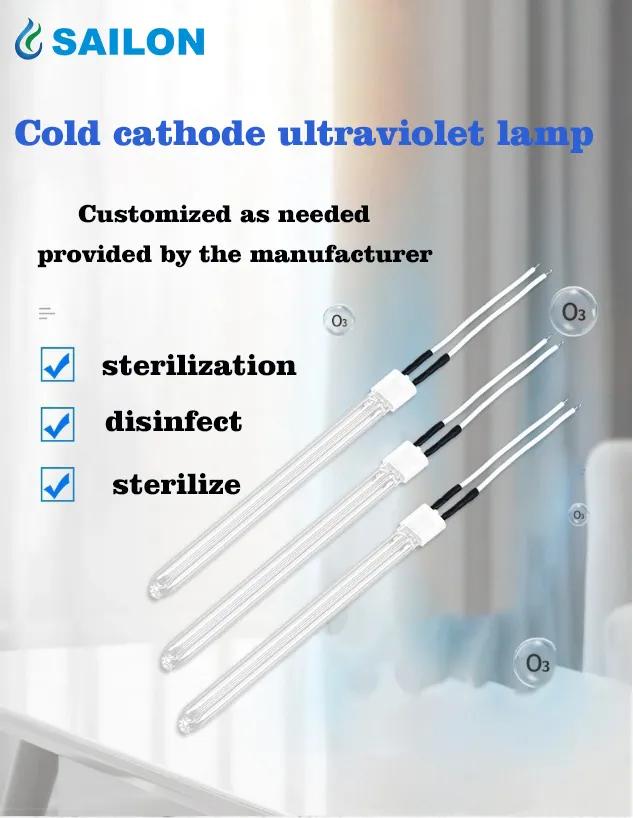

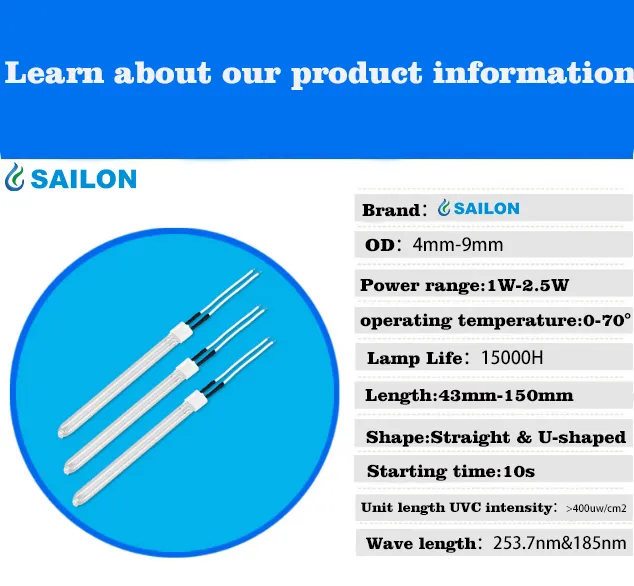

Detailed Photos

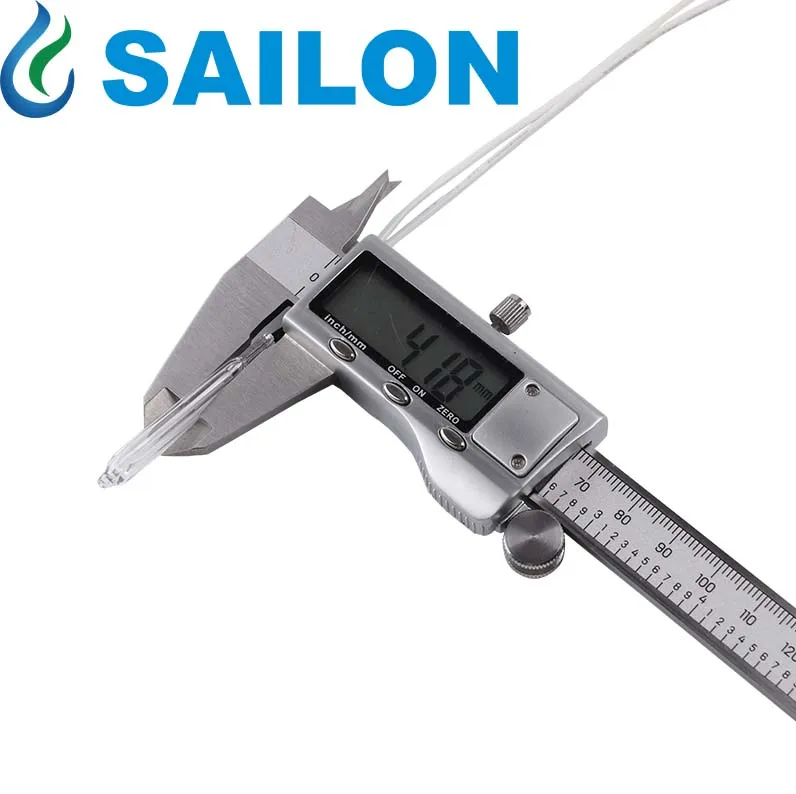

Part 1: Single head design for easy replacement.
Part 2: Precision 254nm short wave UV emission.

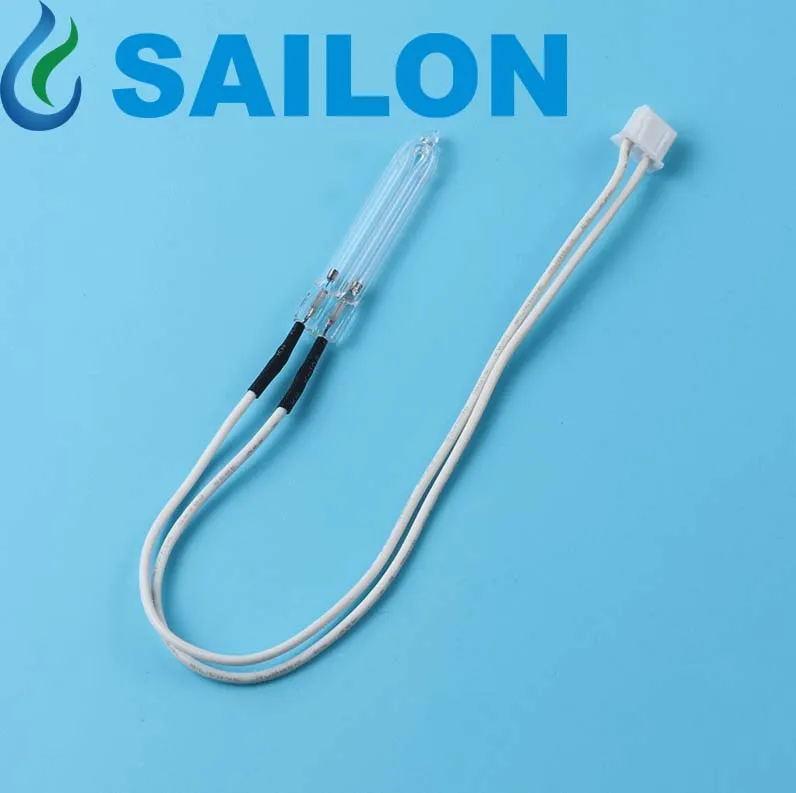

Part 3: Internal protective coating for low output decay.
Product Parameters
| Model | Tube Diameter (mm) | Length (mm) | Power (W) | Current (mA) | Voltage (V) | UV Output (μW/cm²) | Working Life (h) |
|---|---|---|---|---|---|---|---|
| 5-50(Straight) | 5 | 50 | 0.5 | 5 | 110 | 2000 | 15000 |
| 5-60(Straight) | 5 | 60 | 0.6 | 5 | 120 | 2000 | 15000 |
| 5-80(Straight) | 5 | 80 | 1 | 5 | 200 | 2000 | 15000 |
| 5-100(Straight) | 5 | 100 | 1.1 | 5 | 220 | 2000 | 15000 |
| 5-125(Straight) | 5 | 125 | 1.3 | 5 | 260 | 2000 | 15000 |
| 5-150(Straight) | 5 | 150 | 1.5 | 5 | 300 | 2000 | 15000 |
| 5-200(Straight) | 5 | 200 | 2 | 5 | 400 | 2000 | 15000 |

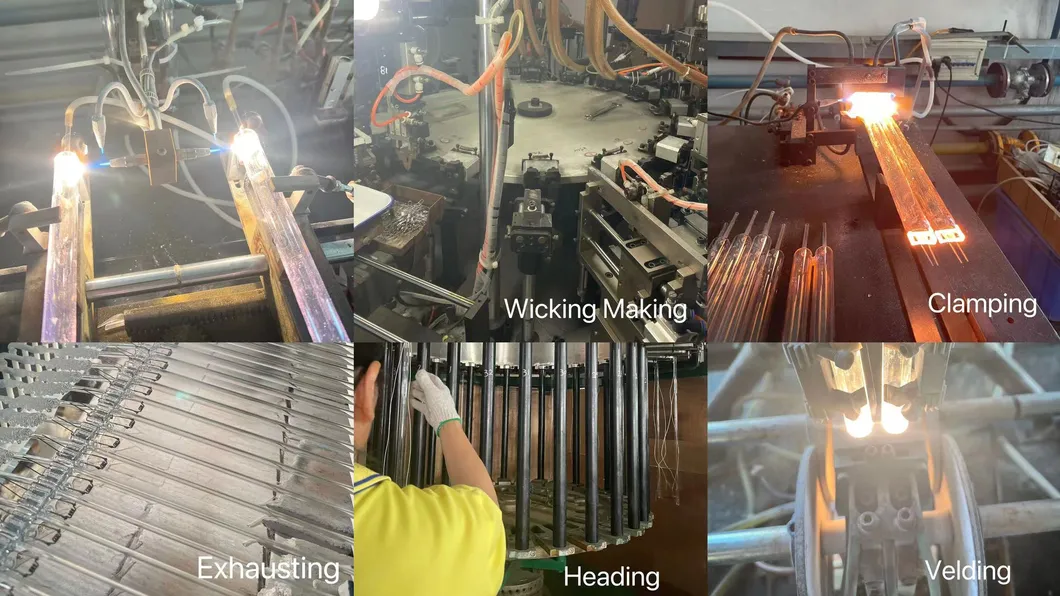

Factory & Exhibition
Package and Shipping
Frequently Asked Questions
Can I have a sample of the UV Lamp first?
Yes, sample orders are welcome for testing quality.
What is your lead time for orders?
Usually 5-7 days for samples and 15-20 days for mass production cargoes.
Do you offer a guarantee for the products?
Yes, we provide a 1-year warranty for our UV Lamps.
What are the primary uses for these UV Lamps?
The lamps are widely used for water treatment, aquariums, medical care, and air purification.
What is the difference between normal and amalgam lamps?
Amalgam lamps increase UV output efficiency by 2-3 times at the same length and maintain high intensity stably in environments ranging from 4-60 degrees Celsius.
Can you accept OEM or ODM orders?
Yes, we support OEM services including custom packaging and logo placement.
