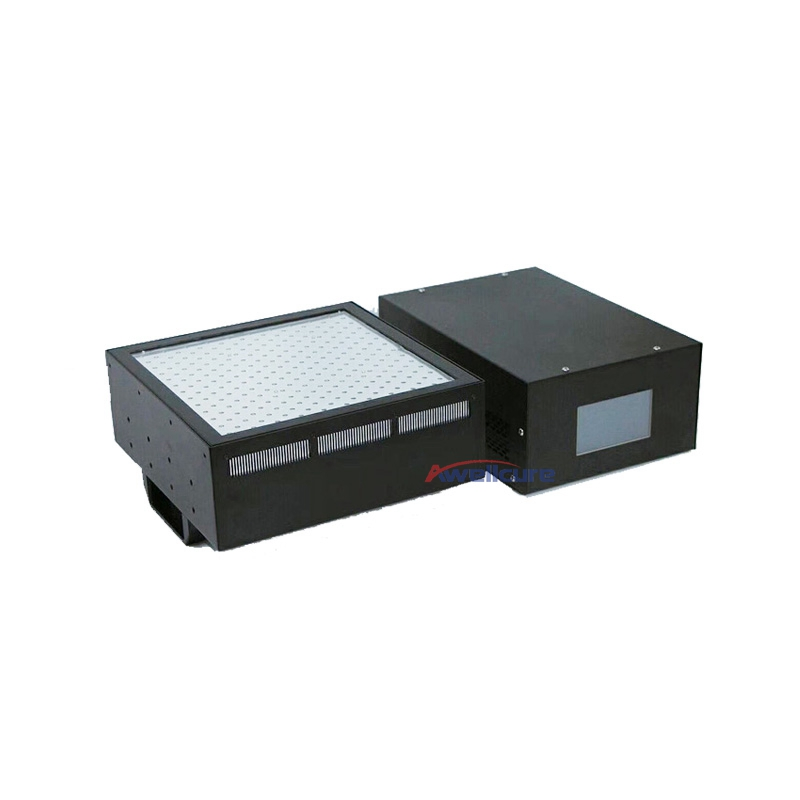

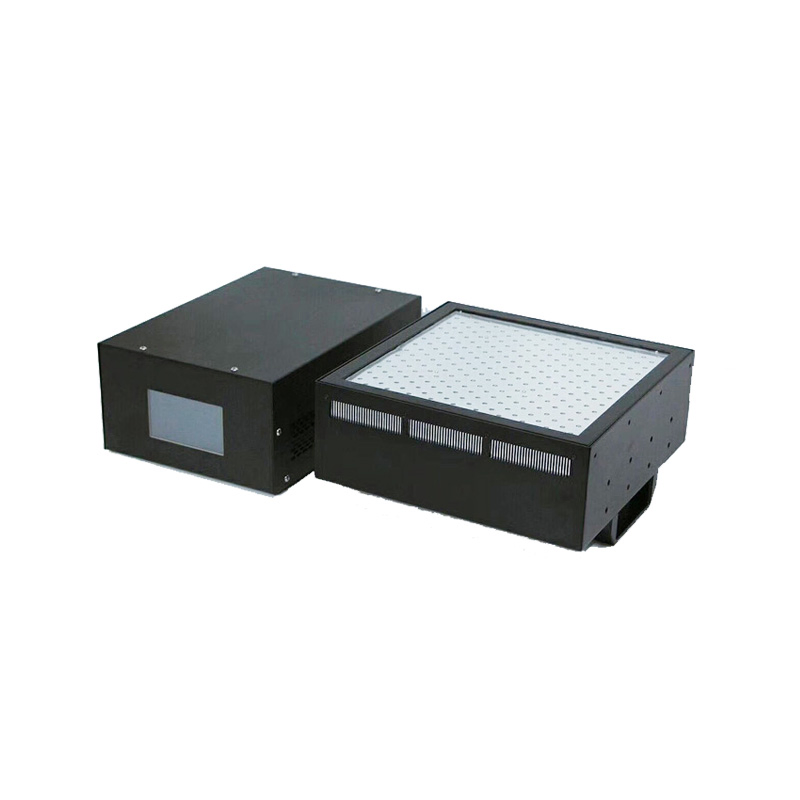

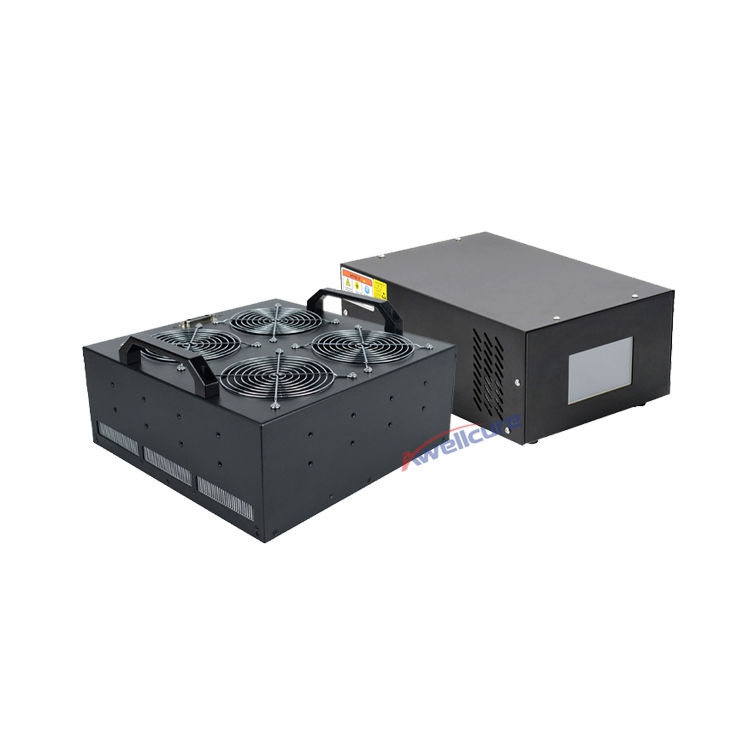

Portable Fan Cooled Handheld UV Ultraviolet LED Curing Lamp for Furniture Paint Drying
Product Description
Model NO.
AF260260H1
Wavelength
365/385/395/405nm
Material
Sheet Metal or Aluminum
Certification
CE
Input Voltage
AC100~240V(50/60Hz)
Cooling Method
Air-Cooled and Water-Cooled
LED Life
20000hrs
Control Method
RS232/Pedal/PLC
Operation Interface
Touch Screen
LED Beam Size
260X260mm
UV Intensity
2.5W/Cm2 or Customized
HS Code
8543709990
High Performance
Portable Fan Cooled Handheld UV LED Curing Lamp for Furniture Paint Drying
Main Features:
- External signal control via MCU, PLC, and scanner.
- Status indicators for Start, Stop, Working, and Alarm signals.
- RS232 interface for parameter programming and software updates.
- Direct lighting control via foot switch or sensor connection.
✦
Low Temperature
No infrared radiation, making it ideal for heat-sensitive materials.
✦
Instant Efficiency
No warm-up phase required; instant on/off capabilities for faster workflows.

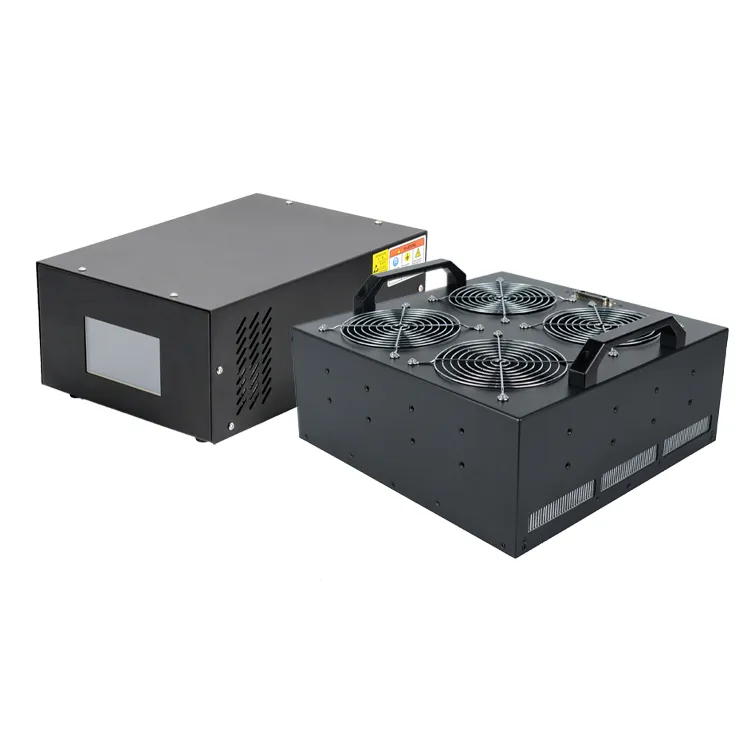

Controller Specifications
| Parameter | Details |
|---|---|
| Voltage | 100-240V AC |
| Cooling Method | Fan cooling |
| Control Mode | Touch/Pedal/RS232 Port/PLC |
| Power Range | 10%~100% Adjustable |
| Irradiation Modes | Manual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse |

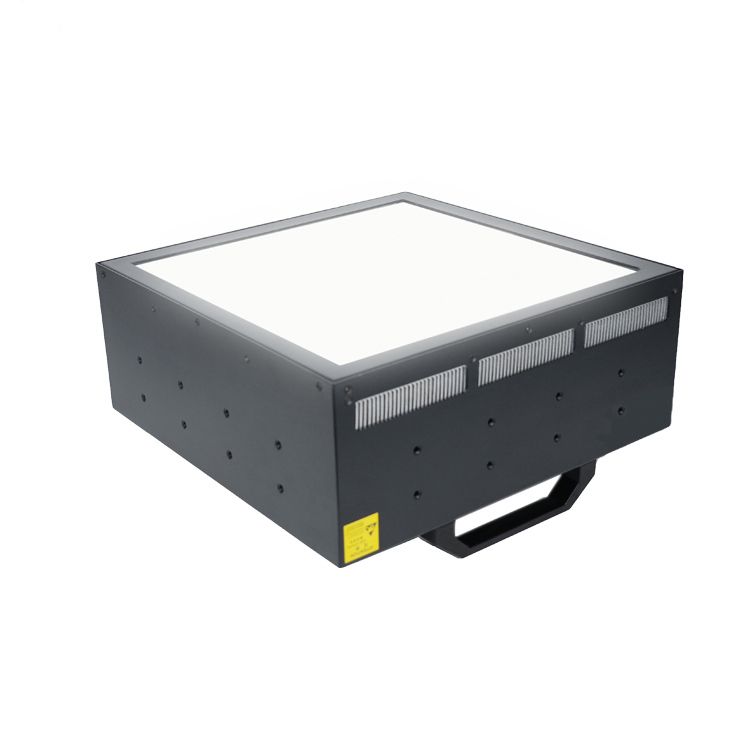

Irradiation Head Specifications
| Component | Details |
|---|---|
| LED Usage Time | 20,000 Hrs @80% power |
| Wavelength Range | 365nm / 385nm / 395nm / 405nm (±5) |
| Luminous Size | 260x260mm |
| Peak Intensity | 1500mW/cm2 (Customizable) |
| Cable Length | Standard 2M/5M (Customizable) |

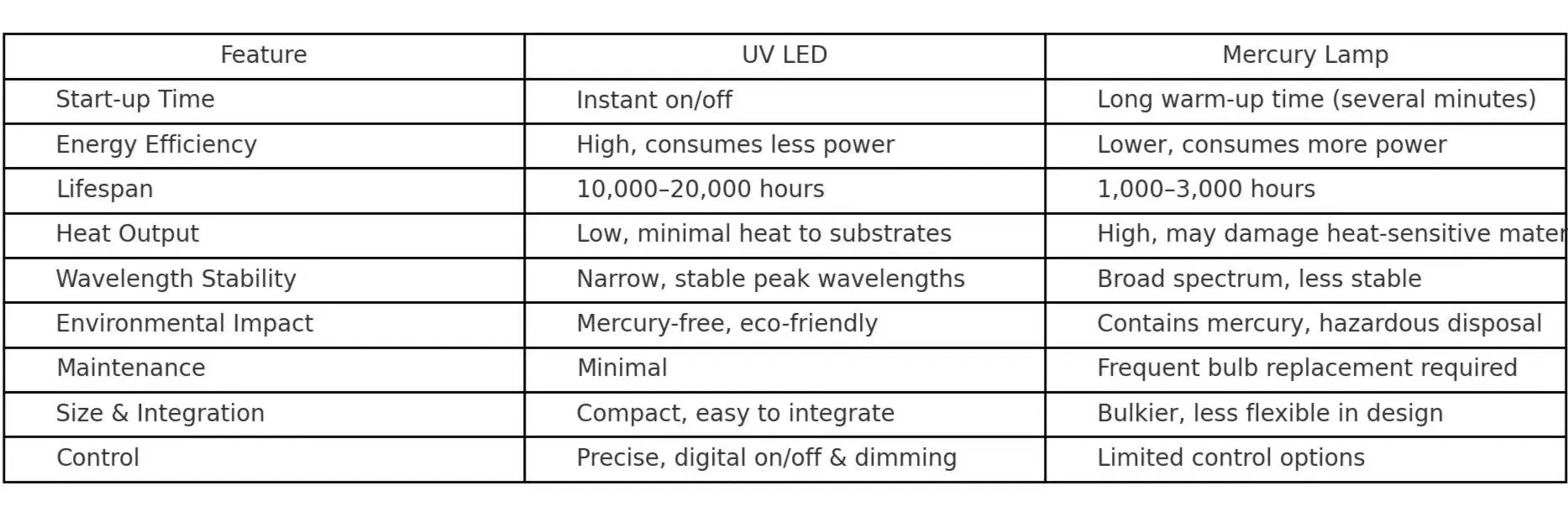

UV LED vs. Mercury Lamp Comparison:
Industrial Applications:
1. UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
2. UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
3. UV Ink: UV printing, 3D printing.
After-Sales Support:
- 12-Month Standard Warranty.
- Global 24/7 Technical Assistance.
- On-site or Remote Training.
Company Expertise:
- 12+ years of UV LED industry expertise.
- ISO 9001, CE, and RoHS Certified.
- Exporting to over 50 countries.
Frequently Asked Questions
Q1: Why choose our UV LED curing system over others?
Our team has over 12 years of combined experience in the UV LED industry, providing tailored solutions that meet strict industrial requirements and high-performance standards.
Q2: What materials are compatible with this system?
It is specifically designed for curing UV glue, UV ink, UV adhesives, UV paints, varnishes, and other UV-sensitive materials across various industries.
Q3: What are the environmental benefits of UV LED systems?
Unlike traditional mercury lamps, UV LED systems are energy-efficient, ozone-free, mercury-free, and produce minimal heat, making them much more environmentally friendly.
Q4: Can the emitting window and intensity be customized?
Yes, we offer full customization for the emitting window size and peak irradiance intensity to perfectly match your specific production line and application needs.
Q5: How do I determine the correct UV power intensity for my process?
The required intensity depends on the sensitivity of your materials and your desired production speed. Our technical team can help you calculate the optimal parameters for your workflow.
Q6: What is the expected lifespan of the UV LED heads?
The UV LED heads are rated for approximately 20,000 hours of usage when operated at 80% power, significantly outlasting traditional curing bulbs.
