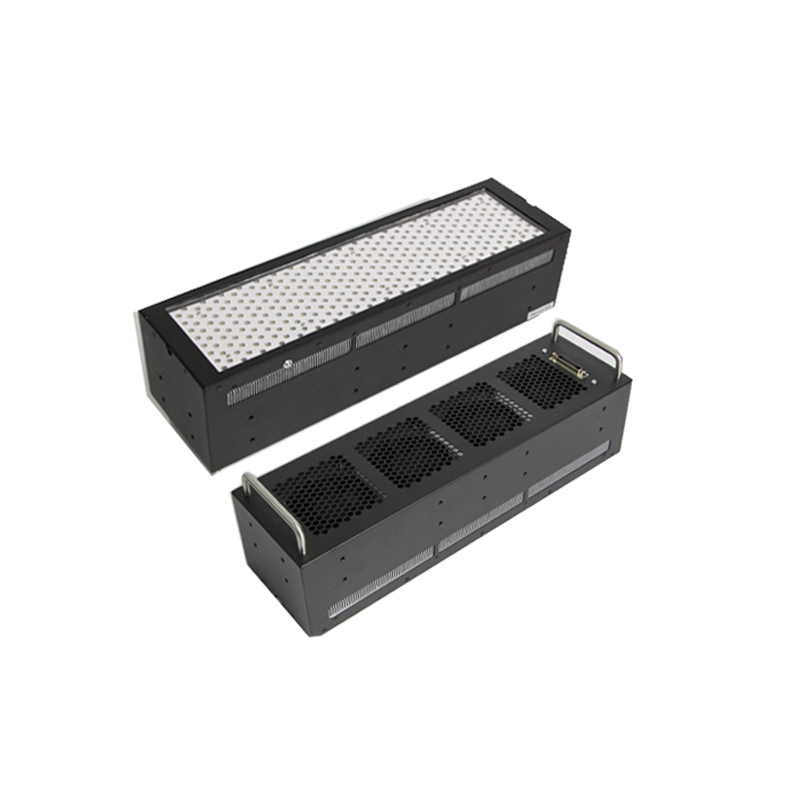

Portable High Power UV Curing LED Lamps Curing Light UV Curing Machine LED UV 365nm for Floor Paint Resin Curing Glue Curing
Product Description
Basic Information
Model NO.
AF50200H1
Wavelength
365/385/395/405nm
Material
Sheet Metal
Certification
CE
Input Voltage
AC100~240V(50/60Hz)
Cooling Method
Air-Cooled
LED Life
20,000 hrs
Control Method
RS232 / Pedal / PLC
Interface
Touch Screen
Beam Size
200 x 50 mm
UV Intensity
1500 MW/cm² or Customized
Capacity
10,000 PCS / Year
Packaging & Delivery
Package Size
46.00cm * 43.00cm * 26.00cm
Gross Weight
12.000 kg
Product Description

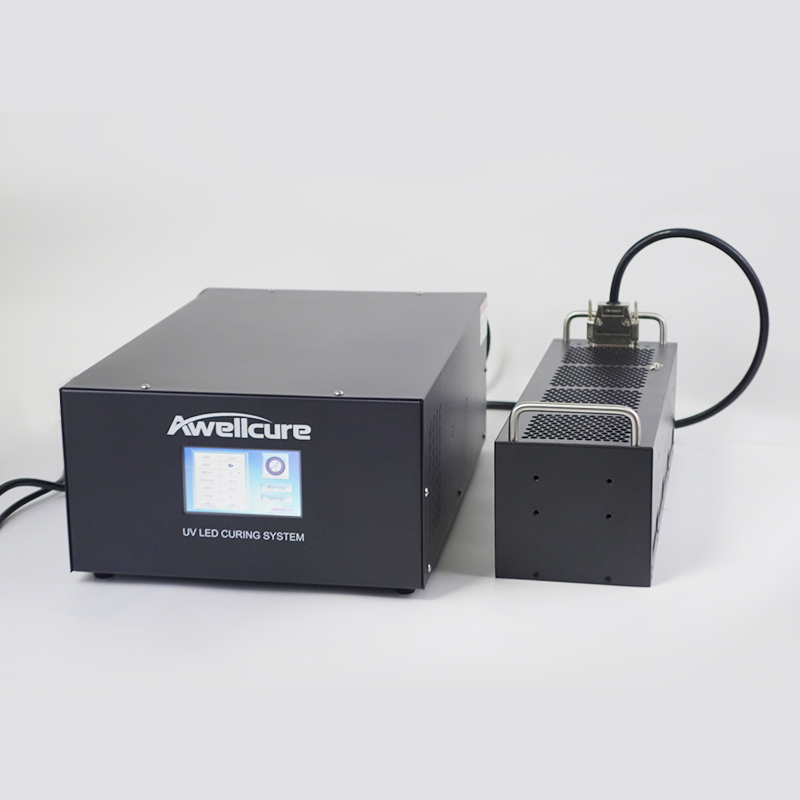

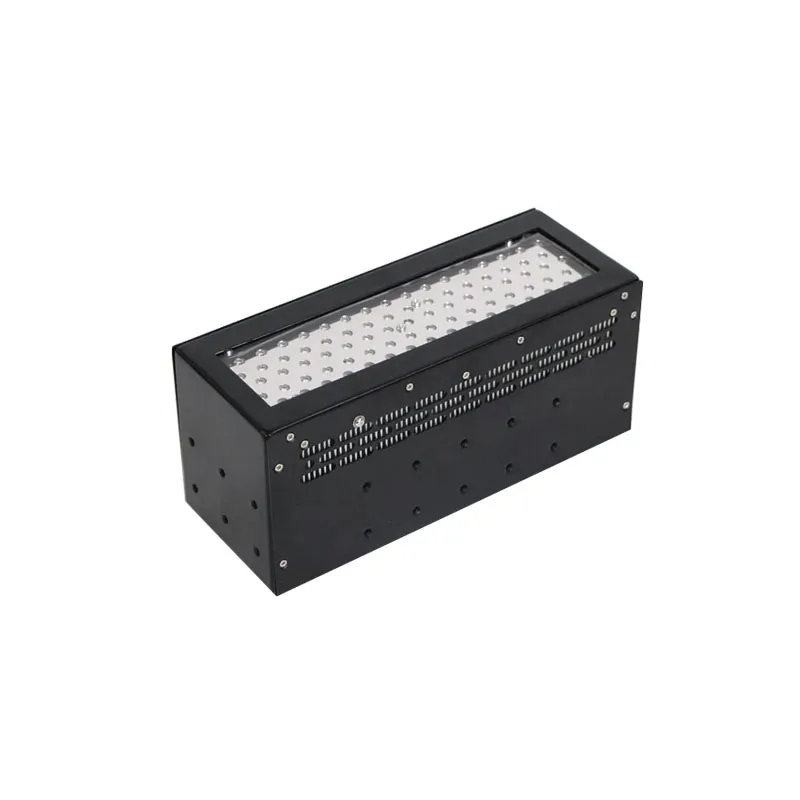

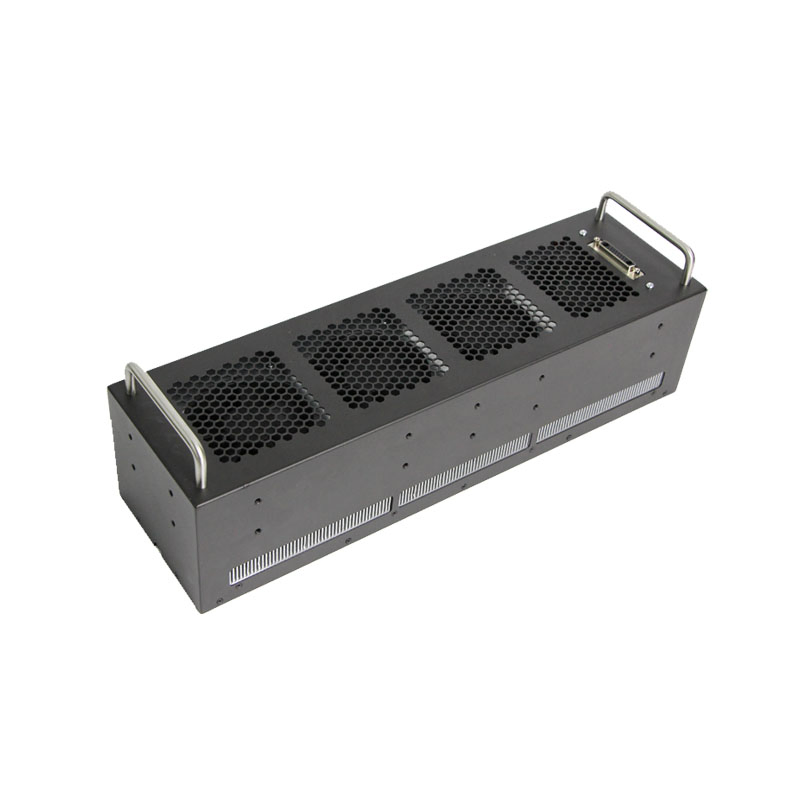

Portable High Power UV Curing LED System (Model: AF50200H1)
This professional-grade UV curing solution consists of a high-performance Controller and an Irradiator Head. The controller is capable of driving multiple irradiation heads for maximum efficiency.

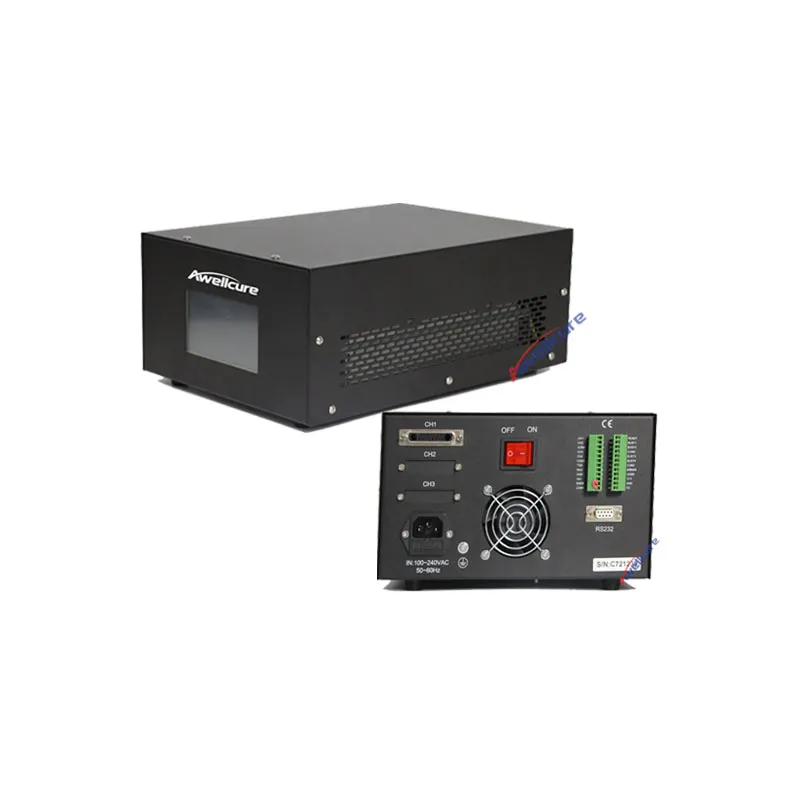

Key Features of Controller
- External signal control for UV irradiation via MCU, PLC, or scanners.
- Status LEDs for real-time monitoring (Start, Stop, Working, Alarm).
- RS232 interface for programming and software updates.
- Direct lighting control via foot switch or sensor connection.
Advantages of UV LED Technology
- Cold Light Source: No infrared radiation, ideal for heat-sensitive materials.
- Instant Operation: No warm-up phase required; immediate on/off.
- Spectrum Flexibility: Multiple wavelengths ensure safe and rapid curing.
Technical Specifications

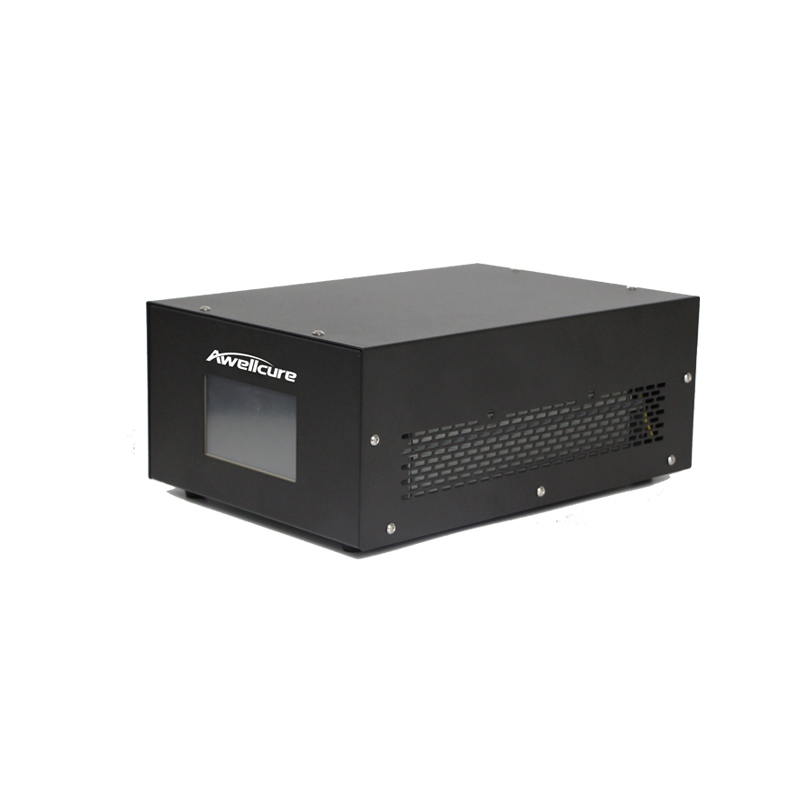

Controller Specifications
| Parameter | Details |
|---|---|
| Voltage | 100-240V AC |
| Material | Sheet metal (Black) |
| Cooling | Fan Cooling |
| Control Method | Touch / Pedal / RS232 / PLC |
| Power Range | 10% ~ 100% Adjustable |
| Irradiation Modes | Manual, Automatic (0.1-999.9s), Ladder (Step), Pulse |
| Working Temp | 0-45℃ |

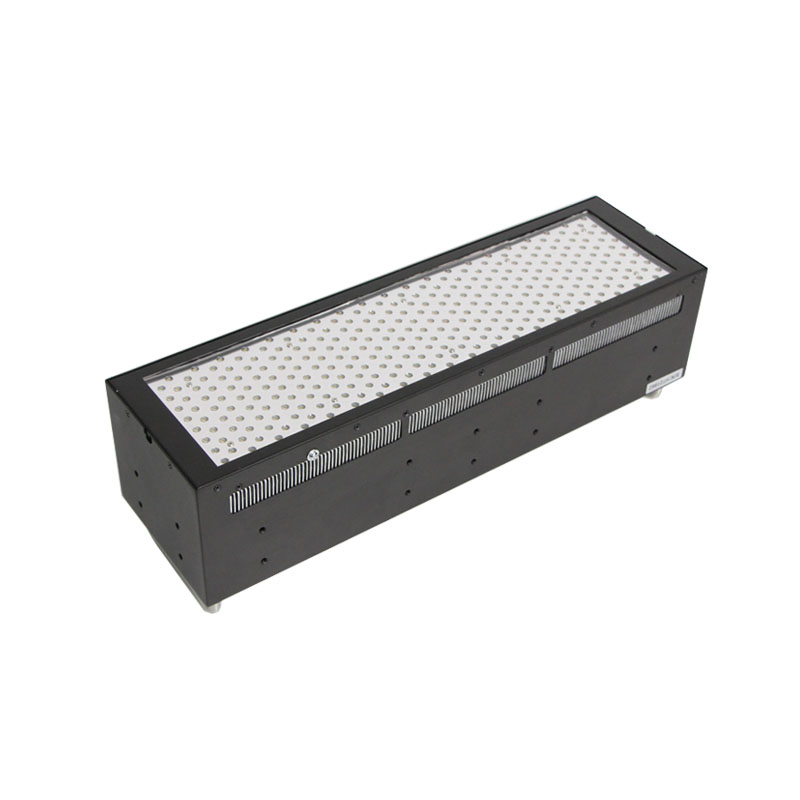

Irradiation Head Specifications
| Component | Details |
|---|---|
| LED Type | High-Quality Imported Chips |
| Usage Life | 20,000 Hrs @ 80% power |
| Wavelength | 365nm / 385nm / 395nm / 405nm (±5) |
| Luminous Size | 50 x 200 mm |
| Peak Intensity | 500 / 750 / 1500 mW/cm² (Customizable) |
| Cable Length | Standard 2M/5M or Customized |

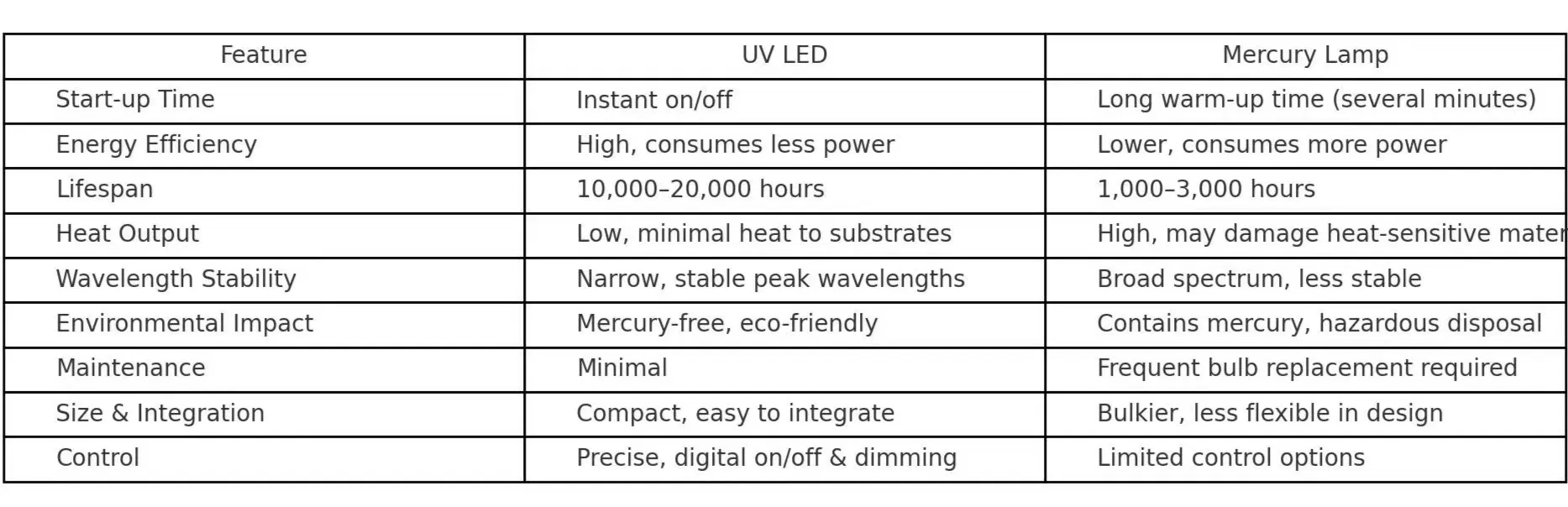

Comparison & Applications
Major Applications
- UV Adhesives: Optical communications, medical consumables, camera modules, touch screens.
- UV Coating: PCBA, chip packaging, automotive components, precision machining.
- UV Ink: 3D printing, industrial inkjet printing, label printing.
Support & Service
- Standard Warranty: 12 months comprehensive coverage.
- Extended Warranty: Optional coverage available up to 36 months.
- Technical Support: Global assistance and spare parts supply.
- Training: On-site or remote operation and maintenance sessions.

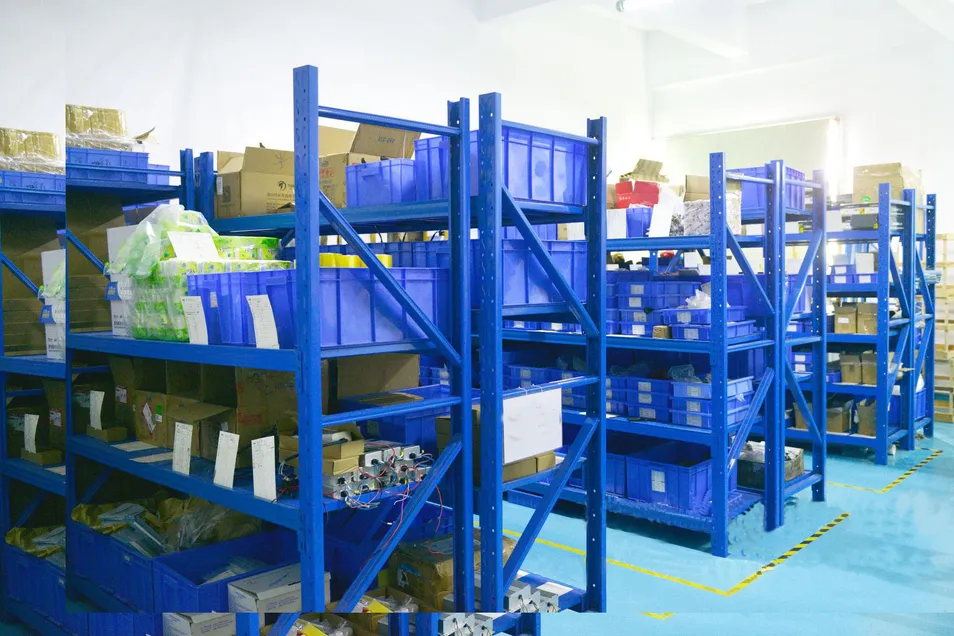

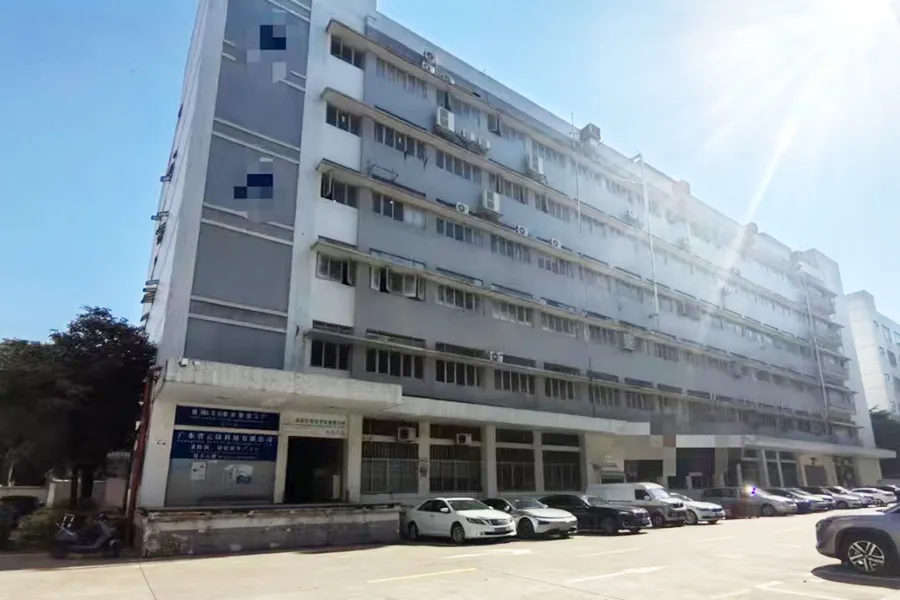

Professional Manufacturing
With over 12 years of expertise in UV LED Curing Systems, we are a leading certified manufacturer (ISO 9001, CE, RoHS) exporting to 50+ countries. Our dedicated R&D center ensures innovation and strict quality control across all product lines including spot, line, area, and conveyor curing systems.
Frequently Asked Questions
What are the primary applications for this UV LED system?
It is primarily used for curing UV-sensitive materials such as glues, inks, adhesives, paints, and varnishes across industries like electronics, medical, and automotive.
Why should I choose UV LED over traditional mercury lamps?
UV LED systems offer significantly longer service life (20,000+ hours), higher energy savings, instant power-on/off without warm-up, and are environmentally friendly (mercury-free).
Can the emitting window size and intensity be customized?
Yes, we specialize in OEM/ODM services. The size of the emitting window and the peak irradiance can be fully customized based on your specific production line requirements.
Does the system require special cooling?
This model (AF50200H1) is designed with an efficient Air-Cooled system, making it compact and easy to integrate without the need for water chillers.
What control interfaces are supported for automation?
The controller supports RS232 serial communication, PLC I/O interfaces, and pedal switches, allowing it to be easily integrated into automated production lines.
Is there a warranty for the UV LED heads?
Yes, we provide a standard 12-month warranty. The LED chips are rated for over 20,000 hours of use at 80% power, ensuring long-term reliability.
