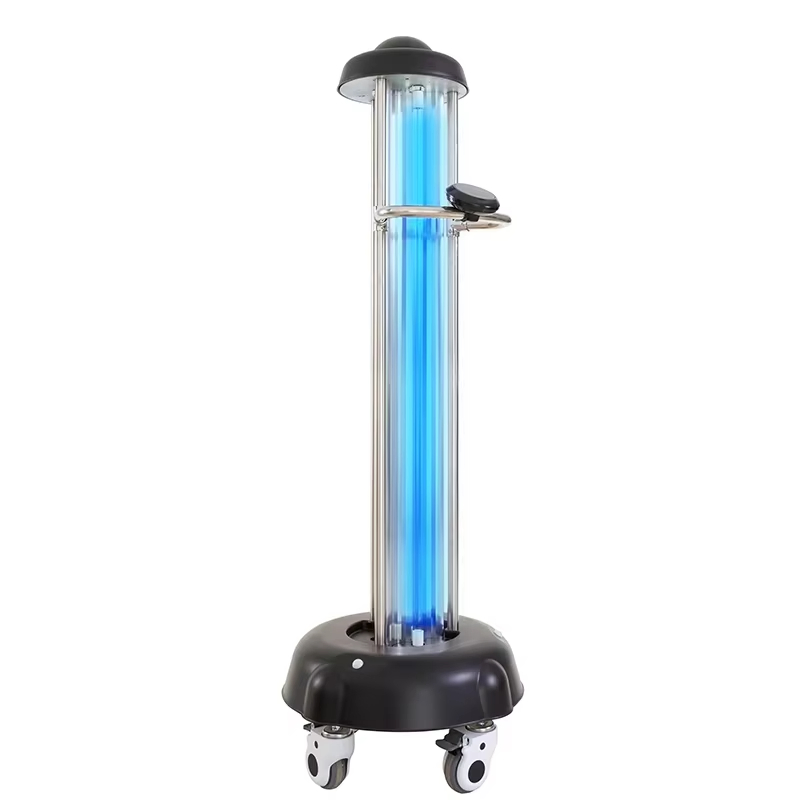

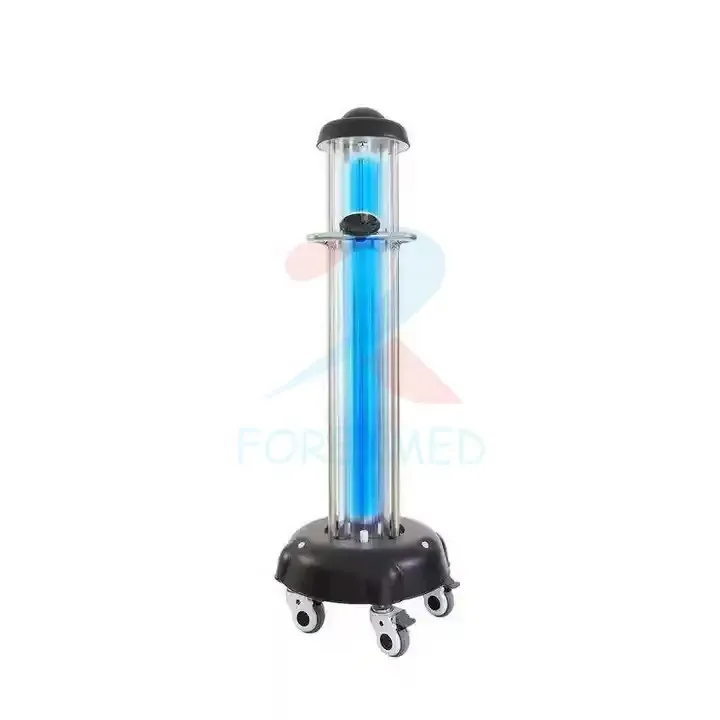

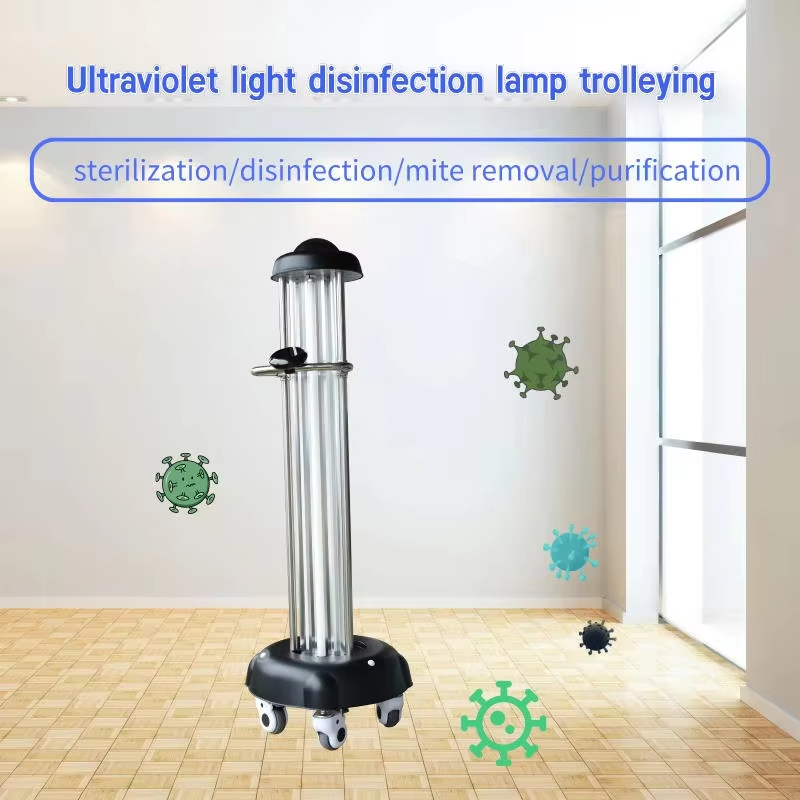

Medical UV Sterilizer Equipment Ultraviolet UV Disinfection and Sterilization Lamp UV Sterilization Lamp
Product Description
Model NO.
YJ-UV30
Capacity
1, 120W*3
Classification
Class III / Class B
Weight
25kg
Input Power
150va - 450va (50Hz)
Lamp Power
120W*3 (Total 3 Lamps)
Application
CT/MRI Room
Applicable Area
200 M2 (Static)
UV Wavelength
253.7nm
Feature
Non-Magnetic Disinfection
This large-scale disinfection device is equipped with three 120W lamp tubes, providing high-intensity ultraviolet coverage for clinical environments.

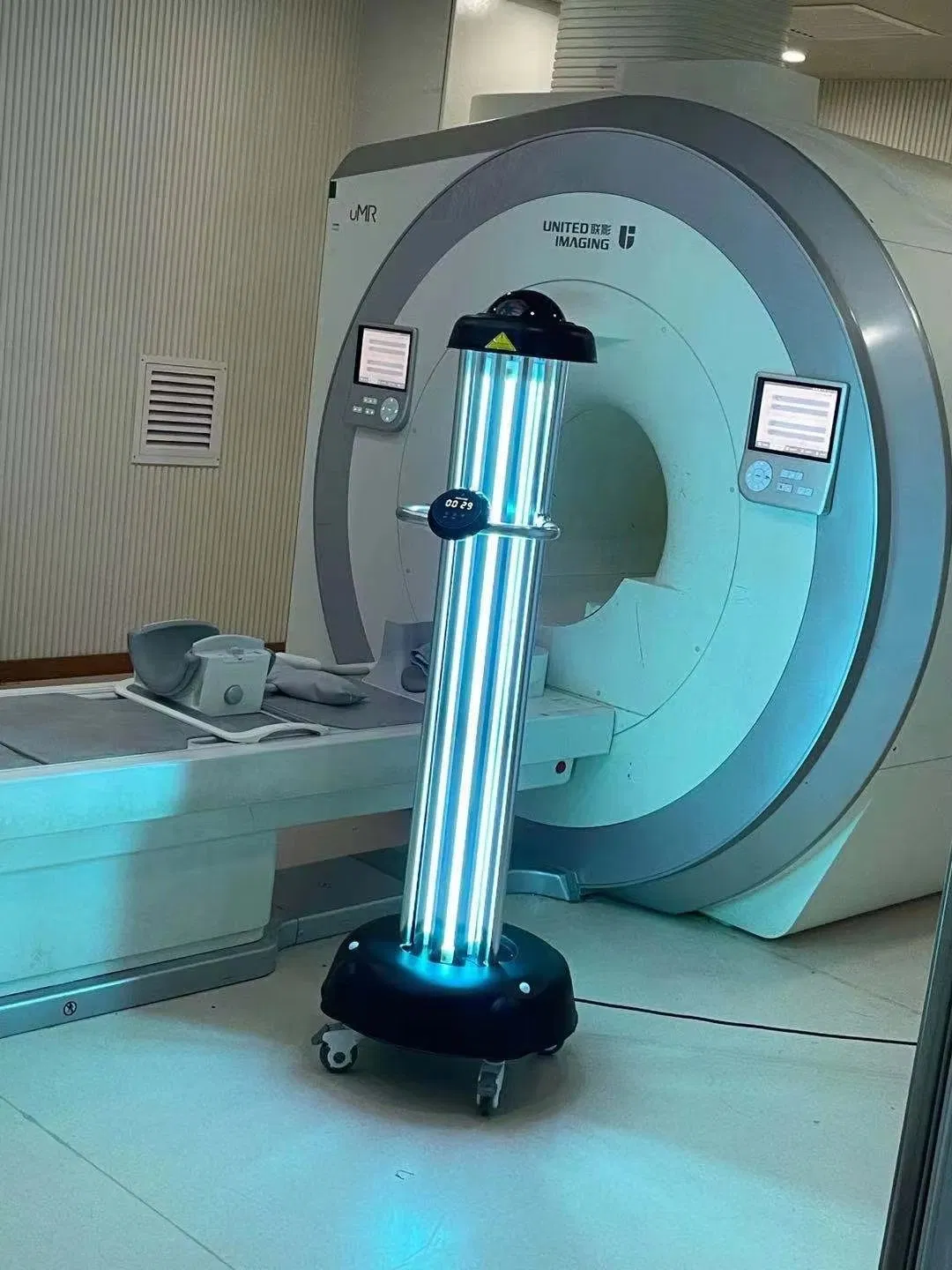

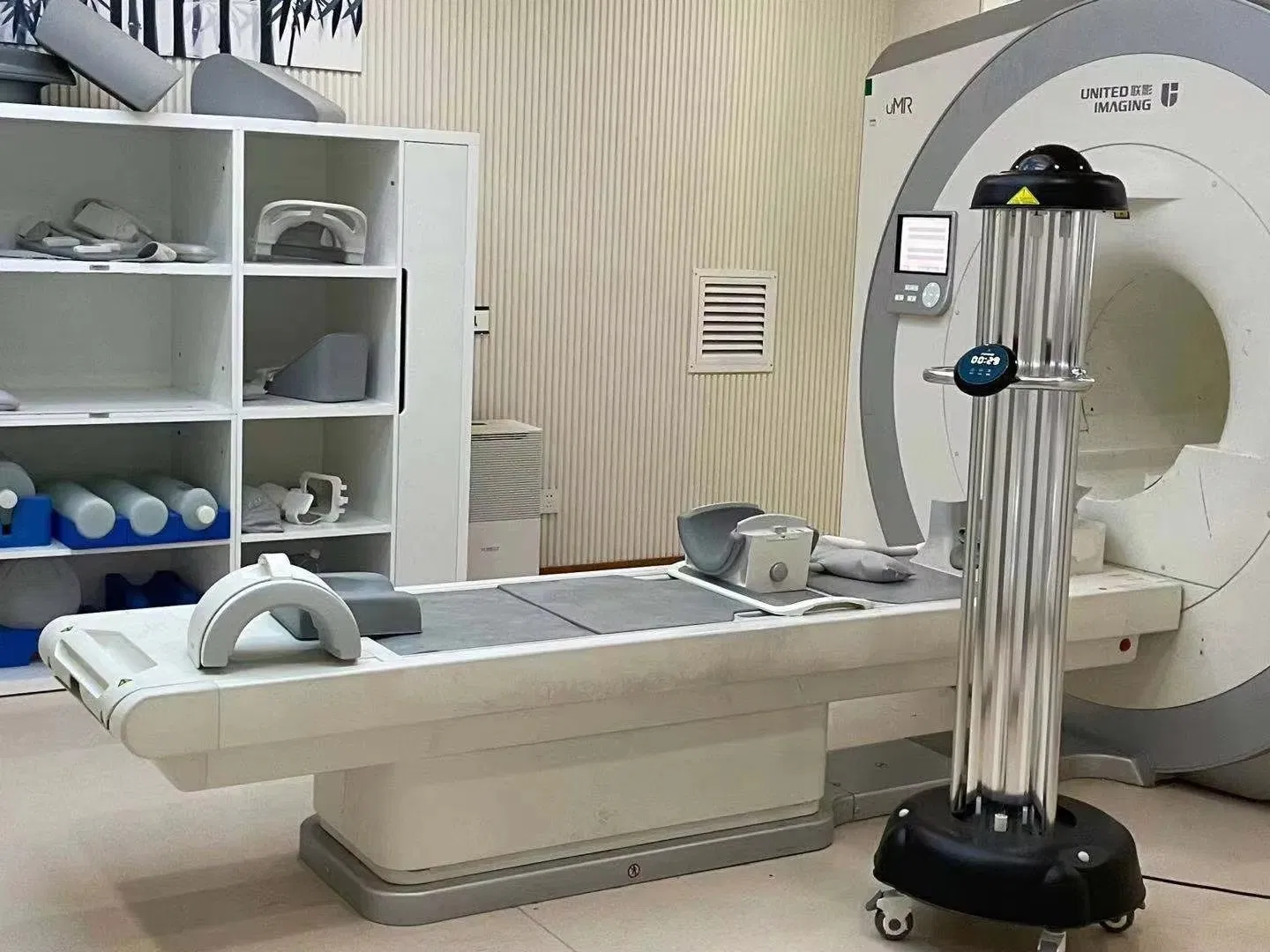

- Non-Magnetic Design: Made from non-magnetic materials, the YJ-UV30 will not be attracted by magnetic forces, making it ideal for MRI rooms.
- Enhanced Intensity: Independently developed reflective materials increase lamp intensity by 40%, reducing required disinfection time.
- Intelligent Control: Features a delayed startup (30 seconds), adjustable timer (30-min increments), and remote control.
- Safety Sensor: Equipped with a 360° human body sensor function for safe, hands-free operation.

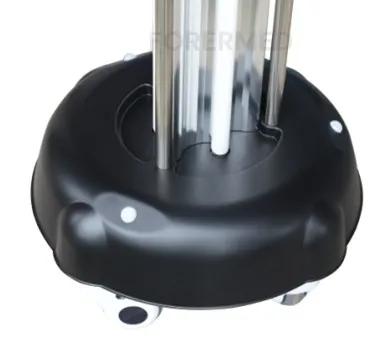

BOTTOM VIEW

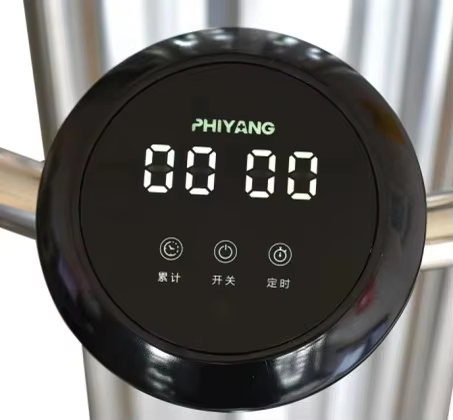

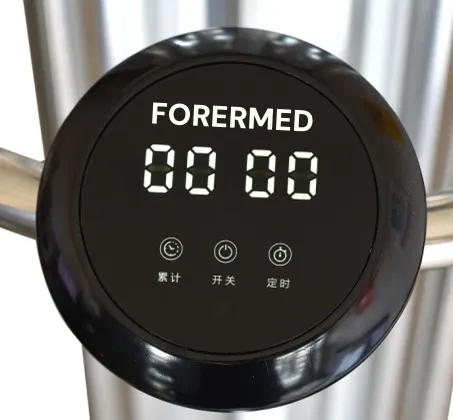

CONTROL PANEL

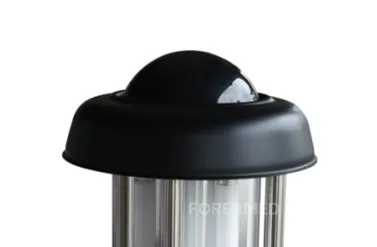

TOP CAP
| System Specification | |
|---|---|
| Lamp Power | ≥120W * 3 |
| Number of Lamps | 3 |
| Static Area Coverage | 200m² |
| Power Supply | 220V±10% / 50HZ±10% |
| Ultraviolet Wavelength | 253.7nm |
| Working Conditions | |
| Ambient Temperature | 5°C ~ 40°C |
| Relative Humidity | < 80% |
| Atmospheric Pressure | 50kPa ~ 106kPa |
Can this UV lamp be used safely in MRI rooms?
Yes. The YJ-UV30 is constructed from specialized non-magnetic materials, ensuring it will not be affected by or interfere with strong magnetic fields in MRI or CT environments.
What is the effective disinfection area?
The device is capable of covering a static area of up to 200m², making it suitable for large clinical halls and specialized treatment rooms.
How does the human body sensor work?
The device features a 360° motion sensor. It includes a 30-second delayed start to allow staff to leave the room safely, and it will shut down if movement is detected to prevent accidental UV exposure.
What is the ultraviolet wavelength used?

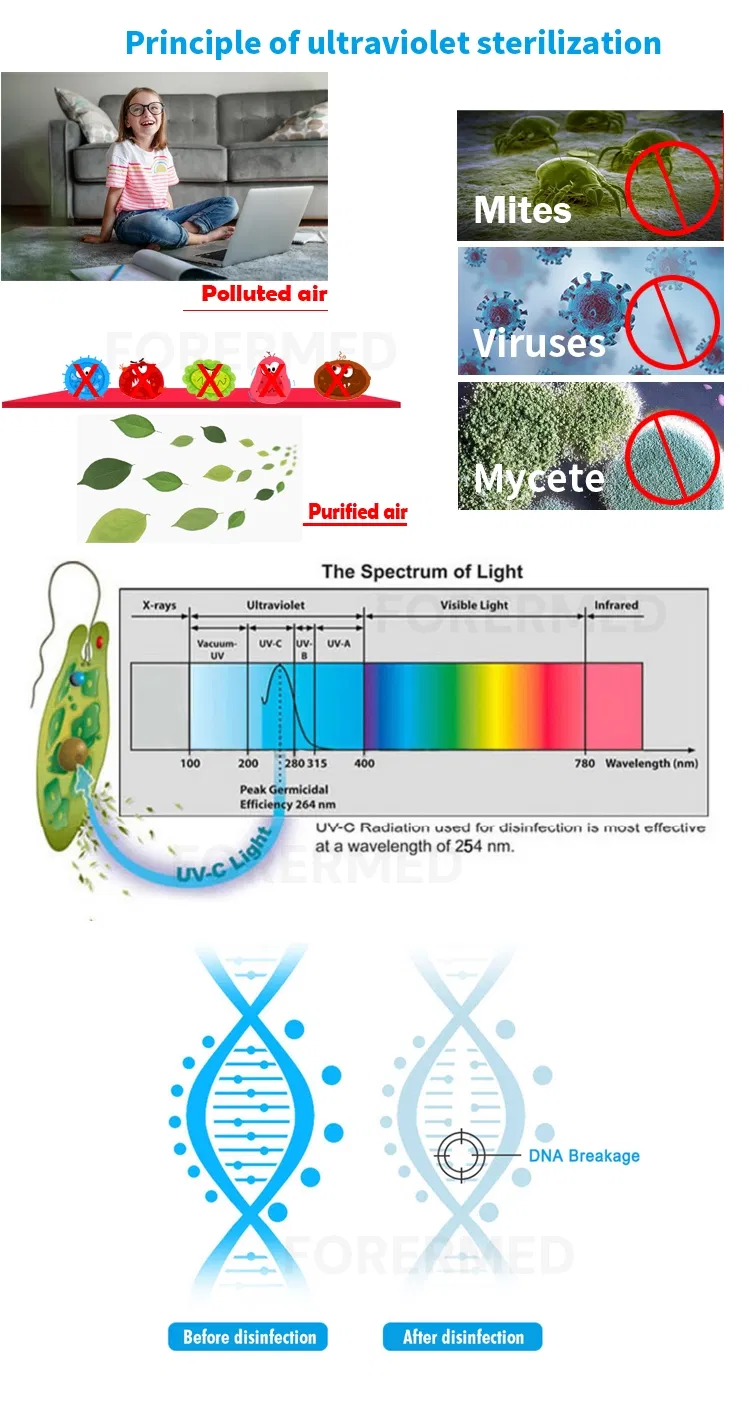

The lamp emits UV-C light at a wavelength of 253.7nm, which is the optimal spectrum for breaking down the DNA/RNA of bacteria and viruses.
How does the reflective material improve performance?
Our proprietary reflective inner coating increases the reflected UV intensity by approximately 40%. This results in a much more efficient sterilization process and shorter cycle times.
Is the sterilization time adjustable?
Yes, the control panel allows you to set the timer in 30-minute increments to suit the specific size and disinfection requirements of the room.
