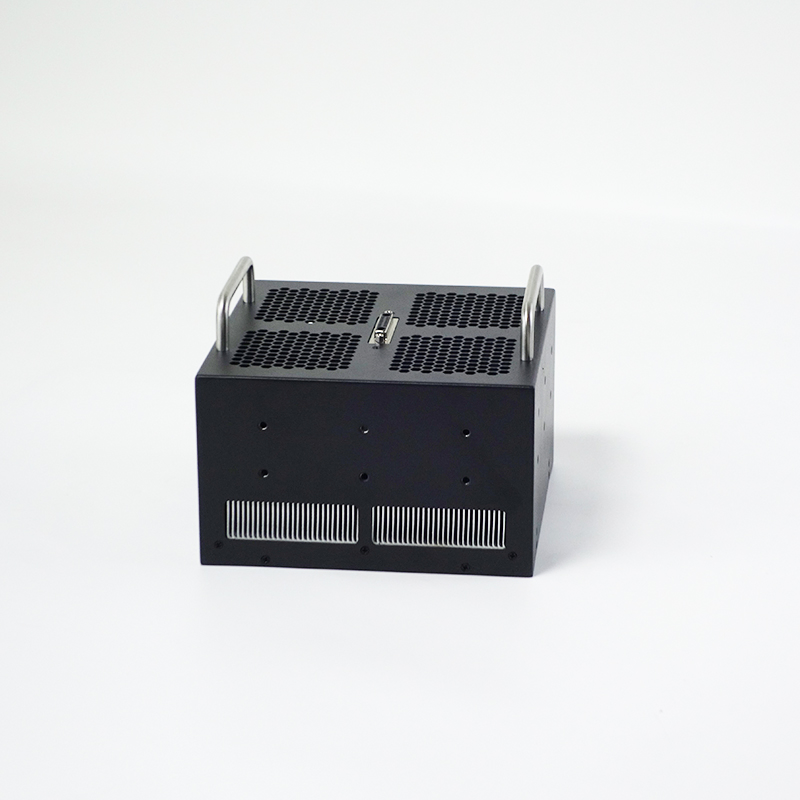

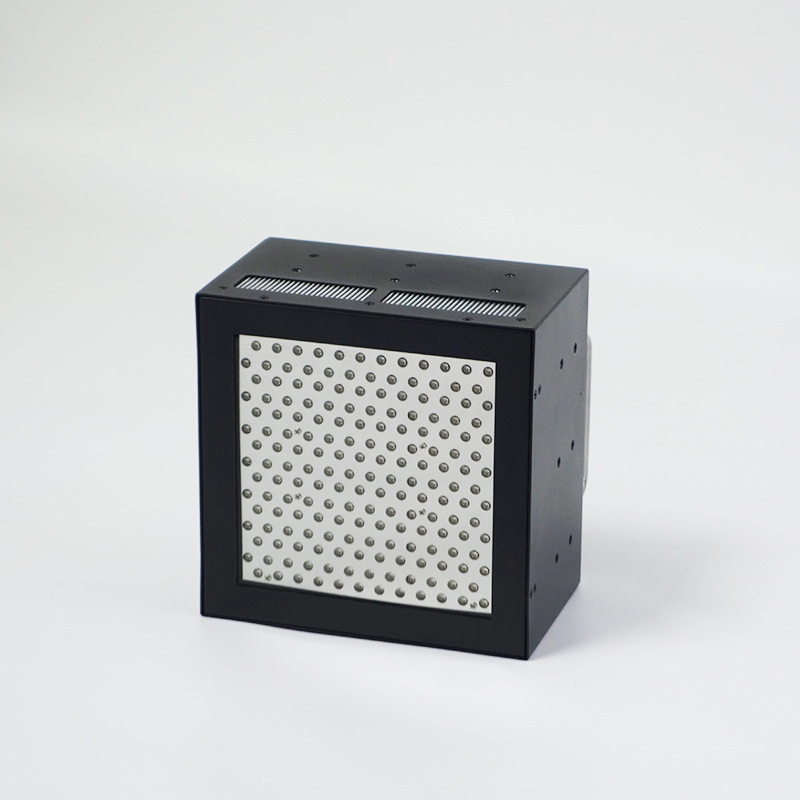

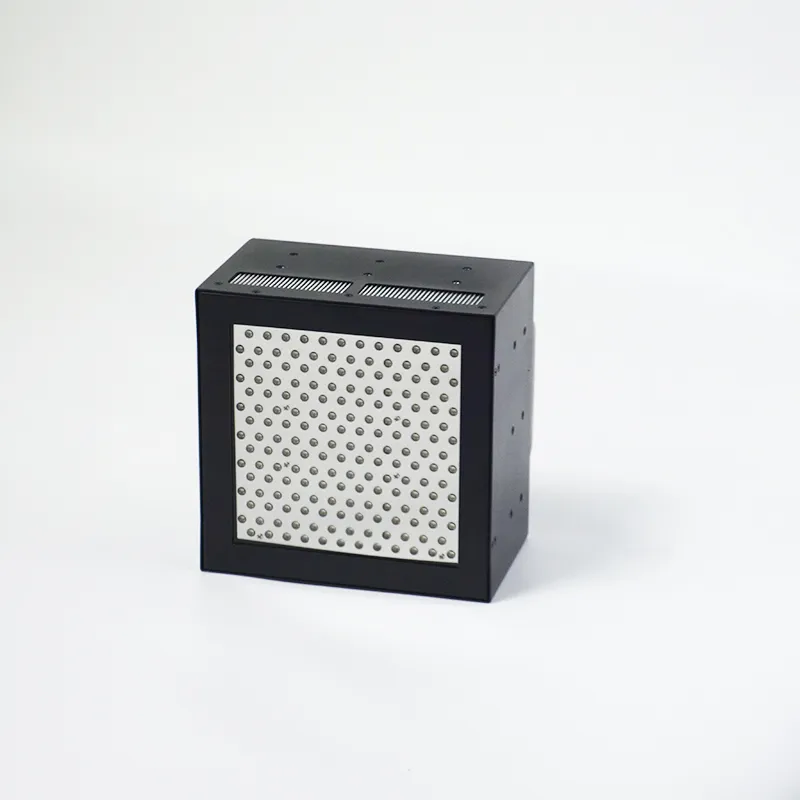

Factory Sale 365nm UV Curing Lamp Customized for UV Drying Machine Bonding Medical Supply
Product Description
❖
Basic Specifications
Model NO.
AF150150H1
Wavelength
365/385/395/405nm
Material
Sheet Metal or Aluminum
Certification
CE
Input Voltage
AC100~240V(50/60Hz)
Cooling Method
Air-Cooled and Water-Cooled
LED Life
20000hrs
Control Method
RS232/Pedal/PLC
LED Beam Size
100X100mm
UV Intensity
1~20W/Cm2
➔
Product Description
Factory Sale 365nm UV Curing Lamp Customized for UV Drying Machine Bonding Medical Supply
Product model: AF150150H1

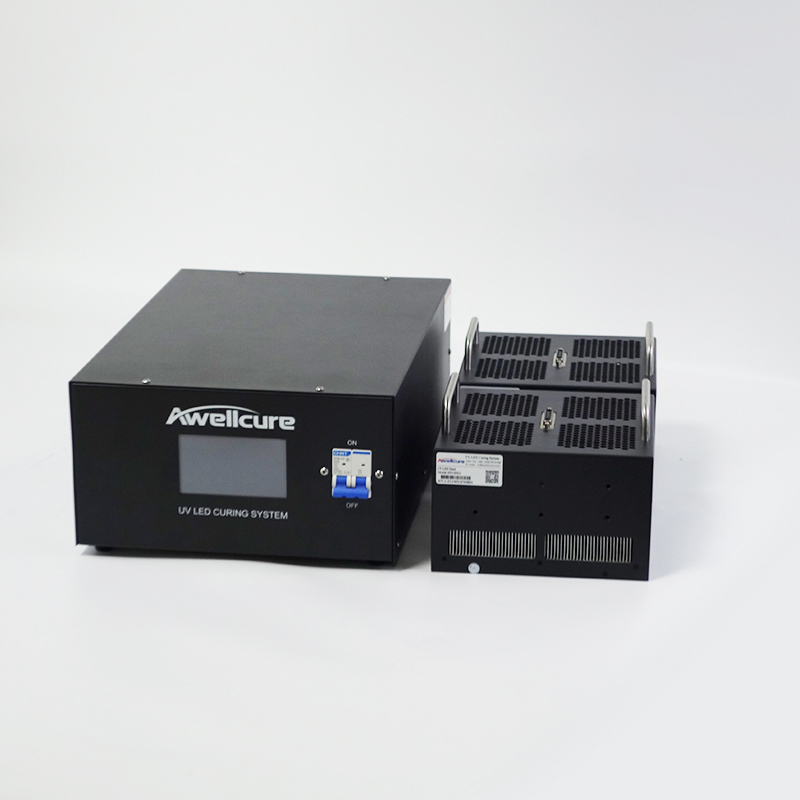

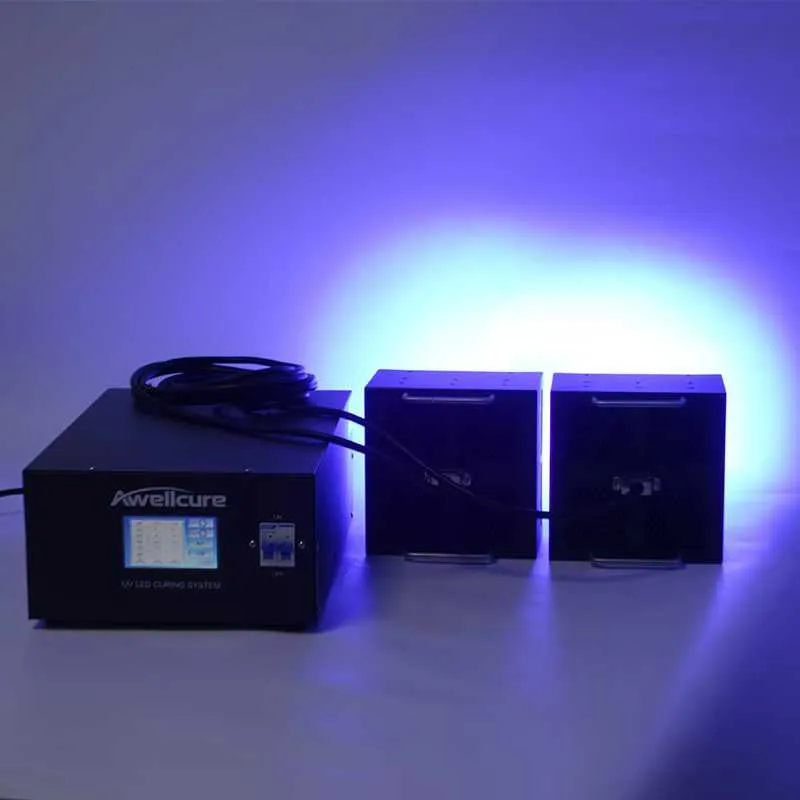

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)
Key Features & Advantages
- ✔ External signal controls UV irradiation via MCU, PLC, and scanner.
- ✔ Multiple status LEDs (start, stop, working, alarm) with signal output.
- ✔ RS232 interface for parameter programming and updates.
- ✔ Instant on/off: No warm-up phase required.
- ✔ Low Heat: No infrared radiation, ideal for temperature-sensitive materials.
📋
Technical Specifications
| Controller Parameters | |
|---|---|
| Voltage | 100-240V AC |
| Cooling Method | Fan cooling |
| Controller Method | Touch/Pedal/RS232 Port/PLC |
| Power Range | 10%~100%mW |
| Irradiation Mode | Manual / Automatic / Ladder / Pulse |
| Irradiation Head Specifications | |
|---|---|
| UV LED Usage Time | 20000Hrs @80% power |
| Wavelength Range | 365nm/385nm/395nm/405nm(±5) |
| Luminous Size | 150x150mm |
| Peak Intensity | 0.5~20W/cm² |
| Connecting Cable | Standard 2/5M or Customized |
⚡

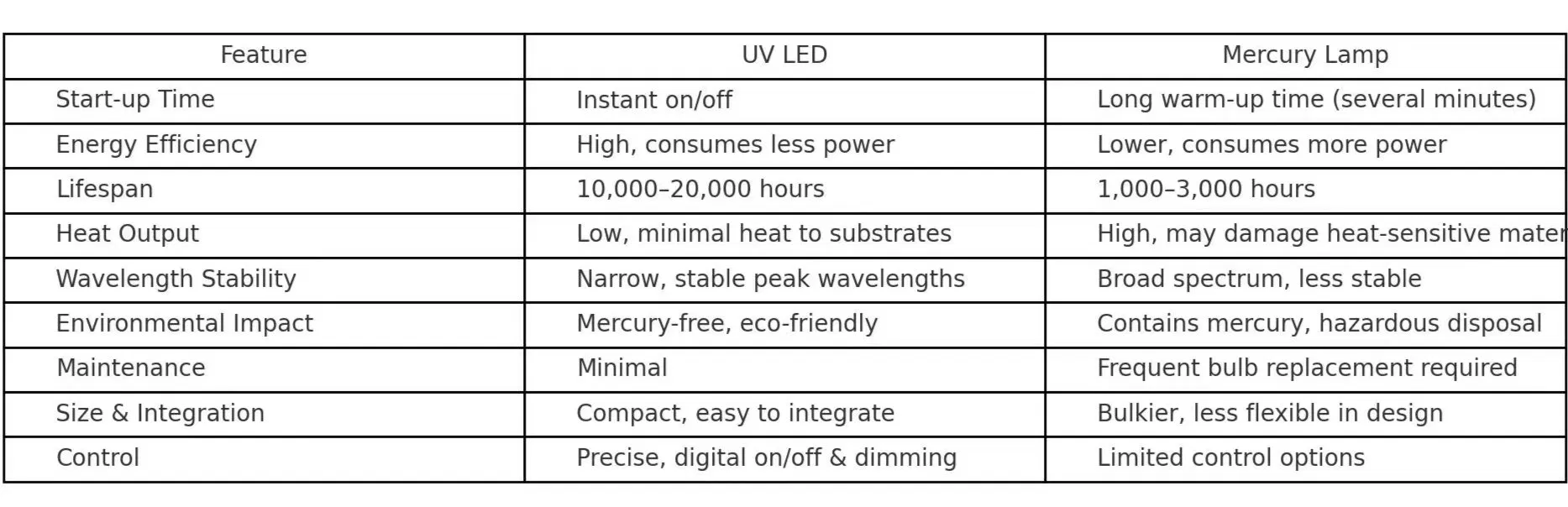

UV LED vs. Mercury Lamp
UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and an environmentally friendly alternative to traditional mercury lamps.
✔
Wide Applications
- ✦UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
- ✦UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
- ✦UV Ink: UV printing, 3D printing.
ℹ
After Sales Service
Warranty
Standard 12 months (Optional up to 36 months).
Technical Support
24/7 technical assistance and spare parts supply.
Training
On-site or remote operation and maintenance training.
★
Why Choose Our Solutions?
A leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable machines backed by R&D innovation and strict quality control.
?
Frequently Asked Questions
Why choose our UV LED curing system?
Our team has over 12 years of combined experience in the UV LED curing industry and can meet the unique technical requirements of each client.
What are the primary applications for this system?
It is mainly used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish, and other UV-sensitive materials.
What are the major advantages compared to mercury lamps?
Key benefits include a significantly longer service life, energy savings, instant on/off capabilities, and an eco-friendly design without mercury.
How do I determine the required emitting window size?
The emitting window size depends entirely on the specific curing area required for your application.
Can the irradiance intensity be customized?
Yes, any size of the emitting window and peak irradiance can be customized according to your specific production efficiency and material needs.
Is technical support available for installation?
We provide comprehensive global support, including 24/7 technical assistance and optional on-site or remote training.
