UVC Lamp with Killing Bacteria for Water UV Disinfection System
Product Description
Basic Information
Model NO.
UV Sterilizer
Voltage
110/240V
Disinfection Method
Ultraviolet
Shell Material
Ss#304/316
Lamp Power
6-660W
Input Voltage
110V/240V 50/60Hz
Capability
0.5-144gpm
Water Capacity
421-33739cm³
Lamp Quantity
1-12PCS
Usage
Water Treatment
HS Code
8543709990
Capacity
500,000/Month
Product Description
An ultraviolet sterilizer utilizes the energy of ultraviolet photons to break the DNA structure of various viruses, bacteria, and other pathogenic bodies in water. By disrupting structural bonds in DNA or causing photochemical polymerization (such as dimerizing THYMINE), it ensures that pathogenic organisms lose their ability to replicate and reproduce, effectively achieving a high sterilization rate.

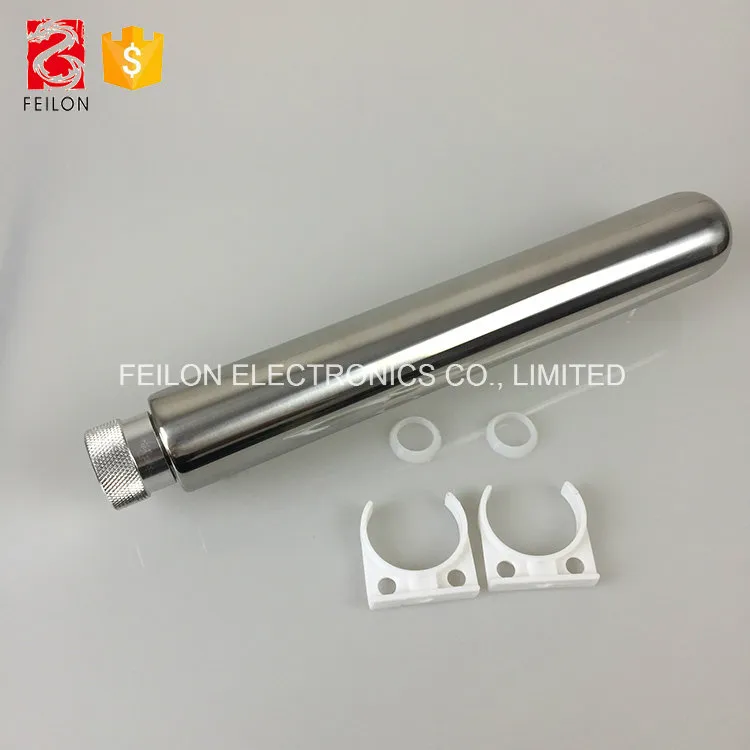

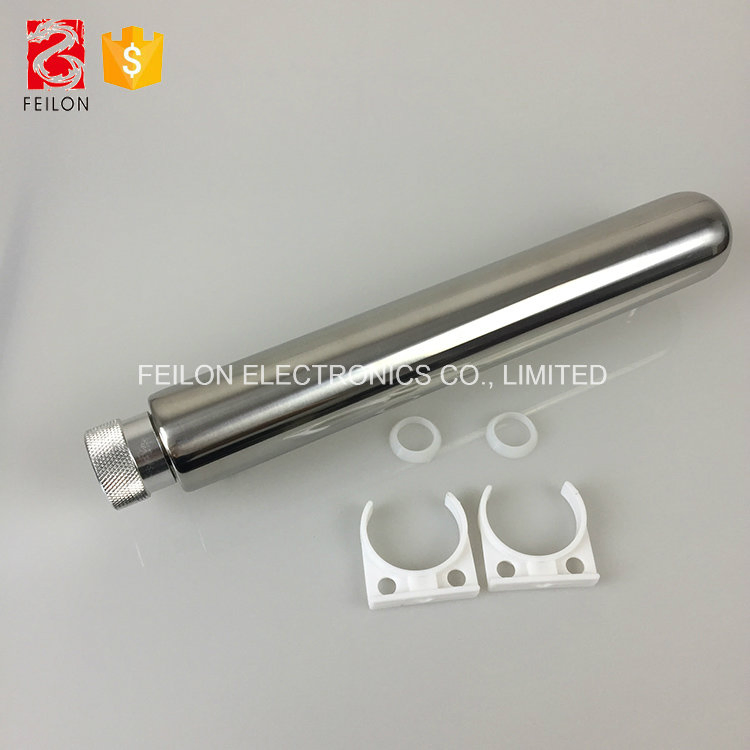

The main body of the over-current UV sterilizer is constructed from high-quality 304L or 316L stainless steel. Both the interior and exterior are polished to enhance UV irradiance, ensuring maximum disinfection efficiency throughout the sterilization process.
Technical Specifications
| Model | SS 6W | SS 12W | SS 16W | SS 25W | SS 30W | SS 35W | SS 55W |
|---|---|---|---|---|---|---|---|
| Material | #304/316 | #304/316 | #304/316 | #304/316 | #304/316 | #304/316 | #304/316 |
| Lamp Power | 6W | 12W | 16W | 25W | 30W | 35W | 55W |
| Treatment Cap. | 0.5GPM | 1GPM | 2GPM | 6GPM | 8GPM | 10GPM | 12GPM |
| Max Pressure | 10bar | 10bar | 10bar | 10bar | 10bar | 10bar | 10bar |
| Model | SS 110W | SS 165W | SS 220W | SS 330W | SS 440W | SS 550W | SS 660W |
|---|---|---|---|---|---|---|---|
| Lamp Qty | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| Treatment Cap. | 24GPM | 36GPM | 48GPM | 72GPM | 96GPM | 120GPM | 144GPM |
| Water Cap. | 8130cm³ | 12330cm³ | 12330cm³ | 19674cm³ | 33739cm³ | 33739cm³ | 33739cm³ |
Wide Applications
Seawater and freshwater breeding (fish, clams, shrimps, shellfish, etc.) water disinfection.
Food processing industry: juice, milk, beverages, beer, and cooking oil production.
Hospitals and laboratories: high-level disinfection for pathogenic bodies.
Domestic water: residential quarters, office buildings, hotels, and restaurants.
Biochemical pharmaceutical and cosmetic production cooling water.
Swimming pools and water recreation facilities.

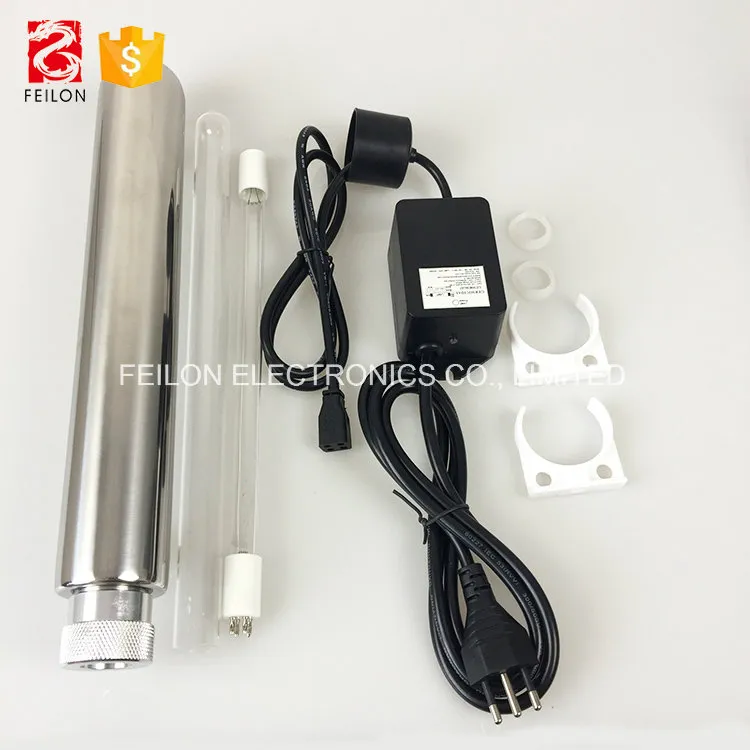

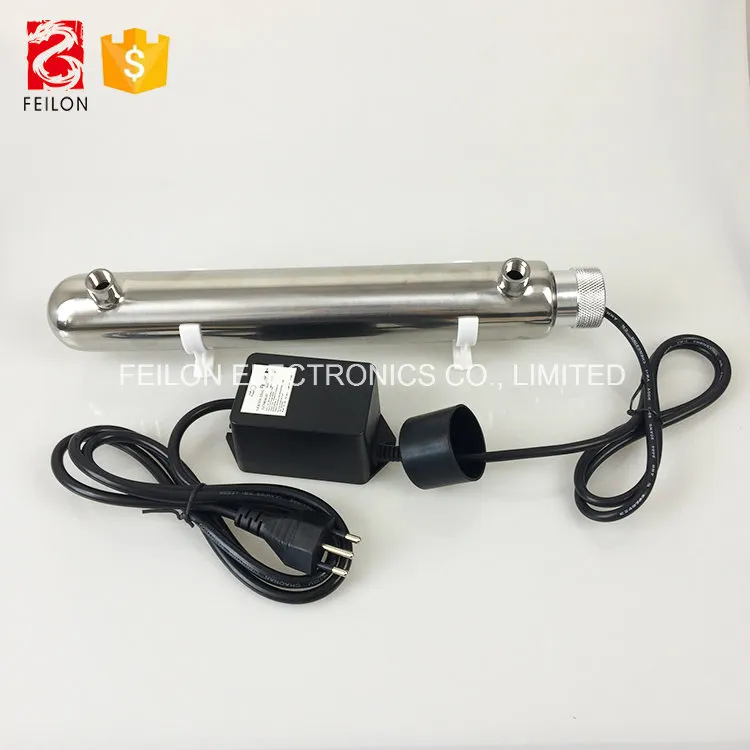

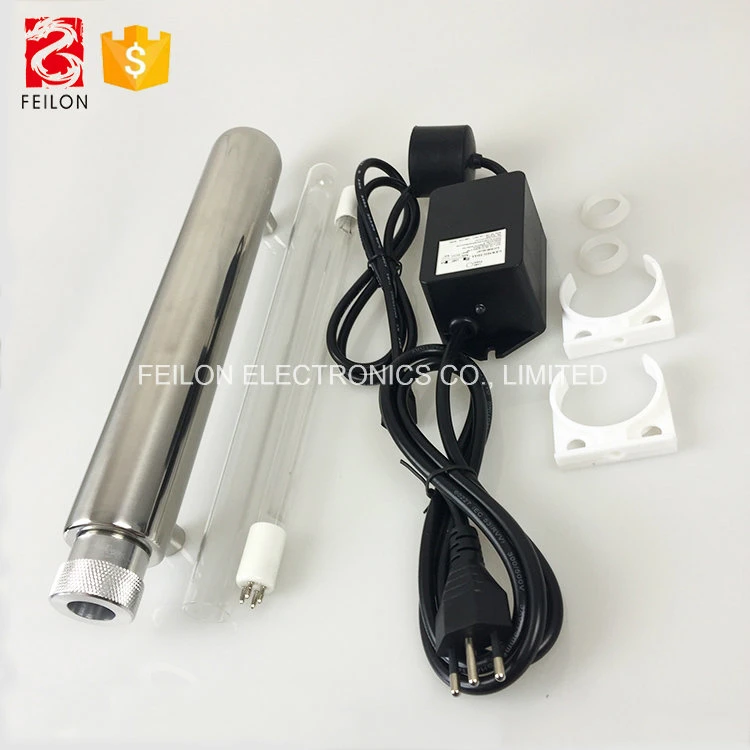

Product Gallery
Frequently Asked Questions
Q1: How effective is the UV sterilizer against bacteria?
The UV sterilizer is highly effective, as it destroys the DNA structure of viruses and bacteria, preventing them from reproducing. It is a chemical-free method that achieves up to 99.9% sterilization.
Q2: What is the difference between 304 and 316 stainless steel options?
Both are high-quality, but 316 stainless steel contains molybdenum, which provides superior resistance to corrosion, especially in high-salinity environments like seawater applications.
Q3: How often do the UV lamps need to be replaced?
Generally, UV lamps should be replaced every 8,000 to 9,000 hours of operation (approximately once a year) to ensure consistent disinfection power.
Q4: Can this system handle high-pressure water flow?
Yes, our systems are tested at 15bar (218psi) and have a maximum operating pressure of 10bar (145psi), making them suitable for most industrial and residential setups.
Q5: Is it safe for drinking water disinfection?
Absolutely. UV sterilization is one of the safest methods for drinking water as it does not add any chemicals or change the taste and odor of the water.
Q6: What maintenance is required besides lamp replacement?

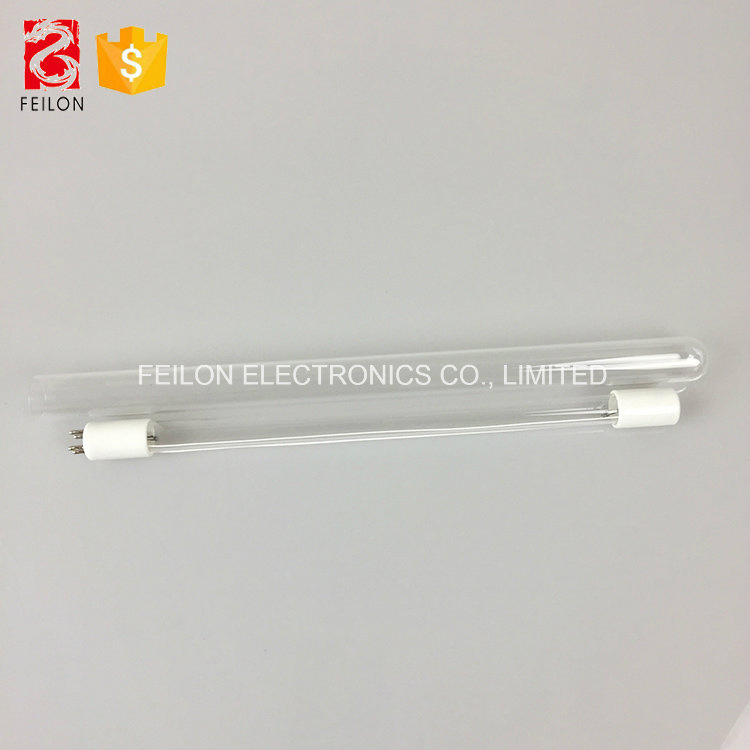

The quartz sleeve surrounding the lamp should be cleaned periodically to remove any mineral deposits, ensuring the UV light can penetrate the water effectively.
