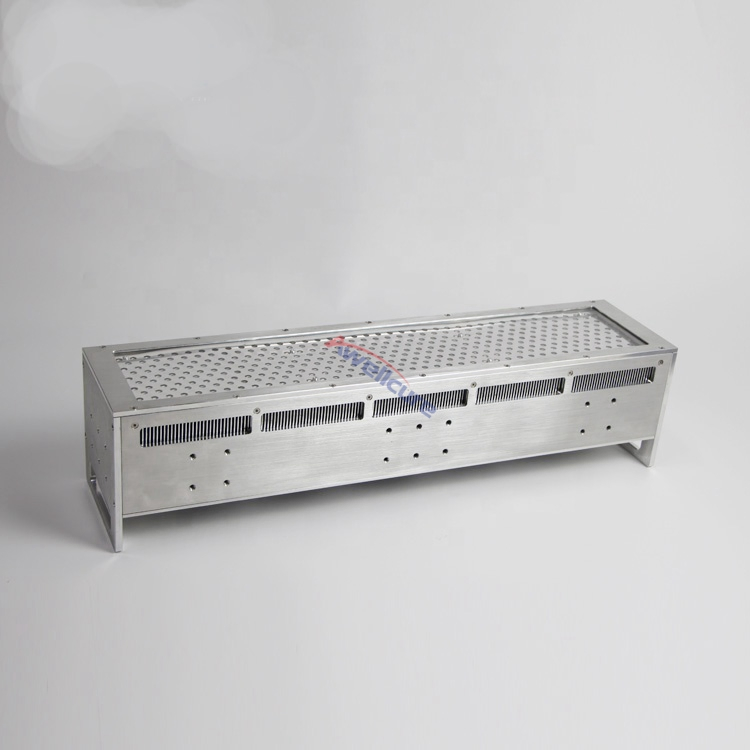

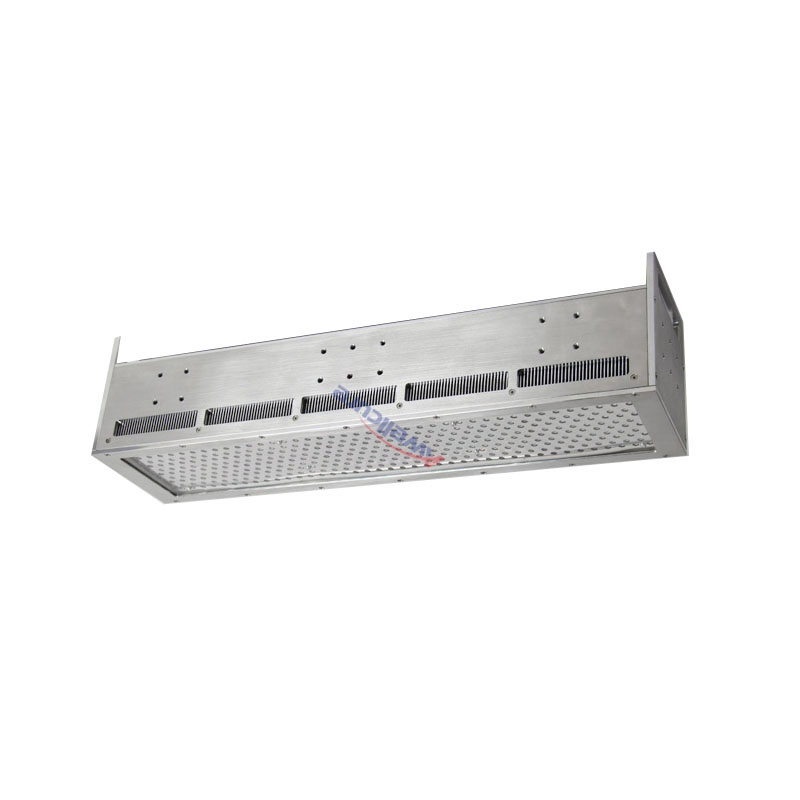

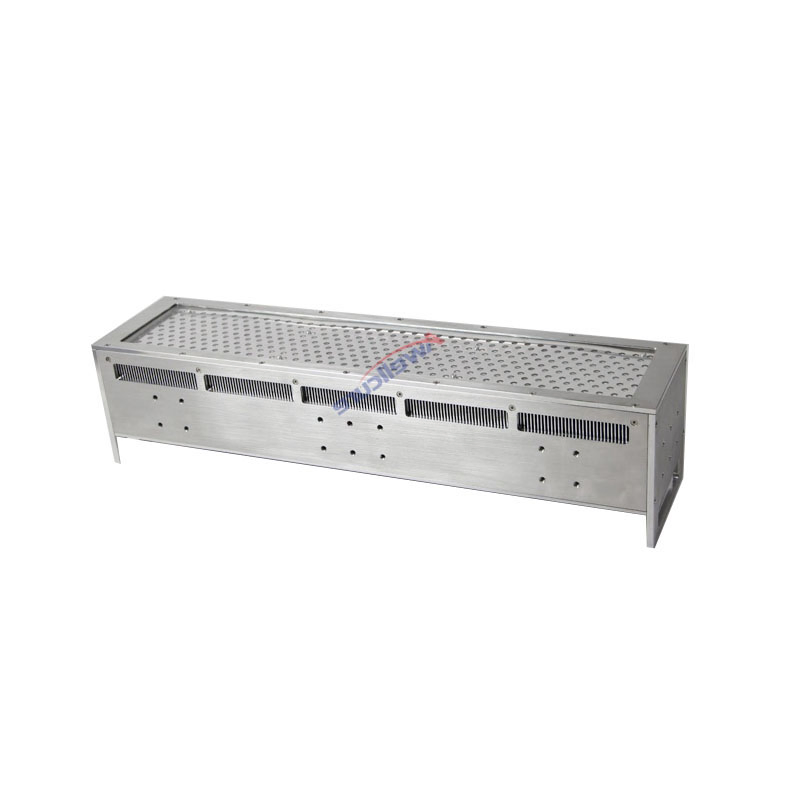

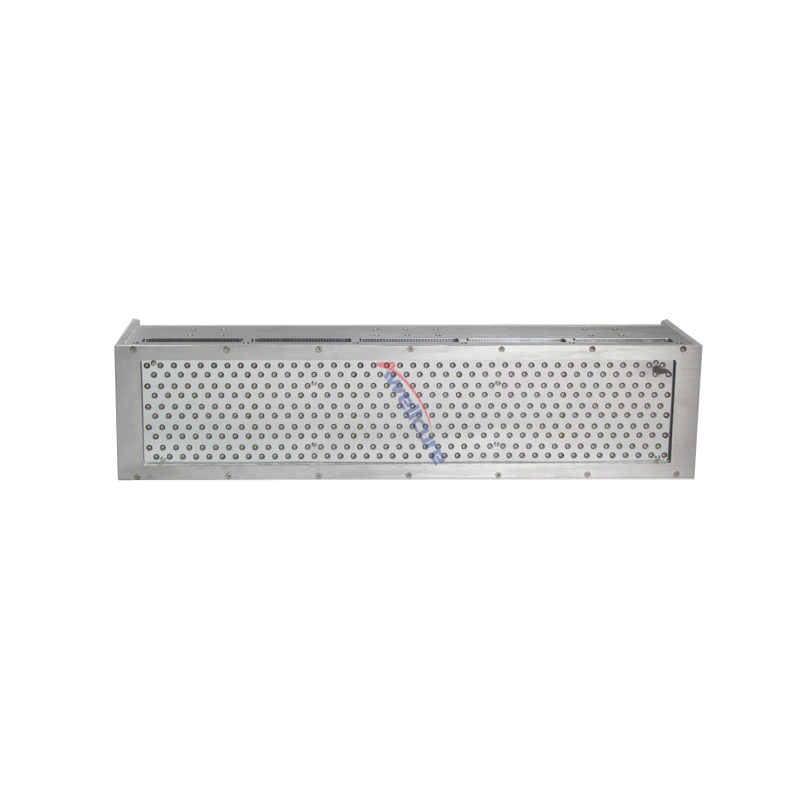

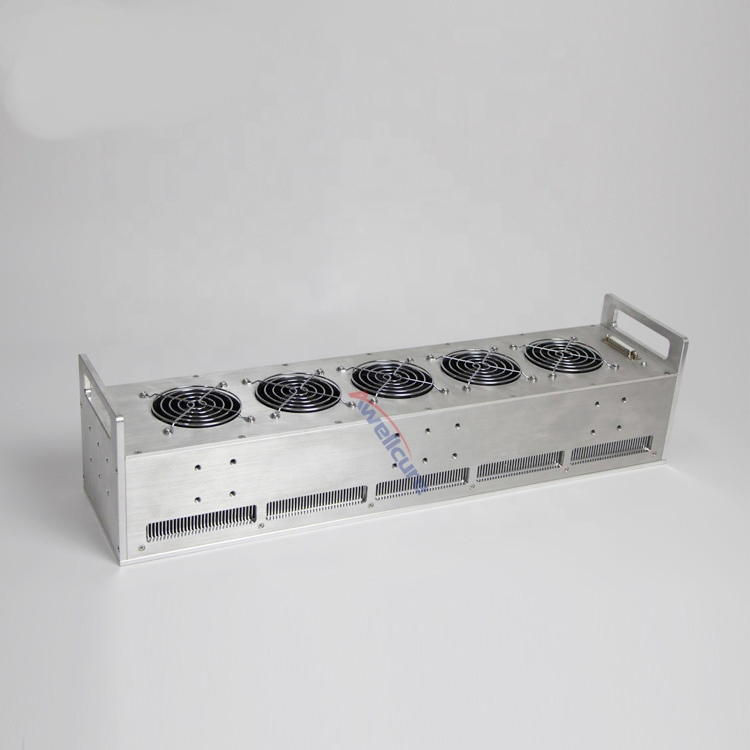

UV LED Curing System 500*100mm UV Lamp Water-Cooling Ultraviolet Light Curing Lamp
Product Description
Basic Information
Product Description

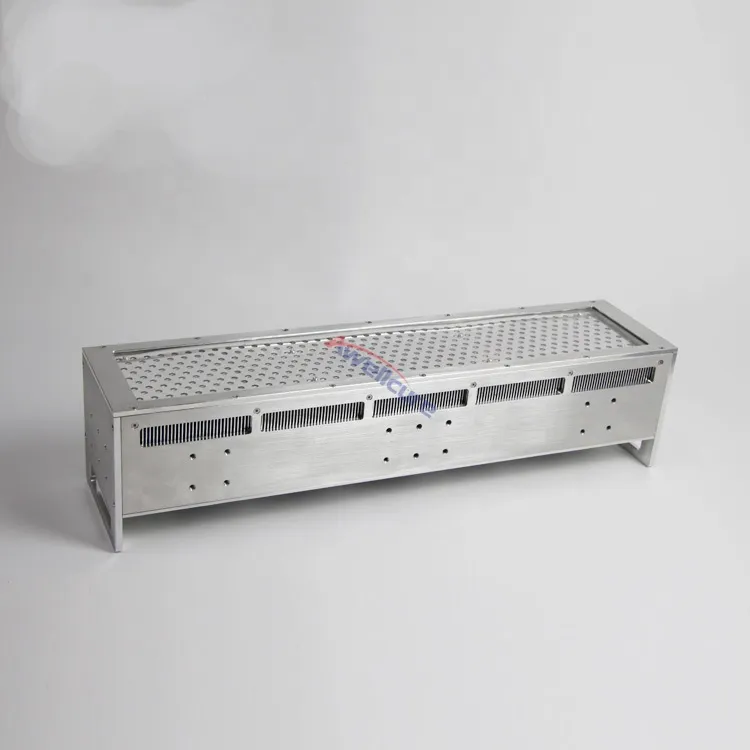

UV LED Curing System 500*100mm UV Lamp Ultraviolet Light Curing System
Product model: AF50200H1
Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

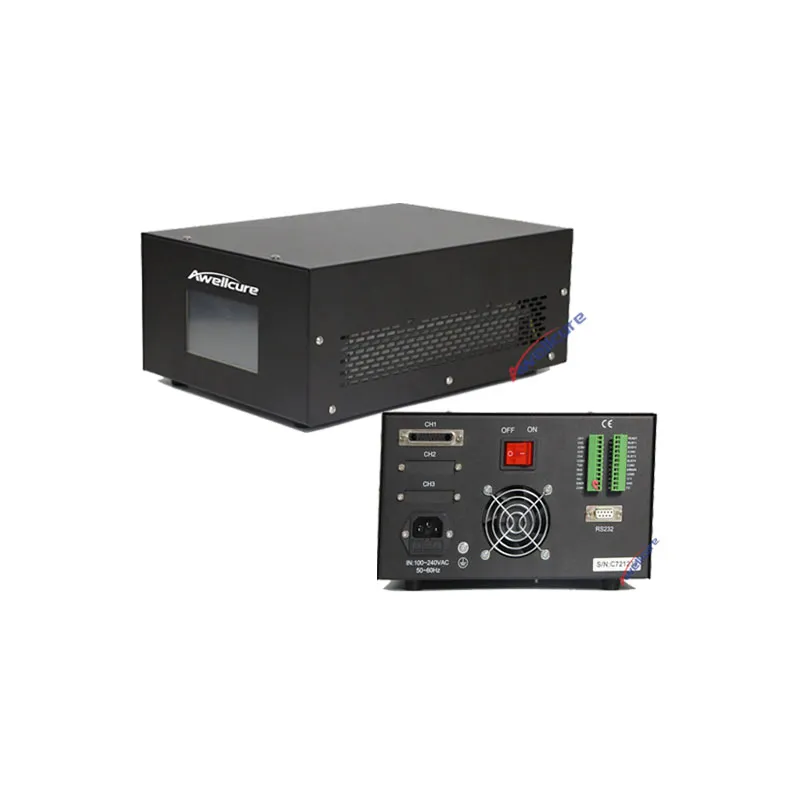

Features of Controller:
- External input signal controls UV irradiation via MCU, PLC, and scanners.
- Status LEDs for start, stop, working, and alarm outputs.
- RS232 interface for programming and updates.
- Direct lighting control via foot switch or sensor terminals.
Advantages of UV LEDs:
- No infrared radiation; ideal for low-temperature materials.
- Instant on/off - no warm-up phase required.
- Optimized spectra for safe and fast curing.
Technical Specifications
| Controller Specifications | |
|---|---|
| Voltage | 100-240V AC |
| Material | Sheet metal black |
| Cooling Method | Fan cooling |
| Controller Method | Touch/Pedal/RS232 Port/PLC |
| Irradiation Power range | 10%~100%mW |
| Irradiation Modes | Manual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse |
| Communication | RS232 Serial Port & I/O Interface |
| Irradiation Head Specifications | |
|---|---|
| LED Type | Imported |
| Usage Time | 20000Hrs @80% power |
| Heat Dissipation | Air cooled/Water cooled |
| Wavelength Range | 365nm/385nm/395nm/405nm(±5) |
| Luminous Size | 500x100mm |
| Peak Intensity | 500mW/750mW/1500mW/cm2 or customize |

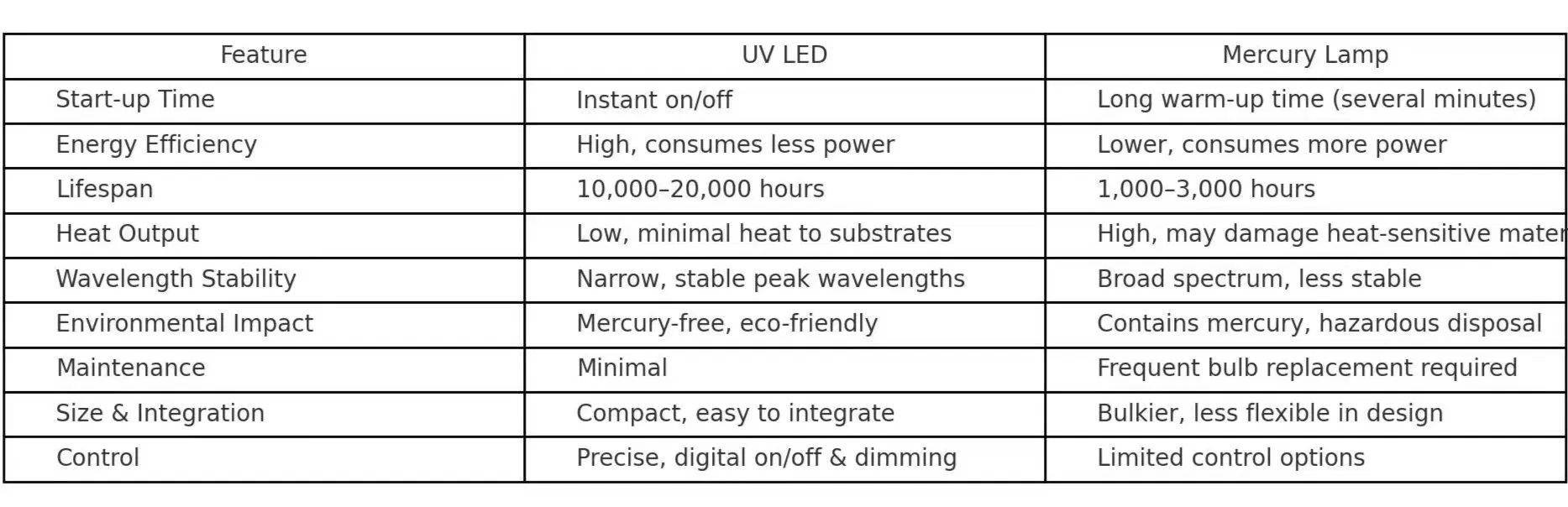

UV LED vs. Mercury Lamp
Applications
1. UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
2. UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
3. UV Ink: UV printing, 3D printing
After Sales Service
- Standard Warranty: 12 months.
- Extended Warranty: Optional coverage up to 36 months.
- Global Support: 24/7 technical assistance and spare parts supply.
- Training: On-site or remote operation and maintenance training.

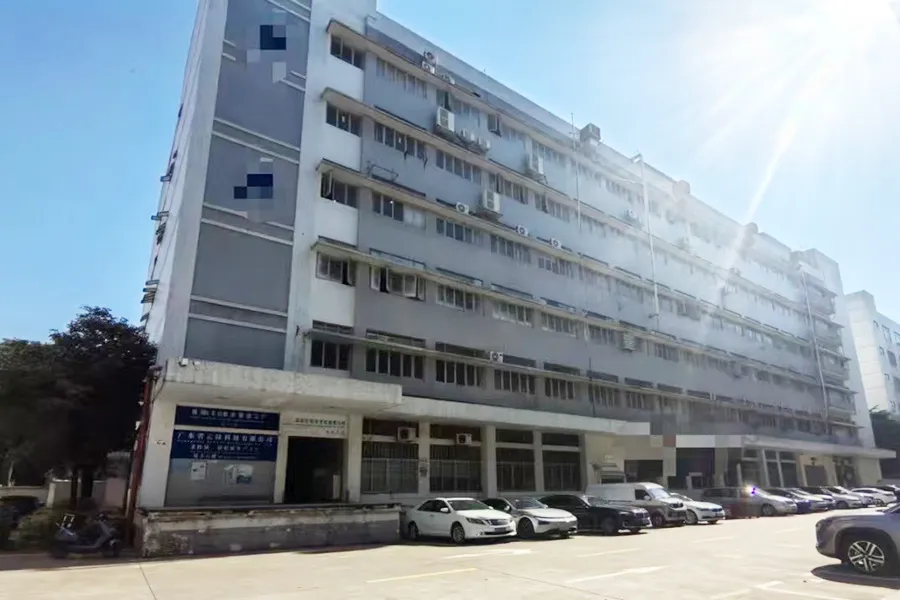

Company Profile
As a leading manufacturer of UV LED Curing Systems with over 12 years of expertise, the company is certified with ISO 9001, CE, and RoHS. Products are exported to 50+ countries, offering reliable solutions backed by R&D innovation and strict quality control.
Main Products: Spot, Line, Area curing systems, UV Ovens, Conveyors, and Measuring systems.
