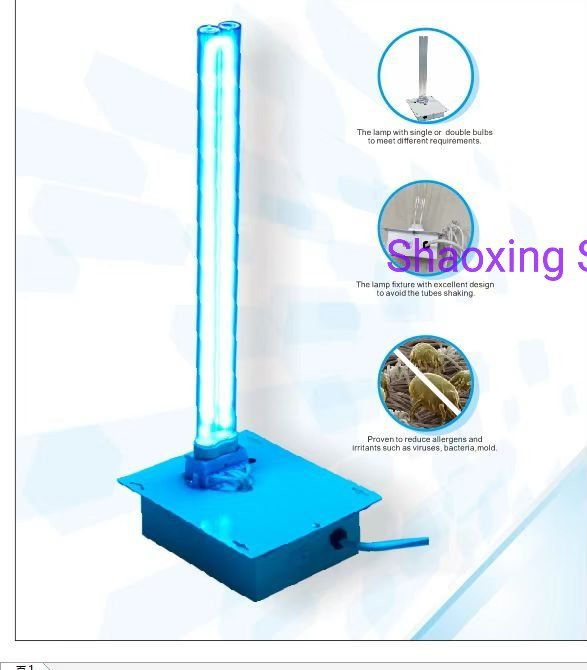

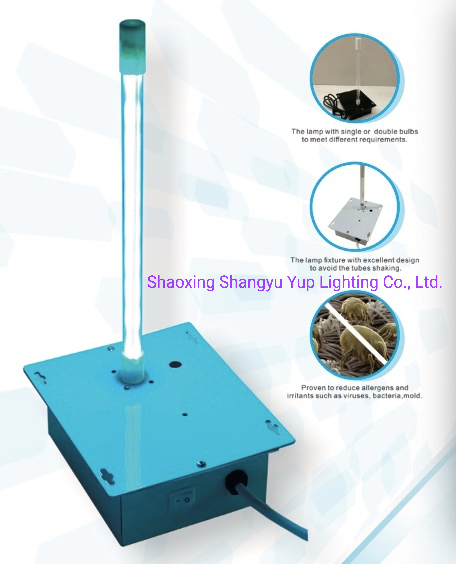

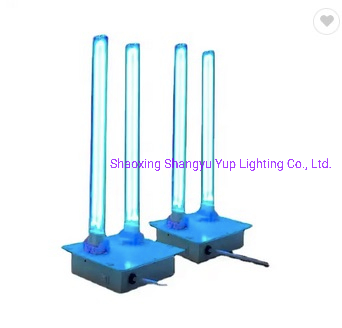

UV Lamp Ultraviolet Ray Disinfection Lamp Ozone LED Light Bulb Ultraviolet Sterilizer Bacterial Kill Mite Home Lamp

Customization: Available
Structure: Wall Mounted
Usage: Home, Industry, Medical, Engineering

Product Description

i

Basic Specifications

Air Volume
301-400m³/h
Type
UV Sterilizer
Certification
CE, MSDS
Application Area
>61m²
Power Source
Electrical
Purifying Tech
UV Light
UV Output
80W High Output
Bulb Life Time
9000 Hours
Germ Killing Rate
99.9999%
HS Code
85394900
Capacity
10000/Month
UV Lamp Sterilizer
📦

Packaging and Delivery

Packaging DetailsExport Standard Carton
PortNingbo / Shanghai
Selling UnitsSingle Item
Single Package Size44 x 48 x 23 cm
Single Gross Weight12.000 kg
⚠️ WARNINGS & SAFETY INSTRUCTIONS

Read these instructions carefully and completely before proceeding with the installation.

Never expose eyes or skin to the UVC light from any source. Looking directly at UVC light may cause eye damage, or even blindness. Never operate the UV air purifier outside of the ventilation ducts. Only install in a closed duct system, not at any vented openings.

WARNING: For indoor use only. This UV air purifier is for indoor installation only (inside the home or building).

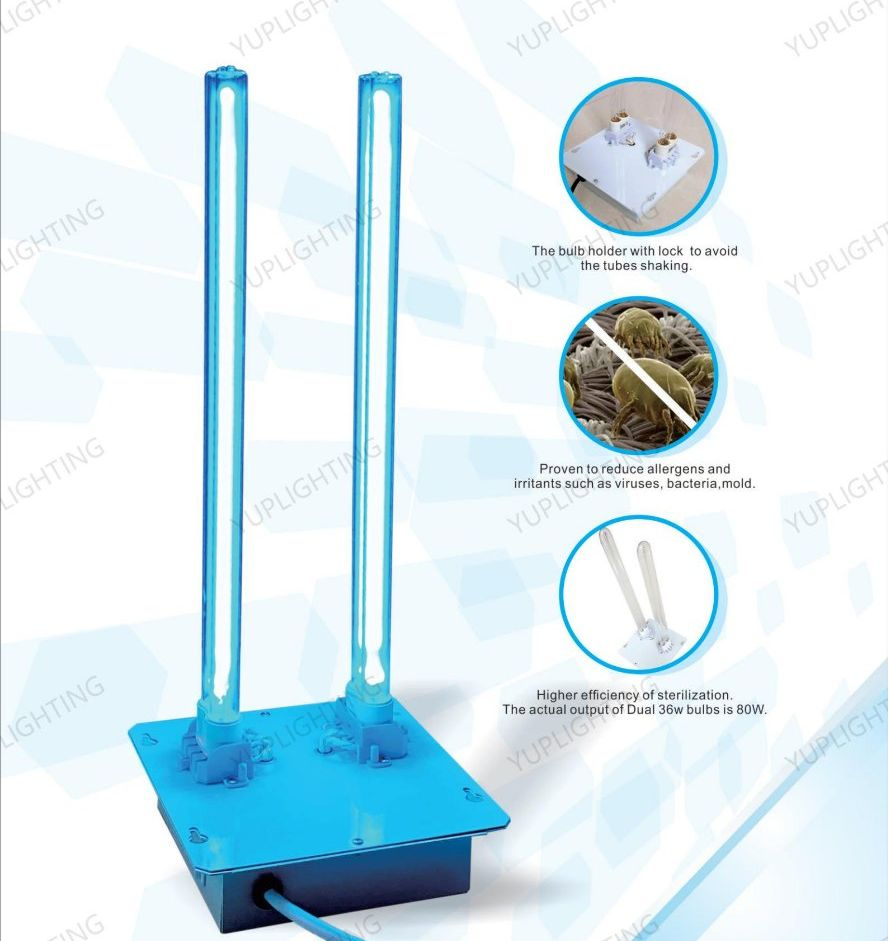

Dual 36W UVC Sterilizer Specifications

  • Model No: YP-H-1 / YP-U-1
  • Ballast Lifetime: Over 30,000 hours
  • Bulb Lifetime: 9,000 hours
  • Total Output: 80W
  • Available Box Colors: White / Black
  • Bulb Length: 300mm
  • Germicidal Type: Emits UVC light 185nm

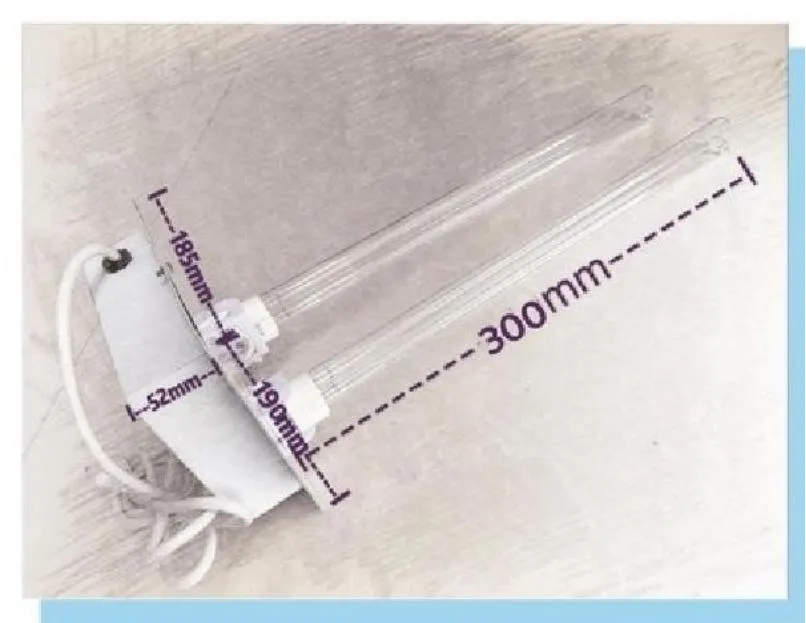

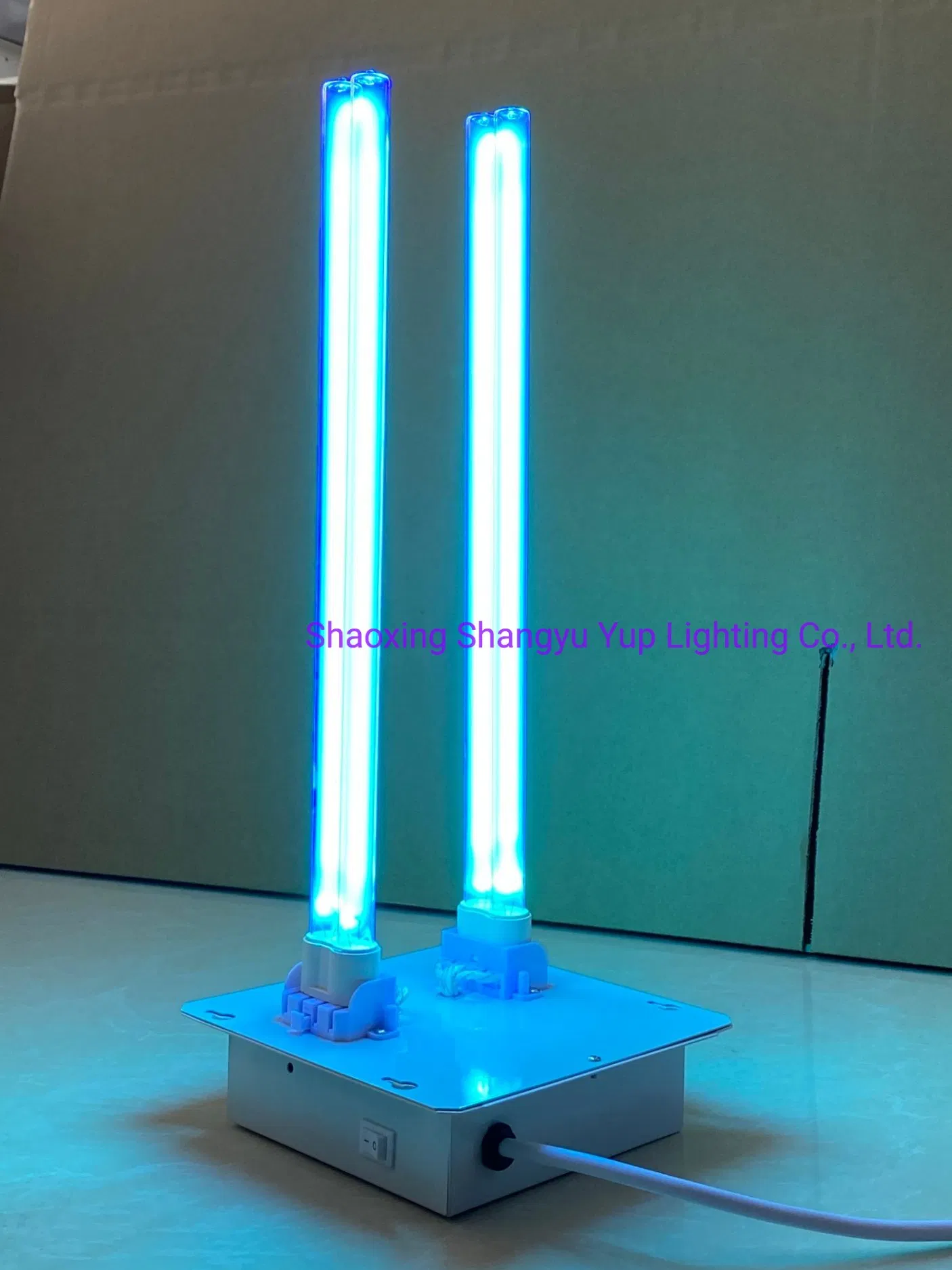

UV Sterilizer Unit

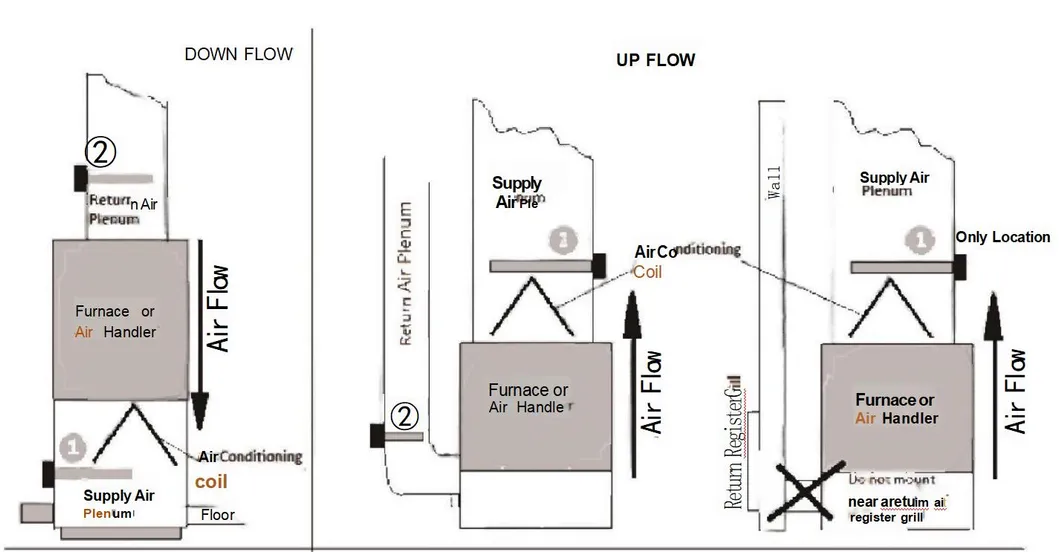

Installation Detail 1

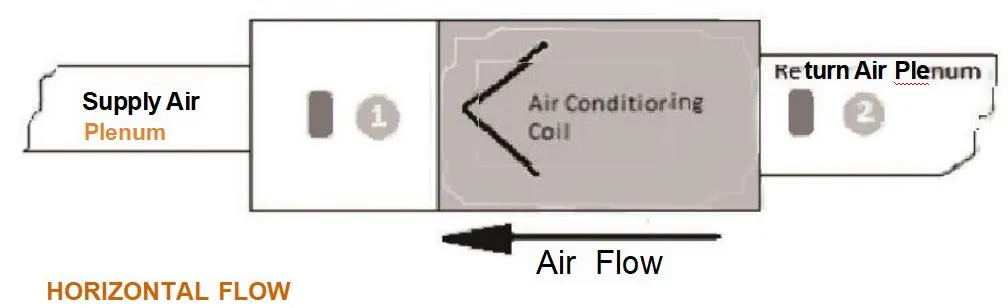

Installation Detail 2
🛠

Installation Instructions

1
Choose a location: Either downstream air plenum. Do not mount near a return registered grill. Mount at least 20 inches away.
2
Preparation: Cut or drill a 1.8" hole for the bulb.
3
Mounting: Insert lamp through hole. Press the hold/lock. Make sure the bulbs are installed well. Secure base with the enclosed screws.
4
Power: Plug into a standard outlet.

Bulb Maintenance: Finger grease can shorten the life of the bulb. Do not touch the glass with bare hands. If touched, use isopropyl alcohol to wipe it clean. When multiple lamps are used, spacing should be at least four inches apart.

UVC Light Setup
Frequently Asked Questions
What is the sterilization rate of this UV lamp?
The UVC sterilizer provides a high germ-killing efficiency of up to 99.9999% against various bacteria and mites.
How long do the UV bulbs last?
The high-quality UV bulbs have a service life of approximately 9,000 hours, while the ballast is rated for over 30,000 hours.
Where is the best place to install this unit?
It is designed for indoor air duct systems. It should be mounted at least 20 inches away from return grills in the air plenum.
Can I look at the light while it is operating?
No. You must never expose your eyes or skin to UVC light as it can cause severe damage or blindness. Only operate within a closed duct.
What should I do if I touch the UV bulb with my bare hands?
Finger grease can damage the bulb. If you touch it, immediately clean the glass with isopropyl alcohol before use.
Is this device certified for safety?
Yes, this product is CE and MSDS certified, ensuring it meets international safety and quality standards.
