The Use of Ultraviolet Lamp in Water Systems
Product Description

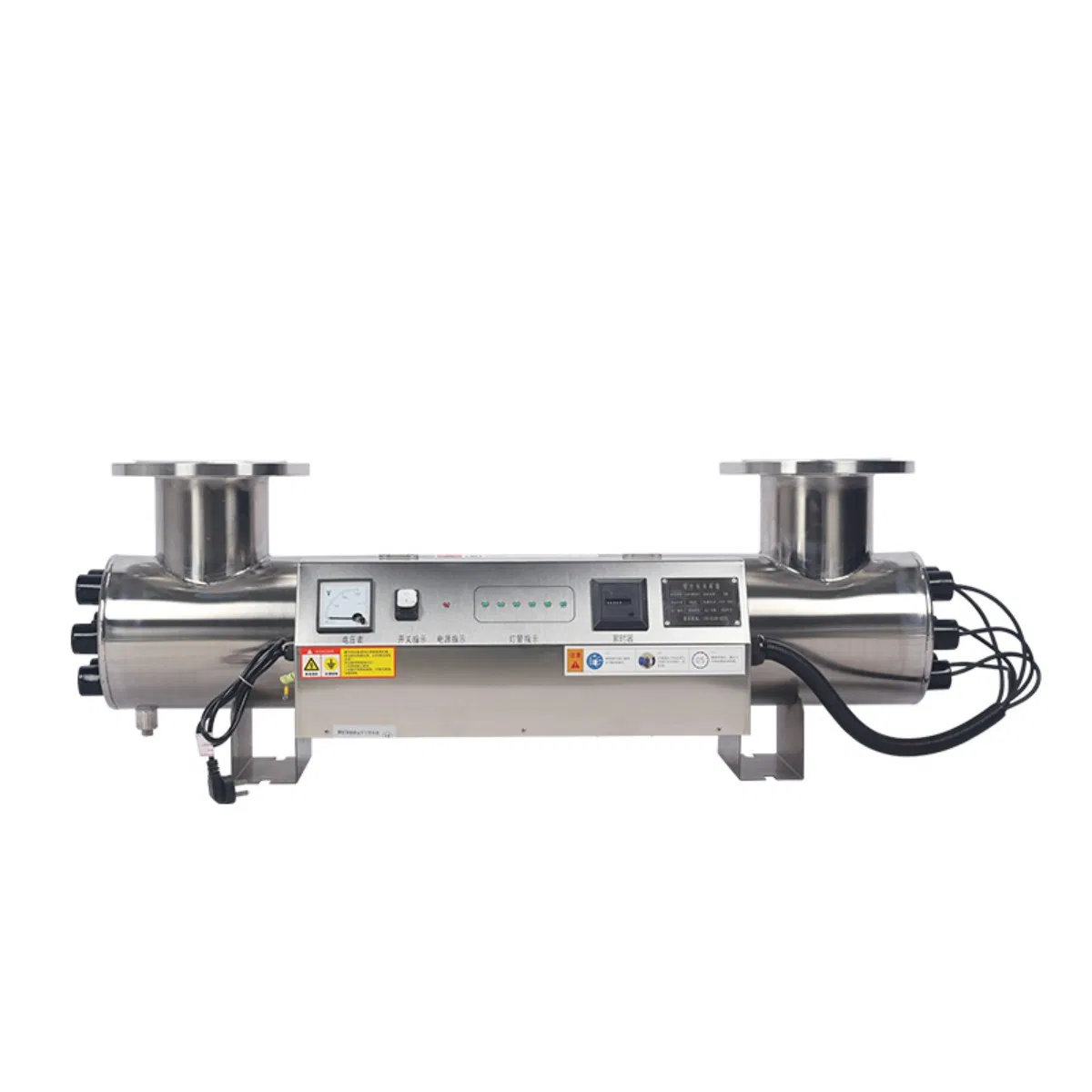

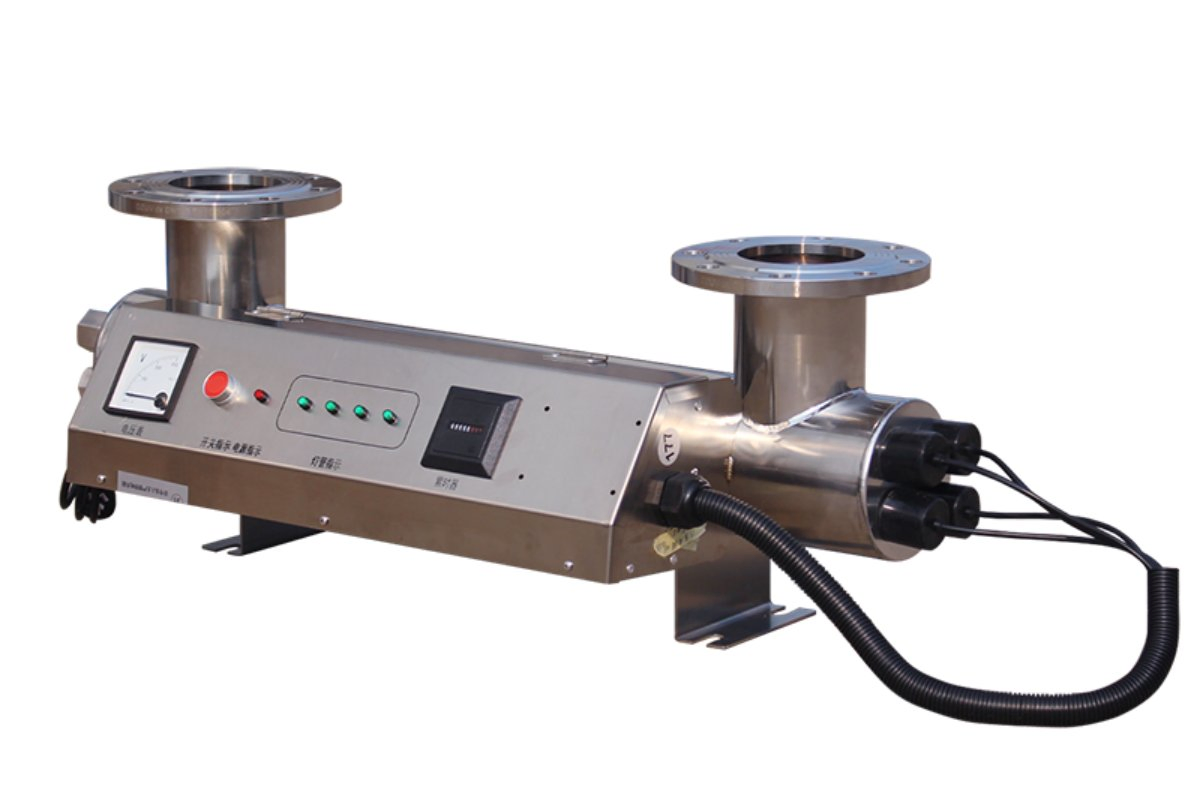

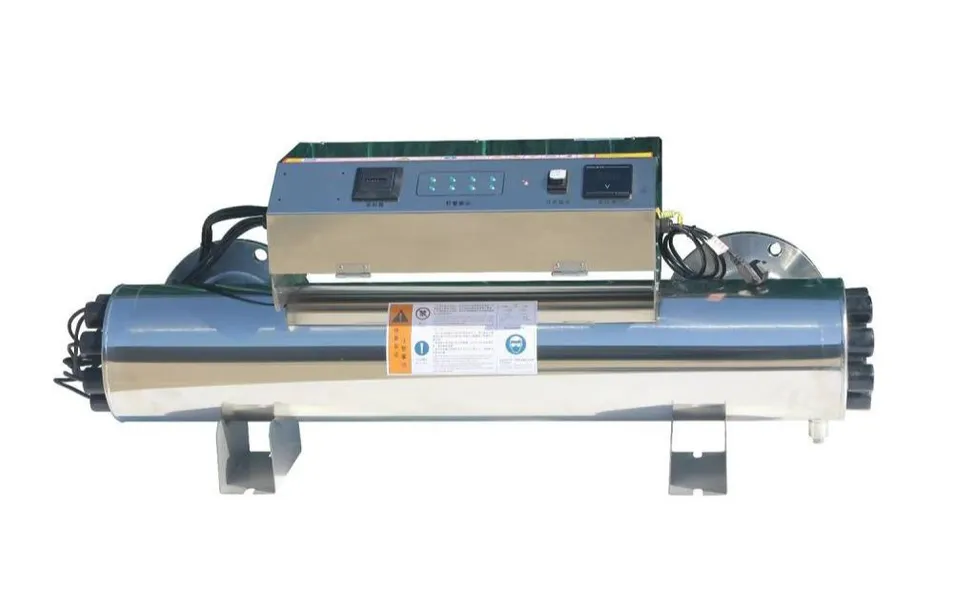

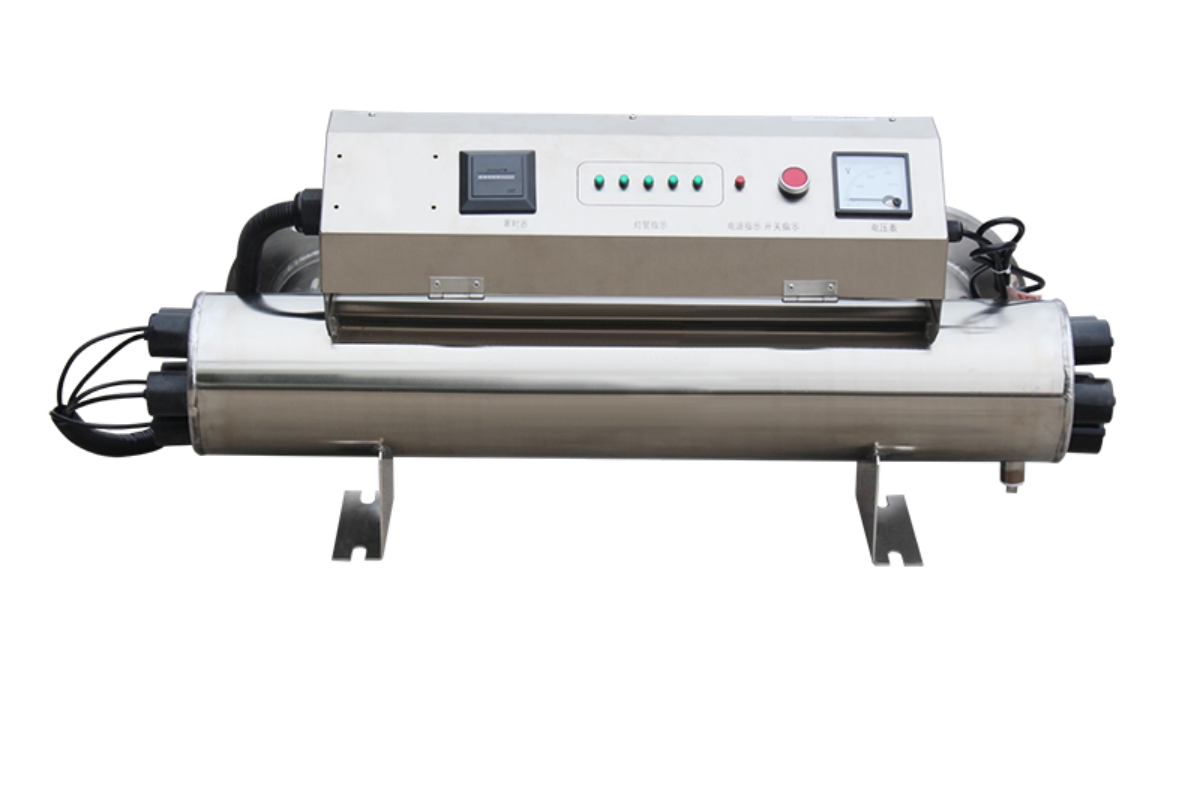

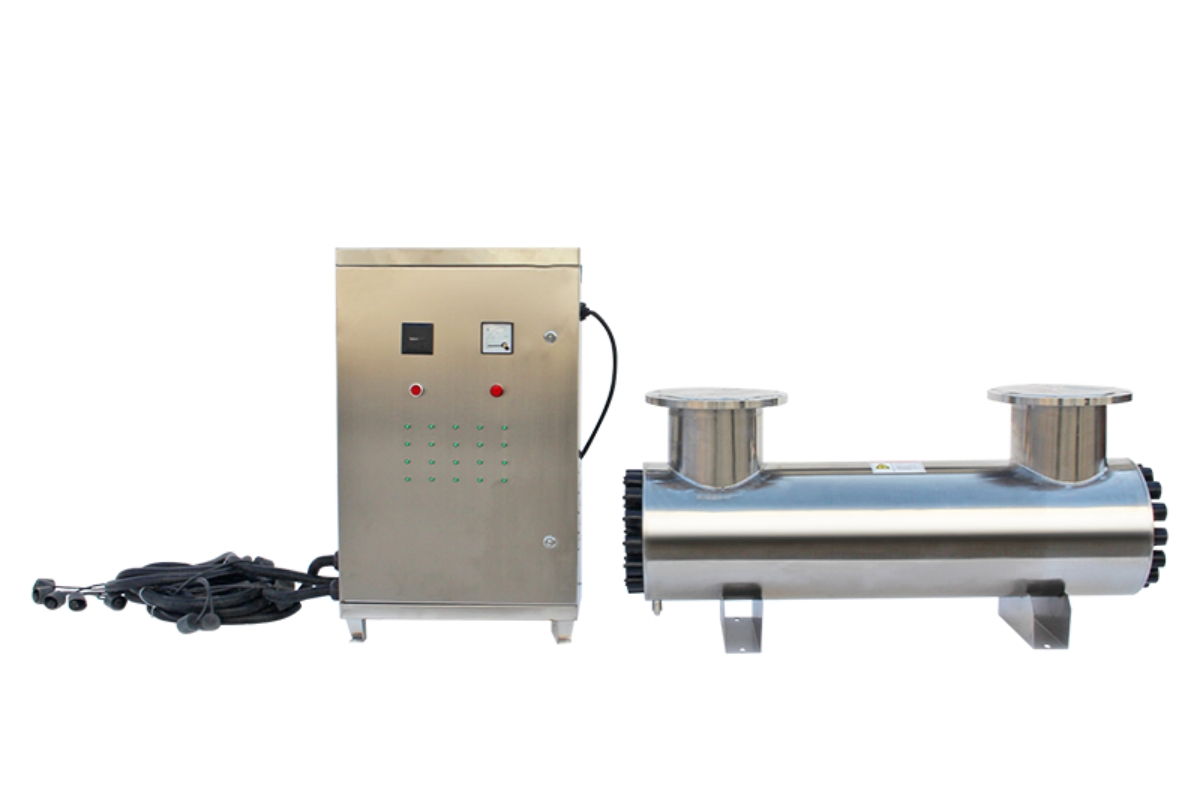

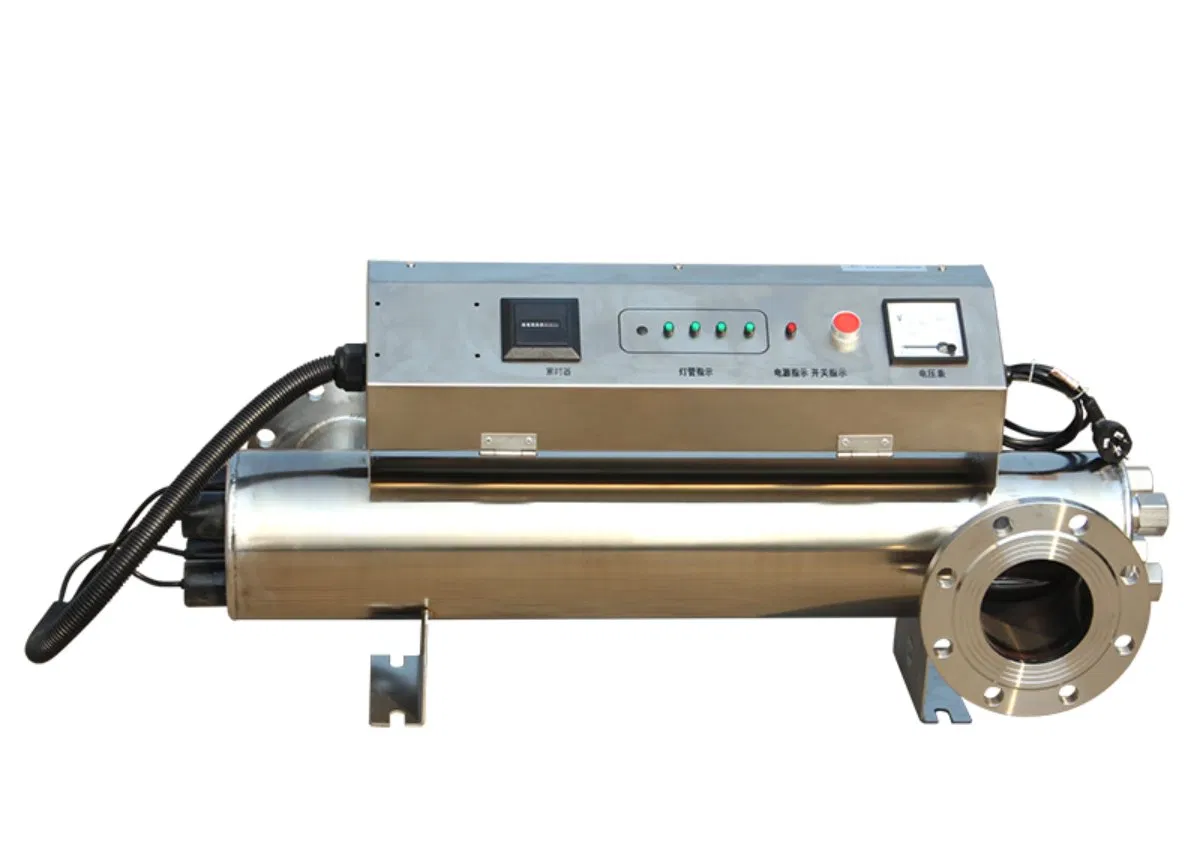

Ultraviolet (UV) light consists of three bands: UVA, UVB, and UVC. The UVC band is typically used for sterilization and disinfection. Our UV sterilizer uses UVC light to irradiate water flow, disrupting the DNA or RNA structure of microorganisms, effectively eliminating them from the source.
Primary Applications: drinking purified water, ultrapure water for electronics, pharmaceuticals, biotechnology industries, wastewater treatment, and swimming pool disinfection.
- High-efficiency sterilization: UV sterilization typically takes less than one second, significantly faster than traditional chlorine or ozone methods.
- No secondary pollution: No chemical additives are required, ensuring water composition remains natural and safe.
- Safe and reliable: Eliminates risks associated with toxic, flammable, or explosive chemical disinfectants.
- Continuous operation: Designed for heavy-duty performance, operating 24/7, 365 days a year.
| Model | Specs (mm) | Flange (mm) | C-C Dist (mm) | Power (W) |
|---|---|---|---|---|
| ECH-UV-75-1 | 89*900 | DN50 | 675 | 75 |
| ECH-UV-75-2 | 108*900 | DN50 | 675 | 150 |
| ECH-UV-75-3 | 133*900 | DN100 | 620 | 225 |
| ECH-UV-75-5 | 159*900 | DN100 | 620 | 375 |
| ECH-UV-120-6 | 219*1200 | DN150 | 855 | 720 |
| ECH-UV-120-10 | 273*1200 | DN200 | 800 | 1200 |
| ECH-UV-150-20 | 377*1600 | DN300 | 1075 | 3000 |
1. Custom manufacturing available for pressure greater than 6 kg.
2. UV lamp lifespan: ≥ 9000 hours (220V/50Hz).
3. Efficiency depends on water transparency and temperature.
4. Manual or automatic cleaning devices can be configured.

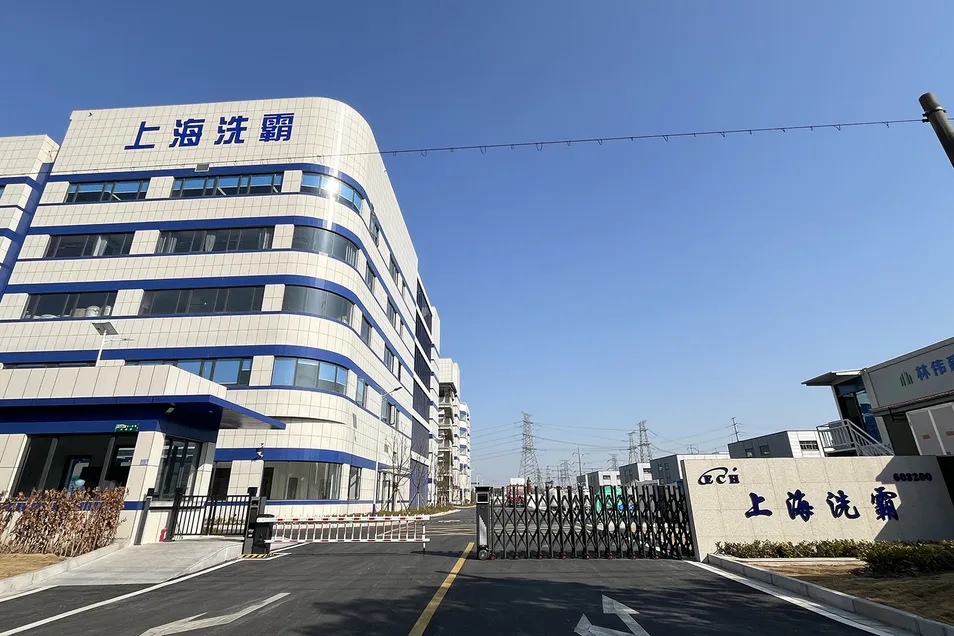

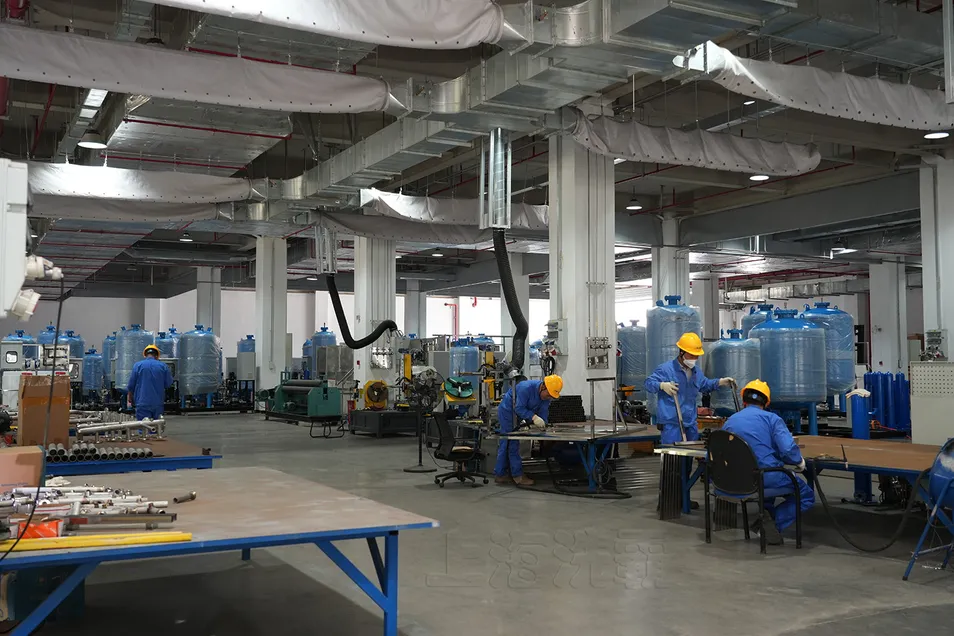

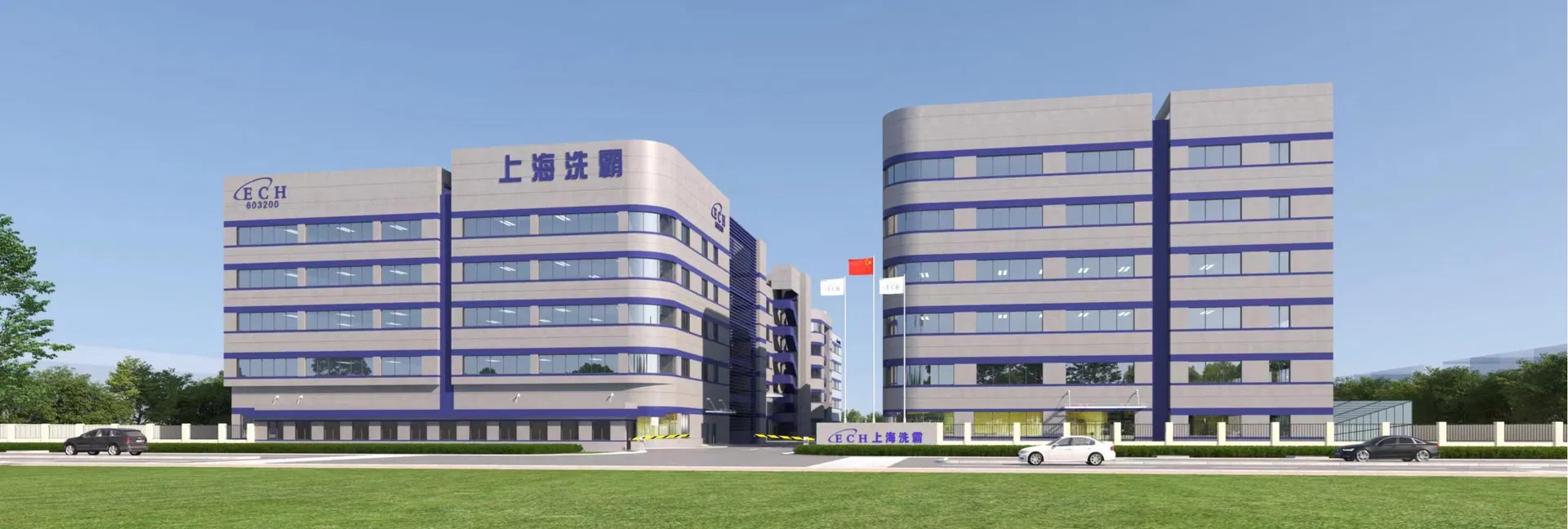

Founded in 1994, our organization is a professional service provider of integrated solutions for water treatment and healthy space environments. We maintain certifications for quality, environment, and health management systems and are recognized as a National High-tech Enterprise. Our manufacturing capabilities allow us to serve global clients across Southeast Asia, the Middle East, and the USA.
