Ultraviolet Lamp 365nm 385nm 395nm 405nm Handheld LED UV Lamp Portable UV LED Curing System
Product Description
Basic Information
| Model NO. | AFY04 |
| Wavelength | 395nm (365nm/385nm/405nm Optional) |
| Material | Aluminum |
| UV Intensity | 8W/Cm² |
| Irradiation Area | 20*20 mm |
| Cooling Method | Fan Cooling |
| Power | 58W |
| Certification | CE |
| LED Life | 20,000 hrs |
| Operating Temperature | 1 - 50 ℃ |
Product Description

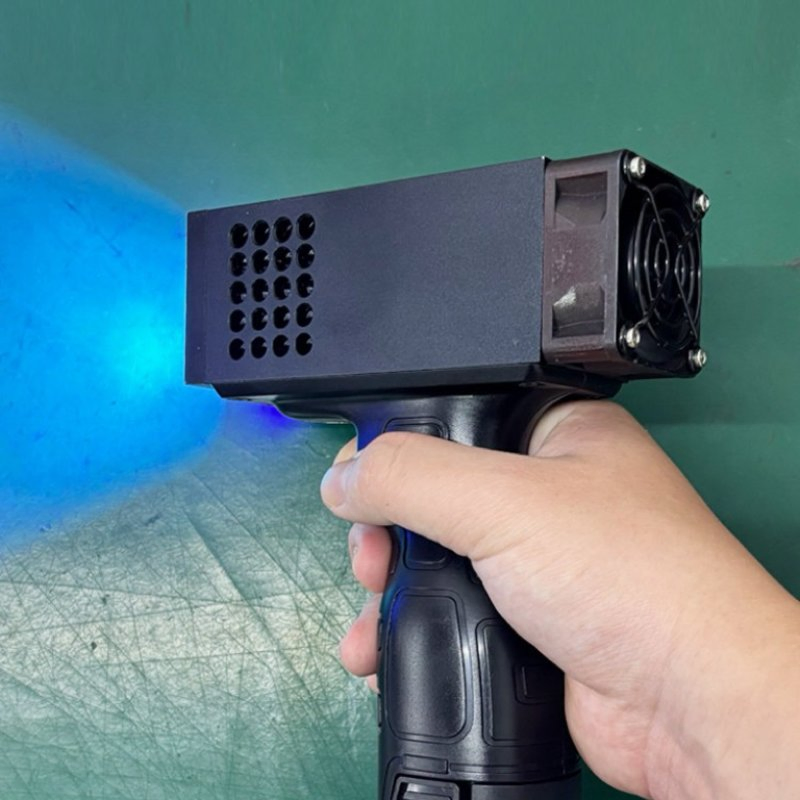

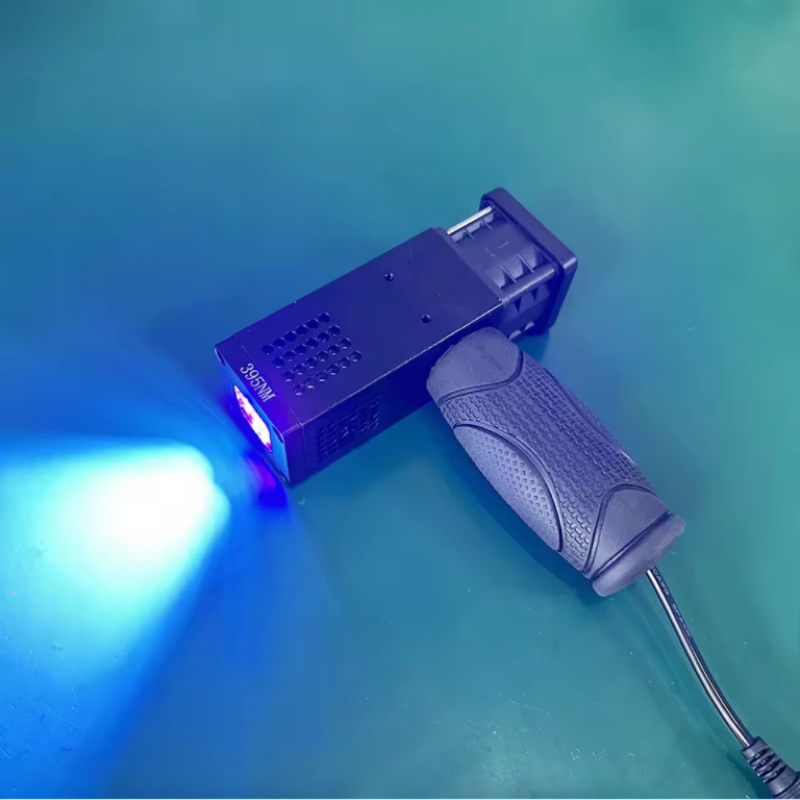

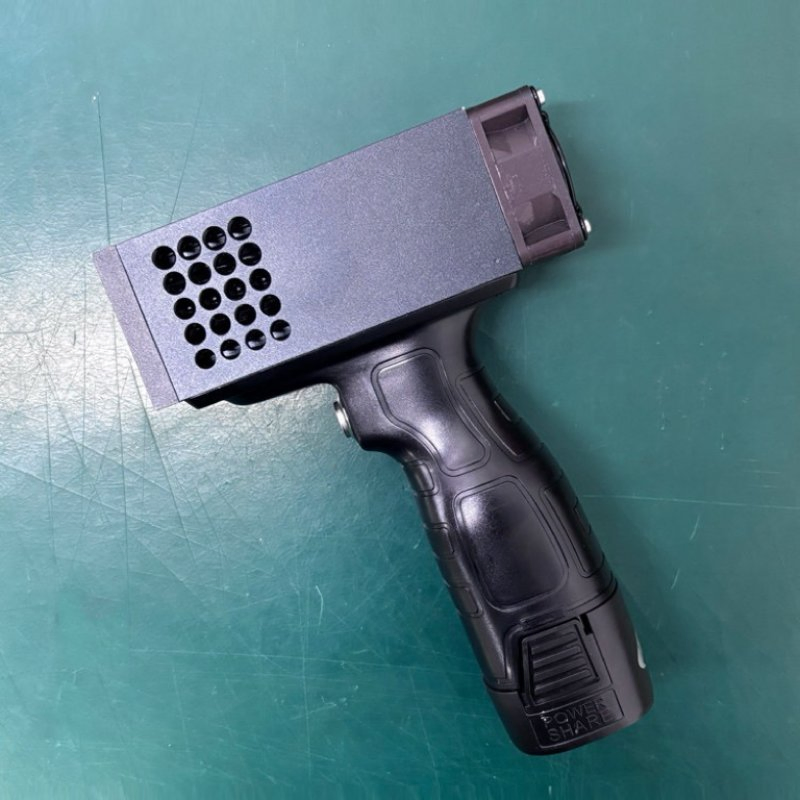

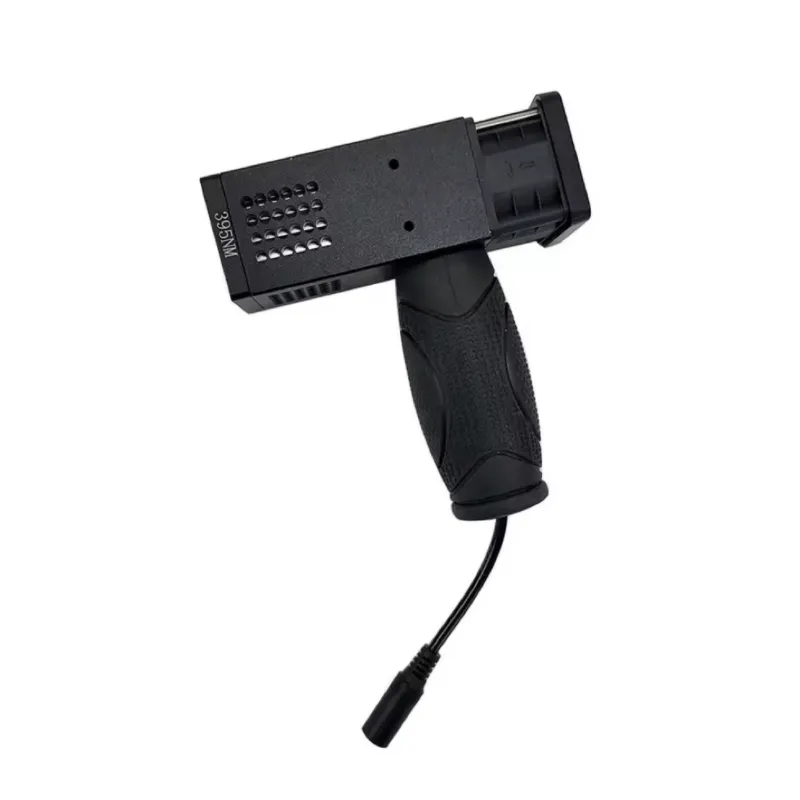

Ultraviolet Lamp Handheld LED UV Curing System

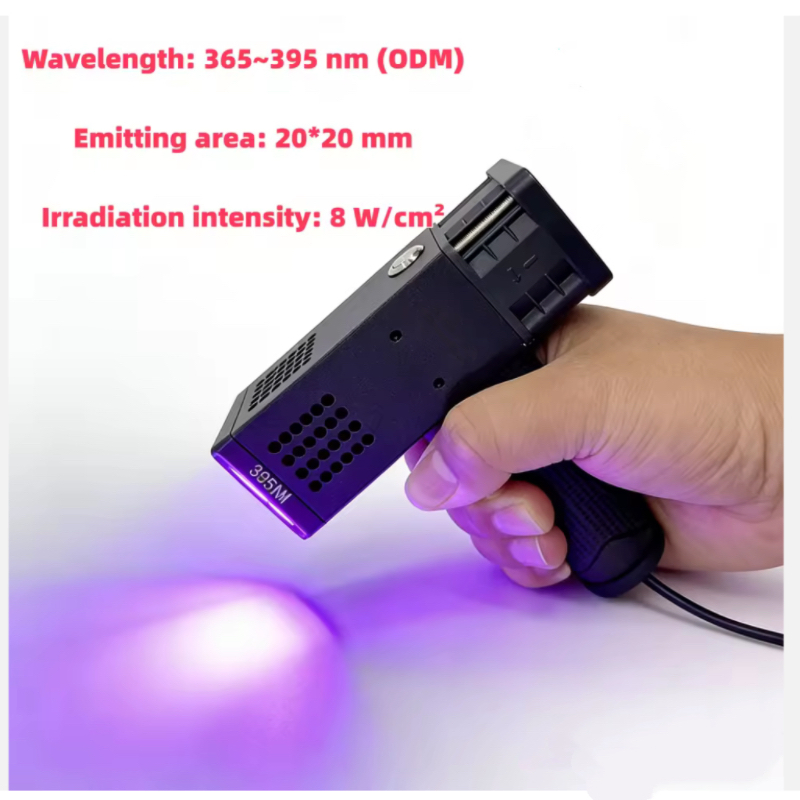

Experience high-efficiency auto body repair with the latest 58W handheld UV curing lamp. Engineered for professional workshops, this tool emits an intense 8W/cm² irradiation intensity, ensuring UV body filler and putty cure within seconds. Its compact 42x42x123 mm body and focused 20x20 mm emitting area allow for precision targeting without exposing entire panels to heat, making it ideal for delicate bumper repairs and spot putty applications.
- Low Temperature: LED heads do not produce infrared radiation, ideal for heat-sensitive materials.
- Efficiency: Different spectra ensure safe and rapid curing processes.
- Instant Action: No warm-up phase required; instant on/off capabilities.
- Safety: Operates on DC24V input, energy-efficient and safe for various environments.
Technical Specifications
| LED Type | Imported High-Power Chips |
| UV LED Usage Time | 20,000Hrs @80% power |
| Recommend Working Distance | 2~5mm |
| Peak Irradiation Intensity | 8W/cm2 |
| Ambient Humidity | 30-85RH |

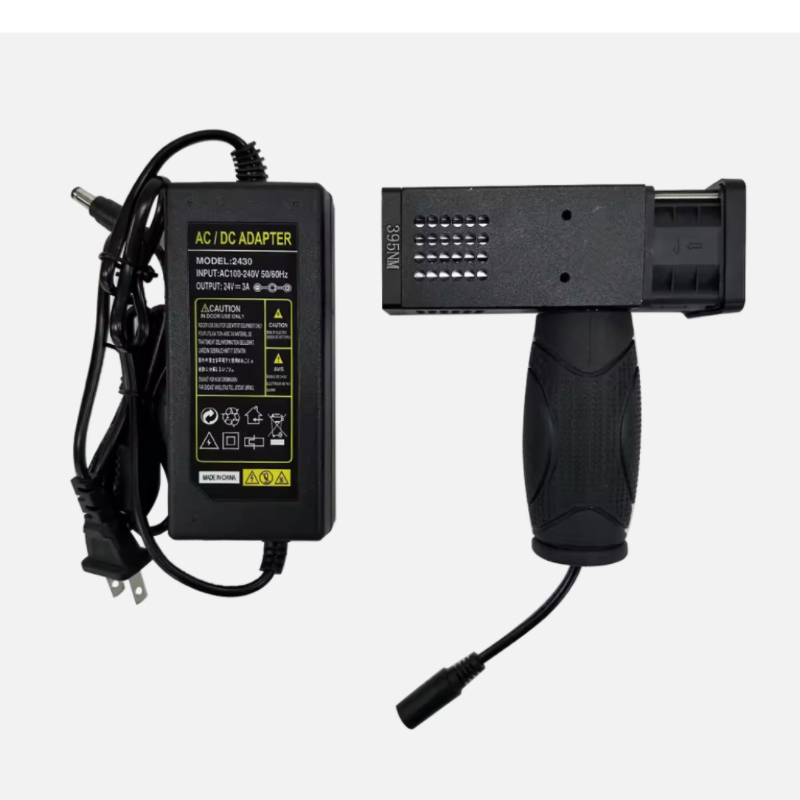

| Power Type | DC adapter |
| Connecting Cable | Standard 2/5M or Customized Length |

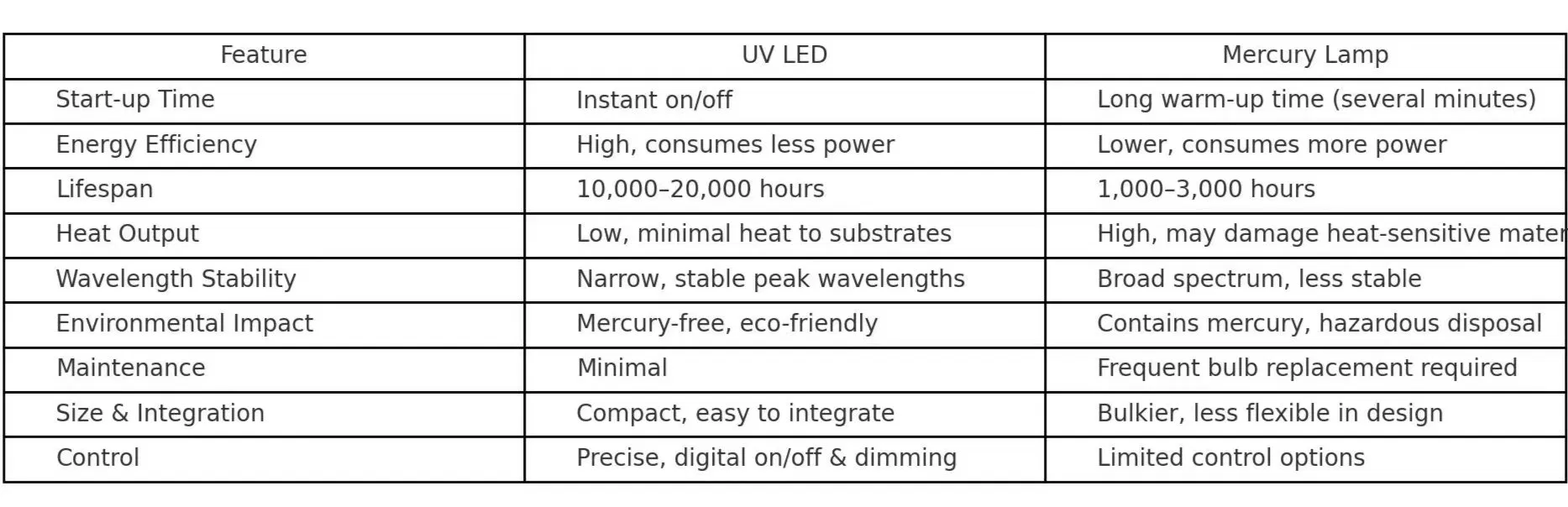

UV LED vs. Mercury Lamp
UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps, making them ideal for modern industrial applications.
Main Applications
- UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
- UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
- UV Ink: UV printing, 3D printing.
Packaging & Service
| Package Size | 15.00cm * 10.00cm * 15.00cm |
| Gross Weight | 2.00kg |
| Lead Time | 3 days (1-10 Pieces); Negotiable (>10 Pieces) |
| Warranty | 12 months standard (Optional up to 36 months) |

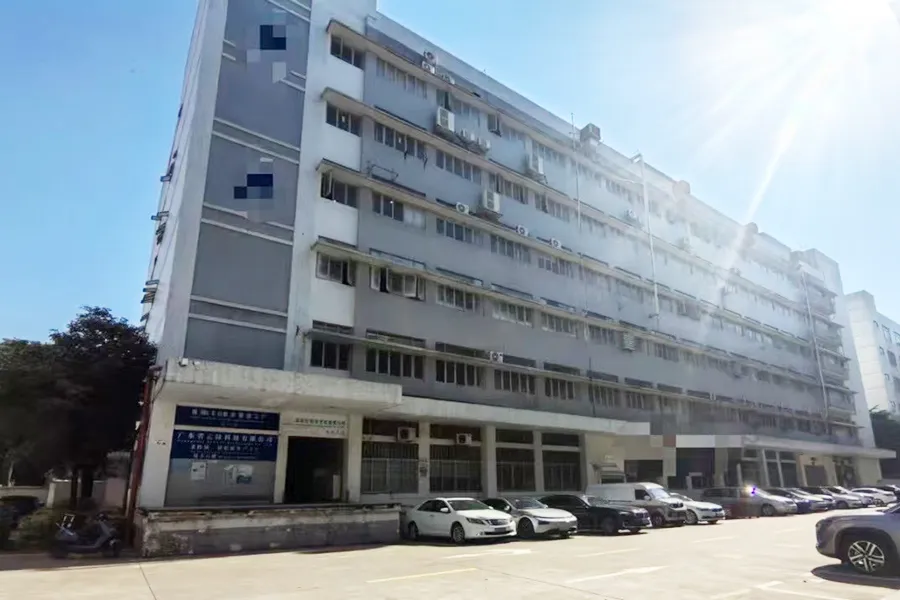

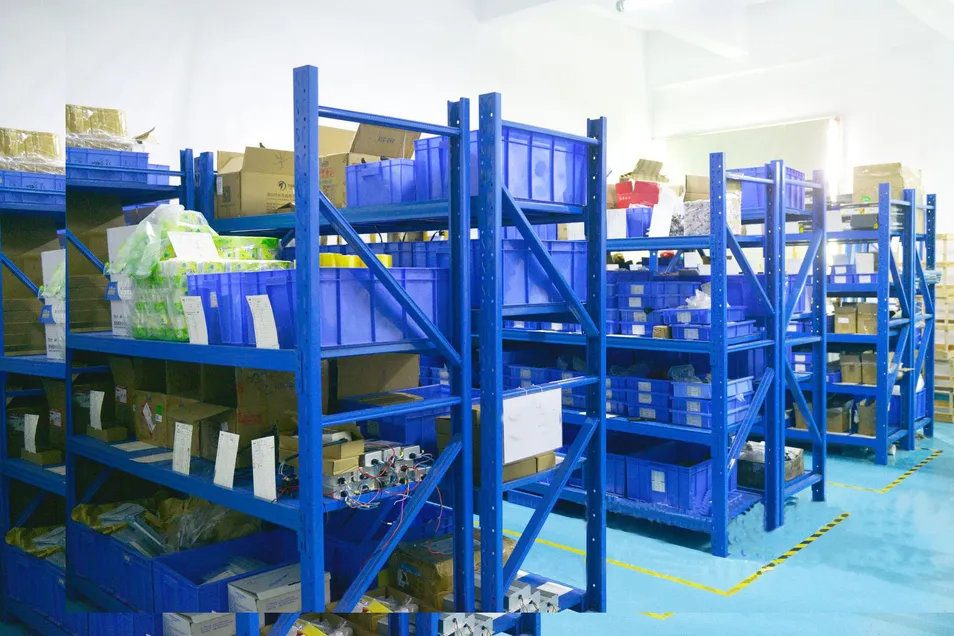

Manufacturing Capabilities
As a leading manufacturer of UV LED Curing Systems with over 12 years of expertise, we offer ISO 9001, CE, and RoHS certified products. Our facility supports full R&D, sales, and production for diverse systems including spot, line, area, and conveyor curing solutions.
