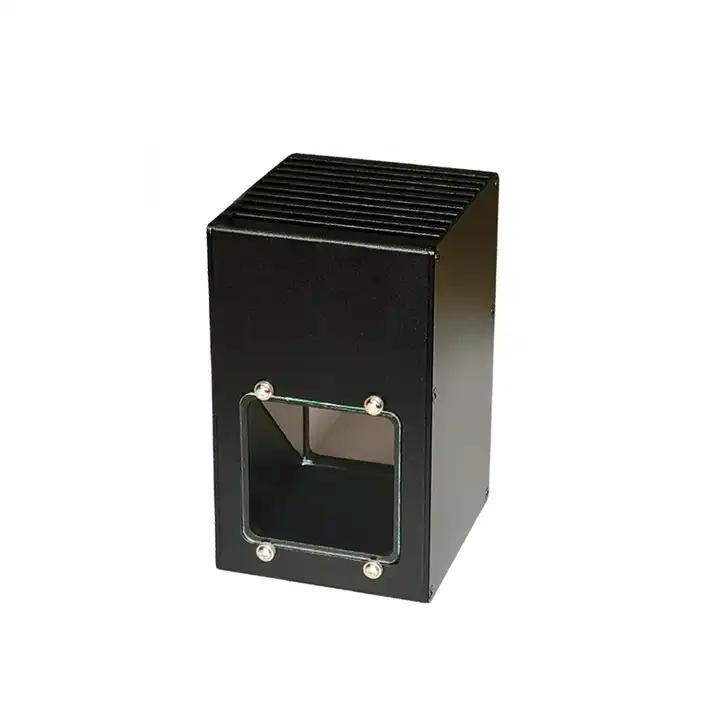

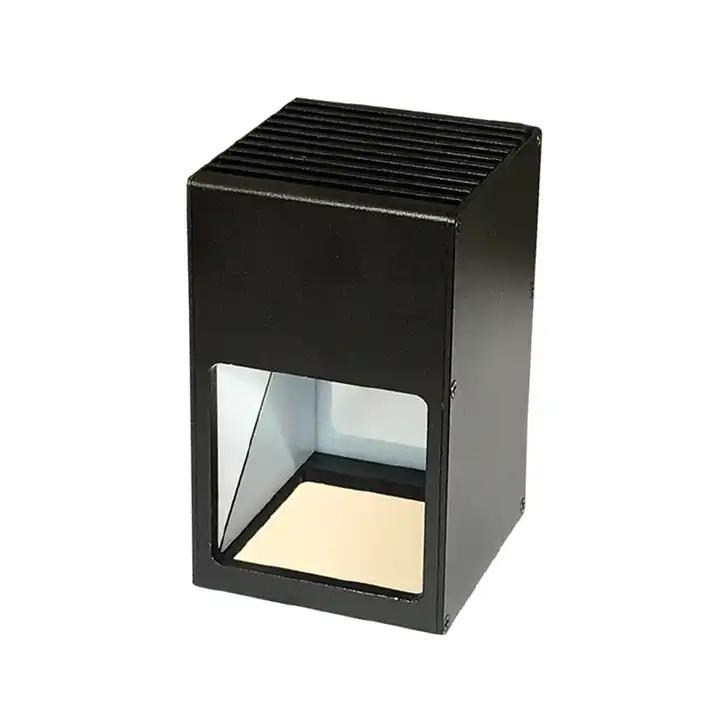

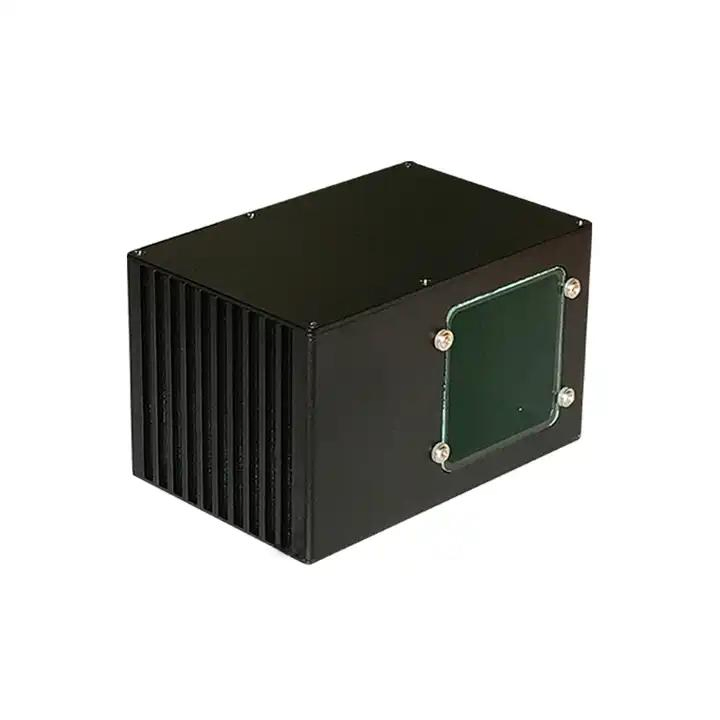

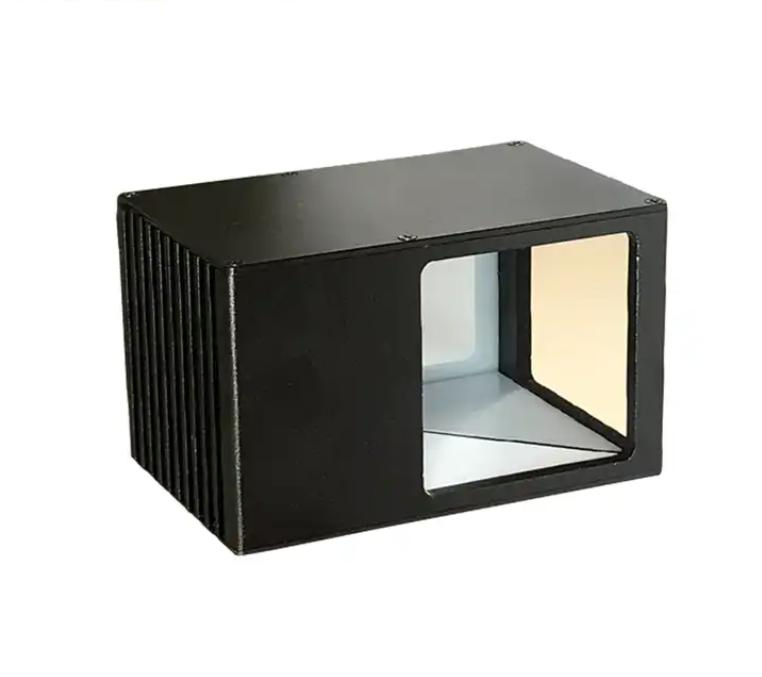

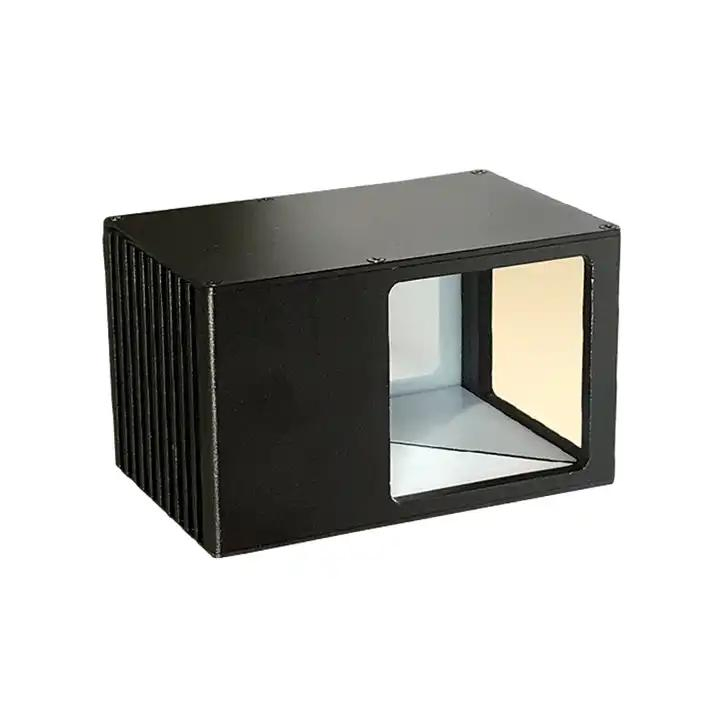

35*35mm 24V White Blue Green Red IR UV LED Coaxial Light for Machine Vision Detection System for Automatic Inspection of Appearance Scratches
Product Description
🚀 Basic Information
Model:HF-CO2.0-3535
Input Voltage:DC 24V
Beam Angle:0-50°
CRI (Ra):>85
Luminous Efficiency:110 Lm/W
Working Lifetime:30,000 Hours
Material:Aluminum Alloy + PMMA
Certification:CCC, RoHS, CE
📦 Packaging & Delivery
Package Size:20.00cm * 10.00cm * 20.00cm
Gross Weight:1.000kg
🔍 Product Description
100% brand new and high quality.
High quality material--Aluminum alloy and PMMA: This assures a long lifespan, good performance and duration. Coaxial lights are all low power consuming, energy-saving with high brightness that can be excellent light source for cameras to detect defects, scratches, stains, bar/QR codes, marking point location, and so forth.

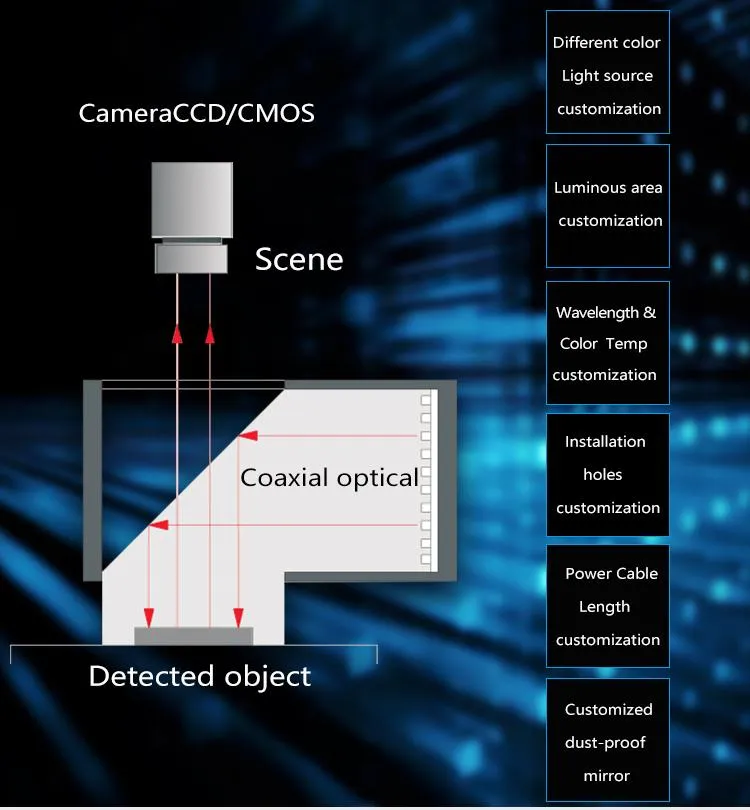

The highly uniform bright coaxial light is composed of evenly distributed LED luminescence units, light emits from the side and is perfectly uniform and bright, it works very well on the highly reflective surfaces.
- ✨ Input 24V DC, power 5W - 7W. Stable and flicker-free.
- 🎯 Effective illumination area: 35 * 35 mm.
- 🛠️ Custom design of power and luminous area is available.
| Light Source Color | Specification | Operating Environment |
|---|---|---|
| White / Red | 6000-7500K / 620-630nm | 0ºC-40ºC |
| Green / Blue | 520-530nm / 460-470nm | 20%-85%RH |

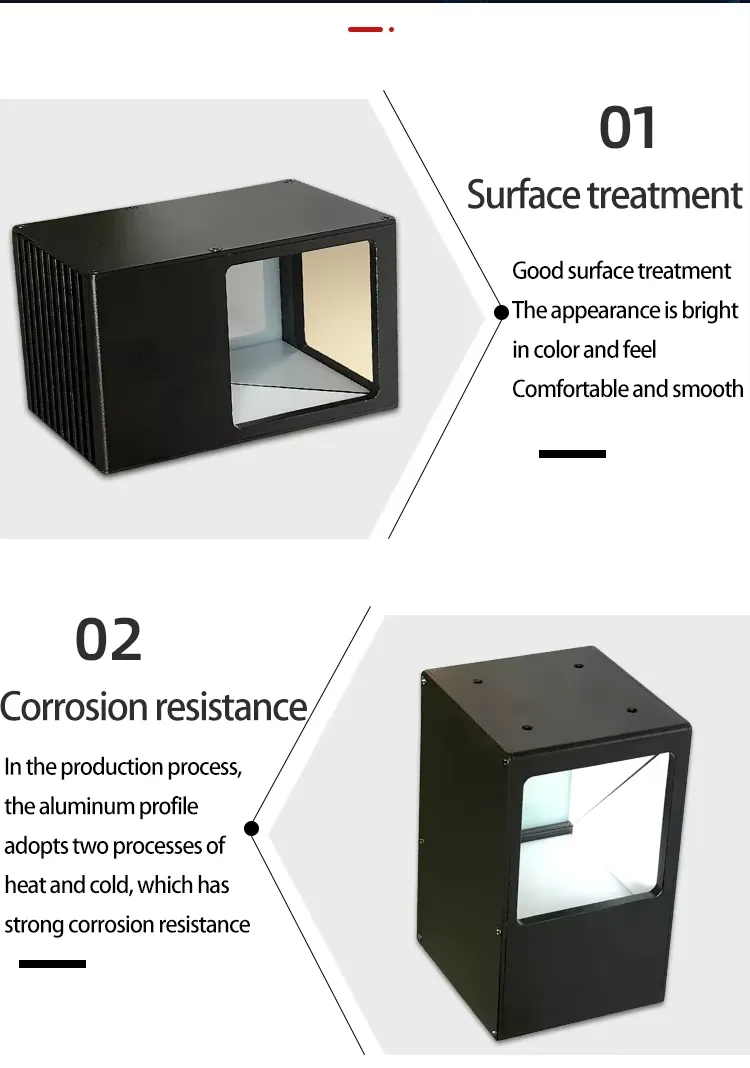

📸 Detailed Photos
📊 Product Parameters
| Model | Size (W*L*H mm) | Luminous Area (mm) | Input Voltage |
|---|---|---|---|
| HF-CO2.0-3535 | 70x44x47.5 | 35 * 35 | 24V |

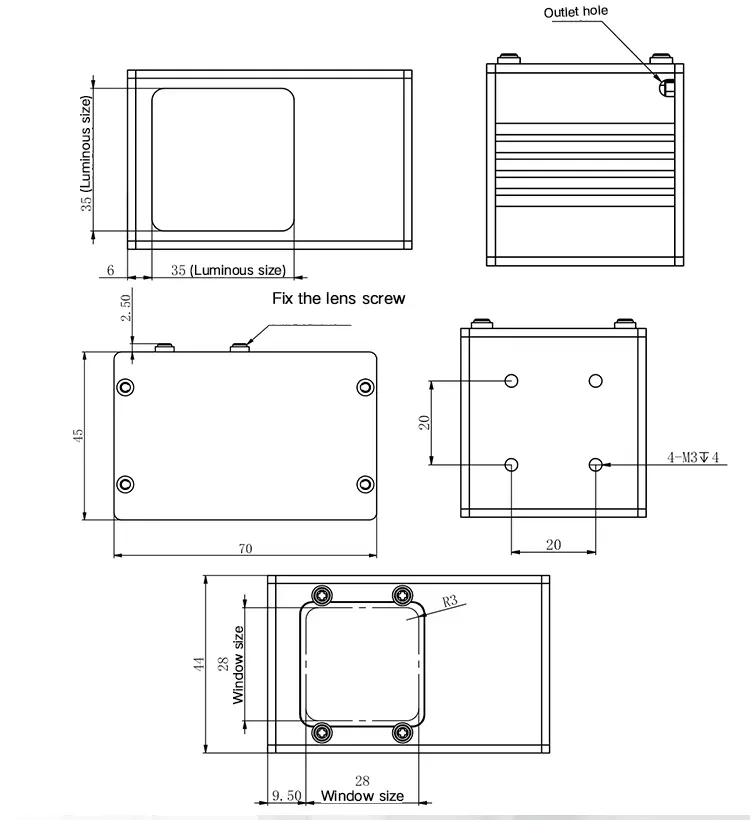

Dimensions (mm)
🚢 Packaging & Shipping
🏢 Company Overview
❓ Frequently Asked Questions
Q1: What is the primary application for this coaxial light?
A: It is ideal for machine vision detection systems, specifically for inspecting appearance scratches, stains, and bar/QR code location on reflective surfaces.
Q2: Can the light intensity be adjusted?
A: Yes, the intensity can be controlled by connecting an extra light brightness controller or dimmer.
Q3: What materials are used in its construction?
A: The light is made of high-quality Aluminum Alloy and PMMA for better durability and heat dissipation.
Q4: What is the expected lifespan of the LED units?
A: The theoretical lifespan is approximately 30,000 hours for both white and red light versions.
Q5: Do you offer custom design services?
A: Yes, we offer custom design and development services for specific power requirements and luminous areas.
Q6: What certifications does this product hold?
A: This product is certified with CCC, RoHS, and CE standards.
