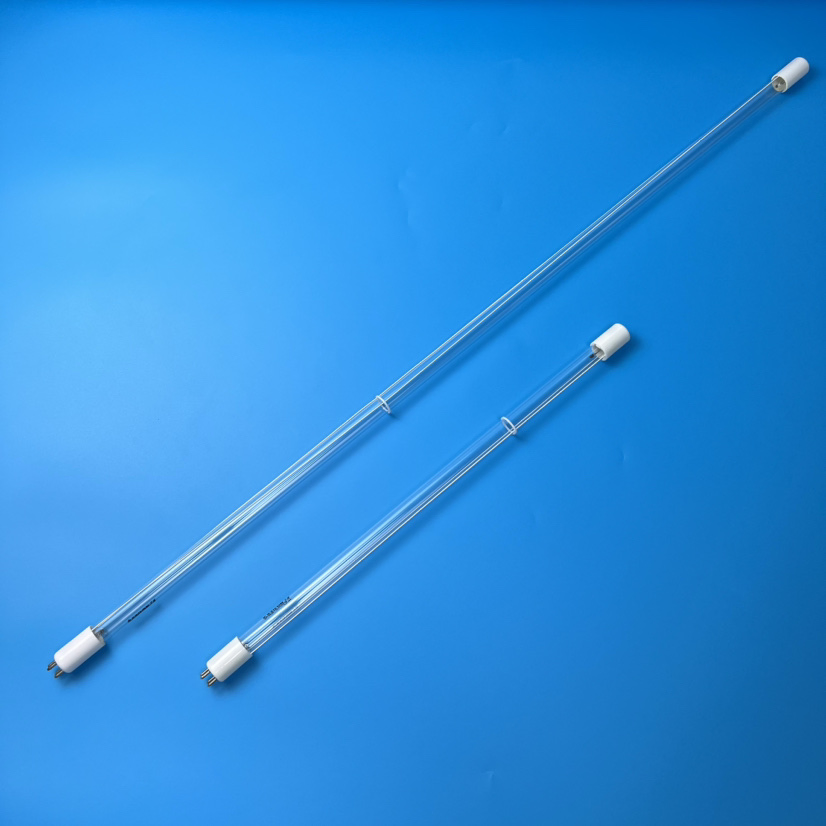

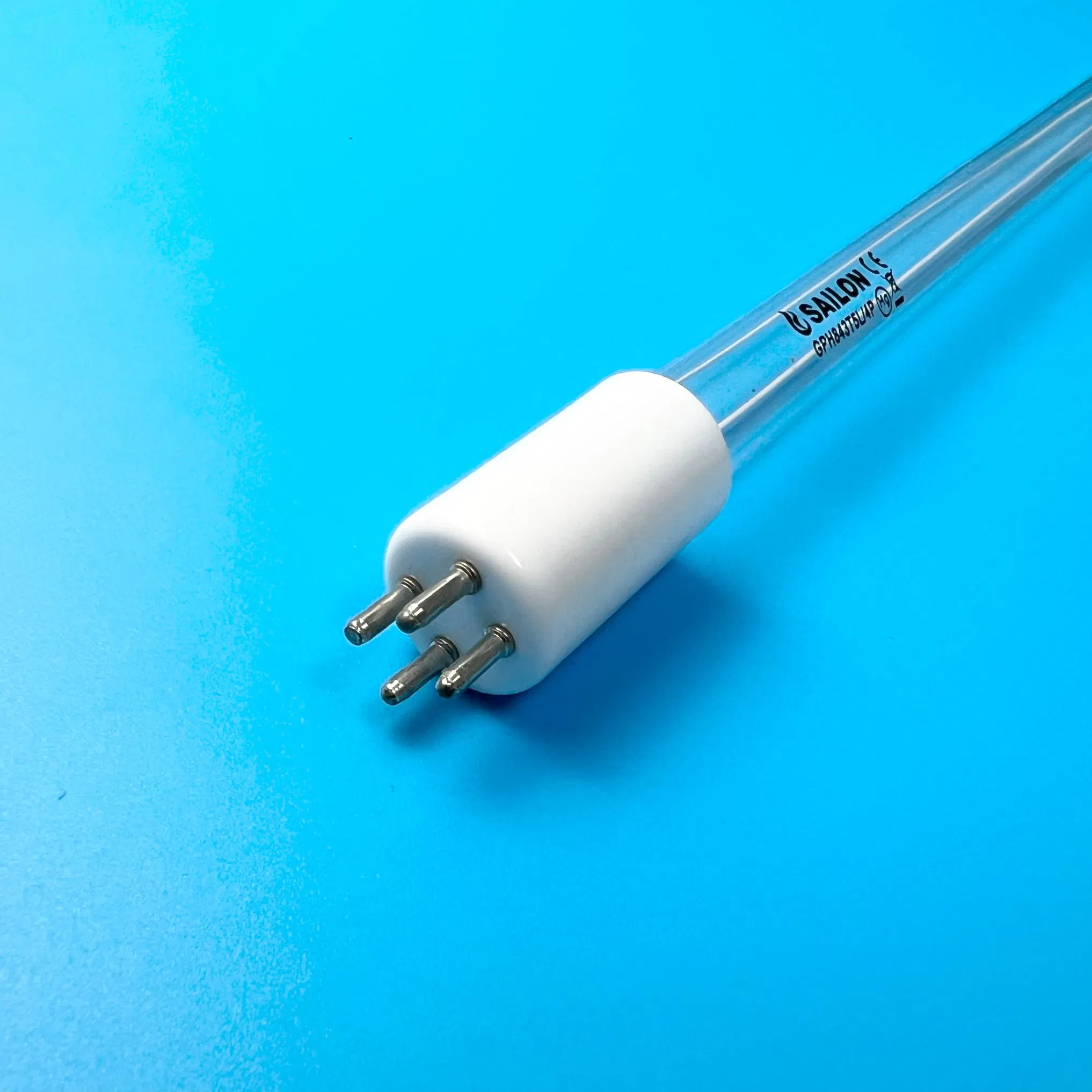

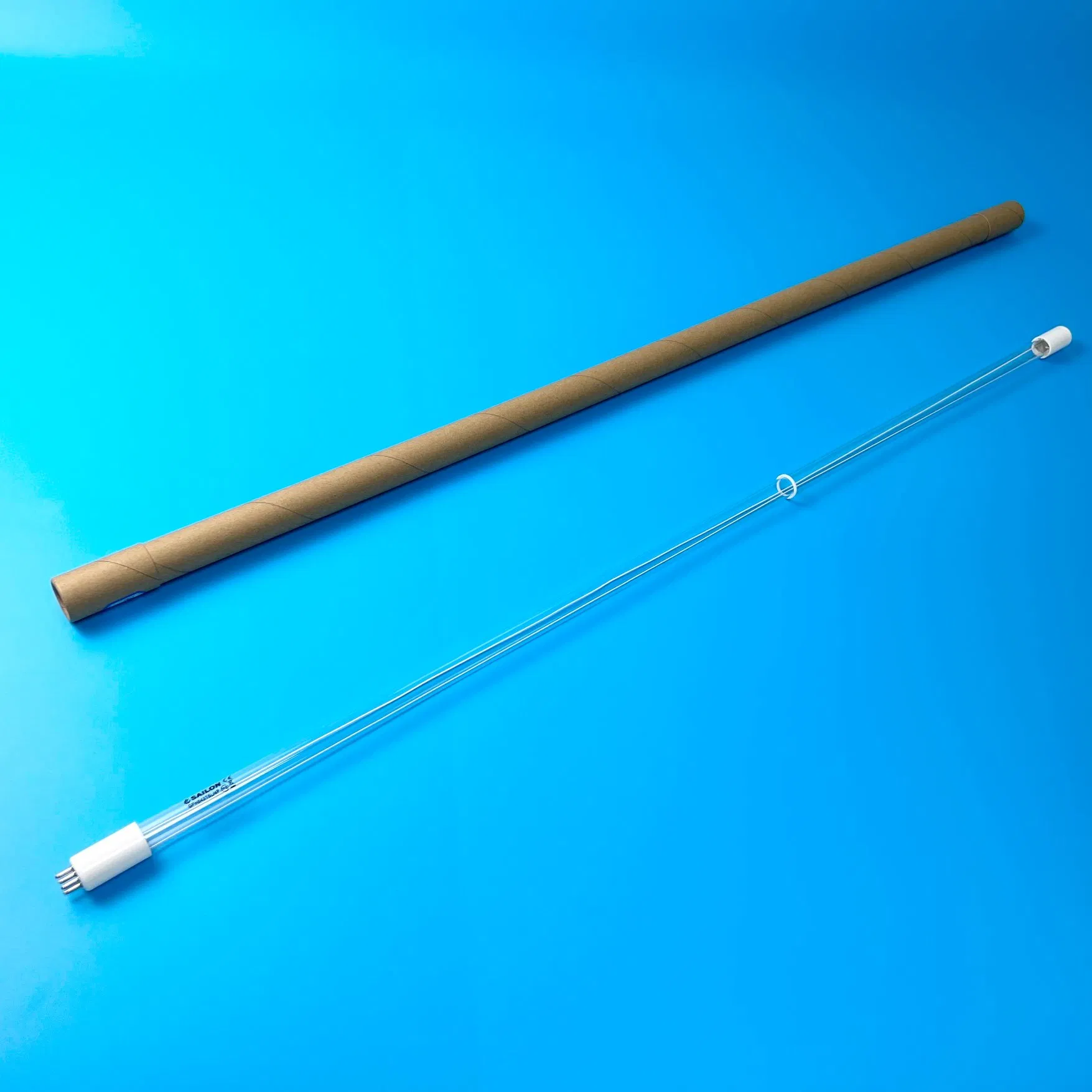

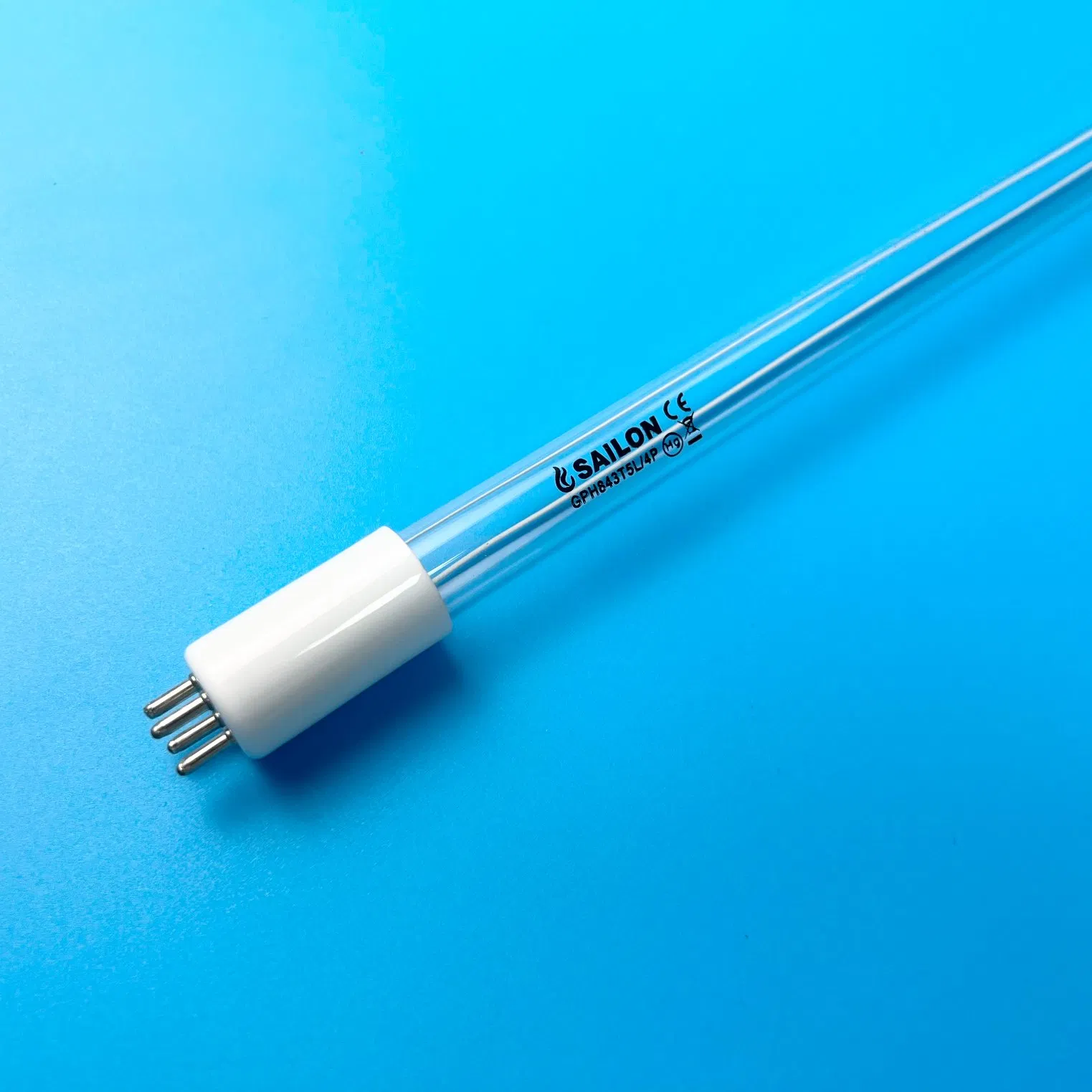

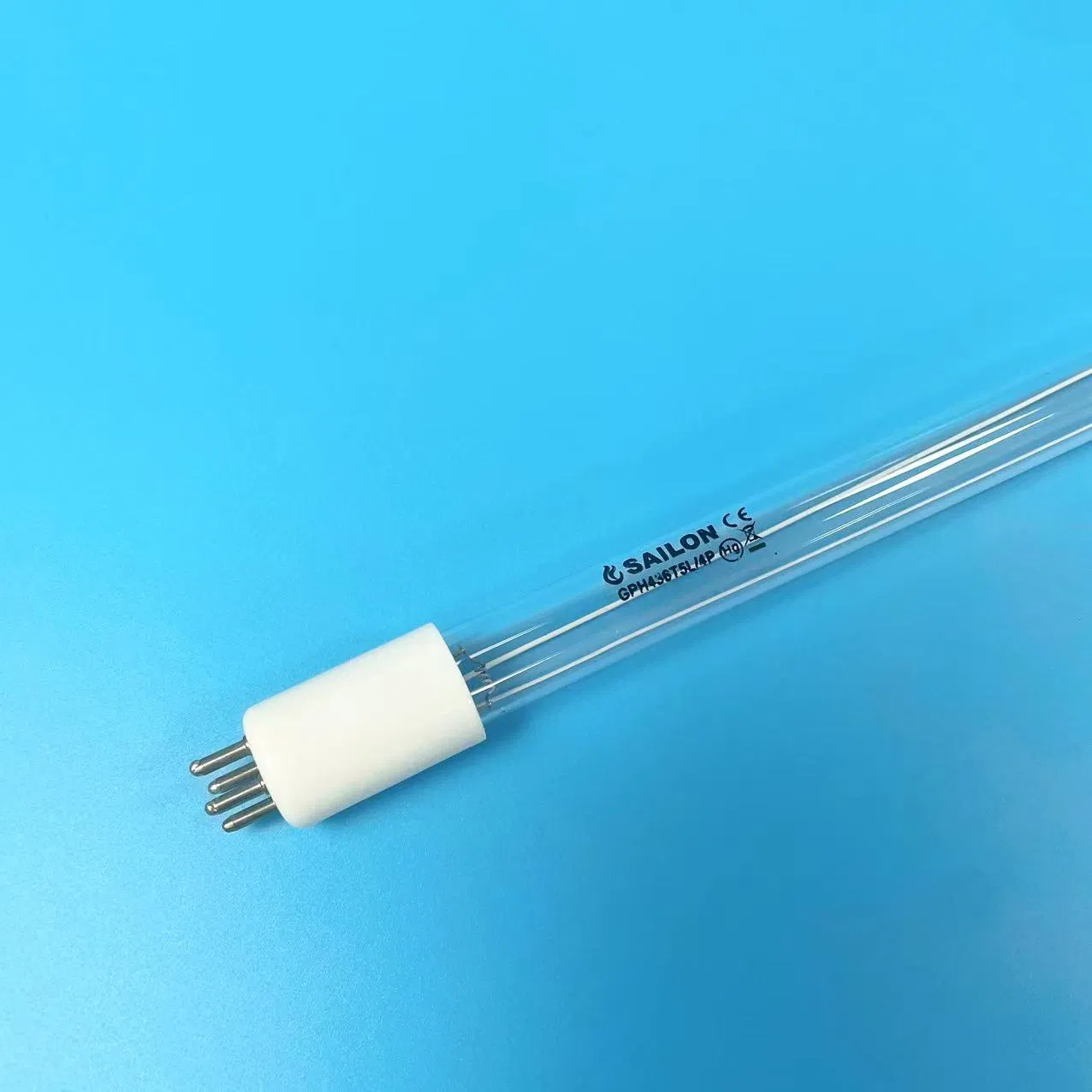

Wedeco Aquafine 80W 40W 120W 150W 320W 200W Gph843t5l T5 T6 Ultraviolet 254nm 185nm Replacement Ozone UV Lamp for Water Sterilizer Purifier
Product Description
Basic Information
Model NO.
GPH843T5L
Wavelength
UV-C
Specification
T5 T6 T8, 793mm (excluding pins)
Material
Quartz Glass
Certification
CE, RoHS, ISO9001
Lampbase
G10q / Ceramic
Working Time
8000 hrs
Power
40W / 425mA
Tube Diameter
15mm
UV Output
135uw/Cm2
Product Description
These UV lamps produce very high Ultraviolet (UV) radiation, with 90% of the energy at 253.7nm, ensuring high sterilizing efficacy. They are widely applied in air disinfection fields, food-processing factories, medical applications, and heating/ventilation systems. Additionally, these lamps are essential for water treatment, including sewage water cleaning, drinking water sterilization, and aquaculture systems.
★
High Quality Quartz Glass: Ultraviolet transmittance rate is over 80%.
★
Hot Cathode Efficiency: Long effective lifespan of up to 8000 hours.
★
Strong Sterilization: Powerful disinfection effect that disrupts bacteria structure.
★
Preheating Start: Not affected by frequent switching, reducing lamp blackening.
Technical Specifications
| Type | Tube Diameter (mm) | Length (mm) | Power (W) | Current (mA) | Voltage (V) | UV Output (uW/cm²) | Standard Life (h) |
|---|---|---|---|---|---|---|---|
| GPH118T5L | 15 | 118 | 6 | 425 | 25 | 13 | 8000 |
| GPH150T5L | 15 | 150 | 8 | 425 | 27 | 20 | 8000 |
| GPH287T5L | 15 | 287 | 14 | 425 | 41 | 40 | 8000 |
| GPH357T5L | 15 | 357 | 17 | 425 | 51 | 57 | 8000 |
| GPH550T5L | 15 | 550 | 28 | 425 | 69 | 85 | 8000 |
| GPH843T5L | 15 | 843 | 40 | 425 | 120 | 135 | 8000 |
| GPH1554T5L | 15 | 1554 | 75 | 425 | 220 | 220 | 8000 |
