UV LED Curing Lamp 365nm UV Lamp Industrial High Strength Shadowless Adhesive Light Fixing System LED Curing Machine
Product Description
📋
Basic Info
Model NO.
AW2020H1
Wavelength
365/385/395/405nm
Material
Sheet Metal
Certification
CE
Input Voltage
AC100~240V(50/60Hz)
Cooling Method
Air-Cooled and Water-Cooled
LED Life
20000hrs
Control Method
RS232/Pedal/PLC
Interface
Touch Screen
LED Beam Size
20X20mm
UV Intensity
12W/Cm2
Channels
4
💎
Product Description

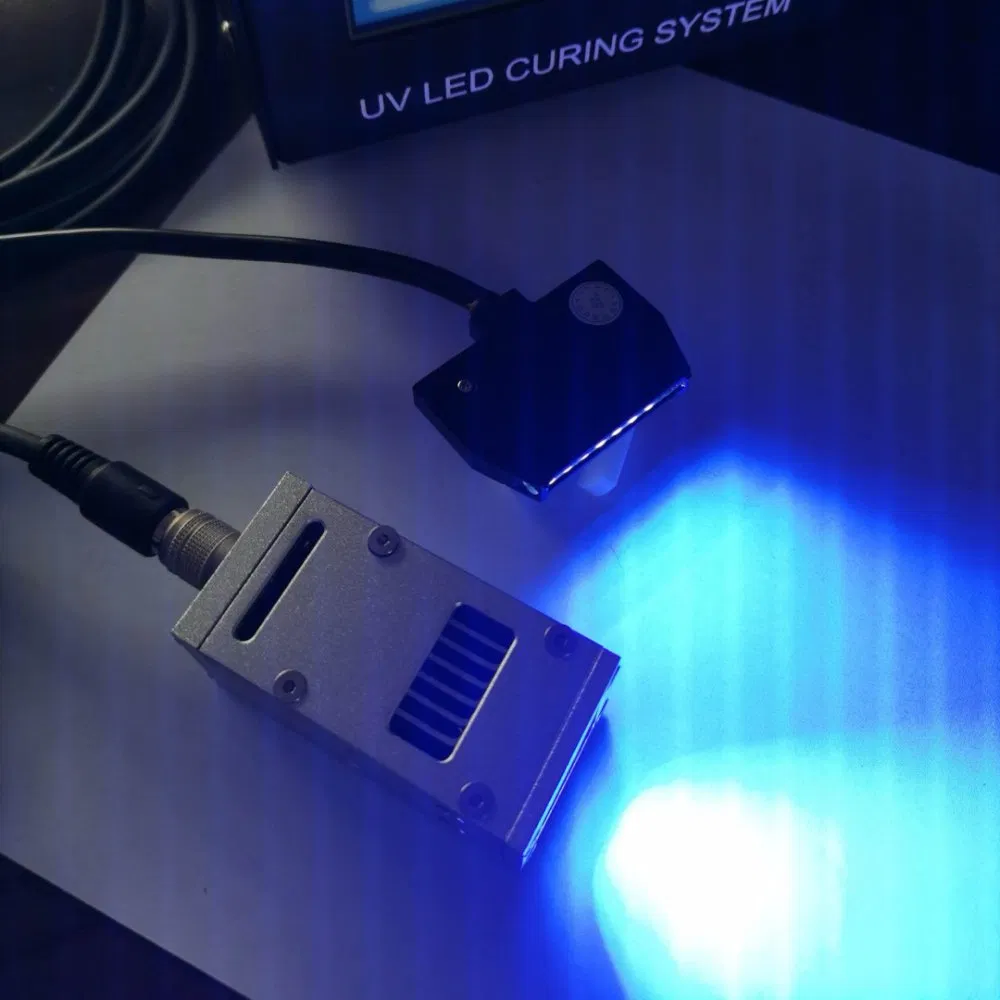

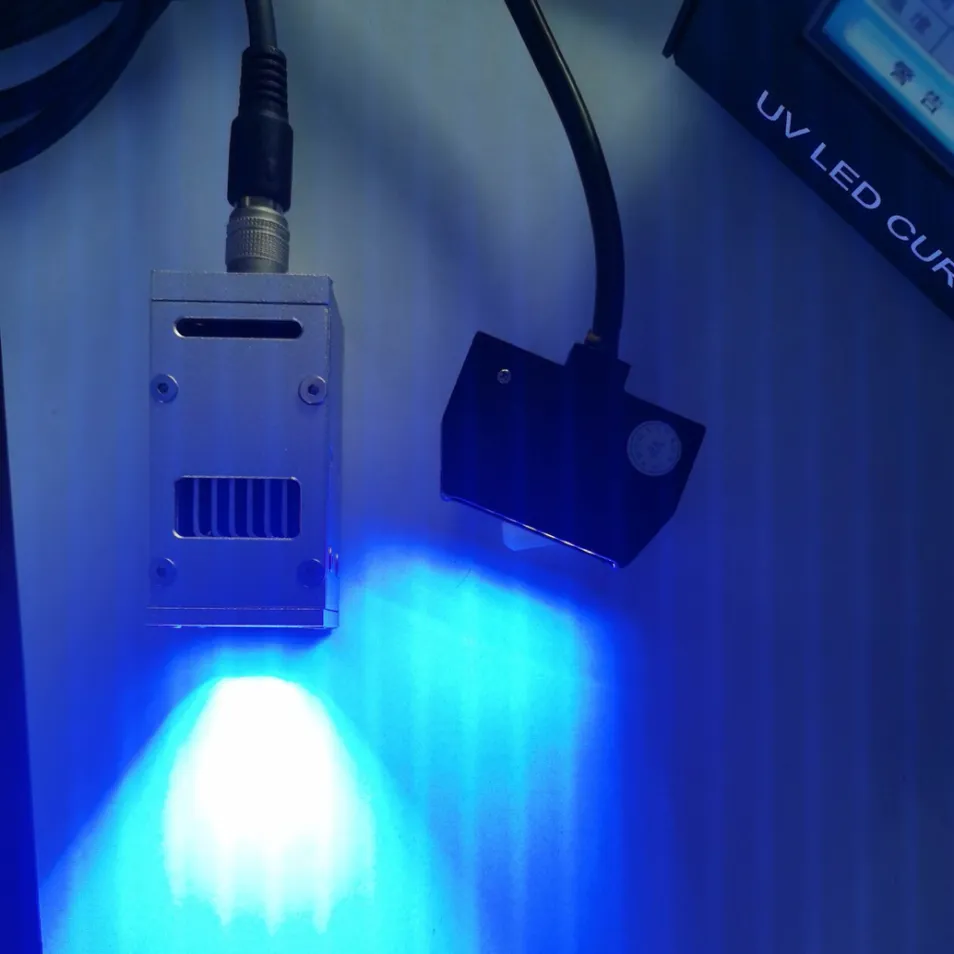

UV LED Curing Lamp 365nm Industrial High Strength Shadowless Adhesive Light Fixing System LED Curing Machine
System Configuration

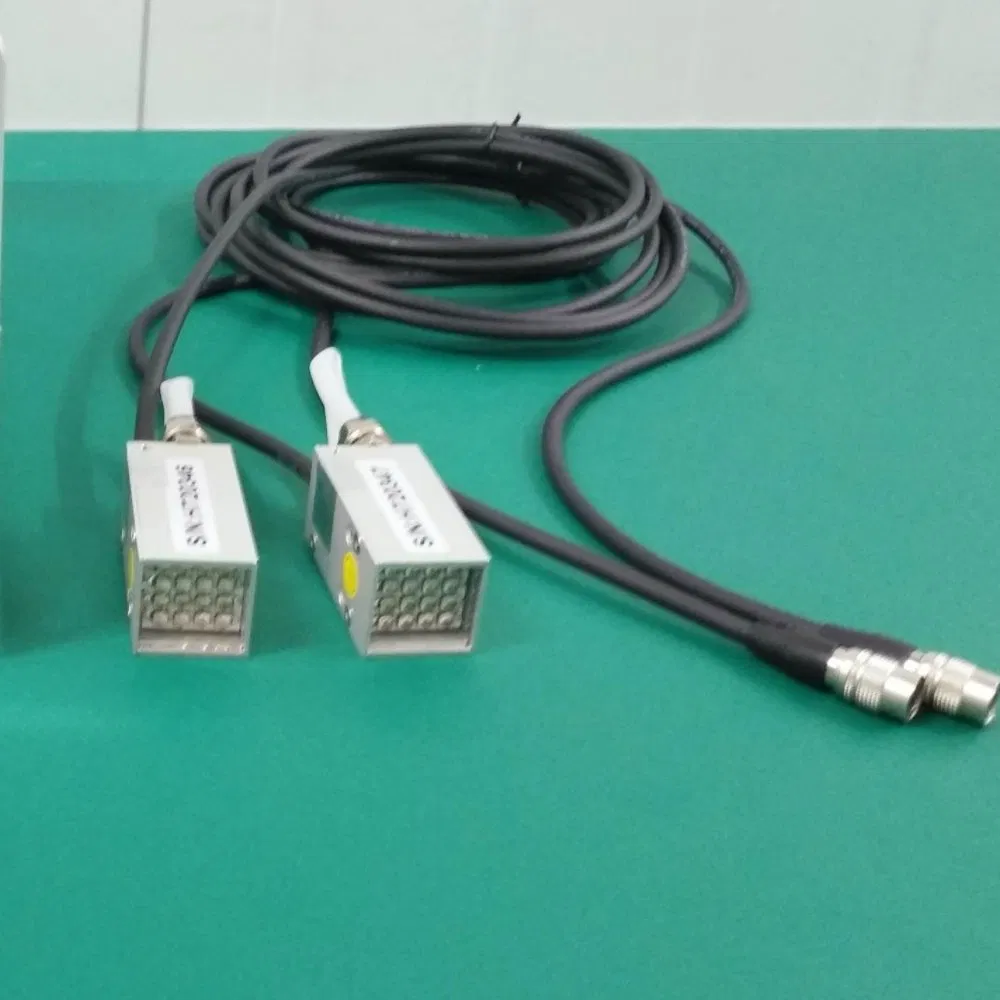

- ✔Model: AW2020H1 (Controller + Irradiator Head)
- ✔Expandable: Each controller can drive multi irradiator heads.
Key Features of Controller
- ⚡External signal control via MCU, PLC, or scanner.
- ⚡Multi-status LEDs for real-time start, stop, working, and alarm signals.
- ⚡RS232 interface for parameter programming and PC/PLC integration.
- ⚡Support for foot switches or sensor connection terminals.
Advantages of UV LED Technology
- 🔥No infrared radiation, ideal for temperature-sensitive materials.
- ⏱Instant on/off - no warm-up phase required.
- 🌱Energy efficient and long-lasting lifespan.
📊
Technical Specifications
Controller Specifications
| Parameter | Detail |
|---|---|
| Voltage | 100-240V AC |
| Material | Sheet metal black |
| Cooling Method | Fan cooling |
| Control Methods | Touch/Pedal/RS232 Port/PLC |
| Power Range | 10% ~ 100% Adjustable |
| Irradiation Modes | Manual, Automatic (0.1-999.9s), Ladder (Step-mode), Pulse |
| Working Temp | 0-45℃ |

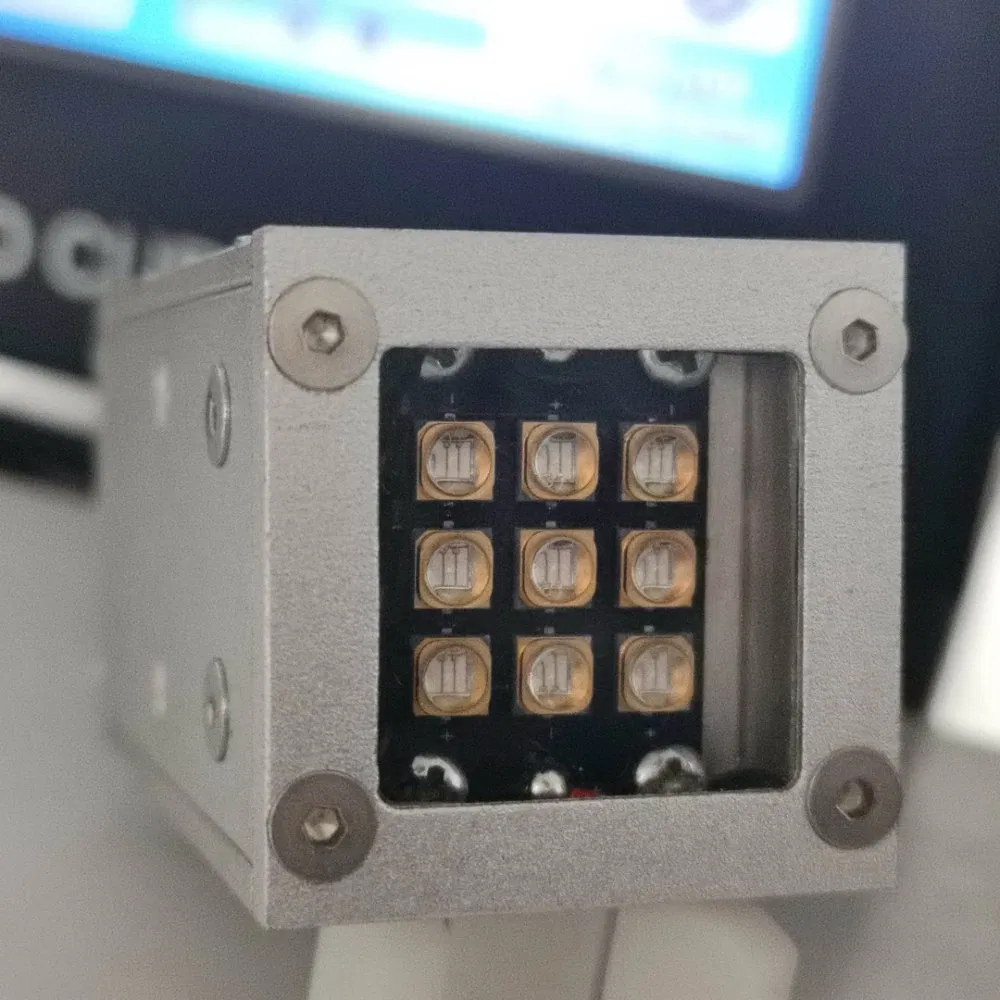

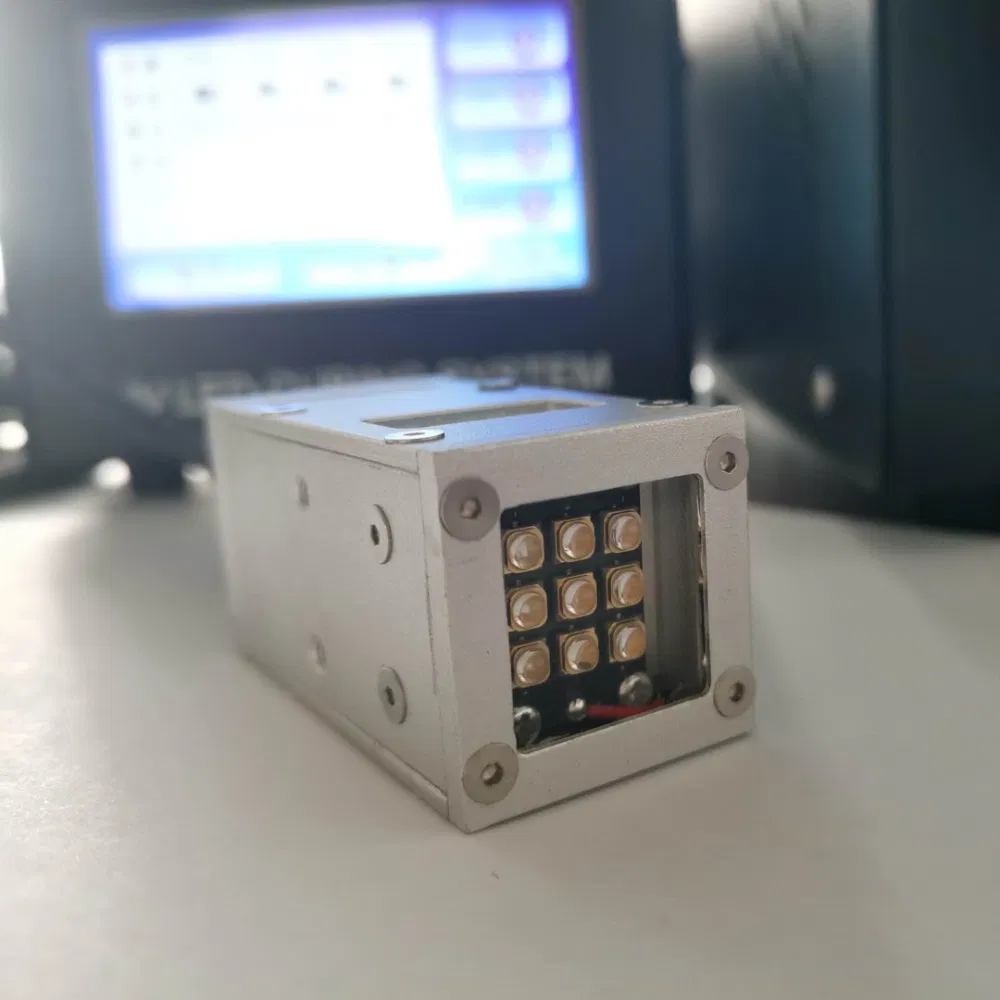

Irradiation Head Specifications
| Feature | Specification |
|---|---|
| LED Type | Imported High-Quality LEDs |
| Usage Time | 20,000 Hrs @ 80% power |
| Wavelength Range | 365nm / 385nm / 395nm / 405nm (±5) |
| Luminous Size | 20 x 20mm |
| Peak Intensity | 0.5 ~ 20W/cm² |

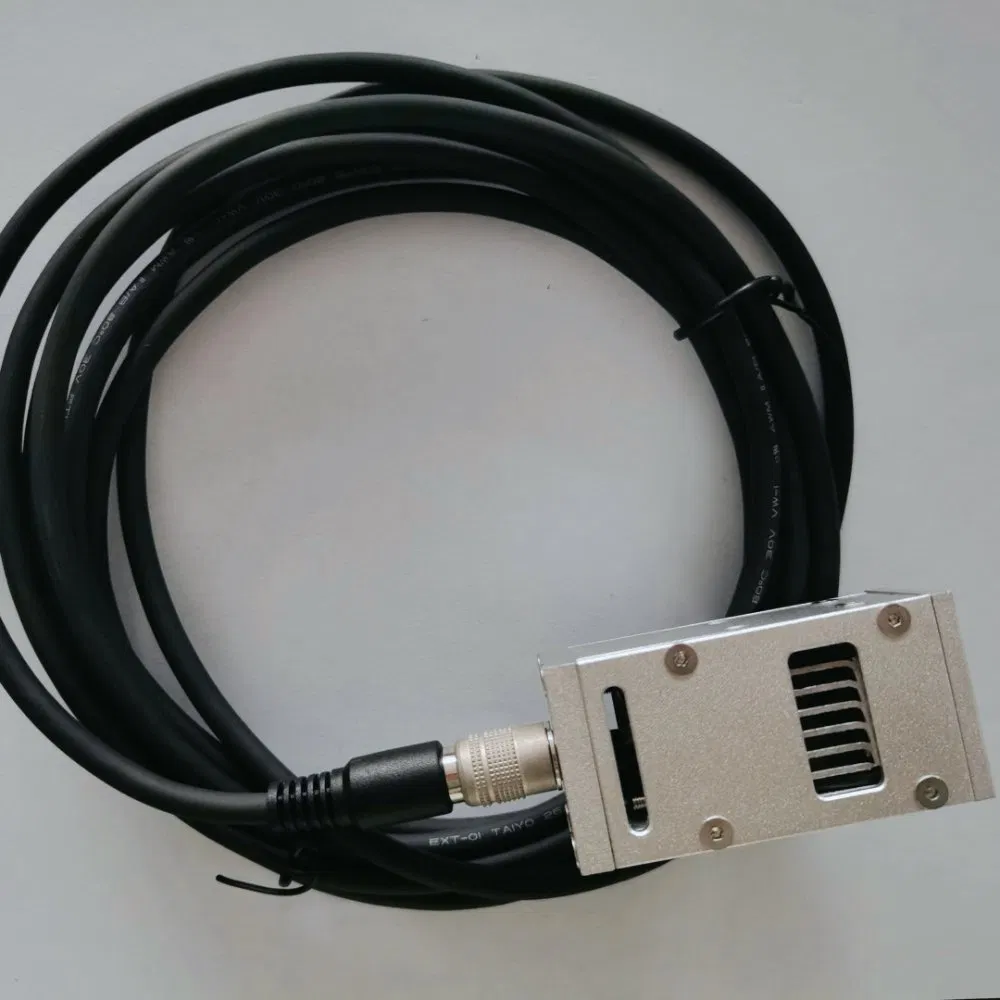

| Cable Length | Standard 2M / 5M or Customized |
🔍

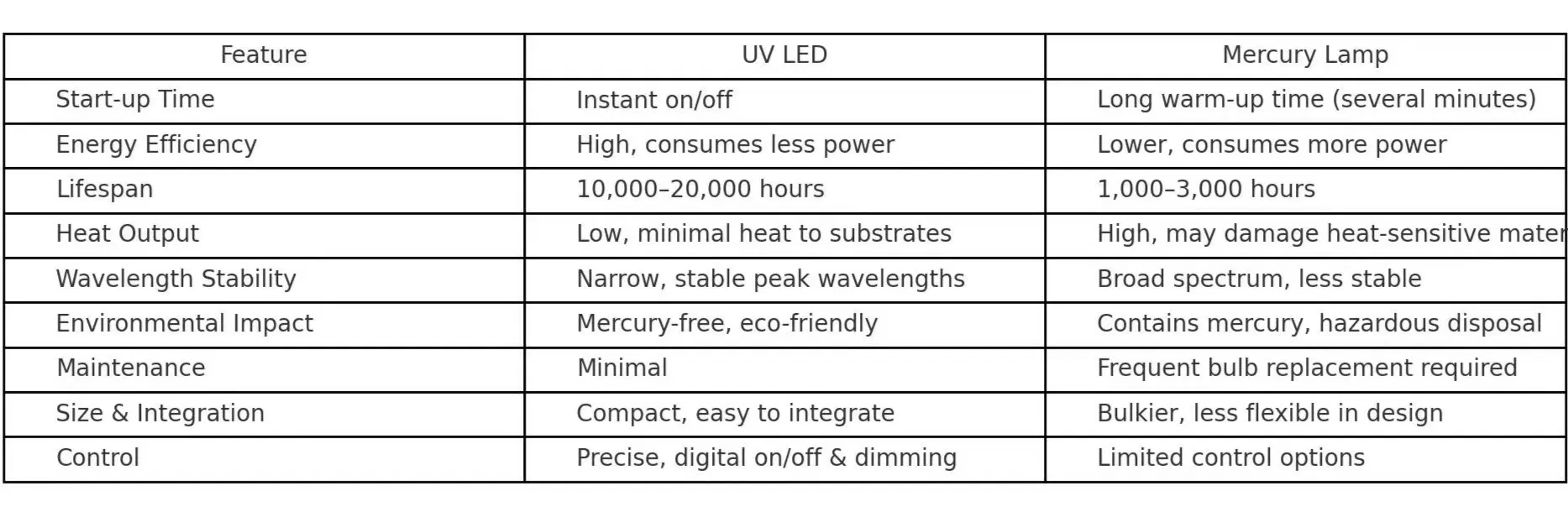

UV LED vs. Mercury Lamp
UV LED curing systems offer faster response, greater energy efficiency, and longer lifespan compared to traditional mercury lamps.
Wide Applications
- 📍UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen.
- 📍UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
- 📍UV Ink: UV printing, 3D printing.
🛠
Service & Innovation
After Sales Service
Standard Warranty: 12 months. Extended Warranty: Optional coverage up to 36 months. 24/7 technical assistance and training available.

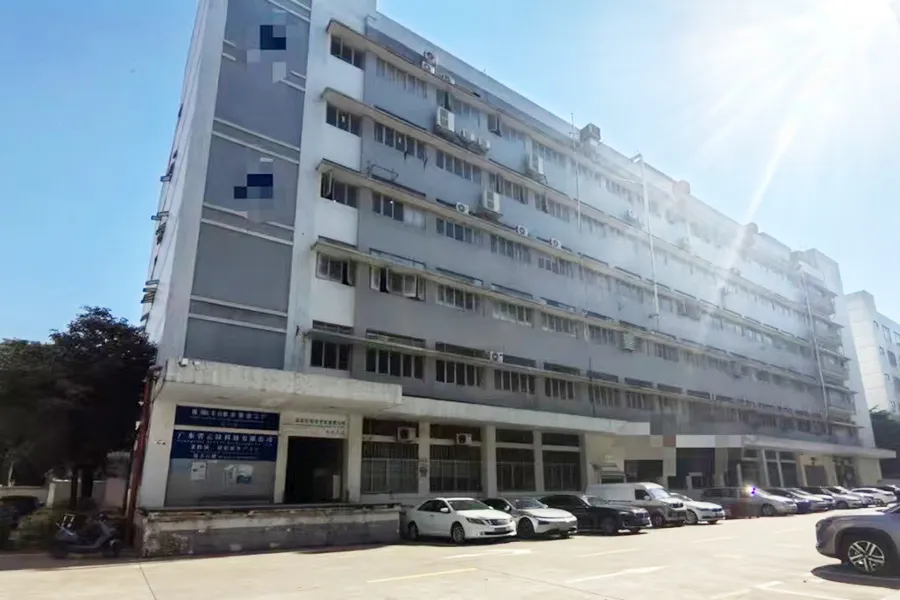

Expert Manufacturing
With over 12 years of expertise, we are a leading manufacturer of UV LED Curing Systems. Certified with ISO 9001, CE, and RoHS, we offer innovation-backed solutions with strict quality control.
❓
FAQ
Why choose this UV LED curing system?
With over 12 years of experience in the industry, our systems are engineered to meet precise client requirements with high reliability and efficiency.
What are the primary applications for this system?
It is mainly used for curing UV glue, UV ink, UV adhesives, paints, and other UV-sensitive materials in electronics, optics, and medical fields.
What are the advantages over traditional mercury lamps?
The major advantages include a significantly longer service life, energy savings, instant on/off capabilities, and an environmentally friendly design.
How do I choose the right emitting window size?
The emitting window size depends entirely on the specific curing area required by your application. We can customize sizes to fit your production line.
How is power intensity determined?
Power intensity requirements are based on the sensitivity of your materials and your desired production efficiency.
Can you customize the peak irradiance?
Yes, any size of emitting window and peak irradiance can be customized according to your specific industrial application.
