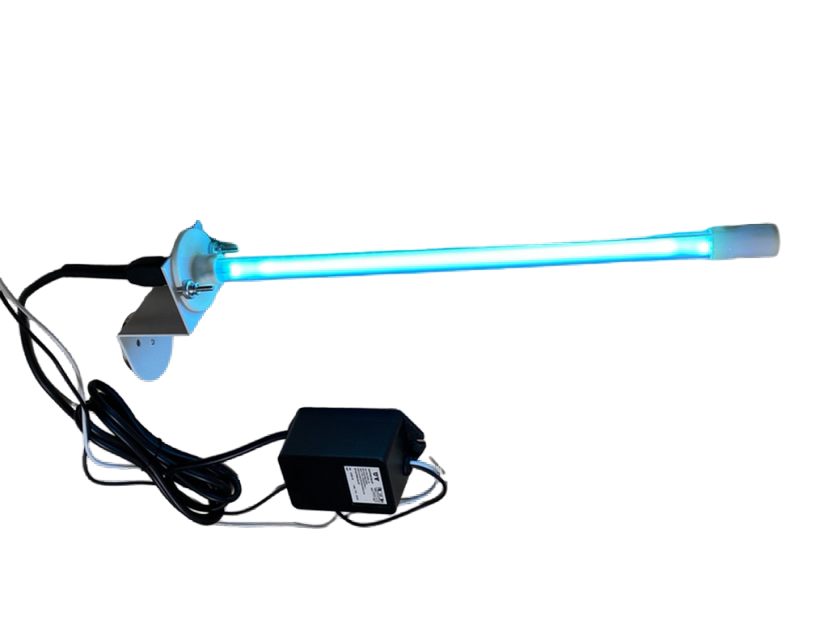

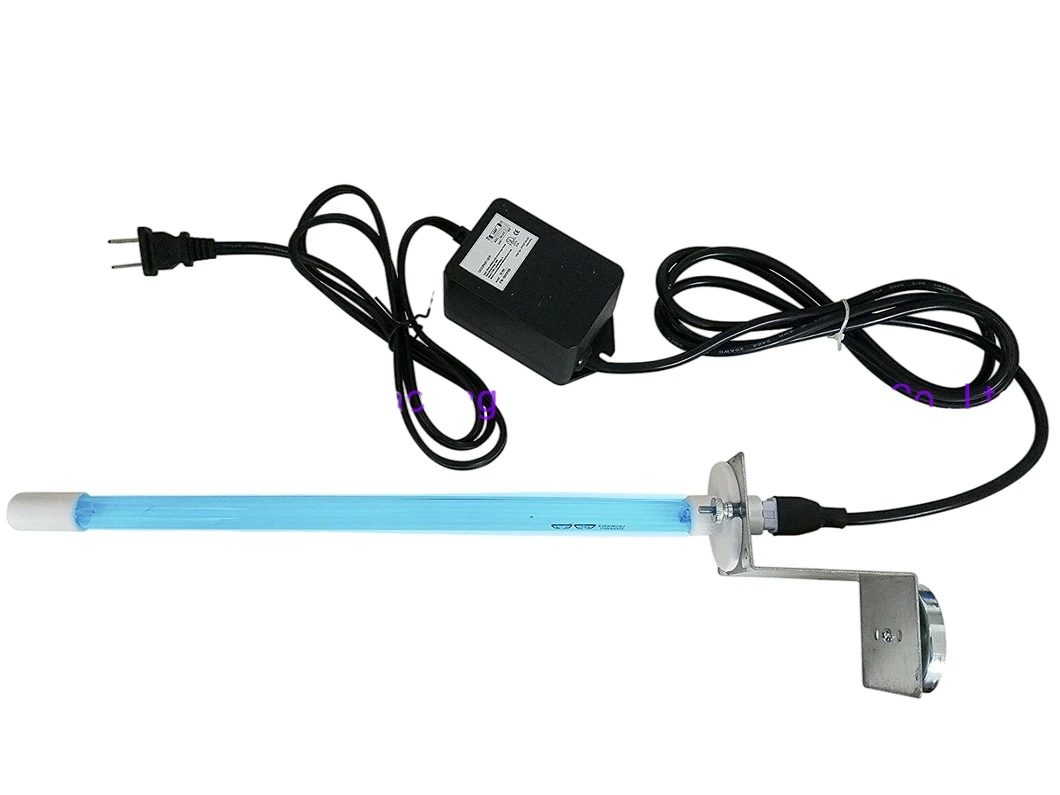

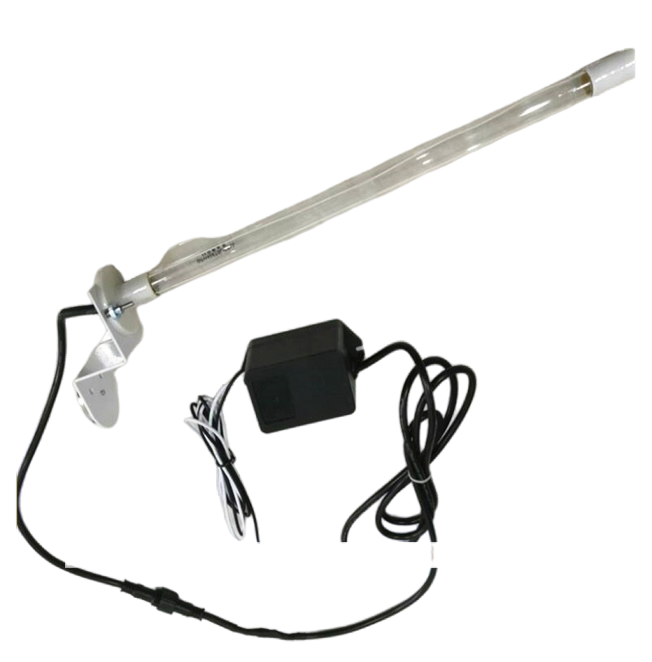

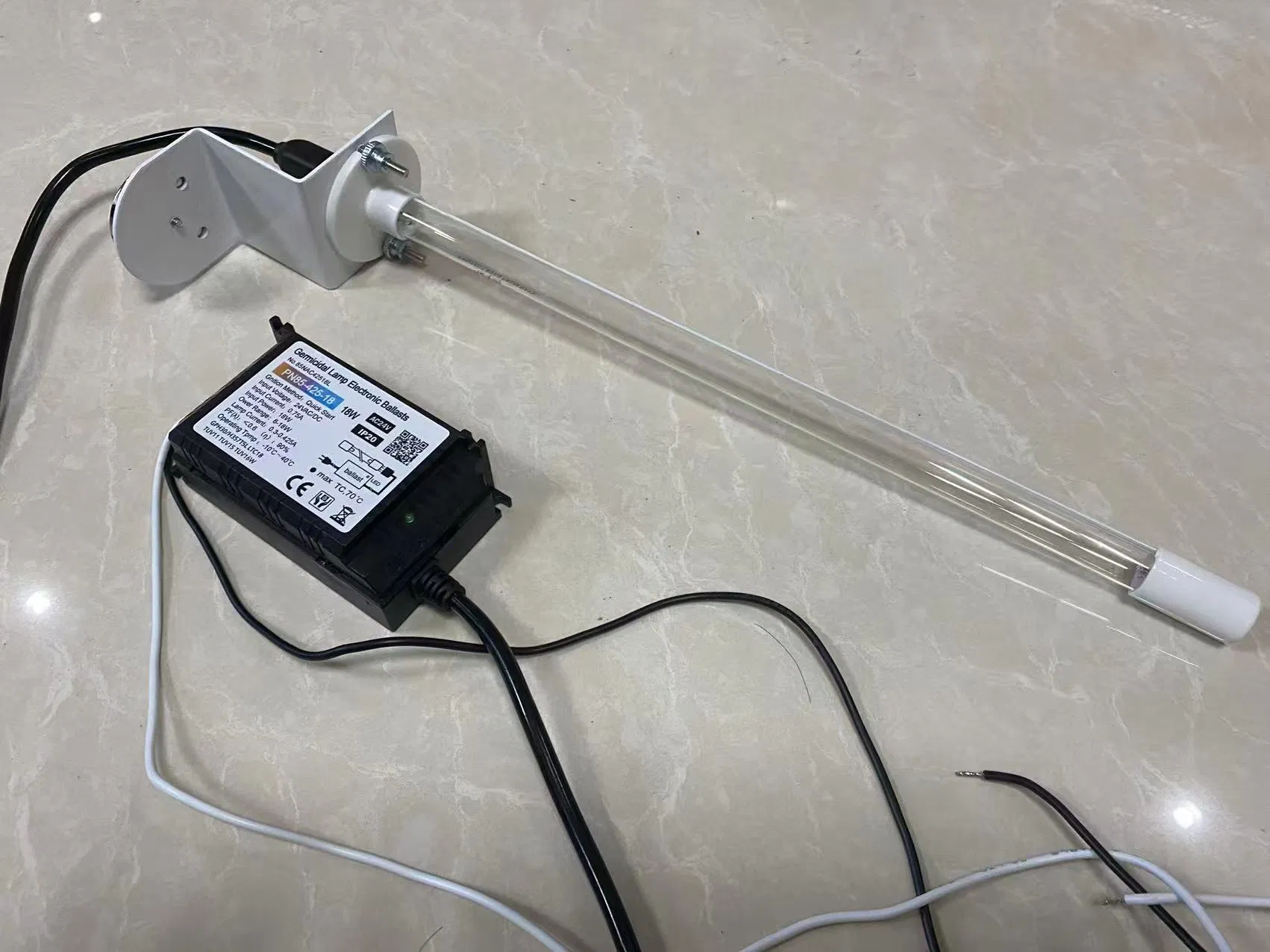

UV Cleanser Germicidal Lamps in Duct HAVC Purifier UV Air Purification 24V with Z Mount with Magnet 18W
Product Description
📋
Basic Specifications
WavelengthUV-C (254nm)
Input Specification24V / 110V / 220V
MaterialQuartz
CertificationCE, EPA
OEM/ODMAcceptable
Ballast Lifetime30,000 Hours
Output Power14W - 18W
HS Code85394900
📦
Packaging & Delivery
Package Size60.00cm * 40.00cm * 50.00cm
Gross Weight26.000kg (Bulk)
Lead Time7-15 days based on quantity

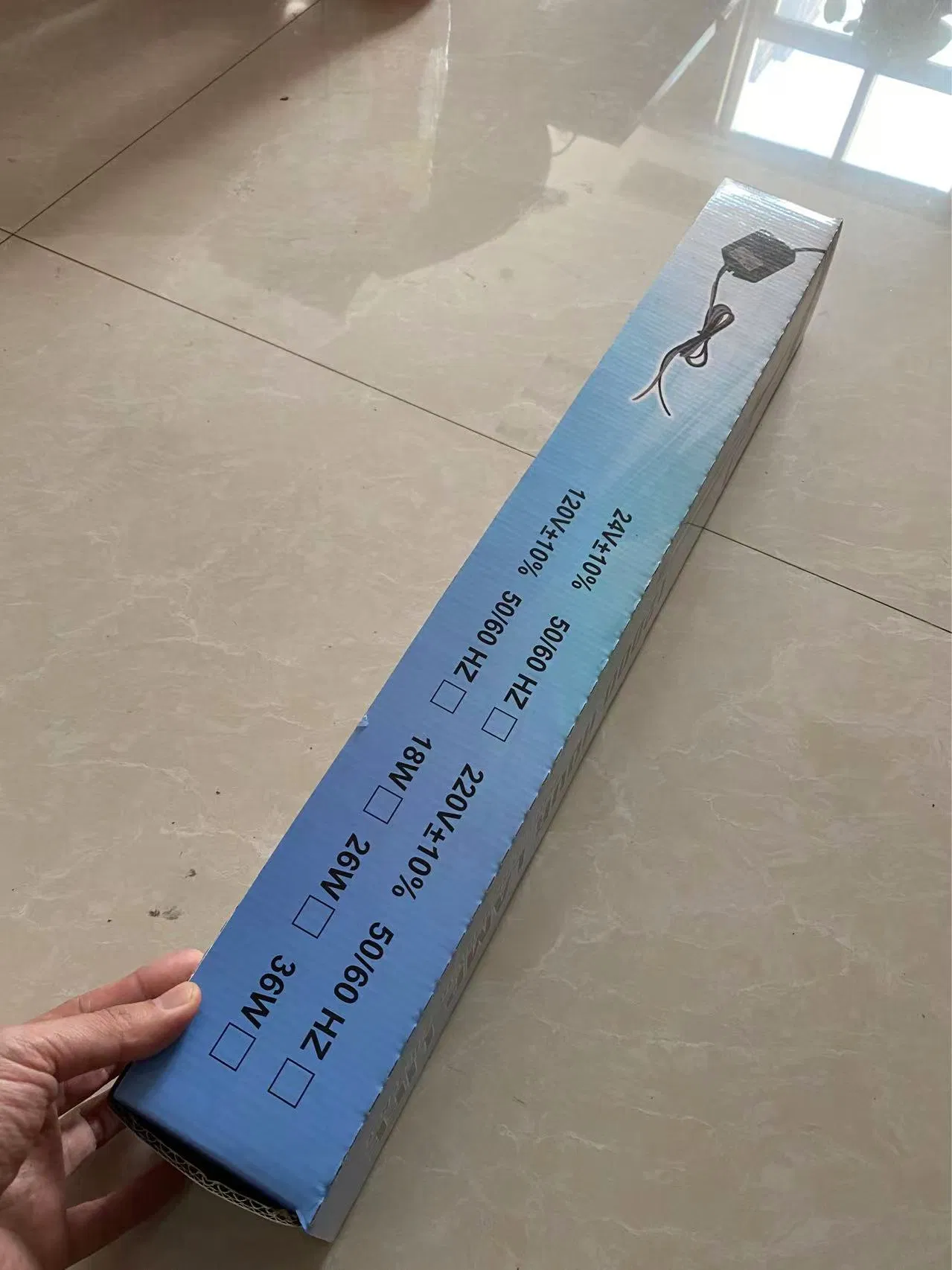

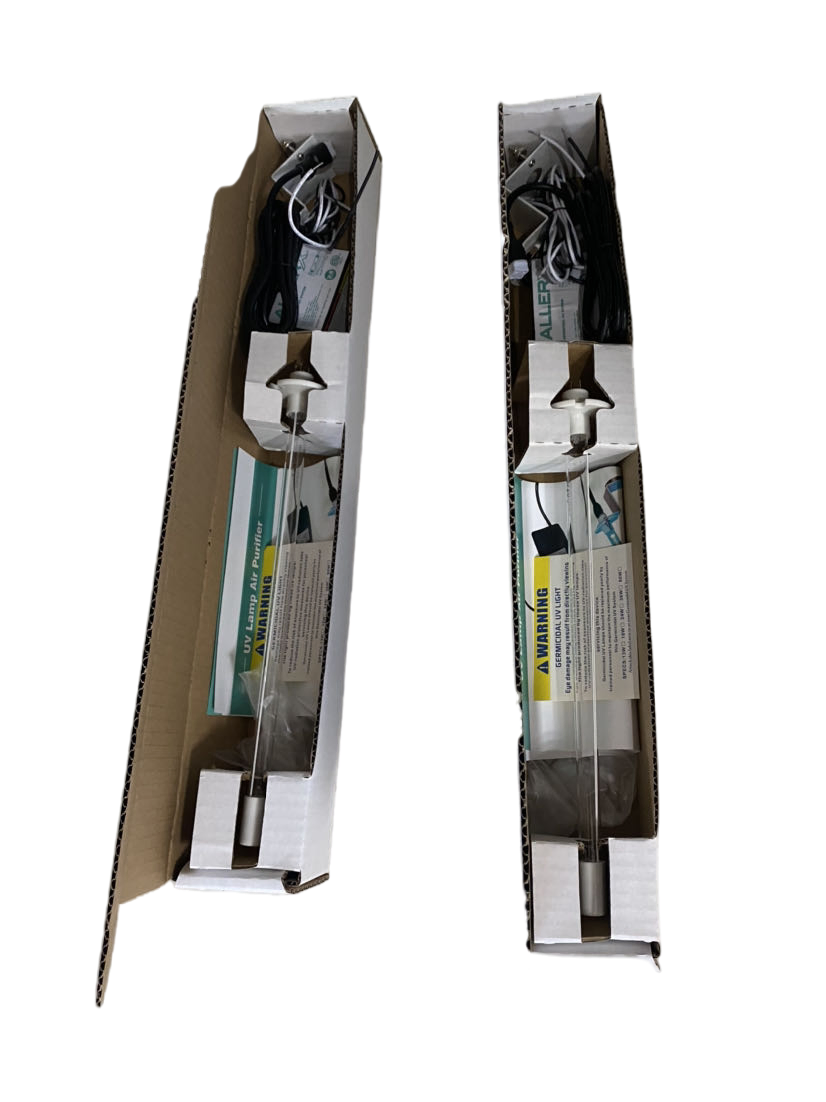

Standard packaging includes one unit per small box, with 20 boxes per export carton.
🛡️
Product Description
UV Lamp Air Purifier Features:
- Factory direct supply with competitive pricing
- Intelligent Voltage Protection (VP) to prevent electrical overload
- Germicidal UltraViolet Lamp effectively controls microbes and allergens
- Smart Ballast with extended 30,000 hours lifetime

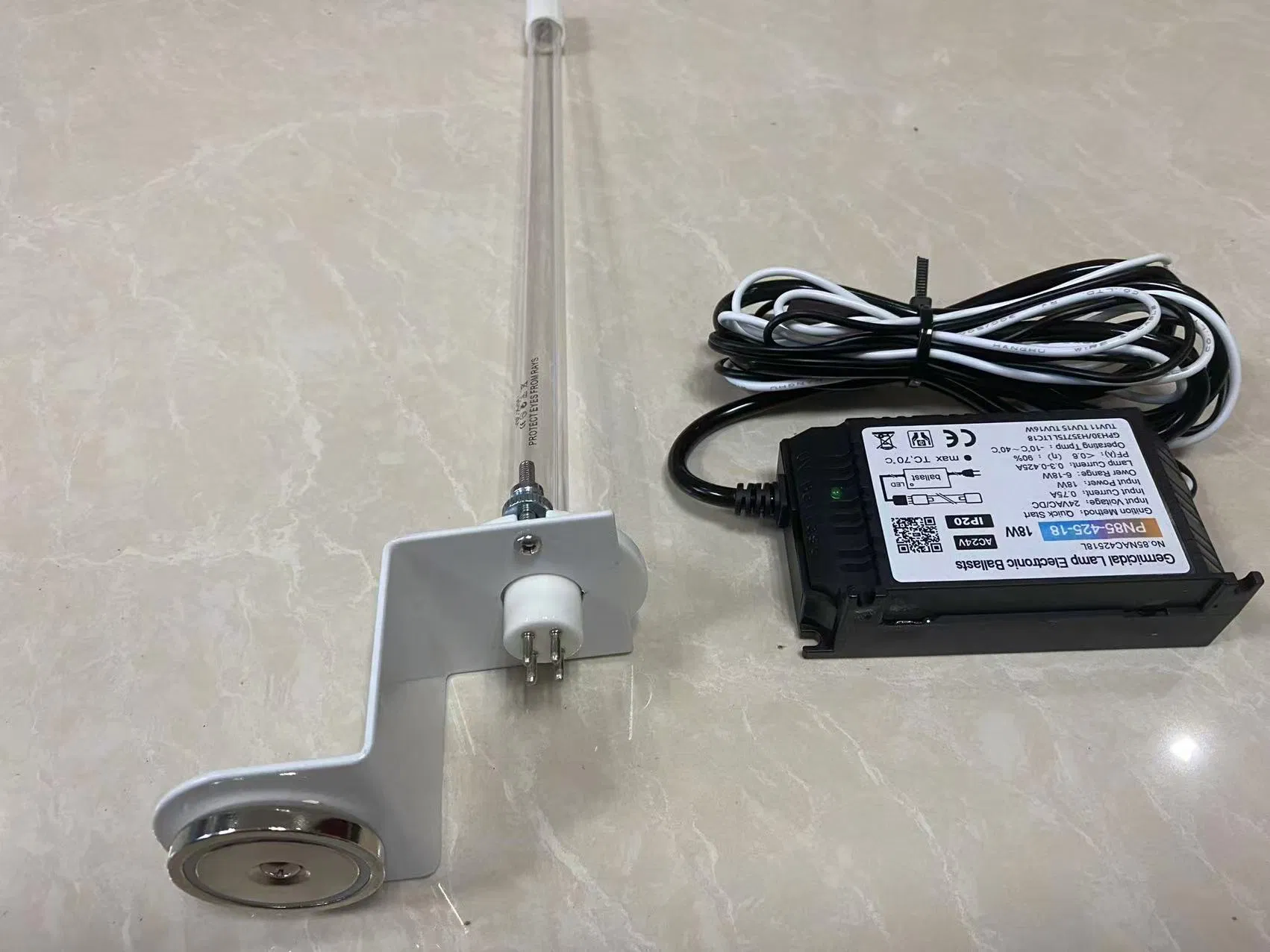

- Z-mount with powerful magnet for easy HVAC system installation
| Parameter | Details |
|---|---|
| Watts | 18W |
| Input Voltage | 110V (220V/24V also available) |

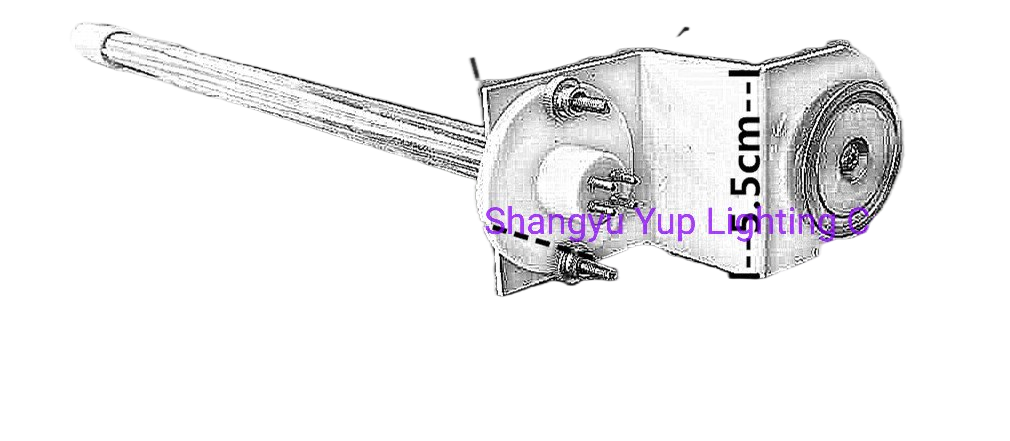

| Mount Dimensions | 65mm x 37mm x 45mm |
| Lamp Base | 4 Pin Single Ended | 357mm (14" Lamp) |
| Cable Length | 1.8m |
| Mount Style | Z-mount with Magnet |
| Application | Virus killing for HVAC systems |
🔧
Installation Instructions
1) Choose Installation Type: Use the custom bracket to install the UV lamp inside the air handler, or use the mounting flange for direct installation in the coil delta plate.
2) Magnetic Bracket: Attach the magnetic bracket to the back or side wall of the air handler for secure placement.
3) Power Connection: Install the power supply in a suitable location using self-drilling screws and connect to continuous power. Ensure the lamp connector is fully seated for water resistance.
2) Magnetic Bracket: Attach the magnetic bracket to the back or side wall of the air handler for secure placement.
3) Power Connection: Install the power supply in a suitable location using self-drilling screws and connect to continuous power. Ensure the lamp connector is fully seated for water resistance.
❓
Frequently Asked Questions
What is the wavelength used in this UV purifier?
This system uses 254nm UV-C ultraviolet light, which is highly effective for germicidal purposes in HVAC systems.
Is this product compatible with different voltage standards?
Yes, we offer 24V, 110V, and 220V versions to meet various electrical requirements. A 120V plug option is also available.
How long does the ballast and lamp last?
The smart ballast is designed for a lifetime of up to 30,000 hours, ensuring long-term reliability for your air purification system.
Can it be easily installed in existing AC units?
Absolutely. The unit features a powerful magnetic Z-mount, allowing for quick installation inside the air handler without complex tools.

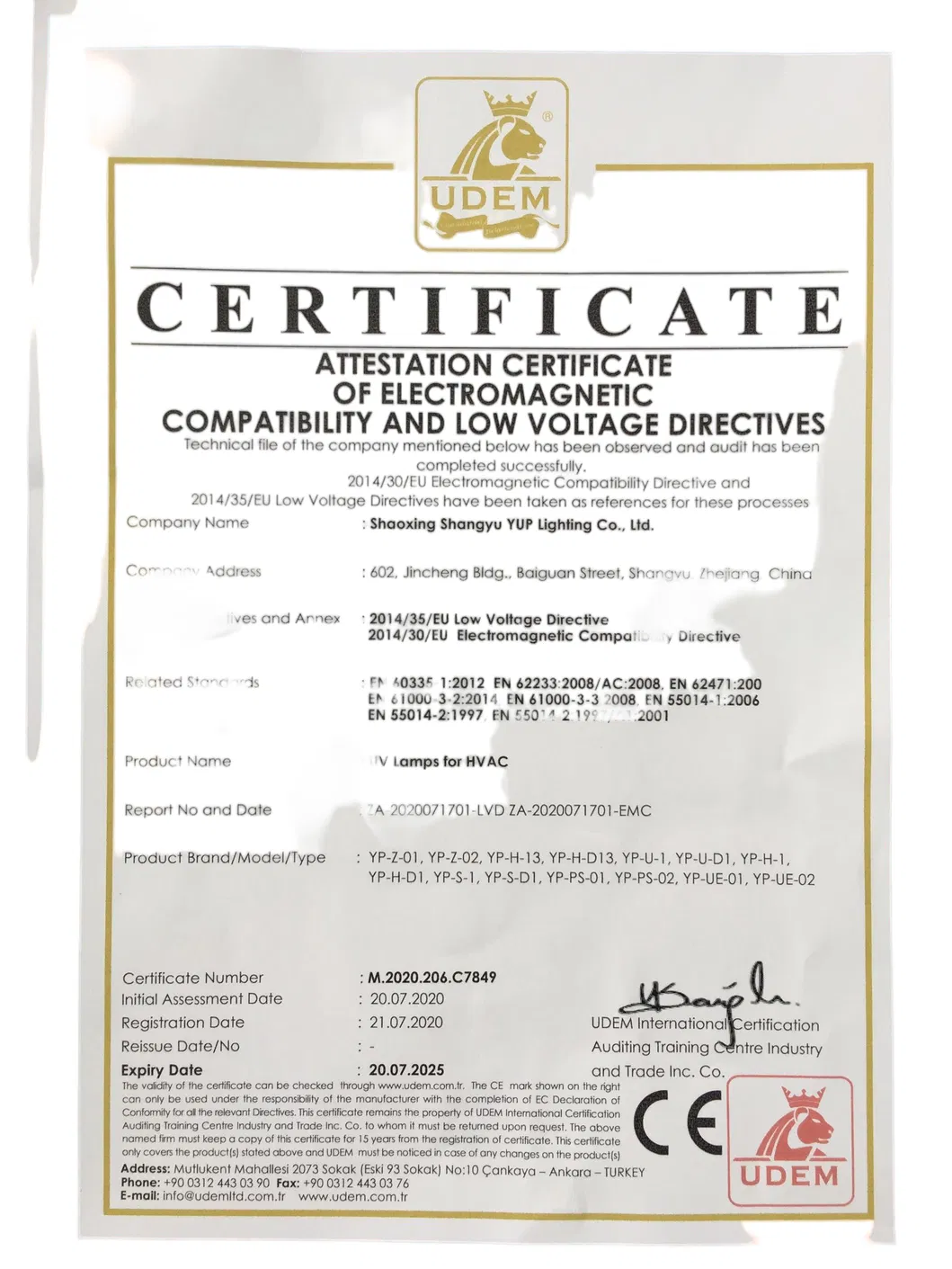

What certifications does this HVAC UV light hold?
The product is certified with CE and registered with the USA Environmental Protection Agency (EPA-Est.No.96456-CHN-1).

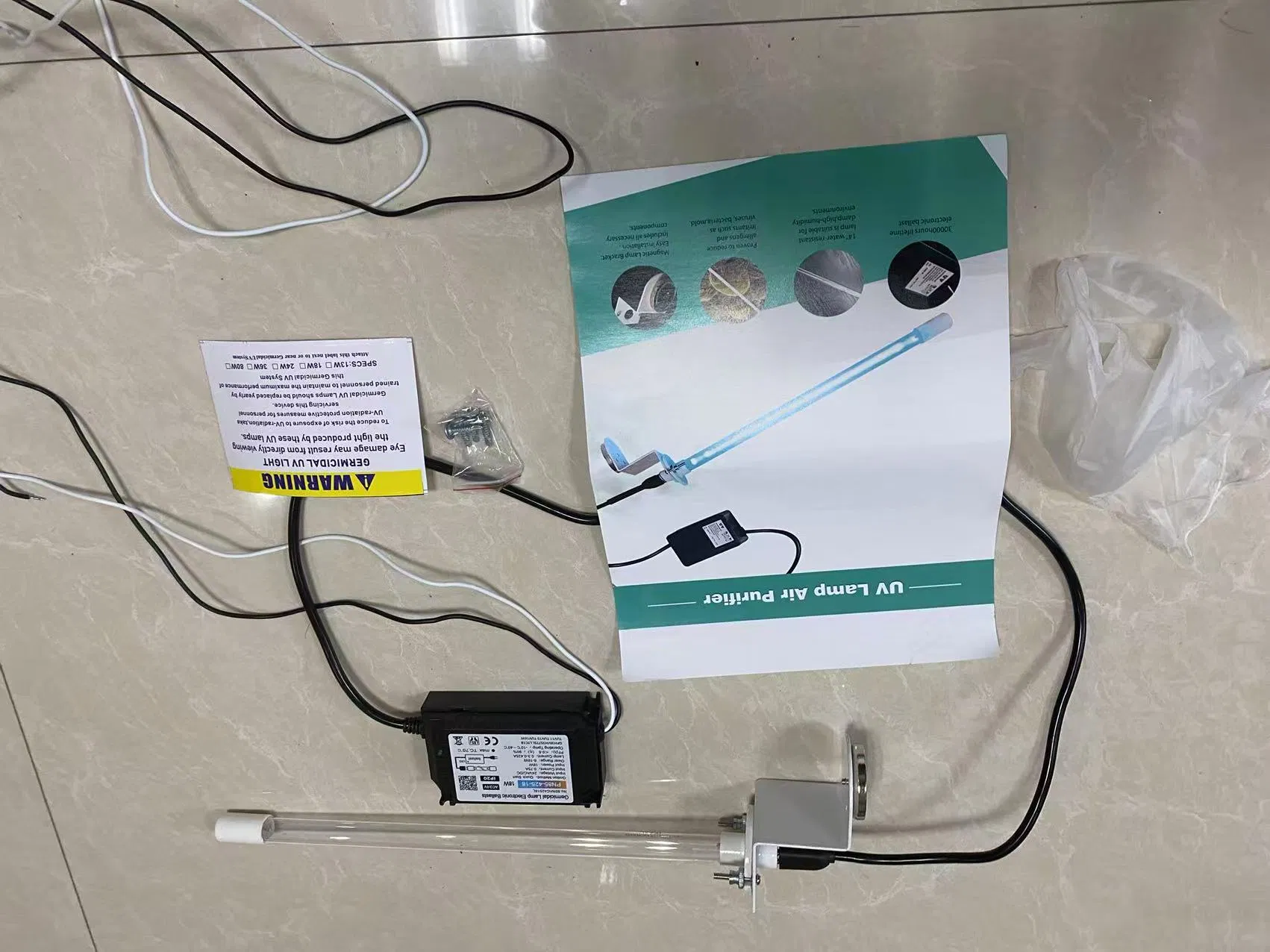

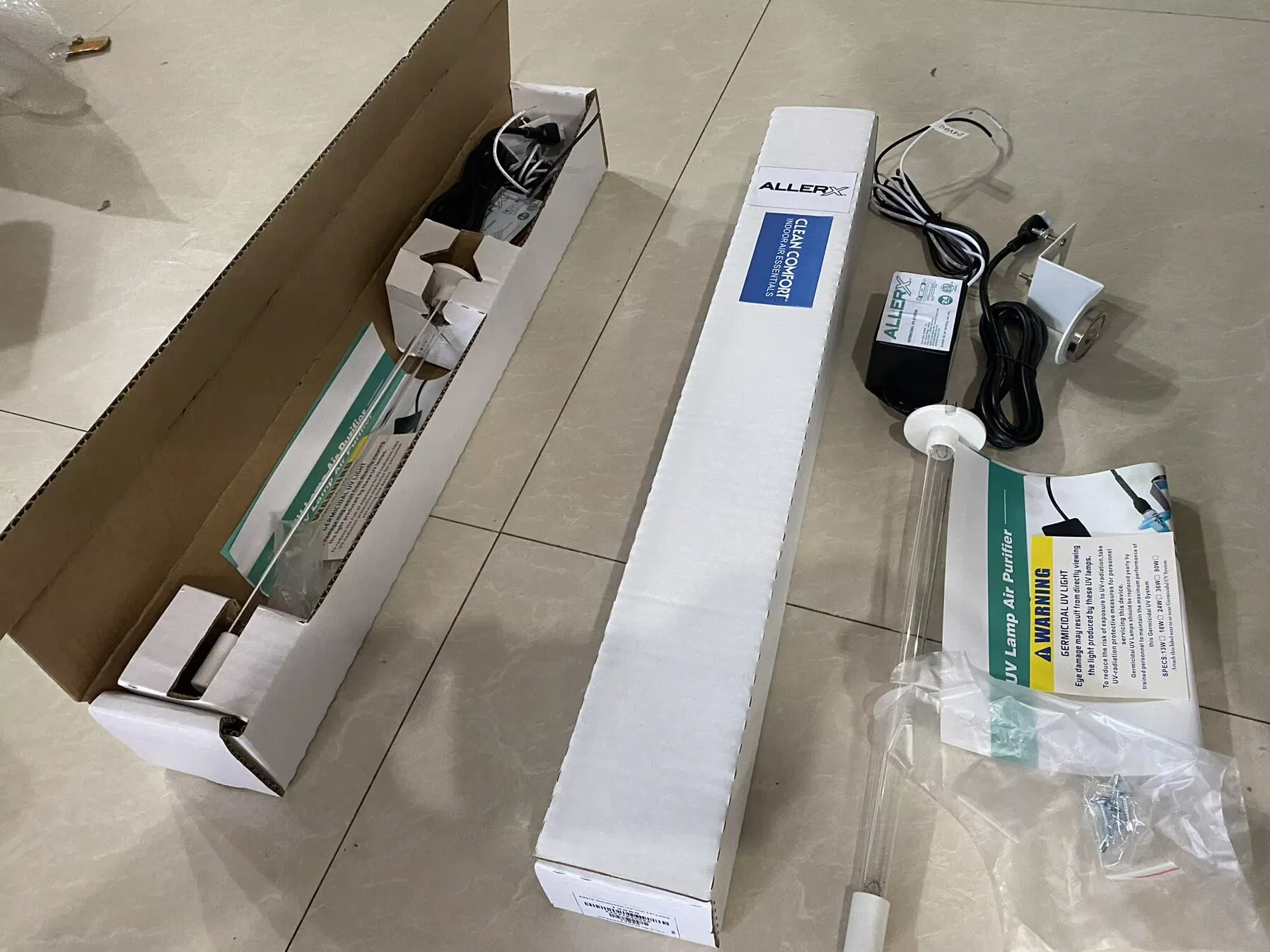

What is included in the standard package?
Each unit is packed in a small box, with bulk orders shipped in cartons containing 20 units. The total gross weight for 20 units is approximately 22-26kg including bulbs.
