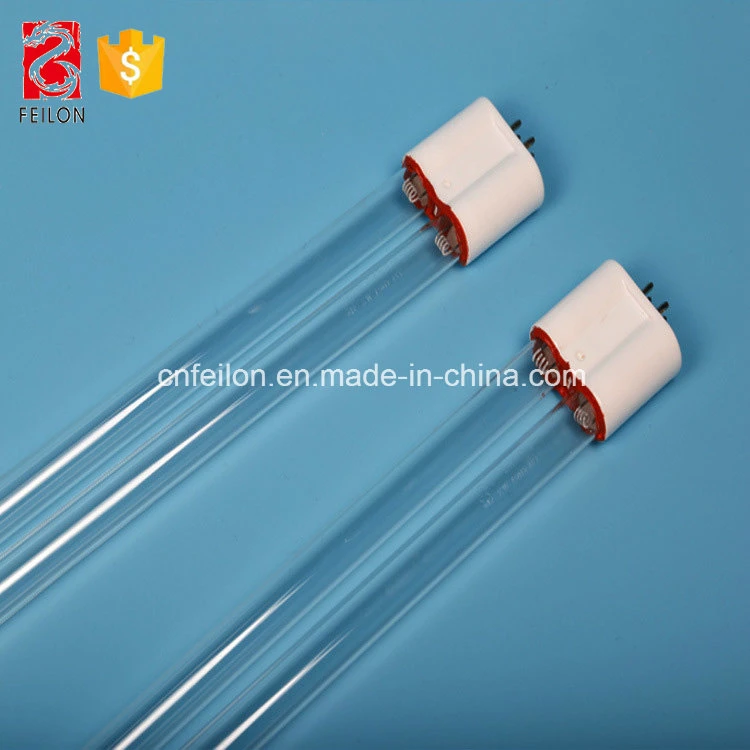

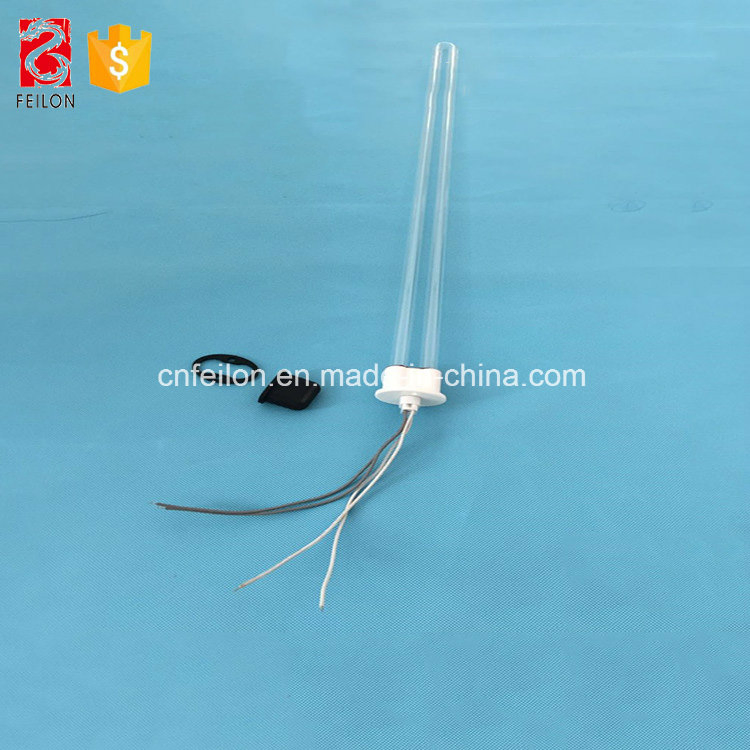

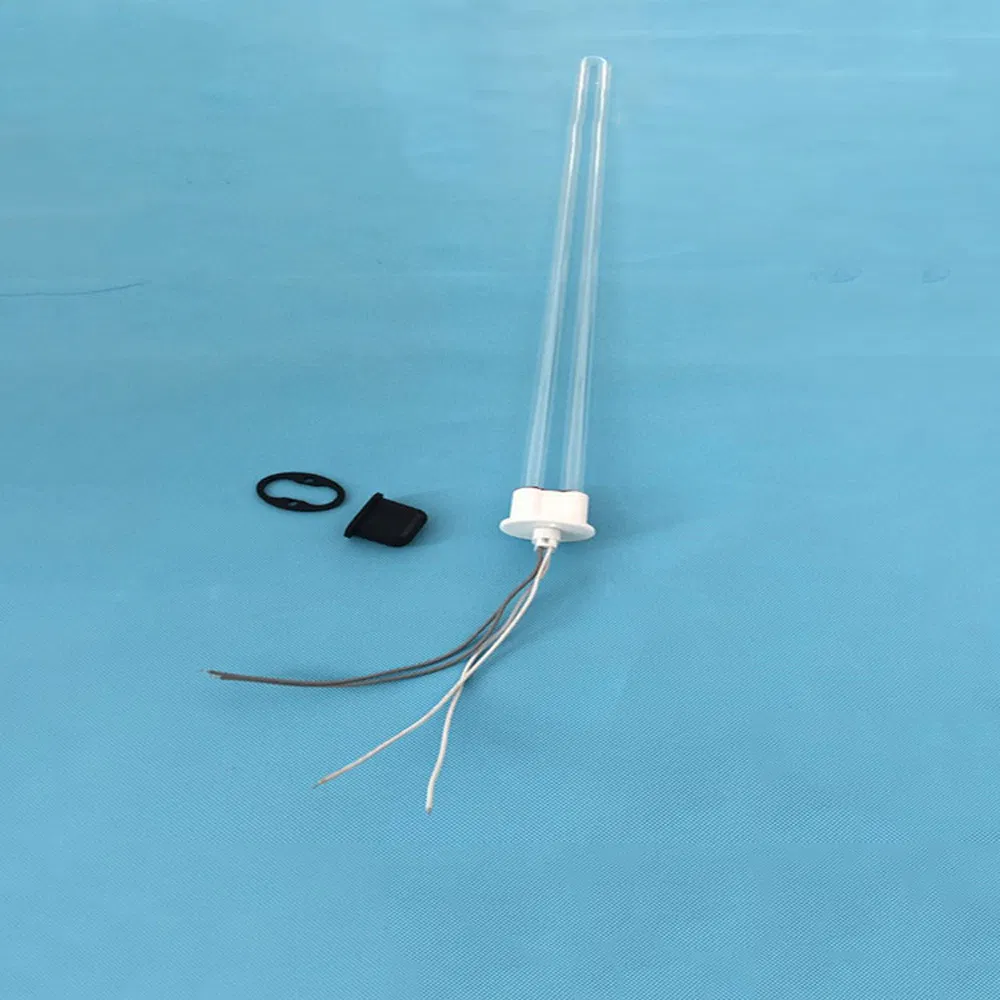

Top Sale Ultraviolet Lamp Germicidal UV Bulb with Sterilization UV-C Tube Light
Product Description
i
Basic Specifications
Model NO.
U Shape uv lamp
Wavelength
UV-C (253.7nm / 185nm)
Material
Clear Quartz Glass
Lamp Base
G10q / 2g11
Lamp Length
810-1554mm
Diameter
15mm
Power Range
41-155W
Voltage
220V
Lifetime
8000 hours
Feature
High Efficiency Sterilization
HS Code
8539490000
Capacity
500,000 / Month
★
Product Description

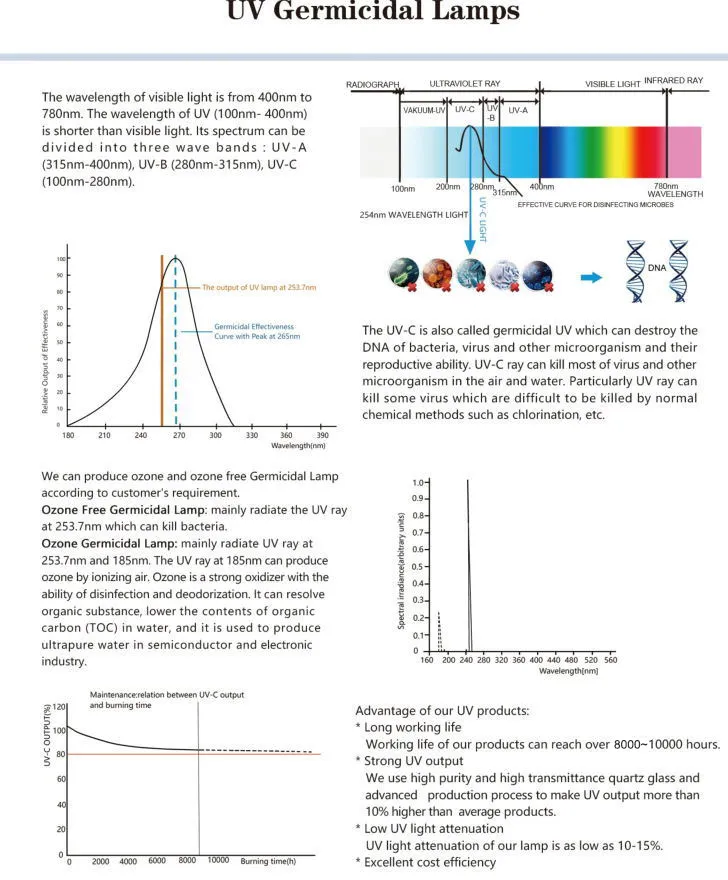

Ultraviolet sterilization works through the irradiation of ultraviolet rays, which destroys and alters the DNA (deoxyribonucleic acid) structure of microorganisms. This process ensures that bacteria die immediately or lose their ability to reproduce, achieving effective sterilization. The most potent germicidal effect comes from UVC light, specifically the C-band ultraviolet ray at approximately 253.7 nm, which is optimally absorbed by the DNA of living organisms.
We offer two types of UV lamps:
- Ozone-free: Emitting UV-C wavelength at 253.7nm.
- Ozone-generating: Emitting UV-C wavelengths at both 253.7nm and 185nm.
⚙
Technical Parameters
| Lamp Type | Tube Diameter (mm) | Length (mm) | Power (W) | Current (mA) | Voltage (V) | 254nm UV Output | Life (Hrs) |
|---|---|---|---|---|---|---|---|
| ZW41D15W-Z843 | 15 | 843 | 41 | 425 | 98 | 136 | 8000 |
| ZW55D15W-Z1149 | 15 | 1149 | 55 | 425 | 135 | 174 | 8000 |
| ZW75D15W-Z1554 | 15 | 1554 | 75 | 425 | 179 | 223 | 8000 |
| ZW87D15W-Z843 | 15 | 843 | 87 | 800 | 110 | 260 | 8000 |
| ZW95D15W-Z893 | 15 | 893 | 95 | 800 | 115 | 270 | 8000 |
| ZW155D15W-Z1554 | 15 | 1554 | 155 | 800 | 195 | 380 | 8000 |
| ZW150D15W-Z810 | 15 | 810 | 150 | 800 | 220 | 360 | 8000 |
* Lampholder: G10q/2G11. Custom power and length are available upon request.
✔
Application Areas
Our U-Shape UV lamps are versatile and highly effective for various environments:
- • Air purifiers & Conditioners
- • Disinfection cabinets
- • Microwave ovens
- • Schools & Hotels
- • Restaurants & Offices
- • Residential Home use
📷

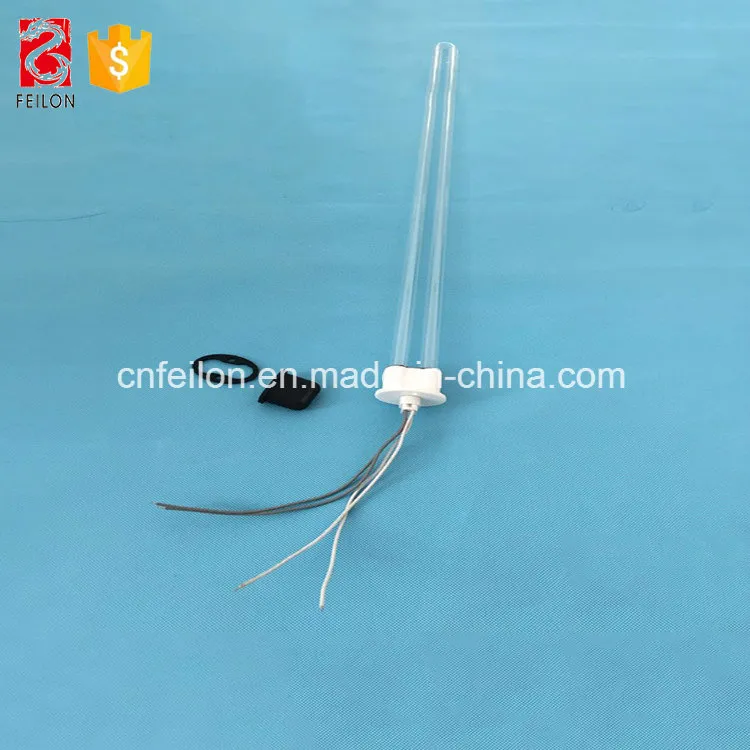

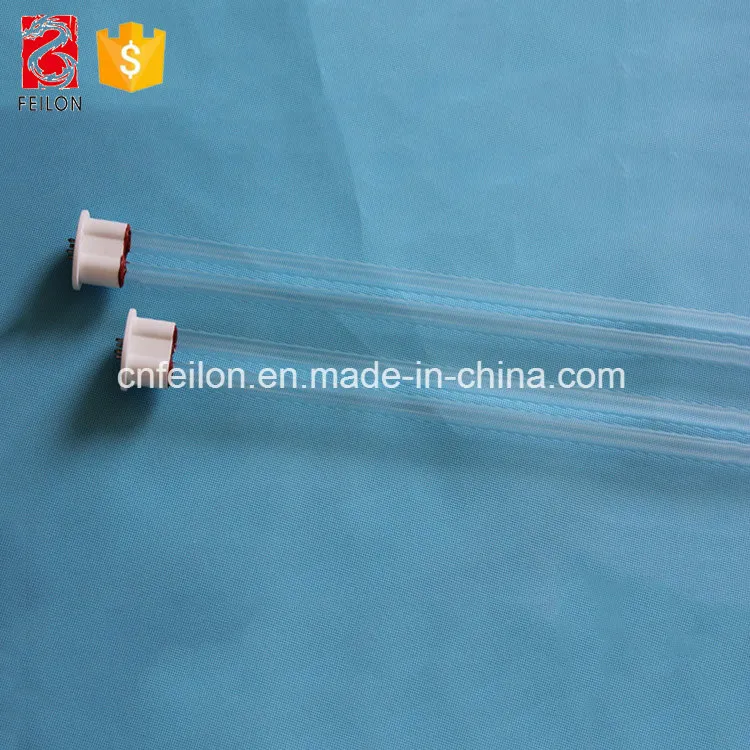

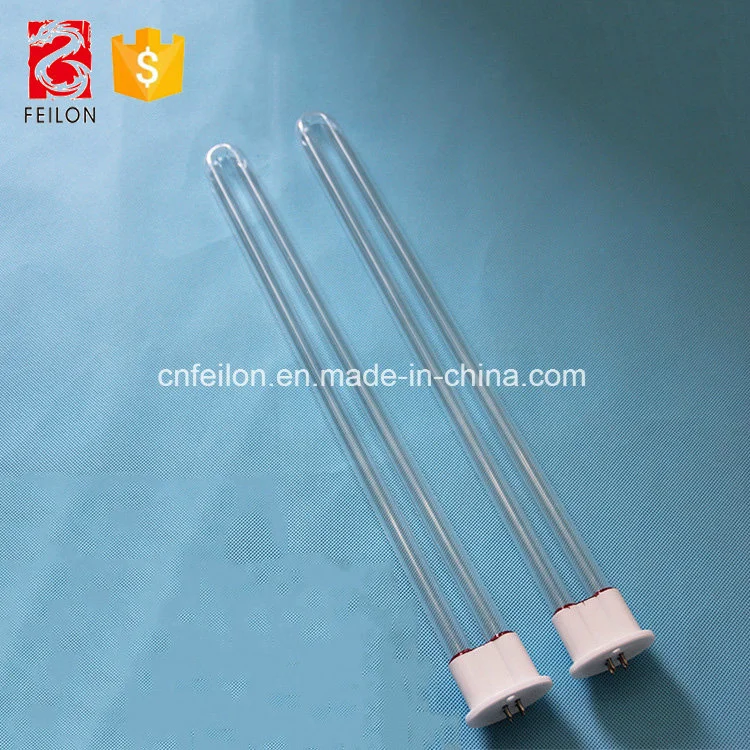

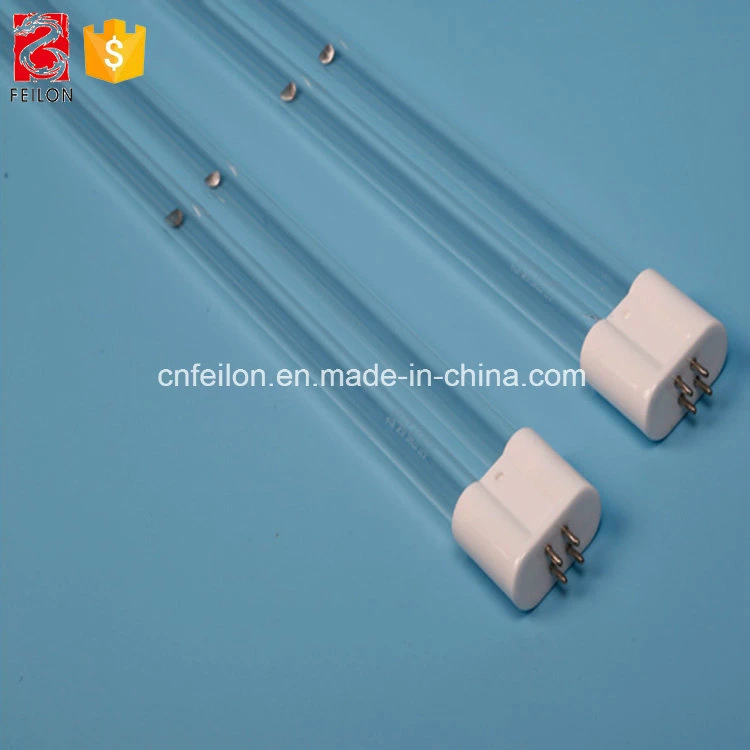

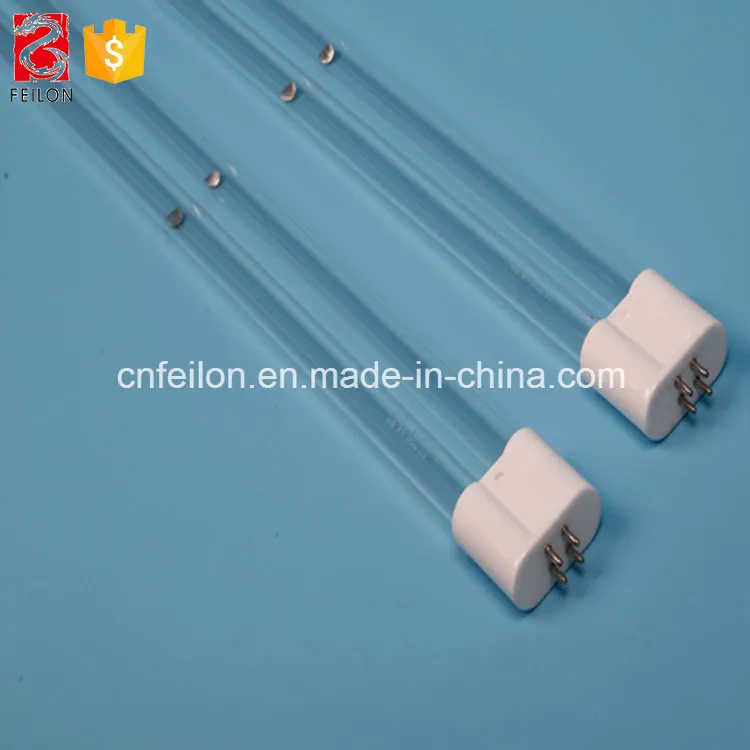

Product Gallery
?
Frequently Asked Questions
How does the U-Shape UV lamp achieve sterilization?
The lamp emits UVC ultraviolet rays that destroy the DNA structure of microorganisms, preventing them from reproducing and causing them to die.
What is the difference between ozone-free and ozone-generating lamps?
Ozone-free lamps emit UV-C at 253.7nm only. Ozone-generating lamps emit both 253.7nm and 185nm wavelengths, which allows them to produce ozone for additional odor removal and disinfection in areas the light cannot reach directly.
What material is used for the lamp tube?
The lamps are made of high-quality Clear Quartz Glass, which ensures maximum UV transmission and durability.
Can I customize the lamp size or power?
Yes, the power and length of the UV lamps can be customized based on specific customer requirements and application needs.
What is the expected lifespan of these UV bulbs?
The average lifetime of our U-Shape UV lamps is approximately 8,000 hours of operation.
What are the common applications for these lamps?
They are widely used in air purifiers, disinfection cabinets, microwave ovens, air conditioners, and for sanitizing surfaces in schools, hotels, and offices.
