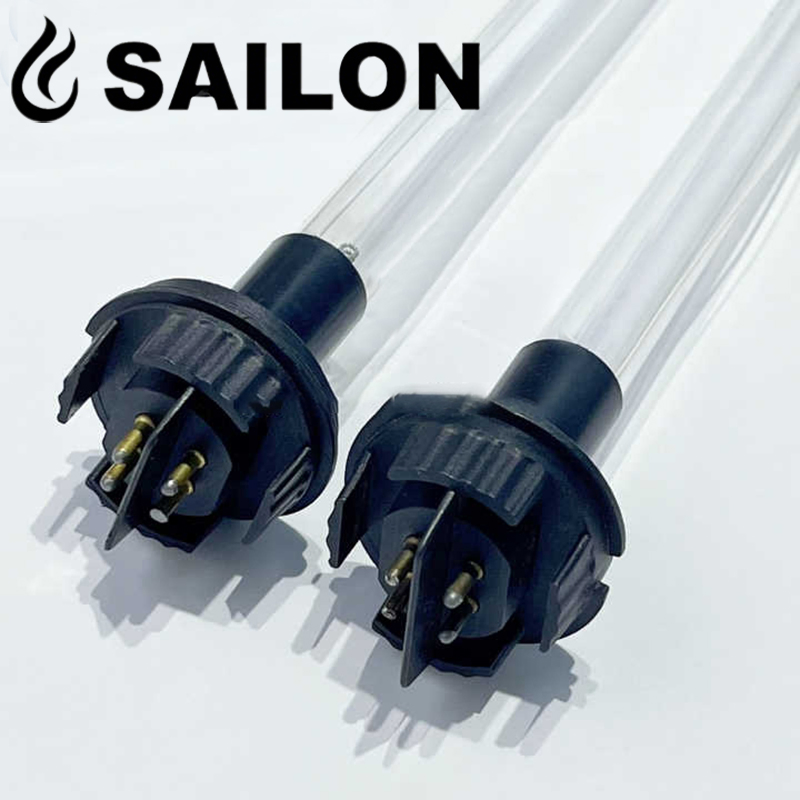

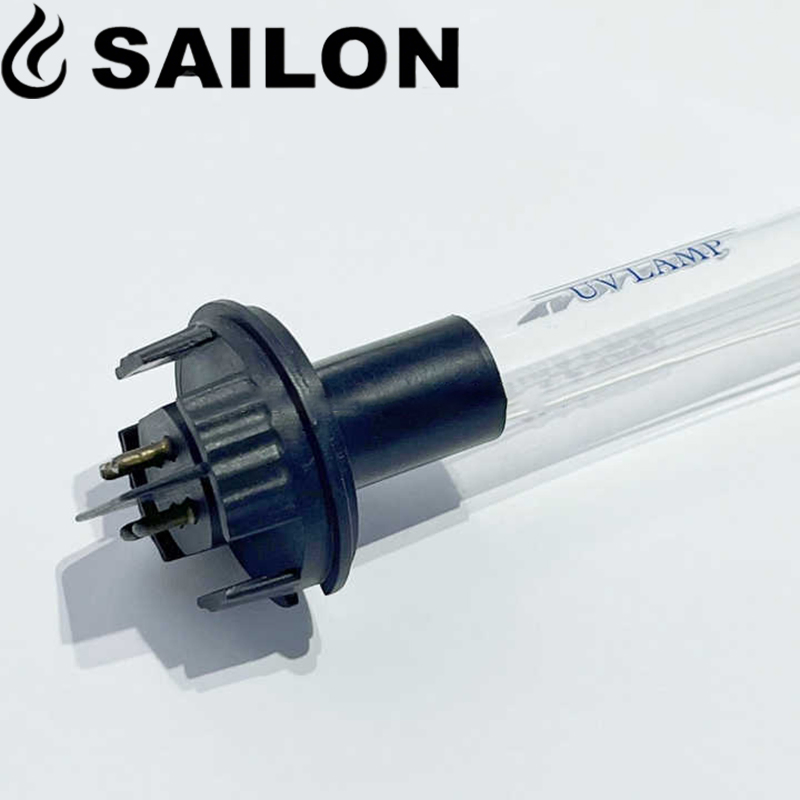

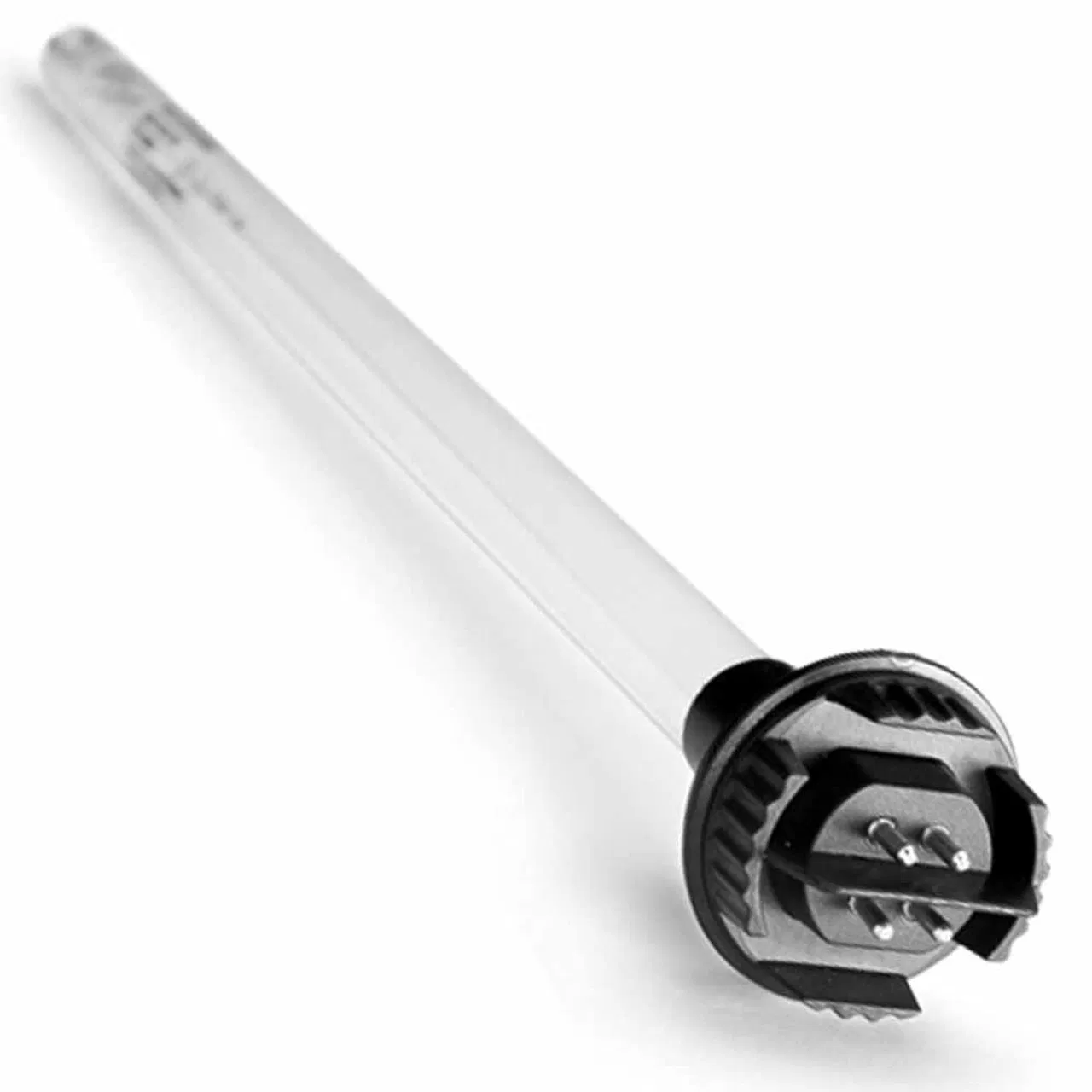

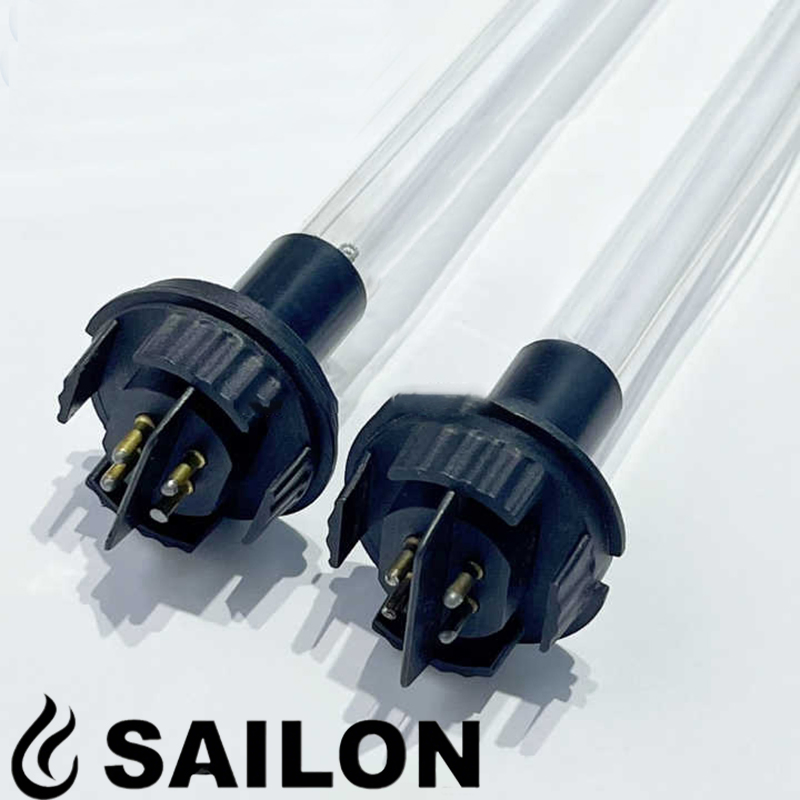

Advanced 602805 Replacement UV Lamp UVC Bulb Goes in The Trojan C/D4 and C/D4 Plus UV Units.
Product Description
Model NO.
602805
Wavelength
UV-C (253.7nm)
Material
Pure Quartz Glass
Lamp Power
40W
Base Type
B29 (4 Pin Single Ended)
Working Life
12,000 hrs
Lamp Length
389 mm
Glass Type
Non-Ozone
High-quality replacement germicidal ultraviolet lamps are manufactured with pure quartz tubing designed to meet or exceed industry standards. Every lamp undergoes 100% quality control inspection to ensure optimal disinfection performance.
- 📍 Length: 389 mm (± 3mm)
- 📍 Bulb Diameter: 15 mm
- 📍 Operating Current: 863mA
- 📍 UV Output: 30mj/Cm²
✨ Features
High-efficiency purified quartz.
Long service life (10000-12000Hrs).
Low energy consumption.
Easy installation & Environmentally friendly.
🚀 Application
Pond water disinfection.
Air purification systems.
Drinking water treatment.
Aquarium and medical sterilization.

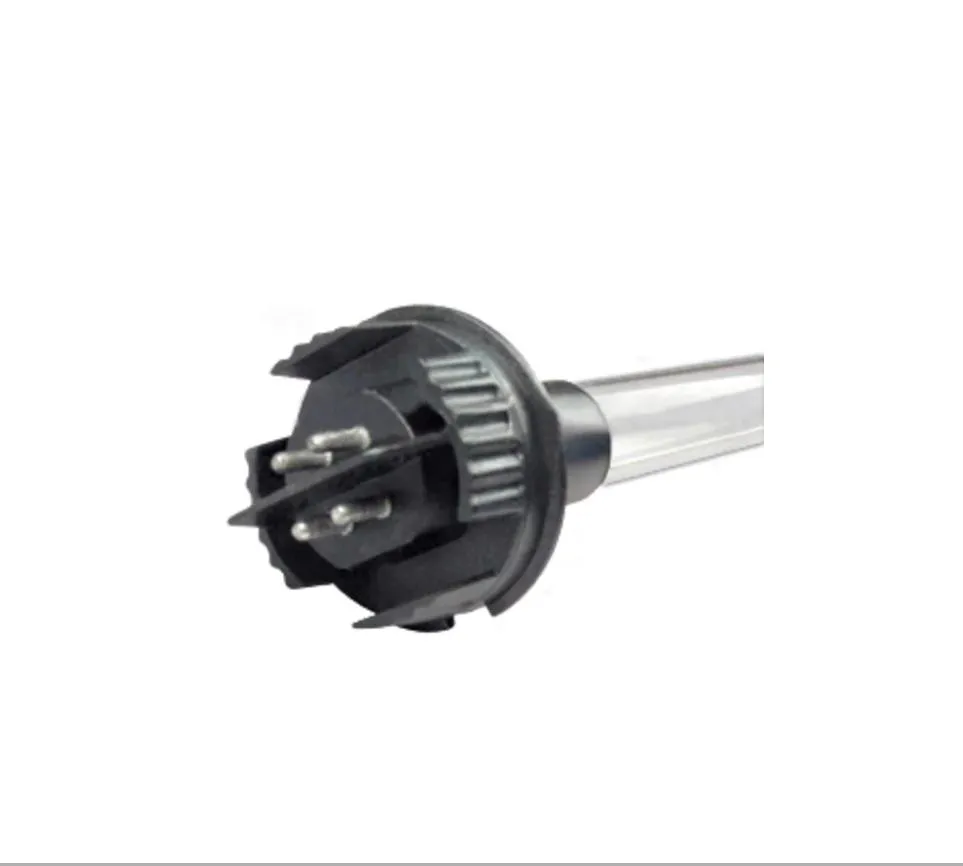

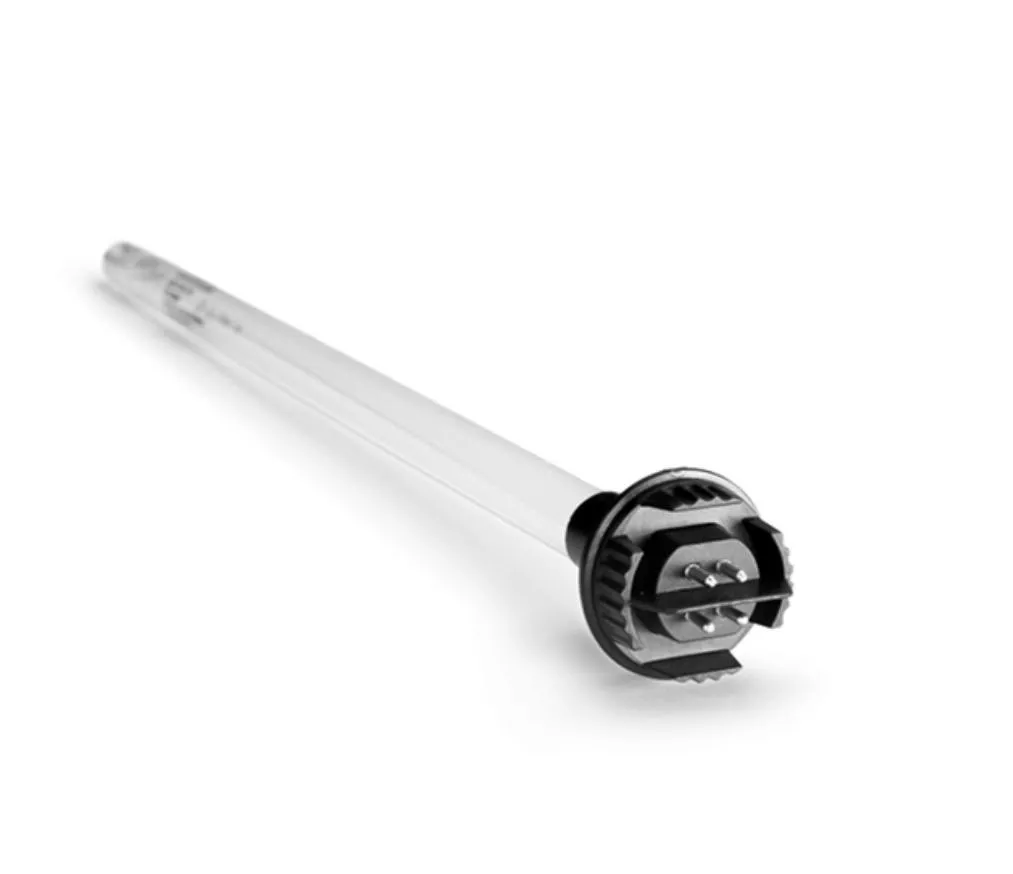

Part.1 Single head, easy replacement

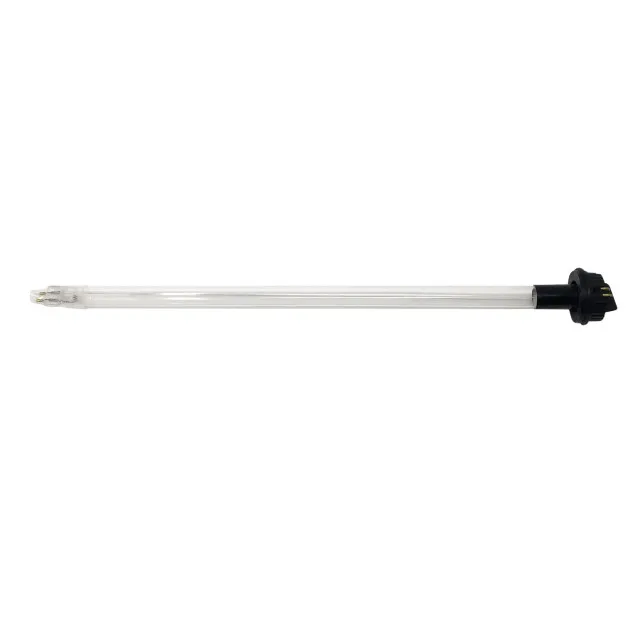

Part.2 254nm short wave UV emission

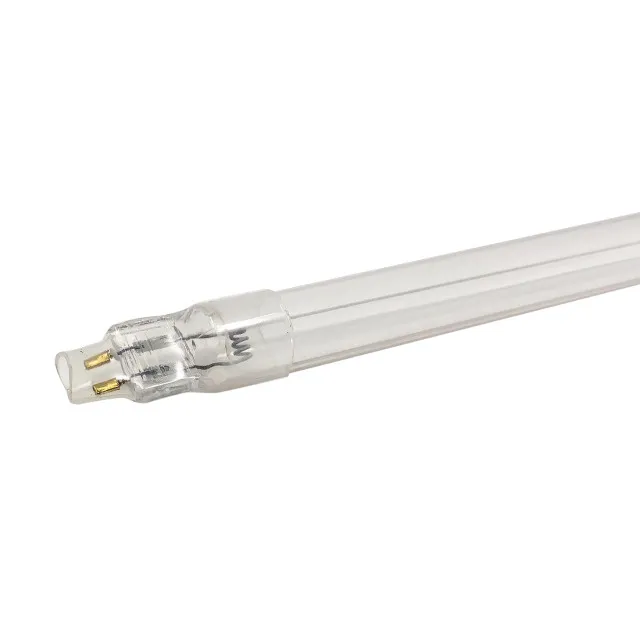

Part.3 Inner protective coating
| Model Type | Tube Dia (mm) | Length (mm) | Power (W) | Current (mA) | Voltage (V) | UV Output (uW/cm2) | Standard Life (h) |
|---|---|---|---|---|---|---|---|
| 602805 | 15 | 389 | 40 | 863 | 46.5 | 110 | 12,000 |
| 602807 | 15 | 986 | 103 | 1200 | 70 | 115 | 12,000 |
Q: Can I request a sample of the UV Lamp first?
A: Yes, samples are available for quality testing and verification.
Q: What is the typical lead time for orders?
A: 5-7 days for samples and 15-20 days for mass cargo production.
Q: What is the warranty period for these UV Lamps?
A: We offer a 1-year warranty on our ultraviolet lamps.
Q: What are the primary applications for these lamps?
A: They are widely used for water treatment, aquariums, medical care, and air purification systems.
Q: What is the difference between normal and amalgam lamps?
A: Amalgam lamps increase UV output efficiency by 2-3 times at the same length and maintain stable high-intensity radiation in environments ranging from 4-60 degrees.
Q: Do you support OEM designs?
A: Yes, we accept OEM orders, including custom packaging and logo branding on products.
