40W UV Germicidal Lamp 254nm for Disinfection with CE Certificate
Product Description
Basic Specifications
Model NO.GPH436T5
WavelengthUV-C (254nm)
MaterialGlass
CertificationCE
OriginChina
HS Code8543709990
Production Capacity50000 Pieces / Month
Package Size80.00cm * 10.00cm * 10.00cm
Gross Weight2.000kg

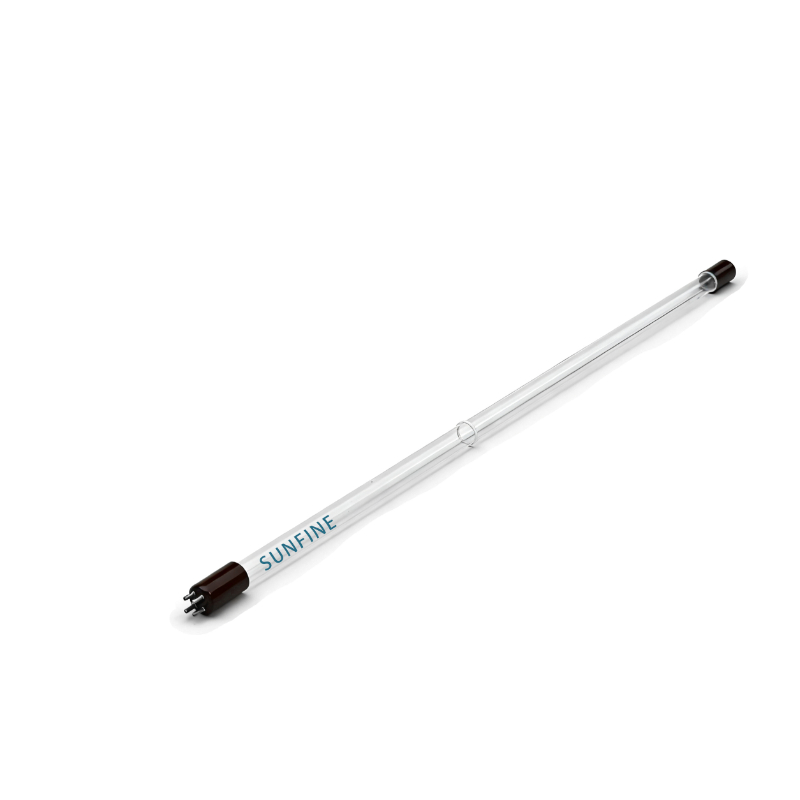

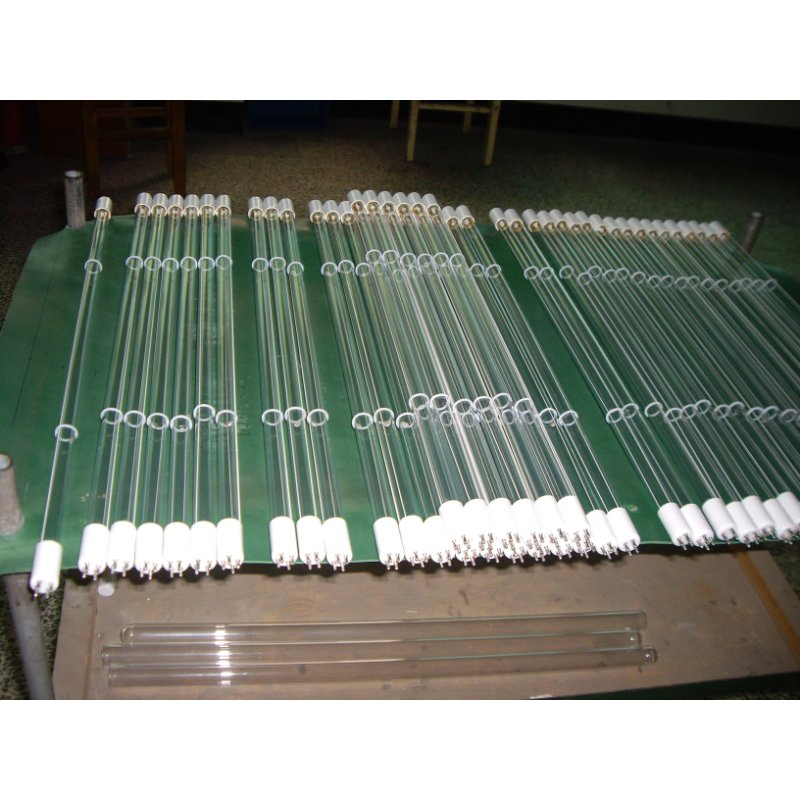

GPH436T5VH UV Germicidal Lamp
✔
The electrode and quartz glass tube are specially treated to extend the life of the lamp and better maintain the output of ultraviolet rays.
✔
Two types of lamp caps are used, which are combined with quartz sleeves with inner diameters of 20mm and 22mm respectively.
✔
High ozone lamp can produce hydroxyl in water, decompose organic matter, and reduce TOC.
| Item | GPH436T5VH |
| Tube diameter | 15 mm |
| BF-BF Length | 436 mm |
| Arc length | 356 mm |
| Power | 21 W |
| Current | 425 mA |
| Voltage at 50/60Hz | 62 V |
Application Range
1. Water Sterilization: Used for pure water, domestic water, ionized water, medical water, and other water sterilization processes in water treatment equipment.
2. Wastewater Treatment: Photocatalytic photocatalyst degrades organic matter in wastewater for industrial treatment.
Frequently Asked Questions
What is the primary wavelength of the GPH436T5VH lamp?
The lamp operates at a primary UV-C wavelength of 254nm, which is highly effective for germicidal disinfection.
What are the power requirements for this UV lamp?
The GPH436T5VH model has a power rating of 21W, operating at a current of 425 mA and a voltage of approximately 62V.
Can this lamp be used for wastewater treatment?
Yes, it is designed for photocatalytic degradation of organic matter in wastewater and general water sterilization.
What makes the "VH" ozone model special?
The high ozone (VH) version can produce hydroxyl in water, which helps in decomposing complex organic substances and reducing Total Organic Carbon (TOC).
How is the lamp protected during transport?
The products are typically packed in wooden boxes to ensure safety during transport, with a standard package size of 80x10x10cm.
What is the expected production capacity for bulk orders?
The current production capacity is approximately 50,000 pieces per month.
