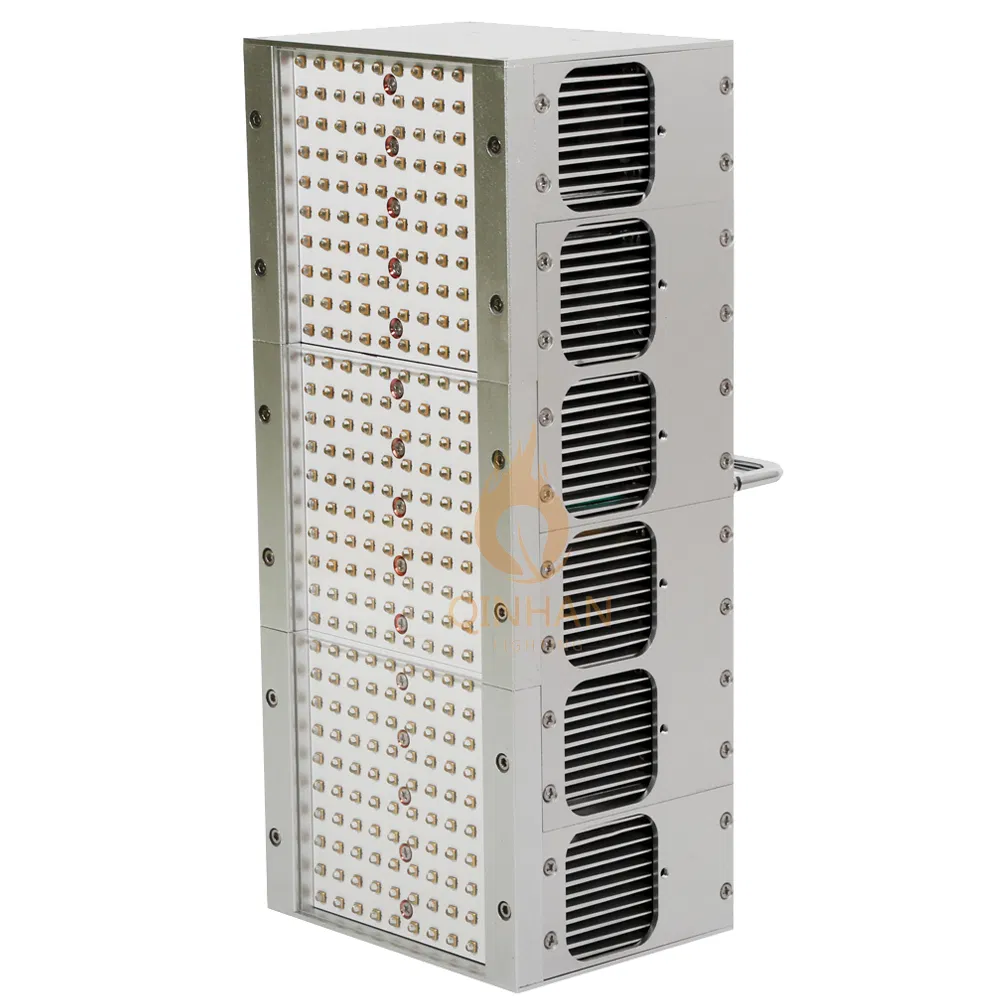

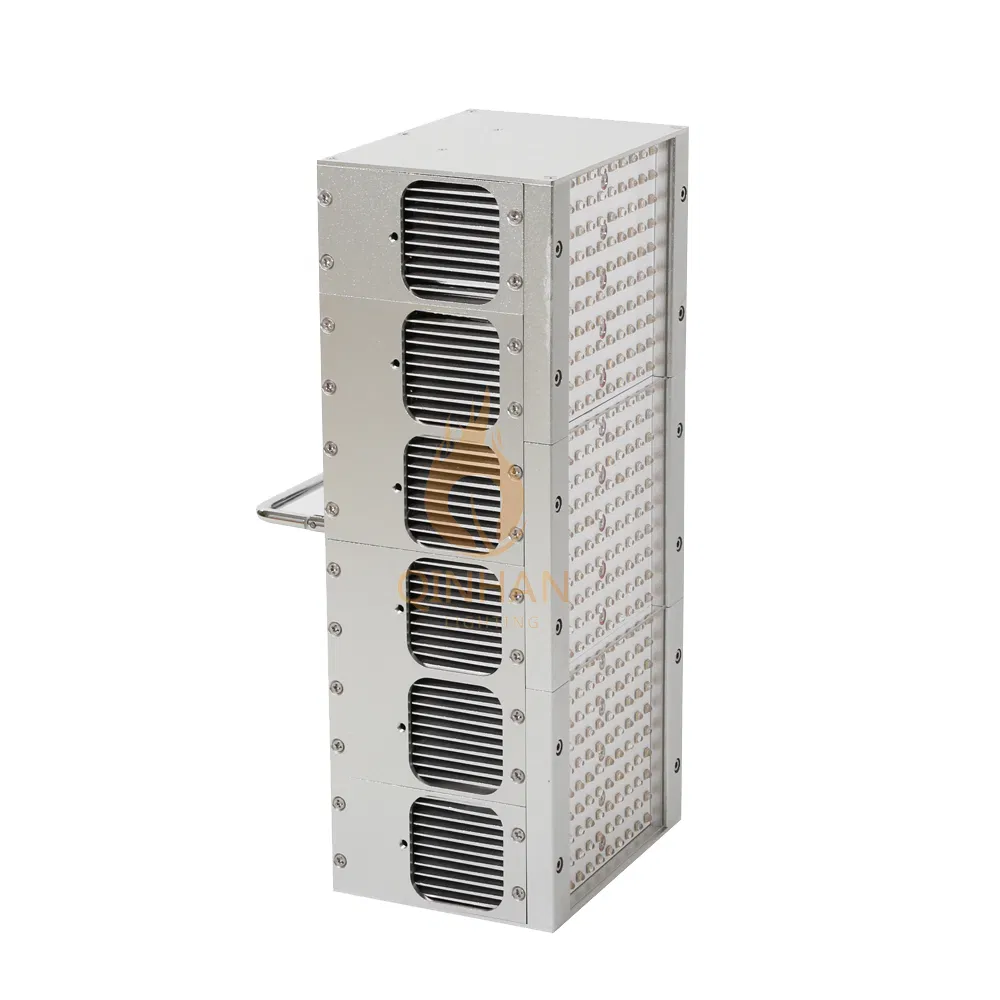

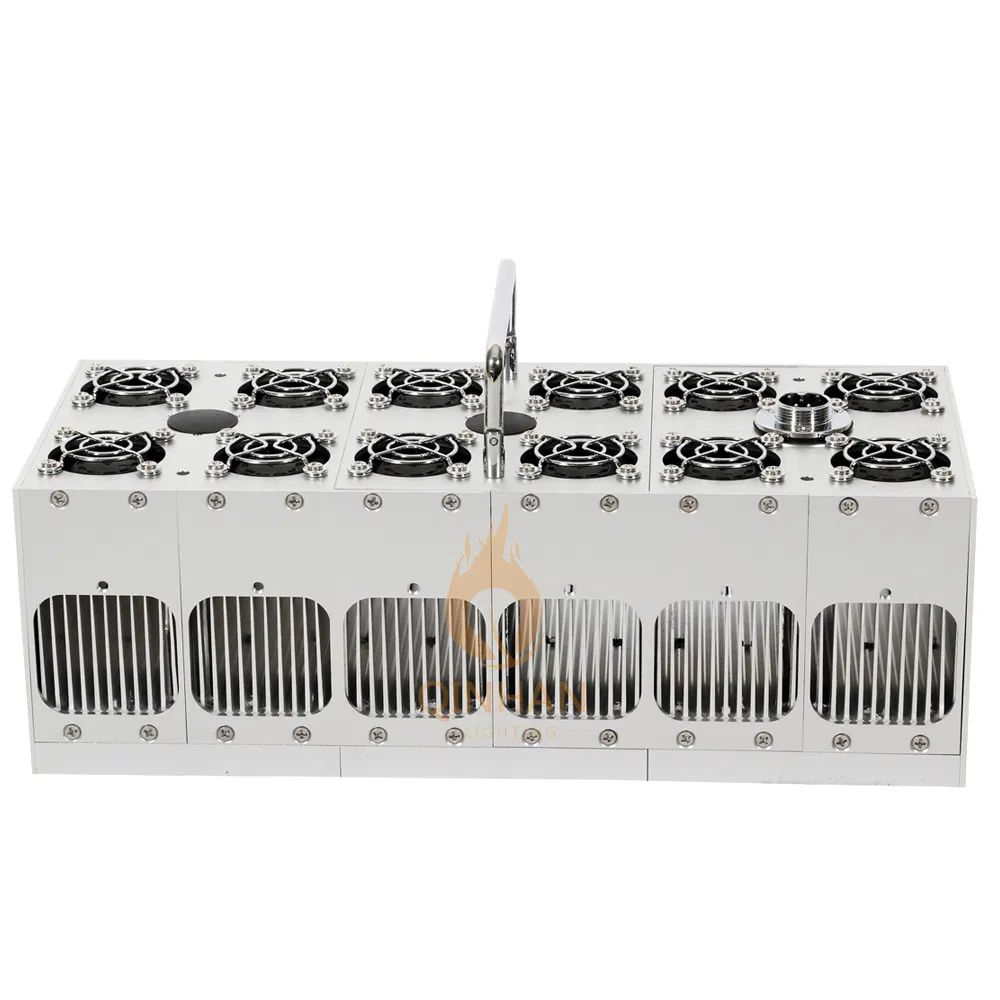

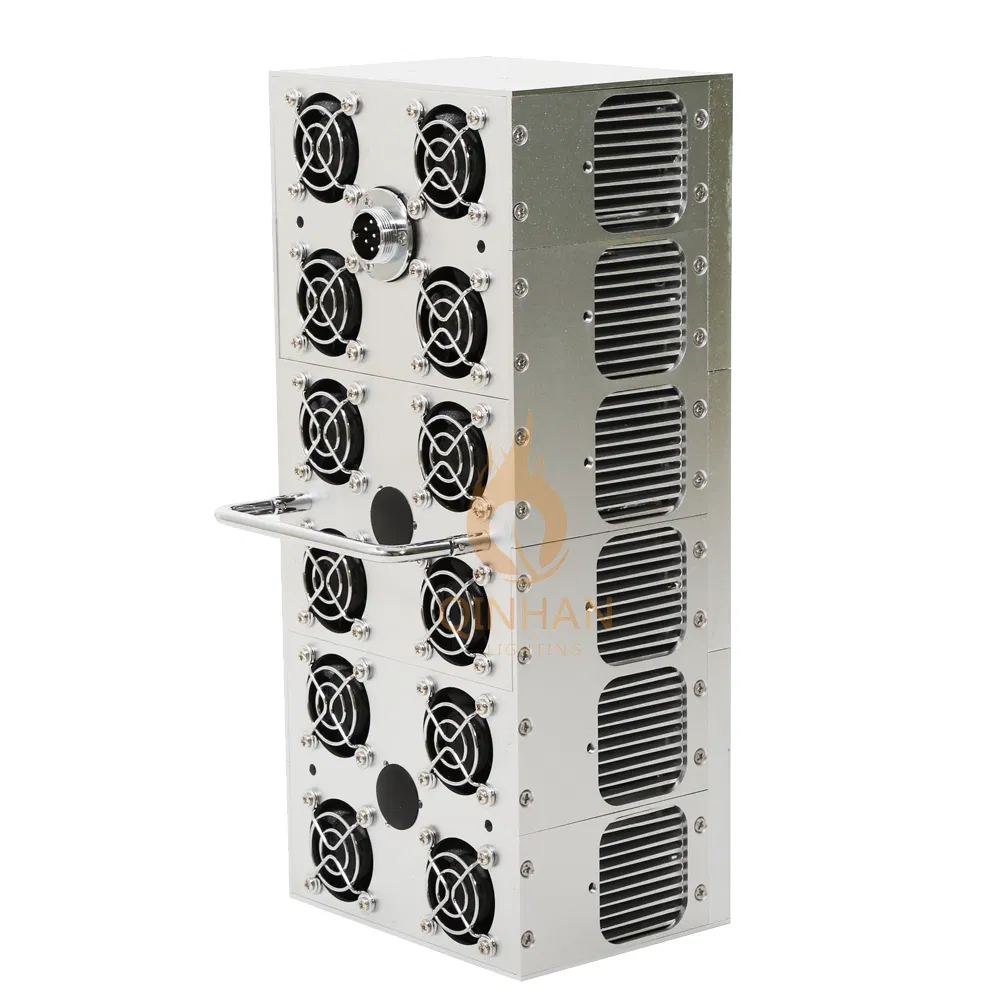

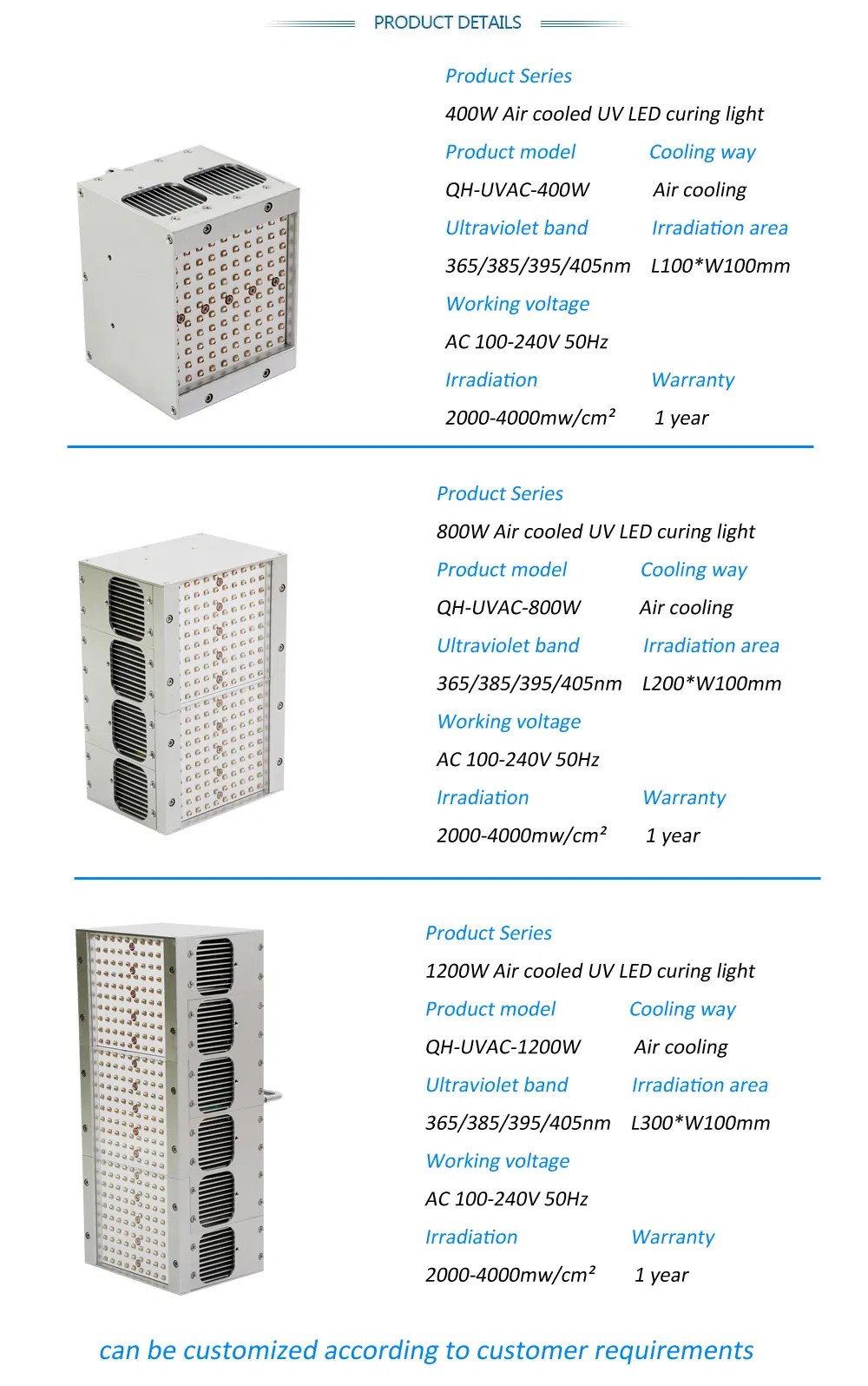

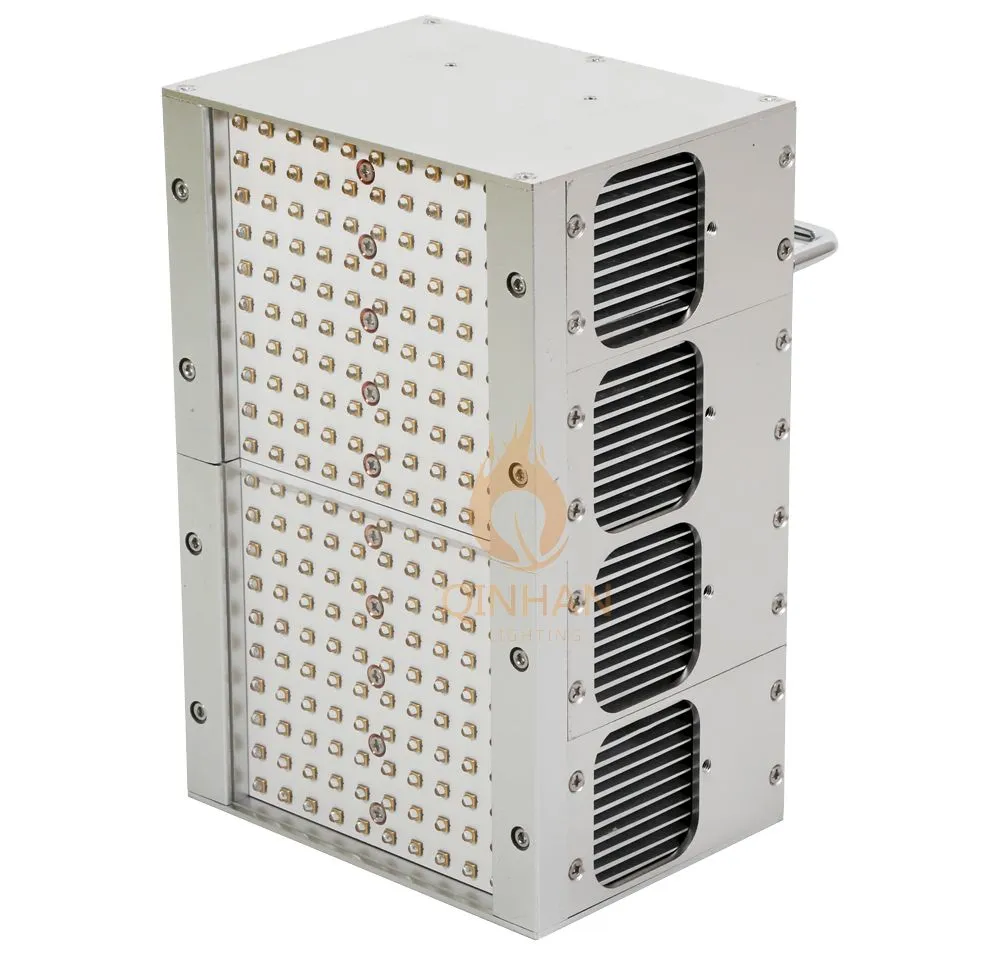

1200W Air-Cooled 365/385/395/405nm Ultraviolet Band Portable UV LED Curing Lamp for UV Glue Curing Machine
Product Description
Basic Information
Model NO.
QH-UVAC-1200W
Wavelength
UV-A
Specification
1200W, L300*W100
Material
Aluminum+UV LED
Certification
CE
Working Voltage
100-277V 50Hz
Ultraviolet Band
365nm/385nm/395nm/405nm
Cooling Way
Air Cooling
Irradiation Area
L300*W100mm
Package Size
75.00cm * 65.00cm * 40.00cm
Gross Weight
18.000kg
Capacity
50,000/PCS
Product Description

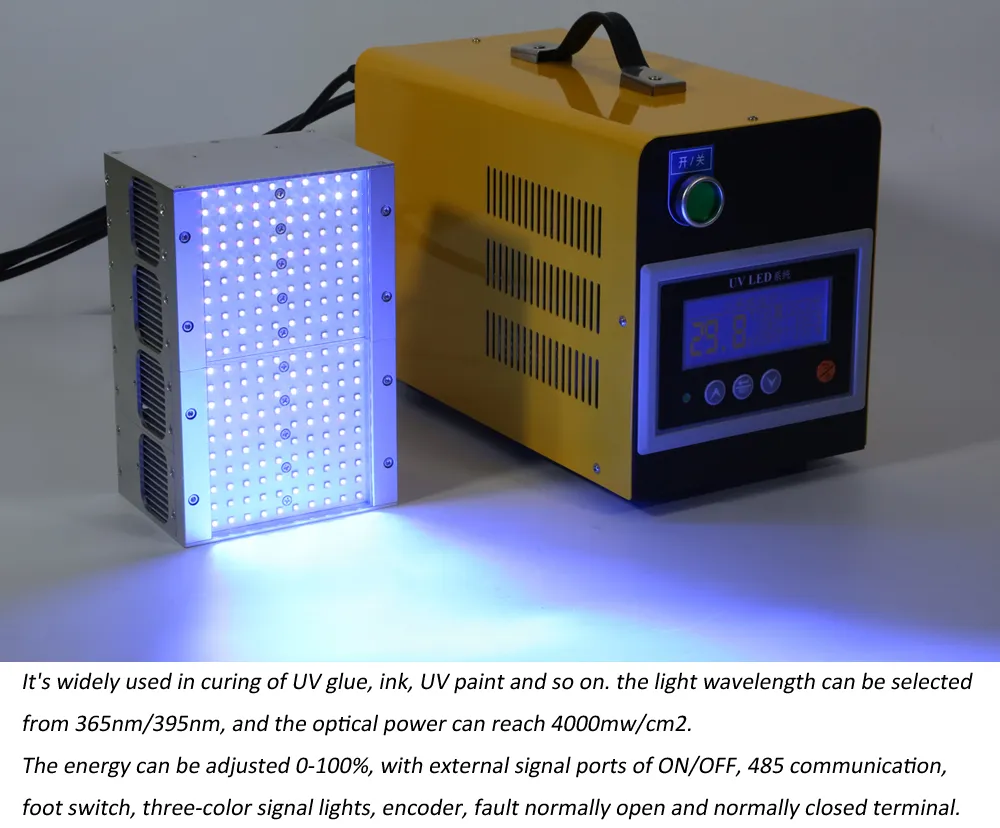

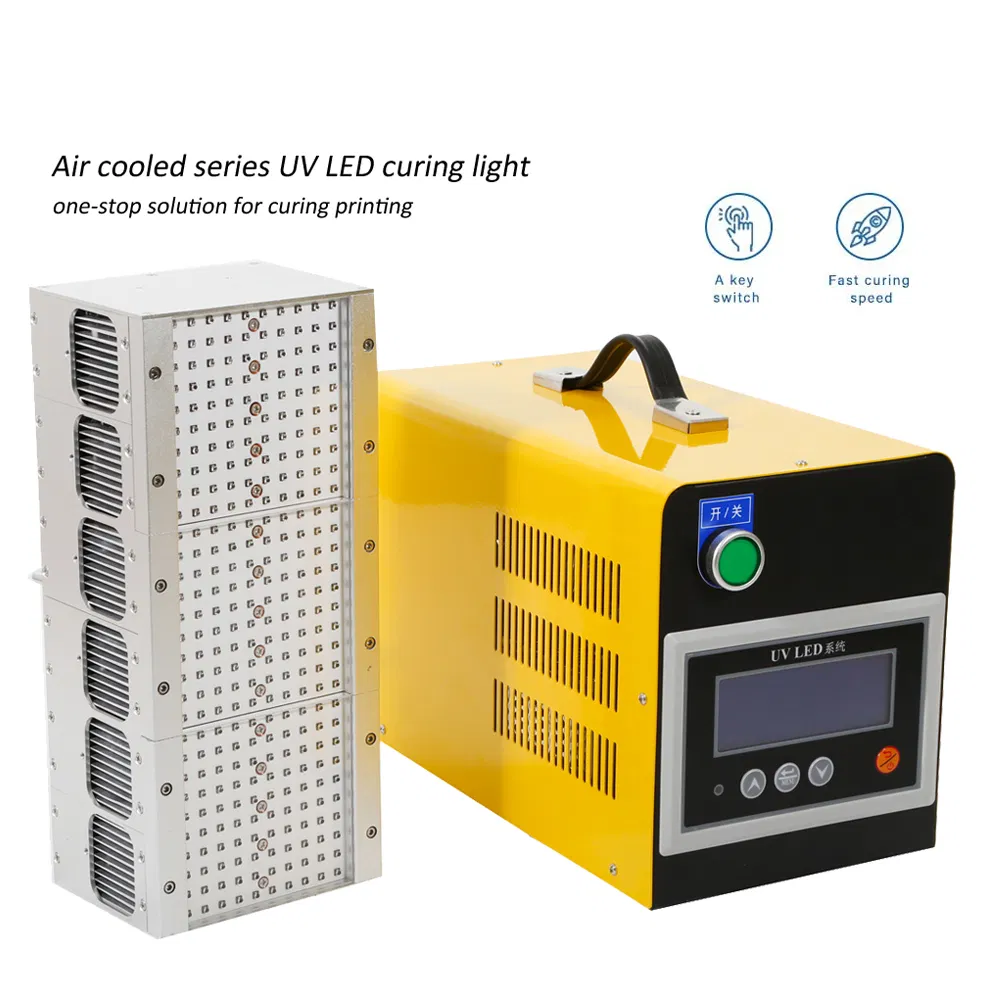

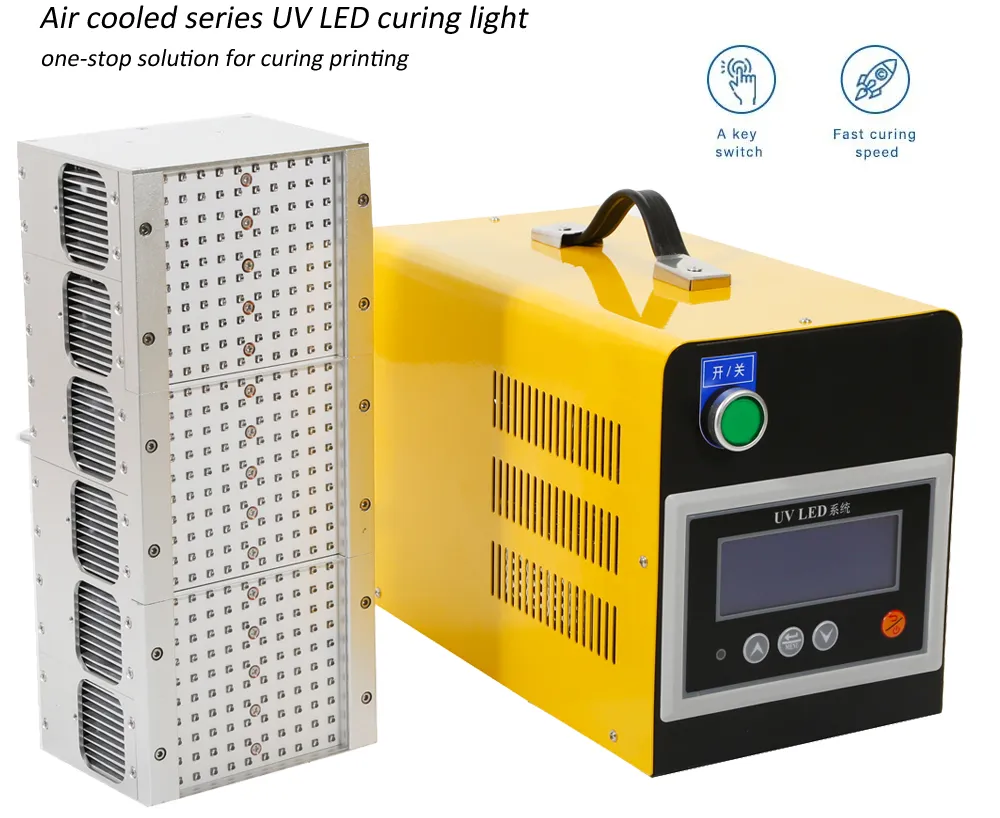

This UV LED curing machine offers advanced functionality, high reliability, and strong anti-interference capabilities. Designed with a flexible installation setup and a sleek appearance, it is ideal for various industrial applications.
Main Technical Parameters
- Operating Voltage: AC220V ± 10%, 50Hz
- Environment Temperature: -15 ~ 60 ºC (Operating), -30 ~ 80 ºC (Storage)
- Humidity Requirement: 0-95% RH
- Working Current: Based on lamp head power / AC220V
- Temperature Display Accuracy: 0.1 ºC
System Characteristics
- Fixed design for easy and stable installation

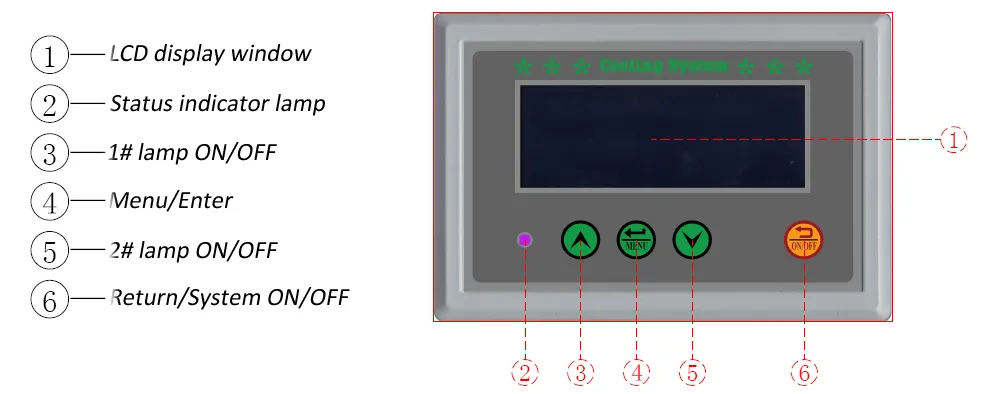

- Dot matrix LCD display with Chinese and English interface options
- Standard MODBUS-RTU communication via 485 interface (optional)
- Comprehensive protection: Overload, phase loss, reverse protection, and high/low voltage protection
- Temperature limit protection for cooling and lamp cap
- Remote and infrared control switch support
Controller Functions
- Real-time monitoring of cooling and set temperatures
- Automatic parameter memory after power failure
- Compressor start-stop delay protection
- Three-phase total power and supply protection display
- Precise PWM power regulation
Troubleshooting
| Fault Phenomenon | Possible Cause | Solution Method |
|---|---|---|
| Driver indicator light is not on | Fuse might be burnt out | Check the fuse box behind the device and replace if necessary. |
| Illumination lamp head does not light up | No voltage output in LED channel | Use a multimeter to check voltage output in channels 1 and 2. |
| Illumination lamp head does not light up | Signal port switch disconnected | Measure control signal interface for closing signals using a multimeter. |
Frequently Asked Questions
Q1: What is the lead time for orders?
Lead time is typically 3-5 days for sample orders and 5-10 days for massive production orders.
Q2: What shipping methods are available?
We support door-to-door delivery, air-shipping, and sea-shipping to meet your logistics needs.
Q3: What are the accepted payment terms?
We accept T/T, L/C at sight, and Western Union for secure transactions.
Q4: Do you offer OEM or ODM services?
Yes, both OEM and ODM services are welcomed to customize products based on your requirements.
Q5: How is the product warranty handled?
Any defective products within the warranty period will receive unconditional maintenance or replacement.
Q6: Are there discounts for bulk orders?
Yes, we offer competitive discounts based on the total order quantity.
